Anton by Crowcon: Anton Sprint Pro1 Multifunction Flue Gas Analyser Kit

Anton by Crowcon

£528.30 / £633.96 incl VAT

⚡ Perform critical test measurements with a single device, eliminating the need for multiple tools.
⚡ Suitable for various setups, including gas, oil, coal, and wood pellet-powered boilers in residential or commercial environments.
⚡ Easy-to-use interface for efficient operation in diverse settings.
⚡ Built to last with a robust design and troubleshooting capabilities.
⚡ Features a triple-filter water trap system for total hydrophobic protection.

Only 1 left in stock (can be backordered)

Price Pledge

Description

Anton by Crowcon: Sprint Pro1 Kit (CO, O2, (CO2 Calculated)

Product Details:

The Anton Sprint Pro1 Multifunction Flue Gas Analyser is a versatile tool designed for professional plumbers, oil engineers, and commissioning professionals. This analyzer is equipped to measure carbon dioxide (CO₂), carbon monoxide (CO), and oxygen (O₂), providing comprehensive data for precise analysis. Additionally, it calculates CO: CO₂ ratios, measures various temperatures (including differential, flow, return, and excess air), and performs BS7967 CO sweep tests.

The device goes beyond basic functionalities by creating BS7967 CO room safety reports, ensuring compliance with safety standards. Its water-stop technology and robust integrated condensation trap, complete with a particulate filter, effectively minimize downtime, enhancing the reliability of the Anton Sprint Pro1. This multifunctional flue gas analyser stands out as an ideal solution for professionals who prioritize accuracy, efficiency, and durability in their work.

For full information and specifications on this analyser, see the Anton Sprint Pro1 Multifunction Flue Gas Analyser.

Key Features:

  • Measurement ranges: CO, O2, and temperature
  • Calculation: Combustion efficiency, CO/CO2 ratio and CO2 level
  • Carry case and flue probe provided
  • Water stop technology provides double protection against water ingress
  • Condensate trap is easier to empty and clean
  • BSI tested to EN50379:2012 1 & 3
  • Robust construction designed for professional engineers
  • Intuitive, menu-driven software
  • High-contrast colour screen
  • USB-C charging and connectivity
  • Secure click in flue probe
  • Over range protection for sensors

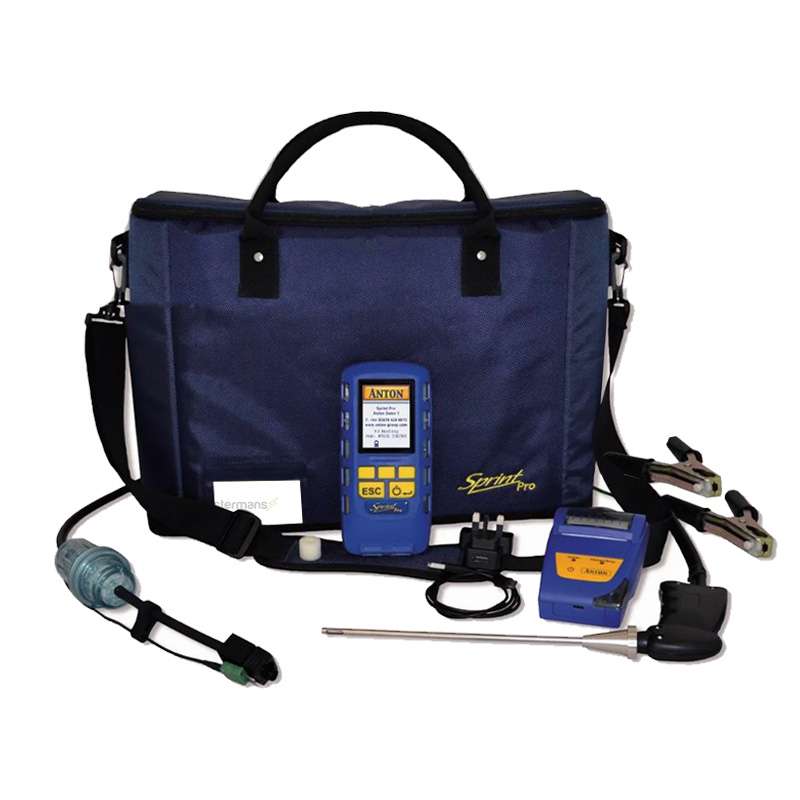

What’s Included:

  • Anton Sprint Pro1 Flue Gas Analyser
  • USB charger & USB charger/comms lead

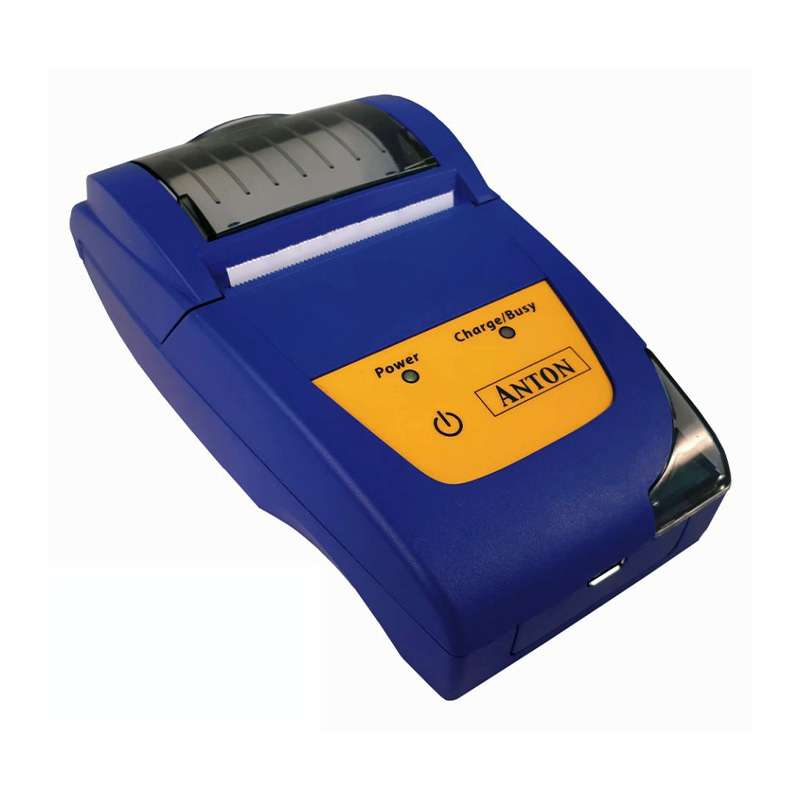

  • Anton wireless IR printer
  • Sprint Pro Quick Drop in Bag
  • Sprint Pro Flue Gas Probe with water stop technology
  • Anton AS10 pipe clamp temperature probe
  • Spare dust filter
  • Calibration certificate
  • Certificate of conformity
  • Quick start guide

kit contents listed in the comparison chart below:

Anton Sprint Pro1 Kit Comparison

Pro1 Only Pro1 Kit Pro1 Oil Pro1 Probe Pro1 Safety
What’s Included?
Sprint Pro1 Flue Gas Analyser
Standard Accessories
AS-10 Clamp Pipe Temperature Probe 1 2 2 2
Pressure Relief Valve
IR Printer/Sprinter Printer USB
Pro BS7967 Probe Set
Clip SGD personal CO
Extendable Probe Handle
Sprint Pro Bent Flue Probe with Water Trap
Sprint Pro Oil Boiler Kit with 3 Micron Filter
ASPK Smoke Pump Kit
Oil Pressure Kit

Specifications

Size W183 x H85 x D50 mm
Weight 490g
Display Colour LCD display with backlight
Logging 400 reports (dependent on type)
Battery Rechargeable Li-ion
Operating time CO & O2  Sensor Fit

  • ~ 14 hours without pump running*
  • > 5 hours pump running continuously*

CO, O2, NO & CO2 Sensor Fit

  • ~ 8 hours without pump running*
  • > 4 hours pump running continuously*

*No gas escape probe connected

Operating temperature -10°C to +50°C
Storage temperature -20°C to +50°C
Function buttons 5 button keypad
Standards BSI tested to EN50379-1:2012 & EN50379-3:2012 Suitable for engineers working with BS7967:2015
Enclosure Ruggedized protective
Integral magnets
Indoor use
IP40
Pump Internal pump with flow fail indication
Standard Fuels Natural gas (methane), LPG, Heavy oil, Light oil, Coal, Wood, Wood pellet, Coke, Biomass and Bagasse.
Probe Insertion length: 250 mm with adjustable depth gauge.

Ergonomic pistol grip with stainless steel shaft, in-built with thermocouple, in line water trap with water block filter & dust filter, bespoke connector with secondary in-built water block filter.

Overall Hose Length: 2164 mm

Charger Input: USB-C
Temperature Range: 0°C – 40°C

Measurements

Gas Range Display

Resolution

Accuracy Response Time (t90)
Oxygen 0-21% 0.1% ±0.3% < 30 sec
Carbon Monoxide 0 – 200ppm

200 – 2,000ppm

2,000 – 5,000ppm

1ppm ± 10ppm or 10%rel

± 20ppm or 5%rel.

± 100ppm or 10%rel

< 45 sec
Carbon Dioxide (calculated) 0-21% 0.1% ±0.3% < 30 sec
CO/CO2 Ratio 0 to 0.9999 0.0001
NO (where fitted) 0 – 200ppm 1ppm ± 5ppm or 1.5%rel < 45 sec
NOx Calculated (where NO is fitted) 0-210ppm 1ppm ± 5ppm or 1.5%rel < 45 sec
Flue Temperature Measurement 5°C to 400°C 1°C ±2°C or 1.5% of reading
XS Air 0-100%

Room Safety Test & Ambient Air Monitoring

Gas Range Display

Resolution

Accuracy Response Time (t90)
CO 0 – 200ppm

200 – 2,000ppm

2,000 – 5,000ppm

1ppm ± 10ppm or 10%rel.

± 20ppm or 5%rel.

± 100ppm or 10%rel.

< 45 sec [45 sec]
CO2* *Where sensor fitted 0.01% ± 10% @ 20°C < 60 sec
  • Anton Sprint Pro1 Flue Gas Analyser
  • USB charger & USB charger/comms lead
  • Anton wireless IR printer
  • Sprint Pro Quick Drop in Bag
  • Sprint Pro Flue Gas Probe with water stop technology
  • Anton AS10 pipe clamp temperature probe
  • Spare dust filter
  • Calibration certificate
  • Certificate of conformity
  • Quick start guide
