Chauvin Arnoux CA8331B Qualistar+ 3 Phase Power Analyser – Without Flexi Power Current Clamps
£1,813.56 / £2,176.27 incl VAT
⚡ TRMS AC+DC voltage and current, frequency
⚡ Power values: W, VA, var, VAD, PF, DPF, cos φ, tan φ
⚡ Energy values: Wh, varh, VAh, VADh, , BTU, toe, Joule
⚡ Harmonics from 0 to the 50th order, phase
⚡ Flicker (Pst and Plt)
Description

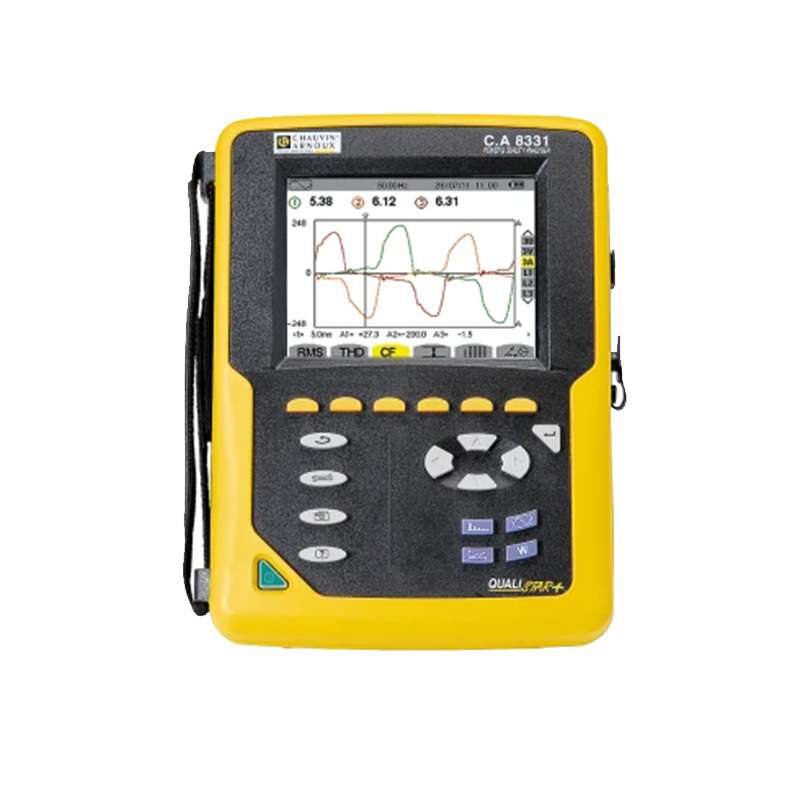

Chauvin Arnoux CA8331B Qualistar+ 3 Phase Power Analyser Without Flexi Power Current Clamps
Product Description:
The Chauvin Arnoux CA8331B Qualistar+ Power Analyser is an advanced, versatile instrument designed for professionals in test and maintenance departments within industrial and administrative buildings. It is specifically built to provide detailed insights into the quality of the electrical network. With its user-friendly and compact design, the CA8331B is capable of simultaneously displaying a broad range of parameters that characterize electrical system performance. This includes real-time monitoring of key factors such as voltage, current, power, energy, and harmonics. The analyser features 3 voltage and 3 current measurement channels, and when current sensors (sold separately) are connected, the device automatically recognizes them for accurate readings. It supports various current sensor types and allows configuration of measurement ratios for direct readings.
The Qualistar+ CA8331B is suitable for measuring electrical systems operating up to 1,000 V in CAT III and 600 V in CAT IV environments. Designed for fieldwork, the analyser is highly durable and features a large TFT colour screen for easy viewing of data, including various calculated and processed values. The optional Dataview® software can be used to process data, though it is not included in this package.
Key Features:
- Equipped with 3 voltage and 3 current measurement channels
- Automatically recognizes connected current sensors
- Large colour TFT screen for clear, easy reading
- TRMS AC + DC voltage and current measurements
- Measures power values such as W, VA, var, VAD, PF, DPF, cos φ, tan φ
- Measures energy values including Wh, varh, VAh, VADh, BTU, toe, and Joule
- Supports harmonic analysis from 0 to the 50th order
- Flicker analysis (Pst and Plt)
- Capable of recording parameters at maximum sampling rate for 4 hours to 2 weeks
- Peak detection and vectorial representation for advanced analysis
- IP53 and IK08-rated for high durability in fieldwork conditions
- USB communication for easy data transfer
- Includes safety datasheet and multi-language operating manual
- 3-year warranty
What’s Included:
- Chauvin Arnoux CA8331 Qualistar+ Power Analyser Logger
- 4 x 4mm Black Banana Voltage Leads (3m Length)
- 4 x Black Crocodile Clips
- Set of 12 Colour Inserts/Rings (for Identifying Leads/Inputs)
- Scratch-Proof Screen-Protection Film
- Type A-B USB cord
- Specific mains power unit and mains cord
- Mains Power Pack
- Safety Datasheet
- Multi-Language Operating Manual CD
- Power Analyser Transfer Software Package (on CD)
- Heavy Duty Carry Bag
- Battery
- Three Year Warranty
TO VIEW THE BROCHURE AND TECHNICAL DETAILS CLICK ON THE IMAGE BELOW:
Product Video:
Below, we have included a comparison table showing the key features of each of the Chauvin Arnoux CA series analyers. This table is intended to help you make an informed purchasing decision.
| CA 8331 | CA 8333 | CA 8336 | CA 8436 | |
|---|---|---|---|---|
| # of channels | 3U/4I | 3U/4I | 4U/4I | 4U/4I |
| # of inputs | 4V/3I | 4V/3I | 5V/4I | 5V/4I |
| IEC 61000-4-30 | N/A | EN50160 reports | EN50160 reports | EN50160 reports |
| Voltage (TRMS AC+DC) | 2V – 1000V | 2V – 1000V | 2V – 1000V | 2V – 1000V |
| Voltage ratio | Up to 500kV | Up to 500kV | Up to 500kV | Up to 500kV |
| Current (TRMS AC+DC) | ✔ | ✔ | ✔ | ✔ |
| MN clamps | MN93: 500 mA to 200 AAC ; MN93A: 0.005 AAC to 100 AAC | MN93: 500 mA to 200 AAC ; MN93A: 0.005 AAC to 100 AAC | MN93: 500 mA to 200 AAC ; MN93A: 0.005 AAC to 100 AAC | MN93: 500 mA to 200 AAC ; MN93A: 0.005 AAC to 100 AAC |
| C193 clamps | 1A to 1,000 AAC | 1A to 1,000 AAC | 1A to 1,000 AAC | 1A to 1,000 AAC |
| AmpFlex or MA clamps | 100mA to 10,000AAC | 100mA to 10,000AAC | 100mA to 10,000AAC | 100mA to 10,000AAC |
| PAC93 clamp | 1A to 1,300 AAC/DC | 1A to 1,300 AAC/DC | 1A to 1,300 AAC/DC | 1A to 1,300 AAC/DC |
| E3N clamp | 50mA to 100 AAC/DC | 50mA to 100 AAC/DC | 50mA to 100 AAC/DC | 50mA to 100 AAC/DC |
| J93 | 50A to 3,500 AAC/5000 ADC | |||
| Current ratio | Up to 60kA | Up to 60kA | Up to 60kA | Up to 60kA |
| Frequency | 40Hz to 69Hz | 40Hz to 69Hz | 40Hz to 69Hz | 40Hz to 69Hz |
| Power | W (P), VA (S), var (N, Q1, D), VAD, PF, DPF, cos f, tan f | W (P), VA (S), var (N, Q1, D), VAD, PF, DPF, cos f, tan f | W (P), VA (S), var (N, Q1, D), VAD, PF, DPF, cos f, tan f | W (P), VA (S), var (N, Q1, D), PF, DPF, cos f, tan f |
| Energy | Wh, varh (Nh, Q1h, Dh), VAh | Wh, varh (Nh, Q1h, Dh), VAh | Wh, varh (Nh, Q1h, Dh), VAh | Wh, varh (Nh, Q1h, Dh), VAh |
| Harmonics | ✔ | ✔ | ✔ | ✔ |
| THD | ✔ (0-50th order) | ✔ (0-50th order) | ✔ (0-50th order) | ✔ (0-50th order) |
| Expert Mode | ✔ | ✔ | ✔ | |
| Transients | 50 | 210 | 210 | |
| Flicker | PST | PST | PST & PLT | PST & PLT |
| Unbalance | Yes | Yes | Yes | Yes |
| Recording – min/max | Yes | Yes | Yes | Yes |
| of a selection of parameters at max. sampling rate | 4 hrs to 2 weeks | Afew days to sevearl weeks | 2 weeks to several years | 2 weeks to several years |
| Alarms | 4000 to 10 different types | 10000 to 40 different types | 10000 to 40 different types | |
| Peak | Yes | Yes | Yes | Yes |
| Vectorial representation | Automatic | Automatic | Automatic | Automatic |
| Display | Colour 1/4 VGA TFT – 320 x 240 | Colour 1/4 VGA TFT – 320 x 240 | Colour 1/4 VGA TFT – 320 x 240 | Colour 1/4 VGA TFT – 320 x 240 |
| Capture of screens & curves | 12 | 12 | 50 | 50 |
| Electrical safety | IEC 61010 1 000 V CAT III / 600 V CAT IV | IEC 61010 1 000 V CAT III / 600 V CAT IV | IEC 61010 1 000 V CAT III / 600 V CAT IV | IEC 61010 1 000 V CAT III / 600 V CAT IV |
| Ingress protection | IP53 | IP53 | IP53 | IP67 |
| Languages | 27+ | 27+ | 27+ | 27+ |
| Battery life | up to 13 hours | up to 13 hours | up to 13 hours | up to 13 hours |
| Interface | USB | USB | USB | USB |
| Power supply | 9.6 V NiMH battery or mains power supply | 9.6 V NiMH battery or mains power supply | 9.6 V NiMH battery or mains power supply | 9.6 V NiMH battery or mains power supply |
| EN50160 report | Yes – DataView Software | Yes – DataView Software | Yes – DataView Software | |
| Dimensions/weight | 240 x 180 x 55 – 1.9kg | 240 x 180 x 55 – 1.9kg | 240 x 180 x 55 – 1.9kg | 270 x 250 x 180mm / 3.7kg |
| Warranty | 3 years | 3 years | 3 years | 3 years |
What’s In The Box?
- Chauvin Arnoux CA8331 Qualistar+ Power Analyser Logger
- 4 x 4mm Black Banana Voltage Leads (3m Length)
- 4 x Black Crocodile Clips
- Set of 12 Colour Inserts/Rings (for Identifying Leads/Inputs)
- Scratch-Proof Screen-Protection Film
- Type A-B USB cord
- Specific mains power unit and mains cord
- Mains Power Pack
- Safety Datasheet
- Multi-Language Operating Manual CD
- Power Analyser Transfer Software Package (on CD)
- Heavy Duty Carry Bag
- Battery
- THREE YEAR WARRANTY
