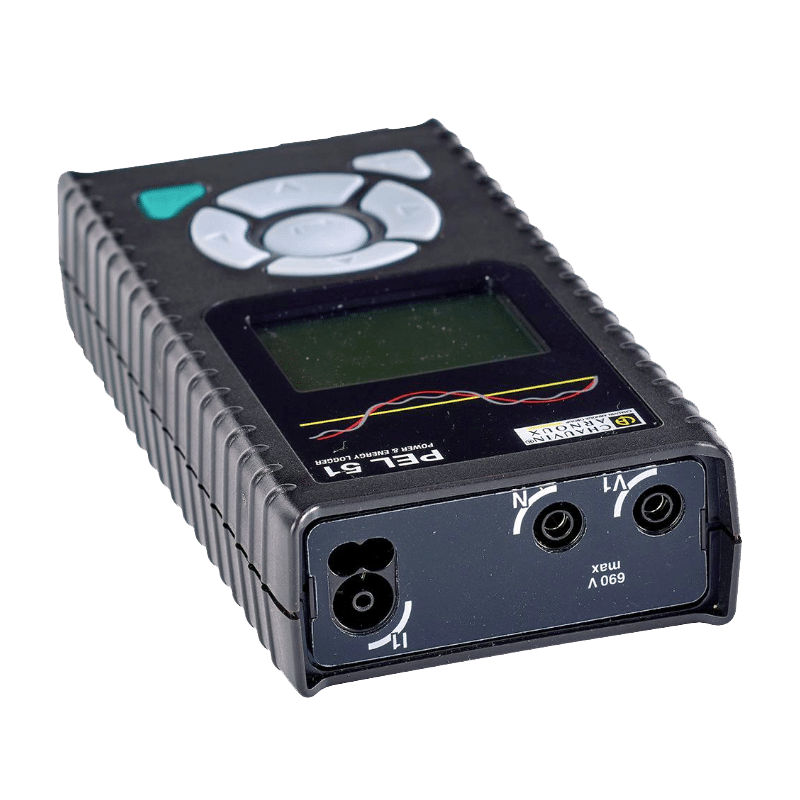

Chauvin Arnoux PEL51 – 1 Channel Power and Energy Logger 0-600V AC Complete with MA194-250


£826.02 / £991.22 incl VAT
⚡ TRMS voltage and current measurement for accurate diagnostics
⚡ WiFi connectivity for remote access and live data tracking
⚡ Flexible sensor for safe, non-intrusive current measurement up to 3000A
⚡ Robust IP54 casing with magnetic mounting for use in harsh environments
⚡ Intuitive PEL Transfer software for easy data analysis and export
Available on back-order


Description
PEL51 – 1 Channel Power and Energy Logger 0-600V AC Complete with MA194-250
Product Details:
The Chauvin Arnoux PEL51 is a compact, single-phase Power and Energy Logger designed specifically for electricians and energy professionals who require an efficient and accurate solution for monitoring and logging power consumption. Ideal for installations, diagnostics, and energy audits, the PEL51 provides a comprehensive range of measurements including voltage, current, power (active, reactive, apparent), and energy data.
This user-friendly device allows for real-time monitoring and logging with data intervals from one minute to one hour. It supports data storage up to 8GB via SD/SDHC card, expandable to 32GB, and data can be accessed directly via WiFi or through PC using PEL Transfer software. Designed for safety and ease of use, the unit can be magnetically attached inside tight electrical cabinets and operates via self-power through the measurement phase, or through a built-in rechargeable battery.
With its included MA194-250 flexible current sensor, users can measure currents ranging from 300mA to 3,000A without breaking the circuit, all while ensuring safety from high voltages. The backlit LCD display ensures clear visibility in all working conditions, and the robust IP54-rated casing offers protection against dust and water.
Key Features:
Single-phase logging with TRMS voltage and current measurement
Measurement of Active (P), Reactive (Qf, D, N), and Apparent Power (S)
Real-time monitoring with PEL Transfer software
WiFi communication for seamless data access and live analysis
Logging intervals selectable between 1 minute to 1 hour
Data storage via 8GB SD/SDHC card, expandable to 32GB
Magnetic casing for easy mounting in tight spaces
Self-powered via phase (90V–690V) or battery (1-hour life)
IP54-rated for dust and water resistance
CAT III 600V safety rating
Backlit LCD screen for easy viewing in various lighting conditions
Flexible AC current sensor for non-intrusive measurement (300mA–3000A)
What’s Included:
PEL 51 Power Logger with MA194
Carry bag
Pre-installed rechargeable battery
SD Card
Red and black banana voltage leads
1 x MA194-250 flexible AC current sensor
2 x Crocodile clips
Type C7 power supply cable
C8 power supply adaptor
Safety data sheet
Test report
Quick start-up guide
User manual (downloadable)
PEL Transfer data transfer and management software (downloadable)
General functions
Additional function
|
Additional information
| Weight | 1000 g |
|---|
