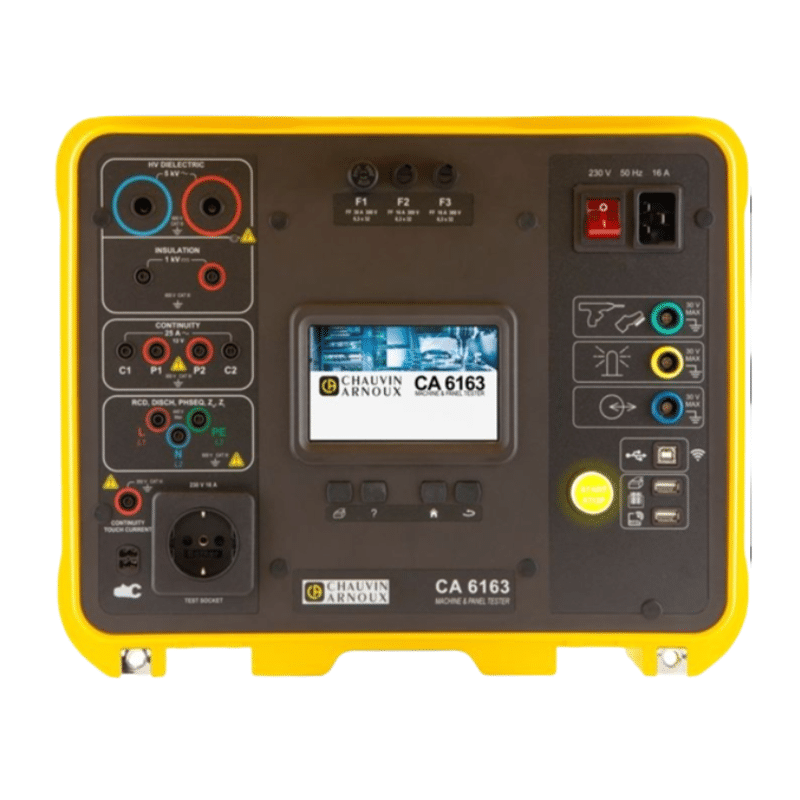

Chauvin Arnoux CA6163 Multifunction Electrical Equipment Safety Tester

Product Details:

The Chauvin Arnoux CA6163 Tester enables the user to perform safety tests on electrical equipment, and can store up to 10,000 test results in its internal memory. Delivered in a yellow case for on-site usage, the CA6163 is utilises colour touch screen, which can even be used when gloves are worn. The data that the user collects can be uploaded by PC software through WiFi or via USB, allowing for the interpretation and analysis of data.

The CA6163 has a keypad with four simple-to-use keys which allow for the quick use of functions, such as:

  • Printout of a measurement on the sticker/label printer
  • Display of help screens for the selected function
  • Return to the home screen
  • Return to the previous screen

The tester is the ultimate tool for whatever is required, and can even print out Pass/Fail stickers, as well as read barcodes. It is ideal for conformity checks at the end of the production line, the periodic testing of equipment, as well as routine maintenance. It will be used frequently by manufacturers of electrical appliances, industrial maintenance firms, as well as several other industry professionals.

The CA6163 can complete the following measurements:

  • 2-wire/4-wire continuity – 0.1A, 0.2A, 10A; voltage drop ∆U, 25A
  • 50GΩ insulation
  • 5kV dielectric tests
  • Testing of RCD types, A, AC, B, B+, F and EV
  • Loop impedance and line impedance
  • Direct leakage current
  • Differential leakage current
  • Leakage current by substitution method
  • Unweighted and weighted touch leakage current
  • Single-phase and three-phase power values
  • Current measurement on current clamp
  • Phase rotation test
  • Discharge time

The CA6163 is able to test a higher range than the CA6161 Tester.

Chauvin Arnoux part number: CA 6163

Key Features:

  • Touch screen usable with gloves
  • Multilingual interface
  • Can perform several visual inspections
  • Direct, differential, substitution, and touch leakage voltage
  • 100,000 tests can be stored and analysed
  • Results can be uploaded either by WiFi or USB
  • Analysis of test results on a PC
  • Can perform firmware updates via the USB drive
  • Can run 5kV dielectric tests, insulation 50GΩ and continuity 25A

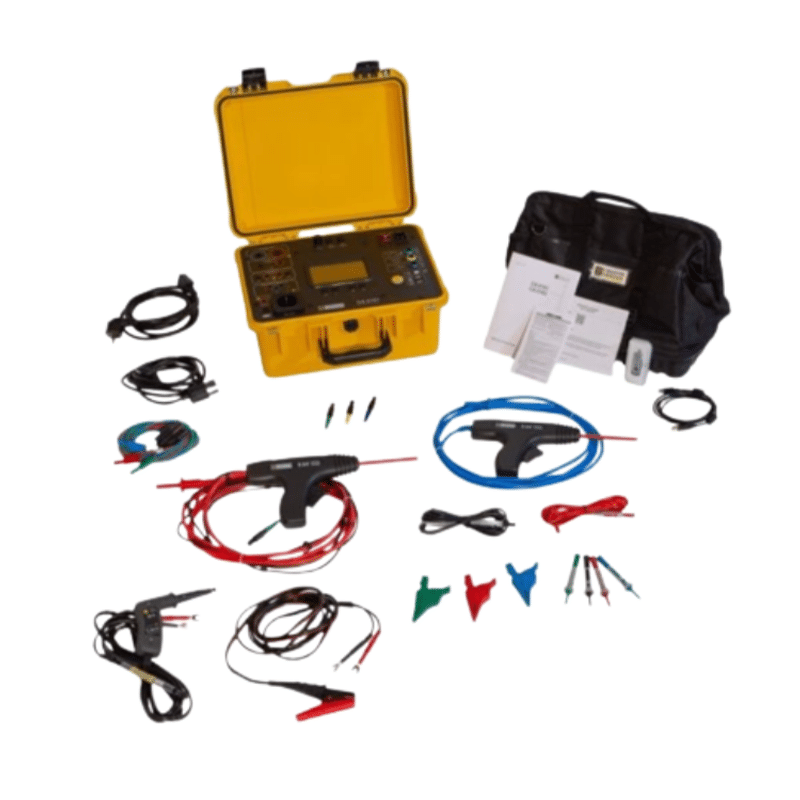

What’s In The Box?

  • Chauvin Arnoux CA6163
  • Carrying bag
  • 1 x C19 Schuko mains cable, length 2.5m
  • 1 x USB A/B cable
  • 2 x high voltage test guns (red and blue) with a 3m cable
  • 2 x elbowed-straight safety cables (red and black), length 3m
  • 3 x extension connectors (green, yellow, and blue)
  • 4 x test probes (black, red, green, and blue)
  • 1 x Tripod (cable, 3 safety cables, length 2.5m)
  • 1 x Tripod (Schuko cable, length 2.5m)
  • 1 x multilingual Quick Start Guide
  • 1 x multilingual safety datasheet
  • Test report with measurement values
  • 3 x crocodile clips (red, green, and blue)
  • 1 x 25A Kelvin crocodile clip with a 2.5m cable
  • 1 x 25A Kelvin test gun with a 3m cable

High Voltage

  • High Voltage – 40-5,350V
  • Resolution/Accuracy – 10V/±(1%R + 2cts)
  • Max. Current – 200mA
  • I Measurement Ranges – 100mA/200mA
  • Resolution Accuracy – 0.1mA – 1mA/±(2%R + 2cts)

Insulation

  • Test Voltage – 100V/250V/500V/1,000V
  • Maximum Measurement – 50GΩ
  • Range – 9.999MΩ/99.999MΩ/999.9MΩ/50.00GΩ
  • Resolution/Accuracy –
    1kΩ – 10kΩ – 100kΩ = ±(2%R + 2cts)
    10MΩ = ±(10% R + 2 cts)
  • Automatic discharge

Continuity

  • Measurement Current – 0.1A; 0.2A; 10A (voltage drop)
  • Measurement Range – 20Ω/120Ω; 2Ω/20Ω/60Ω;0.5Ω
  • Resolution – 0.01Ω/0.1Ω;0.01Ω/0.01Ω/0.1Ω;0.001Ω
  • Accuracy – ±(2%R + 2cts)/±(3%R + 3cts)

CA6163 Exclusive Continuity

    • Measurement Current – 25A
    • Measurement Range – 0.005-0.400Ω
    • Resolution – 0,001Ω
    • Accuracy – ±(2%R + 2cts)
    • Timer Max – 3 minutes

Leakage Current

      • Leakage Current –
        I-PE-direct – Test socket:30.00mA/0.01mA /±(2%R + 2cts);polarity reversal
        Range/Resolution/Accuracy – Clamp:1A-10A-40A/0.1mA-1mA-10mA/±(2.5%R + 2cts)
      • I-Substitution – Test socket: 50.00mA/0.01mA /±(2%R + 2cts)
      • Touch Leakage – Socket and “tripod”:30.00mA/0.01mA
      • Measurement Network – Unweighted, weighted, L-N polarity reversal, welding machine

Loop/Integrated Fuse Table

      • Zs without trip (Zs & Rs) –
        Range/Resolution – 2Ω; 40Ω; 400Ω; 2,000Ω/ 0.01Ω; 0.01Ω; 0.1Ω; 1Ω
        Accuracy – ±(15%R + 3cts); ±(10%R + 3cts); ±(5%R + 2cts); ±(5%R + 2cts)
        Ik Display Range – 12kA
      • ZS High Current and Zi –
        Range/Resolution – 0.5Ω; 3.999Ω; 39.99Ω; 400.0Ω/ 0.001Ω; 0.001Ω; 0.01Ω; 0.1Ω
        Accuracy – ±(10%R + 20cts); ±(10%R + 20cts); ±(5%R + 2cts); ±(5%R + 2cts)
        Ik Display Range – 20kA
      • Inductance (Range/Resolution/Accuracy) – 15.0mH/0.1mH/±(10%R + 2cts)
      • UF Measurement (Range/Resolution/Accuracy – 24.9V; 70.0V/ 0.1V; 0.1V/ ±(15%R + 3cts)/ ±(5%R + 2cts)

RCD & PRCD

      • Network Voltage – 440VAC max
      • Calibres – 10/30/100/300/500/1,000mA/Var (6-1,000mA)
      • Types of RCD – AC, A, F, B, B+; G, S

Pulse Test

      • Pulse Test – x0.5; x1; x2, x4; x5; x10 (DC)IΔn
      • Tripping Time (Range/Resolution/Accuracy) – 300ms/0.1ms/±2ms
      • Ramp Test – 10/30/100/300/500/1,000 mA, Var (6-1,000mA); 0.3 x IΔn to I test max /22 steps
      • Tripping Current (Resolution/Accuracy) – 0.1mA; -0% + (7%R + 2mA)
      • UF Measurement (Range/Resolution/Accuracy) – 24.9V;70.0V/0.1V /±(15%R + 3cts);±(5%R + 2cts)

Discharge Time 34V, 60V, 120V

      • Time – 0.1s – 9.9s/0.1s/±(1%R + 1ct)
      • Up Voltage (Range/Resolution/Accuracy) – 207.0-375.0/0.1V/±(2%R + 2cts) & “Tripod”: 1-650V/0.1V/ ±(2%R + 2cts)

Test Socket Power Values

      • Quantities – Socket: U, I, P, S, F, cosϕ, Pf, THD U, THD I
      • 265VAC; 16A; 4.24kW; 4.24kVA; 45-55Hz;(-1,+1);(-1,+1); 8.0%; 100%
      • Range/Resolution/Accuracy – 100W; 1kW; 4.24kW / 0.01W; 0.1W; 1W/±(2%R + 2cts)

Phase Rotation

      • Installation Voltage and Frequency – 190.0 – 440.0V; 45-55Hz

General Specifications

    • Display – Colour touch screen; TN800 x 480, 5″
    • Data Storage – 100,000 tests
    • Timer Max – 40 min (depends on type of test)
    • Communication – 1 x USB-B; 2 x USB-A, Wifi
    • Interfaces – START/STOP pedals, DOOR Open, HV gun trigger, 4 lamps, Barcode reader, RFID reader, sticker printer
    • Power Supply – 230VAC ±10%; 220VAC -6% + 15%
    • Dimensions/Weight – 407 x 341 x 205mm; 16kg
    • Temperature – OPERATION: 0; + 45°C ; STORAGE: -30; + 60°C
    • Protection – IP40 open/IP64 closed; IK08
    • Electrical Safety – IEC61010-1; IEC61010-2-030; IEC61010-2-034; 300V CATII; 300V CATIII; 600V CATIII
    • Standards – IEC61557-1; -2; -3; -4; -6; -7; -10; -13; -14; -16 (partial)
  • Chauvin Arnoux CA6163
  • Carrying bag
  • 1 x C19 Schuko mains cable, length 2.5m
  • 1 x USB A/B cable
  • 2 x high voltage test guns (red and blue) with a 3m cable
  • 2 x elbowed-straight safety cables (red and black), length 3m
  • 3 x extension connectors (green, yellow, and blue)
  • 4 x test probes (black, red, green, and blue)
  • 1 x Tripod (cable, 3 safety cables, length 2.5m)
  • 1 x Tripod (Schuko cable, length 2.5m)
  • 1 x multilingual Quick Start Guide
  • 1 x multilingual safety datasheet
  • Test report with measurement values
  • 3 x crocodile clips (red, green, and blue)
  • 1 x 25A Kelvin crocodile clip with a 2.5m cable
  • 1 x 25A Kelvin test gun with a 3m cable
