Fluke Amprobe PRM-6 Phase Rotation Meter Sequence and Motor Rotation Tester

Amprobe by Fluke

£95.00 / £114.00 incl VAT

⚡ Clear display of 3-phase wire sequence indication
⚡ Synchronous or asynchronous motor rotation direction
⚡ Shows error displays such as missing phase, or one input connected to neutral or PE
⚡ Non-contact, wireless motor rotation detection on running motors
⚡ Indicates motor rotation of disconnected motors by spinning the shaft by hand or other means

Only 2 left in stock

Price Pledge

Description

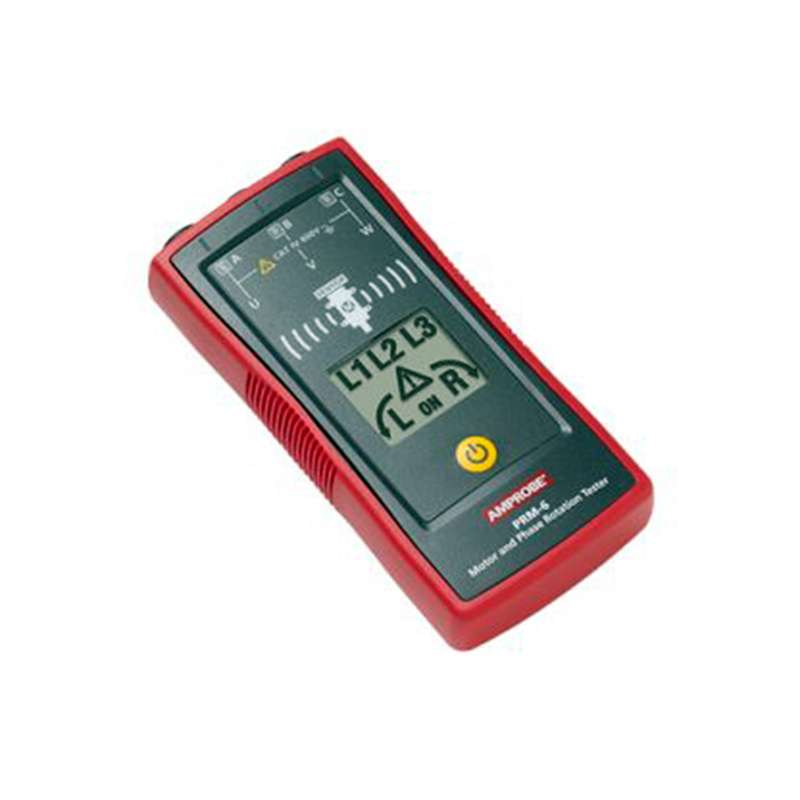

Amprobe PRM-6 Phase Rotation Meter Sequence and Motor Rotation Tester

If you install or connect 3-phase motors and systems, you recognize the importance of verifying the correct motor rotation and wiring phase sequence. Improper connections can cause motors to rotate in reverse direction, potentially damaging the motor and the equipment it is powering.

The PRM-6 Motor and Phase Rotation Tester can test the motor rotation of 3-phase systems, and verify 3-phase receptacle wiring and phase sequencing with test leads.

An additional advanced feature is wireless motor rotation detection, which senses motor rotation direction without use of test leads. This is particularly useful for fast-running motors when the motor rotation cannot be visually determined or when the drive shaft is not visible.

Key Features:

  • 3-phase to phase voltage up to 700V
  • Clear backlit LCD screen with easy-to-read symbols
  • Durable, rubber casing can survive drops from a height of up to 1m
  • Low battery warning
  • CAT IV 600V rated

Specifications

General Specifications
Operating temperature 0°C to 40°C (32°F to 104°C)
Operating altitude Up to 2000 m
Power AAA battery (2)
3 phase indication LCD
Dimensions (H x W x D) 5.43 in x 2.56 in x 1.3 in (13.7 cm x 6.5 cm x 3.3 cm)
Weight .38 lb (.17 kg) including battery
Dust/water resistance IP 40
Pollution degree 2
Overvoltage category CAT IV 600 V
Agency approvals
Safety Conforms to EN 61010-1
EN 61010-031
EN 61557-1
EN 61557-7
EMC Conforms to EN 61326-1
Electrical Specifications
Rotary field detection
Voltage range (frequency) 40 – 700 V (16 – 60 Hz)
50 – 700 V (60 – 400 Hz)
Nominal test current < 3.5 mA
Non-contract rotary field indication
Frequency range 16 – 400 Hz
Motor connection (with leads)
Voltage range ≥ 1 – 700 V
Frequency range 2 – 400 Hz
Nominal test current < 3.5 mA



  • Beha-Amprobe PRM-6 Phase Rotation Tester
  • 3 x Test Leads
  • 3 x Test Probes
  • 3 x Alligator Clips
  • User Manual
  • Carrying Bag
  • 2 x AAA Batteries
