CA6113, 17th Ed. Multi-function tester, Cat. IV 300V c/w leads, clips, probes, software & carry case.

Chauvin Arnoux

£1,446.48 / £1,735.78 incl VAT

⚡ Wide range of functions to test installations to international standards
⚡ Large, backlit, black-and-white screen depicts output fluctuations in real time
⚡ Performs Insulation testing, RCD trip testing, loop and line testing, and more

Available on back-order

Price Pledge

Add Calibration on your Multifunction Tester.

SKU: P01145445A Categories: , Brand:

Description

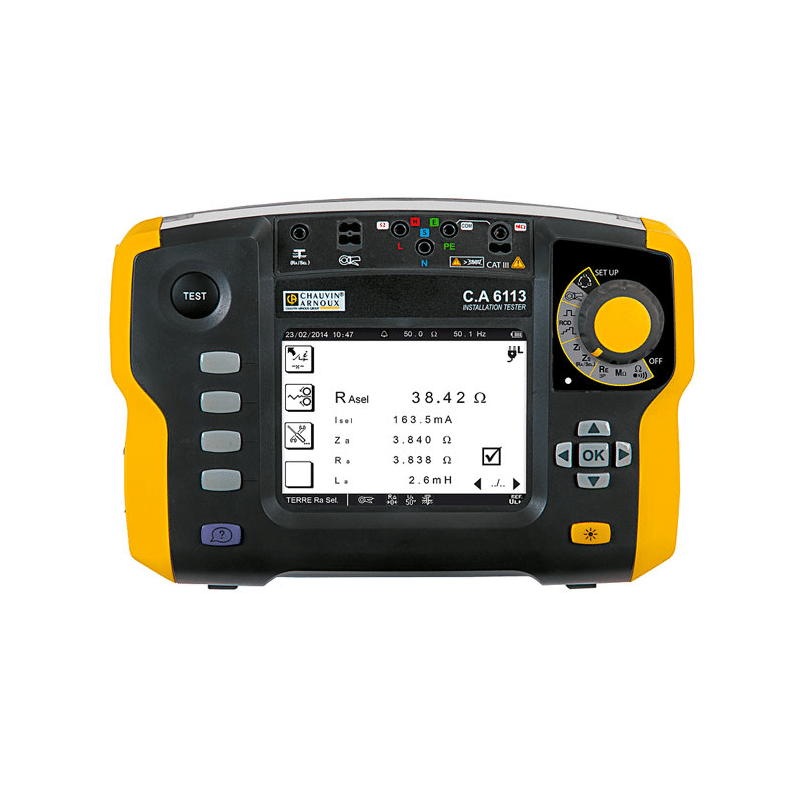

Chauvin Arnoux CA6113 Multifunction Tester

Product Details:

Chauvin Arnoux CA6113 Multifunction Tester

The Chauvin Arnoux CA6113 Multifunction Tester manages to be compact and portable without compromising its measurement capabilities. It can perform a whole host of different tasks including voltage and frequency measurement, resistance measurement, continuity testing, insulation testing, 3-pole earth testing, loop and line testing, RCD trip testing, and phase rotation indication. This makes it an excellent tester for carrying out pre-installation checks, periodic maintenance and troubleshooting/servicing in domestic, commercial and industrial settings, especially as readings remain clear and accurate even in noisy environments.

Readings are displayed on the Chauvin Arnoux CA 6113’s backlit, black-and-white screen which can also show dynamic graphics and real-time output fluctuations. Navigation has been made very simple through a dial and straightforward push buttons. The tester is safety-rated as Cat III 600V and has a warning alarm when hazardous voltage or improper connections are detected, thereby contributing to the user’s safety.

As well as being feature-rich and safe, the Chauvin Arnoux CA 6113 is also very practical. Weighing just 2.2kg, it can hang comfortably on the supplied neck strap for easy, hands-free use. This installation tester even offers contextual help screens for certain measurements to help guide both inexperienced and expert users.

The Chauvin Arnoux CA6113 is supplied with a whole host of accessories to help the user and, importantly, allows the operator to test electrical installations to all national and international standards without the need for a second instrument.

Chauvin Arnoux part number: P01145445A

Key Features:

  • Voltage, frequency and resistance measurement
  • Current measurement via optional clamp probe
  • Continuity and insulation testing
  • 3-pole earth testing
  • Loop and line testing
  • RCD trip testing
  • Phase rotation indication (2-wire and 3-wire)
  • Cat III 600V
  • IP54 protection rating
  • Black-and-white, dynamic graphics
  • Voltage and improper connection warning
  • Hands-free use with supplied neck strap

What’s In The Box?

  • Chauvin Arnoux CA6113 Multifunction Tester
  • 1 x carrying bag
  • 1 x PA 30 W power pack
  • 1 x three-point cable
  • 3 x safety leads (red, blue and green)
  • 3 x test probes, Ø 4 mm (red, blue and green)
  • 3 x crocodile clips (red, blue and green)
  • 2 x elbowed-straight safety leads (red and black) 3 m long
  • 1 x  three-point UK mains cable
  • 1 x remote-control probe
  • 1 x scratch-proof film mounted on the instrument
  • 1 x wrist strap
  • 1 x 4-point hands-free strap
  • 6 x operating manuals on CD
  • 1 x  safety datasheet in 20 languages
CONTINUITY / RESISTANCE

  • I rated / Range / Resolution: I > 200 mA / 39.99 Ω/ 0.01Ω / ± (1.5% of measurement + 2 cts)
  • 12 mA / 39.99 Ω & 399.9 Ω / 0.01 & 0.1 Ω /± (1.5% of measurement + 5 cts) with beep
  • Range / Resolution / Accuracy: 4 kΩ/ 1 Ω / ±(1.5 % of measurement + 5 cts) 40 kΩ – 400 kΩ/ 10 Ω – 100 Ω / ±(1.5 % of measurement + 2 cts)

INSULATION

  • Rated voltage: Utest – 50 /100 / 250 / 500 / 1,000 V DC
  • Range / Resolution / Accuracy: 0.01 MΩ to 2 GΩ / 10 kΩ to 1 MΩ / ±(5 % of measurement + 3 cts)
  • Short-circuit current: ≤ 3 mA

EARTH

  • 3P EARTH Range / Resolution / Accuracy: 0.50 Ω to 40 Ω/ 0.01 Ω / ±(2 % of measurement + 10 cts) 40 Ω to 15 kΩ / 0.1 Ω to 1 Ω / ±(2 % of measurement + 2 cts ) 15 kΩ to 40 kΩ / 10 Ω/ ±(10 % of measurement + 2 cts )
  • Others: Measurement of resistance of auxiliary stakes RH & RS (up to 40 kΩ)
  • Ufk: Complies with SEV 3569
  • 1P SELECTIVE EARTH Range / Resolution / Accuracy: 0.20 Ω to 39.99 Ω – 40 Ω to 399.9 Ω / 0.01 Ω – 0.1 Ω / ±(10 % of measurement + 10 cts) (ISel via clamp)

LOOP IMPEDANCE (Zs (L-PE) and Zi (L-N or L-L)) – 1P LIVE EARTH

  • LIVE EARTH Installation voltage / Freq.: 90 to 500 V / 15.8 to 17.5 Hz – 45 to 65 Hz
  • High-current mode with TRIP Zs (L-PE) & Zi (L-N or L-L) Range / Resolution / Accuracy: Max. test current: 7.5 A / (0.050) 0.100 Ω to 0.5 Ω / 0.001 Ω/ ±(10% of measurement + 20 cts) • 0.5 Ω to 3.999 Ω / 0.001 Ω/ ±(5 % of measurement + 20 cts) 3.999 to 39.99 Ω/ 0.01Ω / ±(5% of measurement + 2 cts) – 39.99 Ω to 399.99 Ω / 0.1 Ω/ ±(5 % of measurement + 2 cts)
  • NO TRIP mode (Zs (L-PE) only): Test current: 6 mA – 9 mA – 12 mA (as required) 0.20 Ω to 0.99 Ω / 0.01 Ω / ±(15 % of measurement + 10 cts) / 1.00 to 1.99 Ω / 0.01 Ω / ±(15 % of measurement + 3 cts) 2.00 to 39.99 Ω / 0.01 Ω / ±(10 % of measurement + 3 cts) – 40.00 Ω to 399.9 Ω / 0.1 Ω / ±(5 % of measurement + 2 cts) 400 to 3999 Ω / 1 Ω / ±(5 % of measurement + 2 cts)
  • Calculation of Ik short-circuit current (PFC (Zs)), I Sc PSCC (Zi): Fault current and short-circuit current: 0.1 A to 20 kA
  • Others: Measurement of the resistive and inductive components of the Zs and Zi impedances

AC and A-type RCDs

  • Installation voltage / Frequency: 90 V to 500 V / 15.8 Hz to 17.5 Hz and 45 Hz to 65 Hz
  • I∆n: 10/30/100/300/500/650/1,000 mA (90 V – 280 V) or variable – 10/30/100/300/500 mA (280-550 V) or variable – ramp and pulse test
  • No-trip test: At ½ I∆n – Duration: 1,000 ms or 2,000 ms
  • Ramp mode: 0.2 to 0.5 x I∆n (Uf) / 0.3 x I∆n to 1.06 x I∆n in increments of 3.3 % x I∆n
  • Trip time measurement Range / Resolution / Accuracy: 0.2 to 0.5 x I∆n (Uf) / 0.5 x I∆n / 2 x I∆n (selective) / 5 x I∆n – Pulse 0 to 500 ms / 0.1 and 1 ms / 2 ms, Ramp mode: 0 to 200 ms / 0.1 ms / 2 ms

OTHER MEASUREMENTS

  • Current by clamps C177/C177A: (0.5 mA*) 5 mA to 19.99 A (C177) / 20 mA to 199.9 A (C177A)
  • Current by clamp MN77: (1 mA*) 5.0 mA to 19.99 A
  • Voltage: 0 to 550 VAC/DC / DC and 15.8 to 500 Hz
  • Frequency: 10 to 500 Hz
  • Phase rotation: 20 to 500 VAC

GENERAL SPECIFICATIONS

  • Display: Large 5.7” backlit graphic monochrome LCD screen, 320 x 240 points
  • Power supply: rechargeable battery NiMH 9.6 V rated 4 Ah
  • Battery life: Up to 24 hours
  • Dimensions / weight: 280 x 190 x 128 mm / 2.2kg
  • Protection: IP 53 / IK04
  • EMC IEC 61326-1
  • Electrical safety IEC 61010 -1 – 600 V CAT III – 300 V CAT IV – IEC 61557
  • Chauvin Arnoux CA6116N Multifunction Tester
  • 1 x carrying bag
  • 1 x type-2 mains power pack / charger
  • 1 x Li-Ion battery pack
  • 1 x USB A/B cable, 1.80 m, with ferrite
  • 1 x three-point cable
  • 3 x safety leads (red, blue and green)
  • 3 x test probes, Ø 4 mm (red, blue and green)
  • 3 x crocodile clips (red, blue and green)
  • 2 x elbowed-straight safety leads 3 m (red and black)
  • 1 x three-point GB mains cable
  • 1 x 2P GB mains cable
  • 1 x remote-control probe
  • 1 x wrist strap
  • 1 x scratch-proof film mounted on the instrument
  • 1 x 4-point hands-free strap
  • ICT data export software on CD-ROM
  • 6 operating manuals on CD (one per language)
  • 1 safety datasheet in 20 languages
