Chauvin Arnoux CA1227 Thermo-Anemometer

Chauvin Arnoux

£239.40 / £287.28 incl VAT

⚡ Measure air flow velocity and air temperature via 80mm vane
⚡ Calculation of volume flow rate and mapping of patterns in a room
⚡ Save up to one million measurements in internal memory

Available on back-order

Price Pledge

Description

Chauvin Arnoux CA1227 Thermo-Anemometer

Product Details:

The Chauvin Arnoux CA1227 Thermo-Anemometer can measure air temperature and air flow velocity. It measures air temperature from -20˚C to 50˚C with ±0.8˚C accuracy and 0.1˚C resolution whilst the air flow velocity measurement range goes from 0.25m/s to 35m/s with a maximum resolution of 0.01m/s and accuracy of ±3%. Readings are taken via a detachable 8mm vane probe which offers maximum flexibility during inspections.

The measurement of air flow velocity also enables the anemometer to calculate volume flow rate from 0 to 2999m3/h. All the user needs to do is enter the area of the ventilation outlet before commencing measurement so that the calculation can take place.

Readings for all three parameters are shown on the Chauvin Arnoux CA1227’s backlit digital display which is capable of displaying two values simultaneously. A data hold function freezes the current reading on screen and the anemometer also shows minimum, maximum and average readings.

The Chauvin Arnoux CA1227’s MAP function allows the user to chart air flow throughout a room and there is also an internal memory which has enough space for one million measurements. A free software package can be downloaded from the Chauvin Arnoux website to facilitate data transfer and create reports. The anemometer has both USB and Bluetooth interfaces for connected or wireless data transfer. Readings can be saved manually or according to a pre-set programme for longer term monitoring.

A battery life of 200 hours or 8 days (with a 15-minute measurement rate) means that the Chauvin Arnoux CA1227 is suitable for long-term monitoring. It has ingress resistant IP54 casing and is covered by a two-year manufacturer’s warranty.

Chauvin Arnoux part number: P01654227

Key Features:

  • Air temperature measurement: -20˚C to 50˚C
  • Air temperature accuracy: ±0.8˚C
  • Air temperature resolution: 0.1˚C
  • Air flow velocity measurement: 0.25m/s to 35m/s
  • Air flow velocity accuracy: ±3%
  • Air flow velocity resolution: 0.01m/s
  • Volume flow rate calculation: 0 to 2999m3/h
  • Detachable 80mm vane probe
  • Min/max/average/data hold
  • Backlit digital display
  • Internal memory for 1 million results
  • Spot and programmed recording
  • USB and Bluetooth
  • 2-year warranty

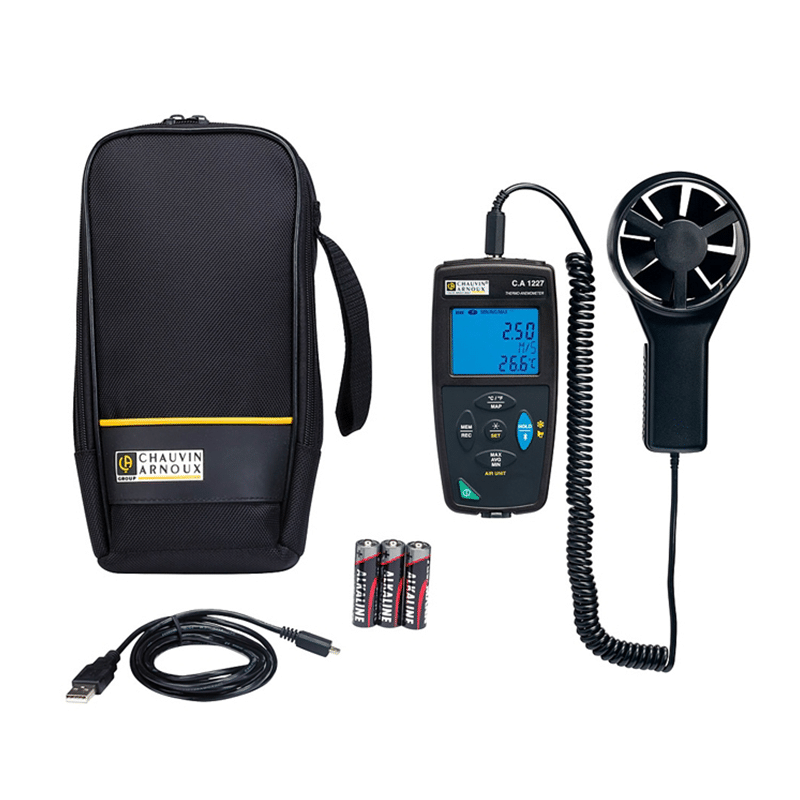

What’s In The Box?

  • Chauvin Arnoux CA1227 Thermo-Anemometer
  • Carry case
  • 3 x 1.5 V AA alkaline batteries
  • USB cable
  • Test report
  • Quick start-up guide
Air flow velocity

  • Range: 0.25m/s to 35m/s
  • Resolution: 0.01m/s (0.25m/s to 2.99m/s); 0.1m/s (≥3m/s)
  • Accuracy: ±3% ±4 counts

Volume flow

  • Range: 0 to 2999m3/h
  • Resolution: 0.01 m3/h ( 0.00 to 2.99 m3/h); 0.1 m3/h ( 3.0 to 99.9 m3/h); 1 m3/h (100 to 2,999 m3/h)
  • Accuracy: ±8%

Temperature

  • Sensor type: CTN
  • Range: -20˚C to 50˚C
  • Resolution: 0.1˚C
  • Accuracy: ±0.8˚C (0 to 50˚C)

Functions

  • Recording: Manual Start / Stop on the product: short press for MEM spot recording / Long press for REC recording at the rate of the current mode; Programmed recording: start date, recording interval (1 minute to 2 hours) and end date defined using the PC software
  • Data storage: >1,000,000 values
  • Min/Max/Average/Data Hold: Yes
  • MAP Mode: The MAP function can be used to map the air speeds measured
Flow-rate measurement: Yes, direct reading with the cones proposed as accessories or on the basis of a surface de ned by the user.
  • Backlighting: Yes
  • Units: Air-speed units: m/s, km/h, fpm, mph; Air flow-rate units: m3/s, m3/h, l/s, cfm; temperature: ˚C, ˚F
  • Automatic power off: Yes

Power Supply

  • Type: 3 x AA 1.5V batteries; Mains connection possible with the mains / micro-USB adapter offered as an accessory.
  • Battery life: 200 hrs (portable mode) / 8 days of recording (15-minute intervals)

Physical Specifications

  • Interfaces: Bluetooth; USB
  • Mounting: Casing equipped with a magnet, a wall-mount system and a slot for suspending the product. Compatible with the Multi x accessory.
  • Dimensions: 17 x 72 x 32mm
  • Weight: 260g
  • Ingress protection: IP54
  • Product operating range: -10˚C to 60˚C; 10 to 90% RH
  • Compliance: IEC61010-1 / IEC 61326-1

General Specifications

  • Data Logger Transfer Windows PC software functions: Display as a graph or a table of values / Data export in graph or Excel table form. Real-time mode / Automatic report generation in Word format / Data format compatible with the Dataview software offered as an accessory.
  • Warranty: 2 years
