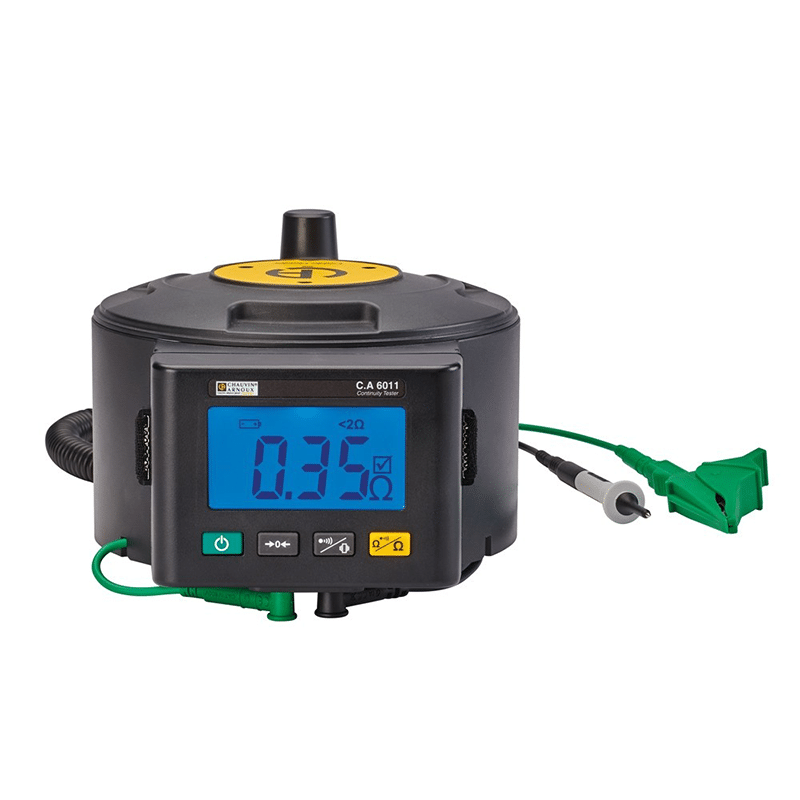

Chauvin Arnoux CA6011 Continuity Tester Kit c/w all acessories below (except for continuity rod) (P01299926)

Chauvin Arnoux

£298.00 / £357.60 incl VAT

⚡ Measure Earth Resistance

⚡ Versatile test modes

⚡ Backlit Display

⚡ One Button Operation

⚡ Test Leads Included

⚡ Continuity Measurement Range 0.00 Ω to 2.00 Ω – 2.00 Ω to 20.00 Ω

Price Pledge

Description

Product Details:

The CA 6011 continuity tester has been specially designed for periodic testing of the protective earth conductors of electrical equipment, appliances and installations, linked in particular to the standards and regulations: IEC/EN 60364, NF C 15-100, VDE 100, etc.

These systematic, repetitive tests represent more than 80% of testing operations. Particular care must therefore be taken to prevent them from becoming tiresome.

In the context of electrical installation safety, the different local legal frameworks impose
a series of regular, systematic tests: earth test, insulation test, RCD test, etc.
Among these tests, the most repetitive (more than 80 % of operations) is systematic
testing of the continuity of the protective earth conductors.

Due to its ergonomics and functions, the CA 6011 continuity tester with built-in reeling box fulfils this requirement by making it comfortable to use for the operator while ensuring peace of mind for our customers.

CA6011 Anatomy

Safety and Conformity

  • Automatic polarity reversal
  • Like all Chauvin Arnoux products, the CA 6011 has been designed to keep people safe, with visual and audible alerts.
  • IEC 61010, 300 V CAT IV
  • IEC 61557-4

For Multiple Applications

  • Perform systematic earth connection testing on the conducting parts of the equipment and installation
  • Check the earth conductor of a lightning arrestor
  • Check the meshing and earth connection of a Faraday cage
  • Check the floorplans and equipotentiality

CA6011 Continuity Tester KIT Comes Supplied With:

  • Continuity Tester Control Box
  • Encased cable reel 30m
  • Leads and Probes
  • Velcro Wrist Strap
  • Flying Earth Lead with Clip
  • Shoulder Strap
  • Batteries
  • Safety Data Sheet
  • Quick-start Guide
  • User Manual
  • Verification Certificate

Key Features:

  • Large backlit display (the largest on the market)
  • Clear, intuitive indications: blue/red screen, simple symbols, audible alarm
  • Brand new function: a vibrator! which respects your customers’ peace and quiet while resting your neck
  • Measuring unit which can be attached to the reeling box or detached as you choose!
  • 4 buttons on the front panel to access all the functions directly
  • Long battery life: up to 30,000 measurements!
  • Weight ideally distributed across the body thanks to the shoulder strap and belt



Technical Specifications:

  • Measurement compliant with the IEC 61557-4 standard!:
  • Continuity measurement: 0.00 Ω to 20.00 Ω
  • Automatic polarity reversal
  • Measurement current: 200 mA
  • Compensation of the resistance of the measuring leads
  • Resistance measurement: up to 200.0 Ω
  • Programmable conformity threshold <1Ω or <2Ω
  • Reeling box with 30 m cable
  • Elastic strap for use attached to your wrist
  • Battery life up to 30,000 measurements.





Comfortable Use

  • Tester unit which can be assembled or separated, as preferred
  • Shoulder strap and belt for excellent distribution of the weight, allowing intensive use
  • Elastic strap on the back of the unit to wear it on your wrist
  • Continuity Tester Control Box
  • Encased cable reel 30m
  • Leads and Probes
  • Velcro Wrist Strap
  • Flying Earth Lead with Clip
  • Shoulder Strap
  • Batteries
  • Safety Data Sheet
  • Quick-start Guide
  • User Manual
  • Verification Certificate
