Chauvin Arnoux CA6526 Insulation Tester

Chauvin Arnoux

£560.28 / £672.34 incl VAT

⚡ Vast measurement range of 0 to 200GΩ and test voltages of 50V, 100V, 250V, 500V and 1000V
⚡ The CA6526 gives the user flexibility when testing, with a high degree of accuracy ensuring precision results
⚡ The internal memory can store up to 1,300 recordings which can be transferred to a computer via Bluetooth

Available on back-order

Price Pledge

Calibration Certificate

Add Calibration to your Insulation Tester.

SKU: P01140826 Category: Brand:

Description

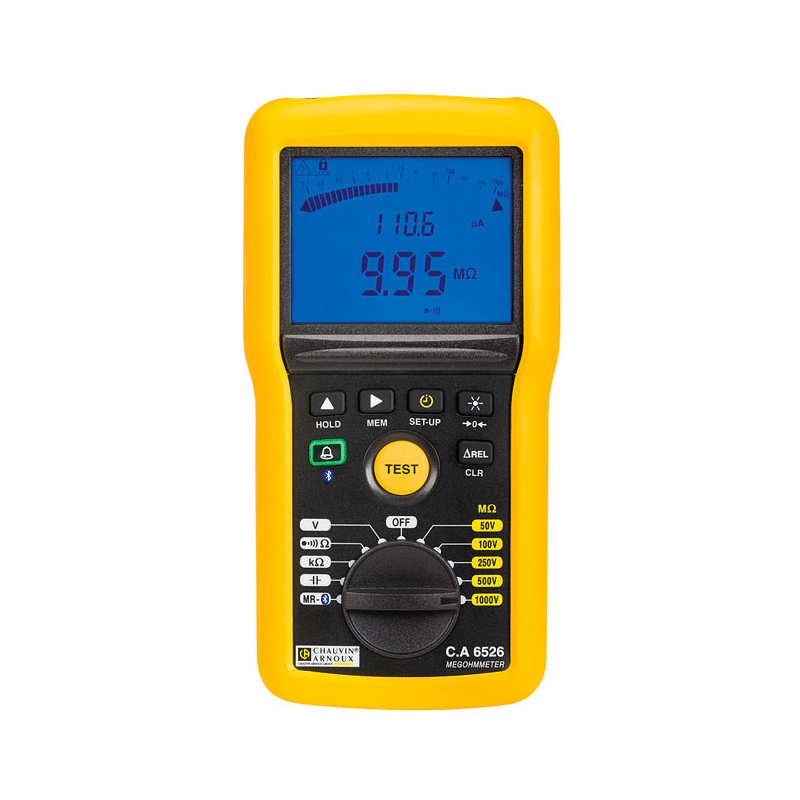

Chauvin Arnoux CA6526 Insulation Tester

Product Details:

The Chauvin Arnoux CA6526 Insulation Tester is an advanced industrial megohmmeter which is ideally suited for work on industrial insulation thanks to an enormous measurement range of 0 to 200GΩ. Test voltages of 50V, 100V, 250V, 500V and 1000V give the user great flexibility when testing insulation and all readings are reliable thanks to a high degree of accuracy. Other useful test and measurement functions on the tester include voltage measurement, capacitance measurement, frequency measurement, regular resistance measurement and continuity testing.

It is possible to set the instrument to perform tests over regular intervals and relative mode provides further depth to insulation tests. PI / DAR ratio measurement is also available to help test insulation quality and I leakage testing constitutes another important aspect of the Chauvin Arnoux CA6526.

Exact results are displayed on the Chauvin Arnoux CA6526’s backlit digital display which features a logarithmic bar graph. A simple dial and push buttons allow easy operation and function selection.

The Chauvin Arnoux CA6526’s internal memory can store up to 1,300 recordings, thus allowing the user to mark out insulation performance over time, and these can even be transferred to a computer by Bluetooth wireless connectivity. From there, optional Chauvin Arnoux DataView software can be used to carry out thorough analysis of inspection results.

Supplied accessories include a remote control probe, test leads, a crocodile clip, a carry case and data transfer software. With a 24-month guarantee, the Chauvin Arnoux CA6526 is an ideal addition to the industrial electrician’s toolbox.

Chauvin Arnoux part number: P01140826

Key Features:

  • Test voltages: 50V, 100V, 250V, 500V, 1000V
  • Insulation resistance range: 200GΩ
  • Voltage, frequency, and capacitance measurement
  • Continuity and standard resistance test
  • PI / DAR ratio & I leakage test
  • Relative mode
  • Programmable timed tests
  • Adjustable and fixed alarms
  • Downloadable with Bluetooth connectivity
  • Internal memory for 1300 recordings
  • Backlit digital display with analogue bar graph
  • 2-year warranty

What’s In The Box?

  • Chauvin Arnoux CA6526 Insulation Tester
  • Multilingual instruction CD for CA6526 Insulation Tester
  • Remote control probe
  • Test lead
  • Crocodile clip
  • 6 x AA batteries
  • Carry case
  • Data transfer software
Voltage

  • Measurement range / Resolution: 0.3 V-399.9 V / 0,1 V; 400 V-700 V / 1 V
  • Accuracy / Input impedance: ± (3 % + 2 cts) / 400 kΩ
  • Operating frequency DC: 15.3-800 Hz

Frequency

  • Measurement range / Resolution / Accuracy: 15.3 Hz-399.9 Hz / 0.1 Hz / ± (1 % + 2 cts); 400-800 Hz / 1 Hz / ± (1 % + 1 ct)

Insulation

  • Test voltage: 50 – 100 – 250 – 500 – 1,000 V
  • Range at maximum test voltage: 200 GΩ
  • Compliance with IEC 61557-2 standard: 2 GΩ
  • Measurement range at 50V: 10 kΩ-10 GΩ
  • Measurement range at 100V: 20 kΩ-20 GΩ
  • Measurement range at 250V: 50 kΩ-50 GΩ
  • Measurement range at 500V: 100 kΩ-100 GΩ
  • Measurement range at 1000V: 200 kΩ-200 GΩ
  • Measurement range / Resolution: 10(1)-999 kΩ and 1.000-3.999 MΩ / 1 kΩ; 4.00 – 39.99 MΩ / 10 kΩ; 40.0-399.9 MΩ / 100 kΩ; 400 – 3,999 MΩ / 1 MΩ; 4.00 – 39.99 GΩ / 10 MΩ; 40.0 – 200 GΩ / 100 MΩ
  • Accuracy: ± (3 % + 2 cts)
  • Test voltage (I < 1 mA): -0 % + 20 %
  • Display of test voltage: ± (3 % + 3 cts)
  • Display of test current / resolution: 0.01 µA – 39.99 µA / 10 nA; 40.0 -399.9 µA / 100 nA; 0.400 -2.000 mA/ 1 µA
  • Accuracy of test current: ± (10 % + 3 cts)
  • PI/DAR ratios: 10 min / 1 min – 1 min / 30 s
  • Timer (min:s): 0:00 – 39:59
  • Discharge time (at 25V): < 2 s/µF
  • Alarms: 2 fixed thresholds + 1 programmable threshold

Continuity

  • Range for continuity measurement: 0.00 Ω-10.00 Ω (200 mA); 0.0 -100.0 Ω (20 mA)
  • Accuracy / Open-circuit voltage: ± (2 % + 2 cts) / ≥ 6 V
  • Measurement current: 200 mA range: 200 mA (-0 mA +20 mA); 20 mA range: 20 mA ± 5 mA
  • Continuity thresholds (quick beep): 2 Ω, 1 Ω, programmable threshold
  • Compensation of cables: Up to 9.99 Ω

Resistance

  • Measurement range / Resolution / Accuracy: 0 -3,999 Ω / 1 Ω; 4.00 kΩ – 39.99 kΩ / 10 Ω / ± (3 % + 2 cts); 40.0 kΩ – 399.9 kΩ / 100 Ω; 400 kΩ-1,000 kΩ / 1 kΩ / ± (3 % + 2 cts)

Capacitance

  • Measurement range / Resolution: 0.1 nF -399.9 nF / 0.1 nF; 400 nF -3,999 nF / 1 nF; 4.00 µF -10.0 µF / 10 nF
  • Accuracy: ± (3 % + 2 cts)

General specifications

  • Display: 2 x 4,000 cts + logarithmic bargraph
  • Storage: 1300 measurements
  • Communication: Bluetooth
  • Power supply / Automatic shutdown: 6 x LR6(AA) batteries / 5 min, deactivatable
  • Battery life: 1,500/2,500/6,000 measurements: UN x 1 kΩ @ UN (5 s ON / 55 s OFF); 3,000 continuity measurements (5 s ON / 55 s OFF)
  • Dimensions (h x w x d) / Weight / IP rating: 211 x 108 x 60 mm / 850 g / IP 54 / IK 04
  • EMC / Electrical safety: IEC 61326-1 / IEC 61010-1 and IEC 61010-2-030, 600 V CAT IV
  • Compliance with standards: IEC 61557 parts 1, 2, 4 and 10
  • Warranty: 2 years
