Chauvin Arnoux CA6683 Cable Locator and Receiver


£379.00 / £454.80 incl VAT
- Cable locator and receiver kit
- Traces live and dead electrical cables
- Detects faults, breaks and short circuits
- 125kHz digitally coded tracing signal
- Adjustable sensitivity and signal strength
- NCV detection from 12V to 1000V AC
- Backlit displays with built-in torch
- Complete kit supplied in carry case
Available on back-order
Description
Chauvin Arnoux CA6683 Cable Locator and Receiver
The Chauvin Arnoux CA6683 LOCAT Cable Locator and Receiver is a professional cable locating system designed for tracing electrical cables and metal pipes in walls, floors and electrical installations. Suitable for both live and dead circuits, it helps electricians and maintenance engineers quickly identify sockets, switches, breakers, fuses and wiring routes while also locating faults such as short circuits, breaks and disconnected conductors.

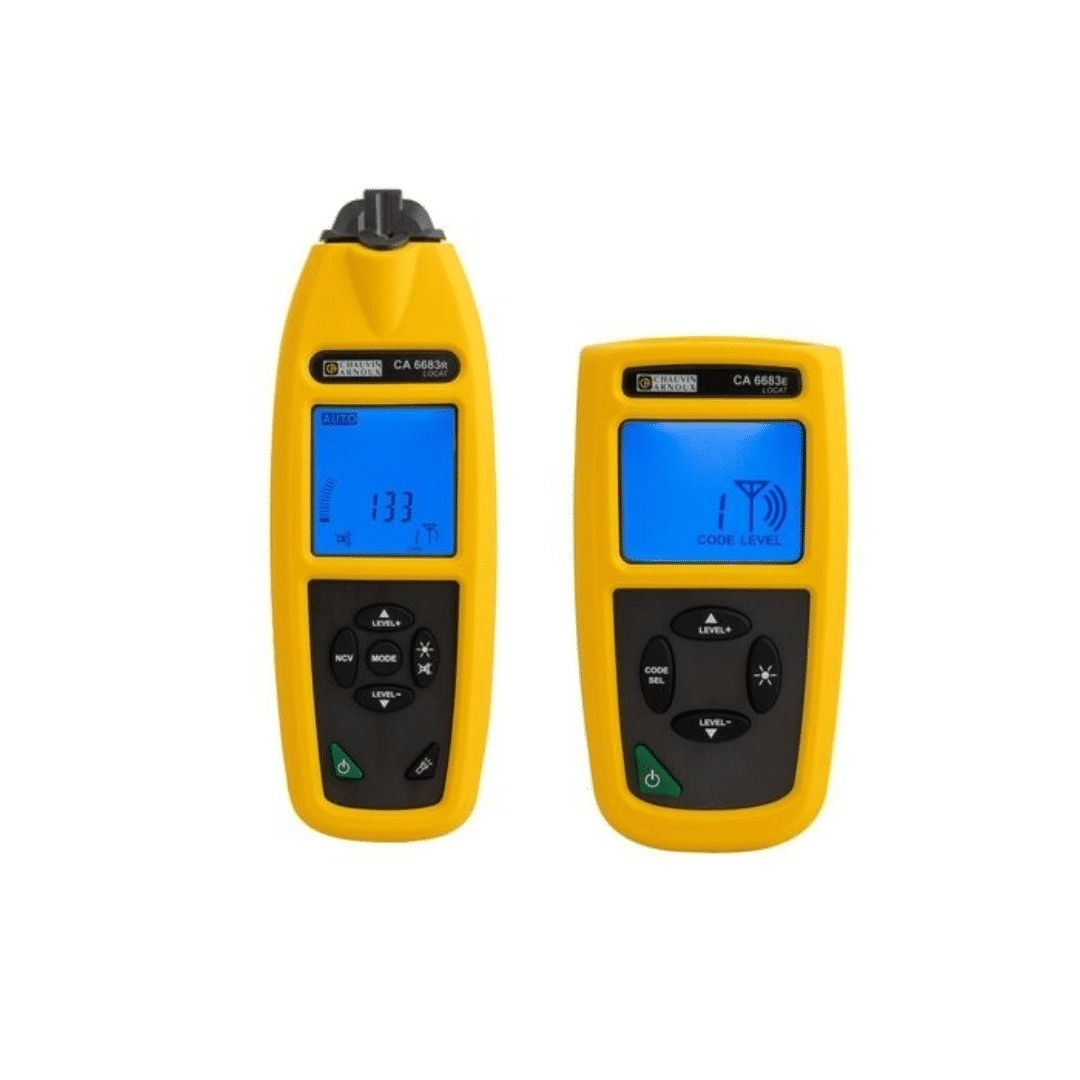

The system includes the CA6683E transmitter and CA6683R receiver, both featuring large backlit graphic LCD displays for clear readings in all working environments. The transmitter uses a digitally coded 125kHz signal to reduce interference and supports up to seven transmitters operating simultaneously in complex installations. Adjustable signal strength and receiver sensitivity provide accurate tracing and improved selectivity on site.
The receiver also features non-contact voltage detection from 12V to 1000V AC, a built-in torch and silent mode for convenient operation in a range of environments. Supplied in a durable carrying case with a full accessory kit, the CA6683 LOCAT is ideal for electrical maintenance, troubleshooting and renovation work.
Key Features
- Professional cable locator and receiver kit
- Traces electrical cables and metal pipes
- Suitable for live and de-energised installations
- Locates faults including short circuits and cable breaks
- Digitally coded 125kHz signal prevents interference
- Supports up to 7 transmitters simultaneously
- Adjustable transmitter power and receiver sensitivity
- Non-contact voltage detection from 12V to 1000V AC
- Backlit graphic LCD displays
- Integrated torch and silent mode
- CAT III 300V safety rating
- Supplied with complete accessory kit and case

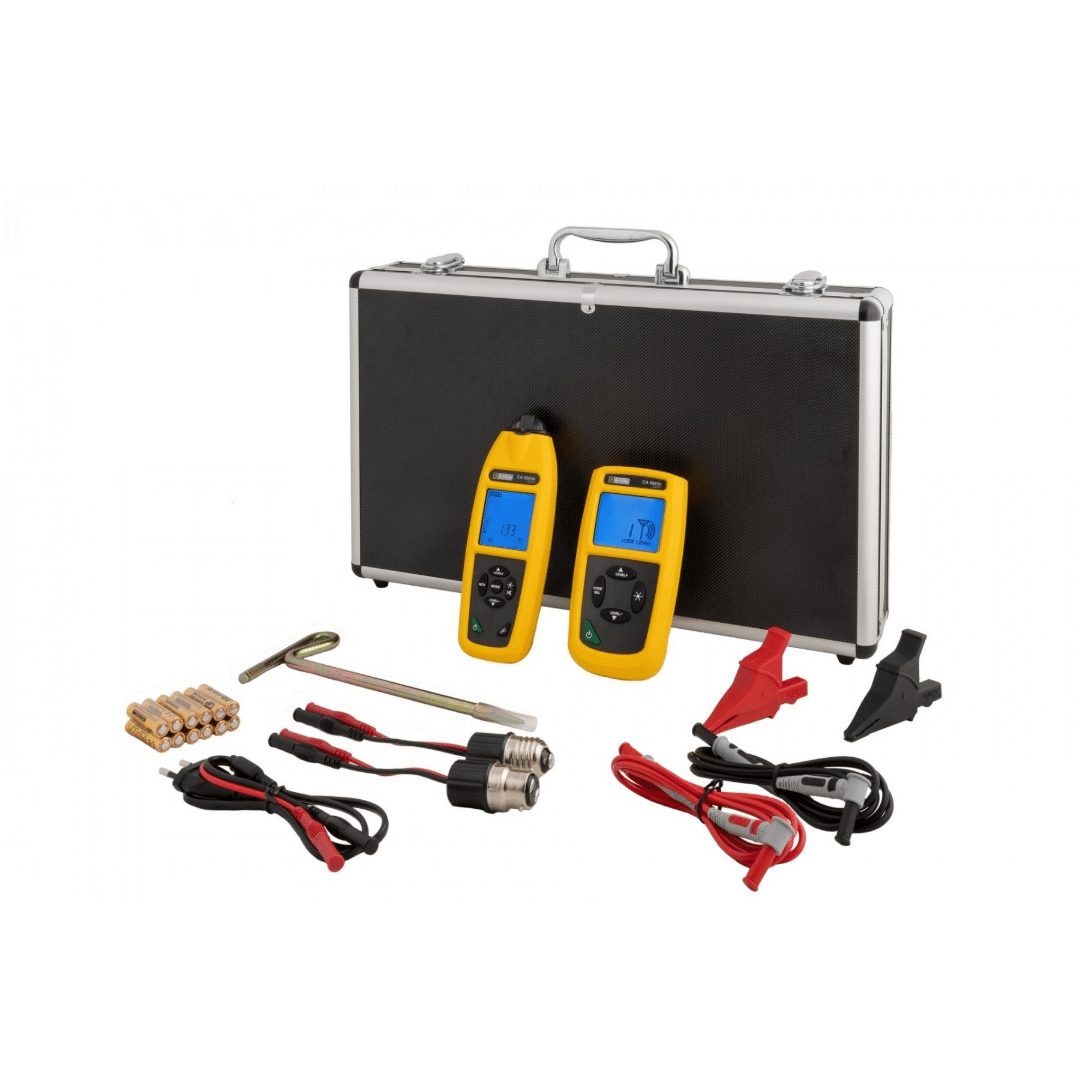

What’s Included
- Chauvin Arnoux CA6683 LOCAT Cable Locator and Receiver
- 1 set of 2 crocodile clips
- 1 T-shaped earth stake
- 1 set of 3 adapters:
- P/N mains plug adapter
- B22 bayonet socket adapter
- E27 screw socket adapter
- 2 sets of 6 x 1.5V LR03/AAA alkaline batteries
- 1 user manual (5 languages)
- 1 certificate of verification
| Specification | CA6683E Transmitter |
|---|---|
| Display | Backlit graphic LCD display |
| Information Displayed | Measured voltage level, polarity (AC/DC), transmitted signal power, battery status, identification code, high voltage presence |
| External Voltage Identification Range | 12V, 50V, 120V, 230V and 400V AC/DC ±2.5% |
| Output Signal Frequency | 125kHz |
| Signal Power | Adjustable (3 levels) |
| Transmitter Identification | Digital signal coding allowing use of up to 7 transmitters simultaneously |
| Power Supply | 6 x 1.5V LR03/AAA batteries |
| Safety | IEC 61010 compliant, CAT III 300V |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to +60°C |
| Dimensions | Approx. 160 x 84 x 40mm |
| Weight | Approx. 350g |
- Chauvin Arnoux CA6683 LOCAT Cable Locator and Receiver
- 1 set of 2 crocodile clips
- 1 T-shaped earth stake
- 1 set of 3 adapters:
- P/N mains plug adapter
- B22 bayonet socket adapter
- E27 screw socket adapter
- 2 sets of 6 x 1.5V LR03/AAA alkaline batteries
- 1 user manual (5 languages)
- 1 certificate of verification
