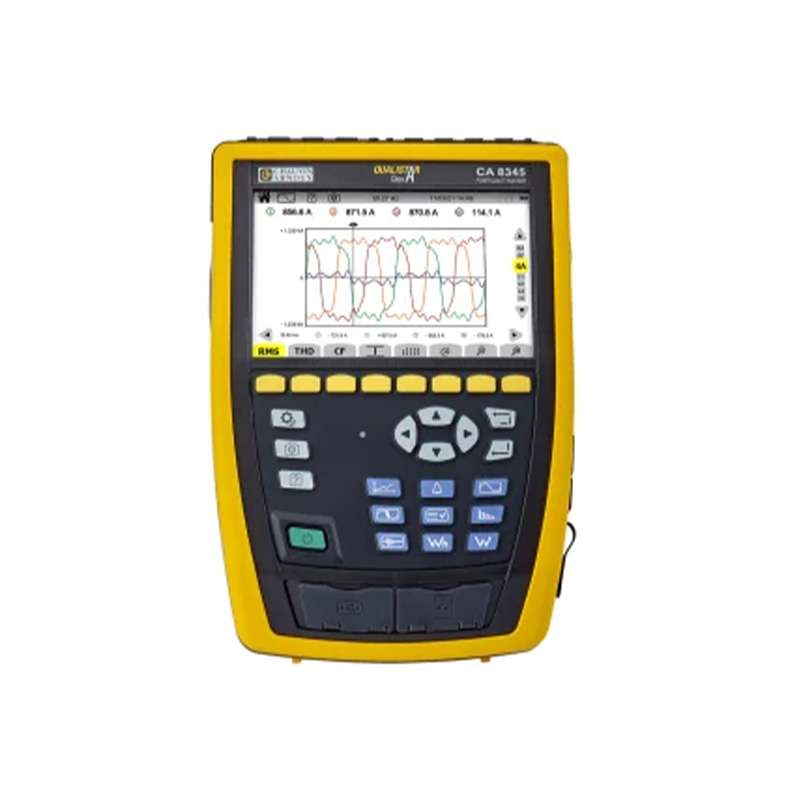

CA8345 Qualistar+ Class A, 3 Phase Power Analyser with PA40w adapter, c/w S/W, voltage leads, clips – No current clamps.


£5,369.00 / £6,442.80 incl VAT
⚡ Portable energy quality analyser
⚡ Instrument compliant with IEC 61000-4-30 edition 3.0 Class A for all functions
⚡ Measurements on all installation types three-phase, Aron connection, etc
⚡ Electrical network monitoring with setting of alarms
⚡ Wide 7-inch colour LCD touch screen
Available on back-order
Description
CA8345 Qualistar+ Class A, 3 Phase Power Analyser with PA40w adapter, c/w S/W, voltage leads, clips – No current clamps.
Product Details:
The Chauvin Arnoux 8345 Class A electrical network quality analyser is Intended for inspection and maintenance teams on industrial or tertiary installations , the Qualistars give you a snapshot of the main electrical network quality features. Comfortable to handle and equipped with an intuitive GUI, these analysers offer high measurement accuracy. They also feature numerous calculated values and several processing functions.
Key Features
- IEC 61000-4-30 Class A compliant
- Totally portable energy quality analyser
- Compatible with all installation types: three-phase, Aron connections etc
- Electrical network monitoring – alarm value settings
- Harmonics up to 63rd order
- Inter-harmonics
- Internal GPS
- Calculates K factor & FHL
- Trend recording
- Capture inrush currents
- USB 2.0 external flash drive support
- USB 2.0 PC connection
- Wifi integration
- Data export to desktop PC for further analysis
- Large 7-inch colour LCD display
- Multiple user profiles
What’s In The Box?
- Chauvin Arnoux CA8345 Qualistar+ Class A Power Quality Analyser
- PA32ER Power Supply and Battery Charger
- Safety data sheet
- 5 reeling boxes
- Shoulder bag
- USB A/B cable 1.80m long
- Multilingual quick start guide
- Set of 5 banana leads and crocodile clips
- Set of identification inserts and rings
- Verification certificate
- Removable wrist strap
- Magnetic hook
- SD memory card
Product Video:
Specifications
| Attribute | Value |
| Absolute Maximum Current Measurement | 10kA |
| Absolute Maximum Power Measurement | 10mW |
| Number of Phases | 3 |
| Maximum Voltage | 1000V ac/dc |
| Best Voltage Measurement Accuracy | 0.1 % |
| Best Current Measurement Accuracy | 0.50% |
| Interface Type | SD, USB, WIFI, RJ45 |
| Memory Capacity | 64 Go |
| Power Source | Battery, Mains |
| Battery Type | Li-ion |
| Battery Life | 10h |
| Maximum Operating Temperature | 45°C |
| Model Number p | CA8345 |
| Length | 285mm |
| Width | 200mm |
| Height | 55mm |
| Minimum Operating Temperature | -5°C |
| Maximum Frequency | 69Hz |
| Weight | 1.9kg |
| Dimensions | 200x285x55mm |
| Minimum Frequency | 42.50 Hz |
