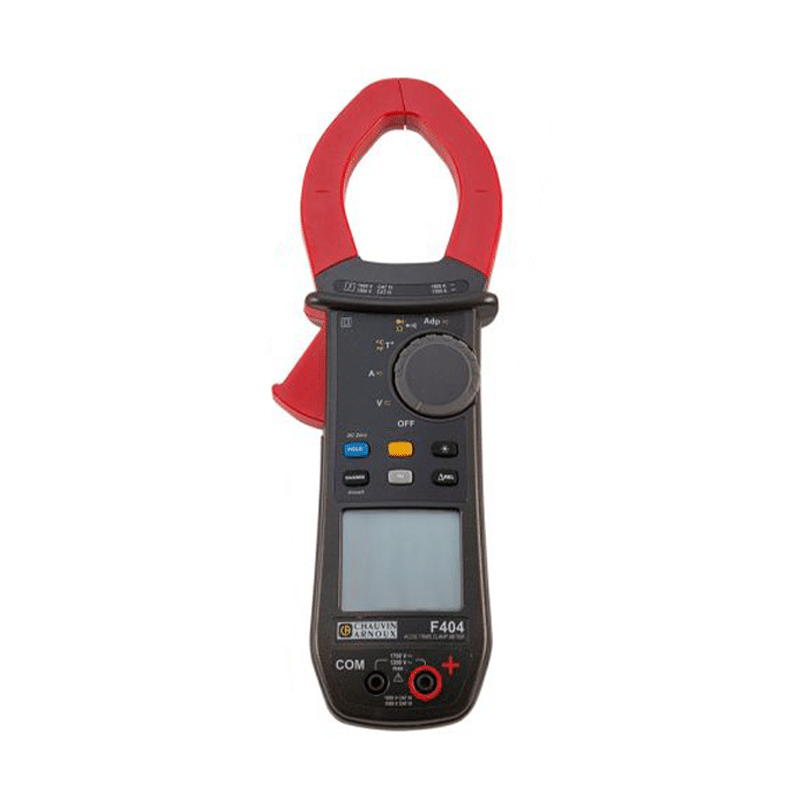

Chauvin Arnoux F404 Clamp Meter, 1500A dc, Max Current 1000A ac CAT III 1500V

Chauvin Arnoux

£335.16 / £402.19 incl VAT

⚡ Designed for medium-power low-voltage applications in LV electricity production, distribution, industry, and railways.
⚡ Suitable for lift/elevator technicians and other lifting and transport specialists.
⚡ Applications include maintenance, testing, monitoring, diagnostics, and connection tasks.
⚡ Features a fast 12-bit TRMS digital acquisition system for accurate measurements.
⚡ Large backlit display ensures easy readability in all conditions.
Price Pledge

Calibration Certificate

Add Calibration on your Clamp Meter.

SKU: P01120943 Categories: , Brand:

Description

Chauvin Arnoux F404 Clamp Meter, 1500A dc, Max Current 1000A ac CAT III 1500V

Attribute
Value
Absolute Maximum AC Current Measurement 1000A ac
Absolute Maximum DC Current Measurement 1500A dc
Absolute Maximum AC Voltage Measurement 1200V ac
Absolute Maximum DC Voltage Measurement 1700V dc
Absolute Maximum Resistance Measurement 99.99kΩ
Model Number F404
AC Current Measurement Resolution 10mA
DC Current Measurement Resolution 10mA
Best DC Current Accuracy ±(1% rdg + 3dgts)
Clamp Meter Type AC/DC Clamp Meter
Best AC Current Accuracy ±(1% rdg + 3dgts)
Best AC Voltage Accuracy ±(1% rdg + 3dgts)
Best DC Voltage Accuracy ±(1% rdg + 3dgts)
Functions Measured AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Frequency, In-Rush Current, Resistance, Temperature
True RMS Yes
Jaw Capacity Busbars 48mm
Length 272mm
Resistance Measurement Resolution 100mΩ
DC Current Measurement Range 0.25 to 1500 A DC
Dimensions 92 x 272 x 41mm
DC Voltage Measurement Resolution 10mV
Best Temperature Measurement Accuracy ±1% +3°C
Battery Life >350 h
Weight 600g
Safety Category Level CAT III, CAT IV
Width 92mm
Non-Contact Voltage Detector No
Power Source Battery
Best Resistance Measurement Accuracy ±1 % + 5 digits
Safety Category CAT III 1500 V, CAT IV 1000V
Maximum Operating Temperature +55°C
Display Type Backlit LCD
Maximum Conductor Size 48mm
AC Voltage Measurement Range 0.15 to 1200 V AC
AC Current Measurement Range 0.25 to 1000 A AC
AC Voltage Measurement Resolution 10mV
Height 41mm
Minimum Operating Temperature -20°C
Absolute Maximum Temperature Measurement +1000°C
Temperature Measurement Resolution 0.1°C
Safety Category Voltage CAT III 1500 V, CAT IV 1000V
Battery Type LR6
