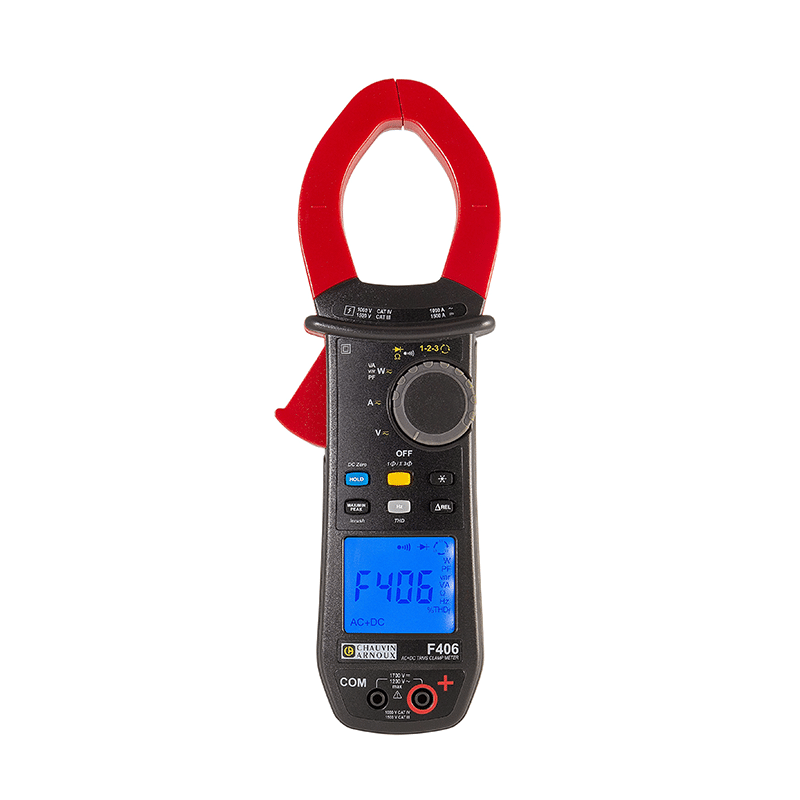

Chauvin Arnoux F406 Clamp Meter with Carrying Case

Chauvin Arnoux

£383.88 / £460.66 incl VAT

⚡ Precise measurements: Features a fast 12-bit TRMS digital acquisition system for accurate readings regardless of signal waveform.
⚡ Broad functionality: Offers extensive testing capabilities including current, voltage, resistance, audible continuity, power values, and harmonic distortion.
⚡ Enhanced analysis: Provides options for phase rotation, relative and differential measurements, diode testing, and true inrush current measurement.
⚡ Convenient data management: Includes hold, Min, MAX, Peak+, and Peak- functions for efficient data recording and analysis.
⚡ Robust design: Built with a 48 mm clamping diameter, CAT IV 1,000 V / CAT III 1,500 V safety ratings, and IP54 protection against dust and water ingress.

Available on back-order

Price Pledge

Calibration Certificate

Add Calibration on your Clamp Meter.

SKU: P01120945 Categories: , , Brand:

Description

Chauvin Arnoux F406 Clamp Meter with Carrying Case

Product Details:

To deal with the highest level of low-voltage electrical installations, the F400 Series has a high protection rating and is ideal for maintenance, testing, monitoring and diagnostics on medium-power installations.

Equipped with a fast 12-bit TRMS digital acquisition system, F406 clamps offer particularly accurate measurements whatever the signals’ waveform.

Specifications:

  • Clamping diameter: 48 mm
  • Current: 1,000 A AC / 1,500 ADC
  • Voltage up to 1,200 VAC / 1,700 VDC
  • Resistance and audible continuity
  • Power values (W, var, VA, PF) and Harmonic Distortion (THDf, THDr)
  • “2-wire” phase rotation
  • RELative (ΔX) and Differential measurements (ΔX/X)
  • Diode test
  • Automatic AC/DC detection
  • TrueInrush current measurement
  • Hold, Min, MAX, Peak+ / Peak-
  • CAT IV 1,000 V / CAT III 1,500 V
  • IP54 protection rating
