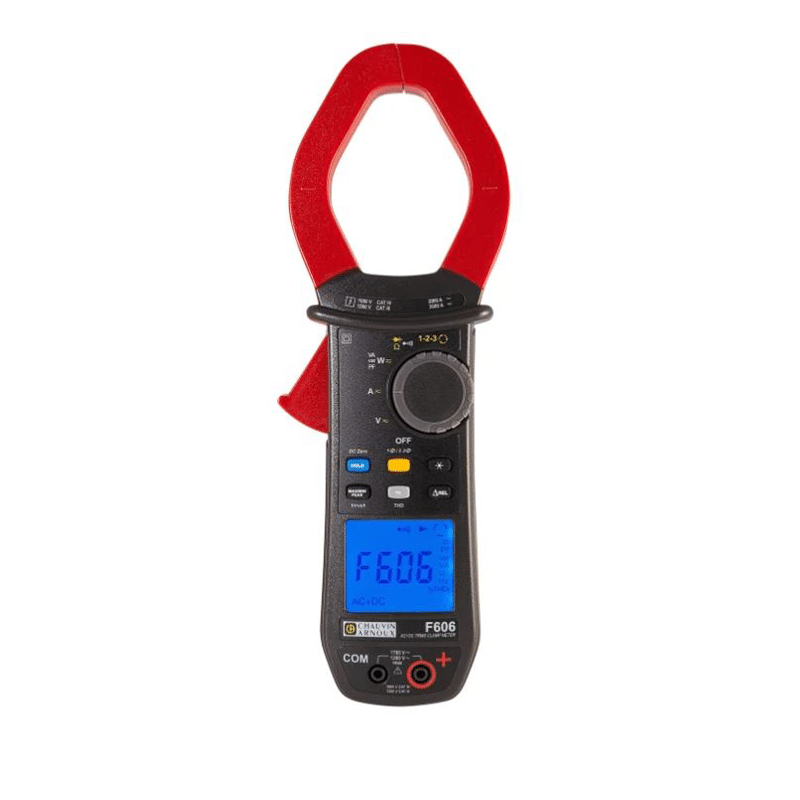

Chauvin Arnoux F606 Clamp Meter, 3000A dc, Max Current 2000A ac CAT III 1500V

Chauvin Arnoux

£526.68 / £632.02 incl VAT

⚡ Versatile clamp multimeter for electricians, combining essential functions in a compact design.
⚡ Wide clamping diameter of 60 mm with current measurements up to 3,000 A DC and 2,000 A AC.
⚡ Accurate measurements ensured by a fast 12-bit TRMS digital acquisition system.
⚡ Comprehensive features including voltage, resistance, power values, harmonics, phase rotation, and more.
⚡ Robust build with IP54 protection rating and backed by a 3-year warranty for reliability in various environments.

Available on back-order

Price Pledge

Calibration Certificate

Add Calibration on your Clamp Meter.

SKU: P01120966 Categories: , Brand:

Description

Chauvin Arnoux F606 AC-DC TRMS Clamp Meter

Product Details:

For an electrician, a clamp multimeter is the ideal tool for any work in the field. It is simple to use and groups all the necessary functions in a single, compact solution.
The F200 Series meets the requirements of self-employed electricians and SMIs/SMEs in the electrical sector. For medium and high power values, the F400 and F600 Series provides maximum protection and safety whatever the measuring conditions and the type of installation.

With its large clamping diameter and current measurements up to 3,000 A, the F600 Series is ideal for distribution and transmission of low-voltage electrical energy.

To deal with the highest level of low-voltage electrical installations, the F400 Series has a high protection rating and is ideal for maintenance, testing, monitoring and diagnostics on medium-power installations.

Equipped with a fast 12-bit TRMS digital acquisition system, F406 clamps offer particularly accurate measurements whatever the signal’s waveform.

The Low-Voltage, medium-power F400 Series is used in the LV electricity generation and distribution sectors, industry, railways, etc. It is also suitable for lift/elevator technicians and other lifting or transport equipment specialists.

Maintenance, inspection, monitoring, troubleshooting and connection are the main applications of the clamps in this Series.

Key Features:

  • Clamping diameter: 60 mm
  • Current: 2,000 A AC / 3,000 A DC
  • Voltage up to 1,200 VAC / 1,700 VDC
  • Resistance and audible continuity
  • Power values (W, var, VA, PF) and harmonics (THDf, THDr)
  • “2-wire method” phase rotation
  • Automatic AC/DC detection
  • TrueInrush current measurement
  • Min, MAX, Peak+, Peak-
  • RELative (ΔX) and differential (ΔX/X) measurements
  • CAT IV 1,000 V / CAT III 1,500 V
  • IP54 protection rating
  • 3 Year Warranty
  • TRMS
  • TrueInrush

What’s Included:

  • Separate test probes
  • Separate extension leads
  • Batteries
  • Nylon case
  • Crocodile clip
Attribute
Value
Absolute Maximum AC Current Measurement 2000A ac
Absolute Maximum DC Current Measurement 3000A dc
Absolute Maximum AC Voltage Measurement 1200V ac
Absolute Maximum DC Voltage Measurement 1700V dc
Absolute Maximum Resistance Measurement 99.99kΩ
Model Number F606
AC Current Measurement Resolution 10mA
DC Current Measurement Resolution 10mA
Best DC Current Accuracy ±(1% rdg + 3dgts)
Clamp Meter Type AC/DC Clamp Meter
Best AC Current Accuracy ±(1% rdg + 3dgts)
Best AC Voltage Accuracy ±(1% rdg + 3dgts)
True RMS Yes
Functions Measured AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Frequency, Harmonics, In-Rush Current, Phase rotation, Power, Power Factor, Resistance
Jaw Capacity Busbars 60mm
Best DC Voltage Accuracy ±(1% rdg + 3dgts)
Power Source Battery
Non-Contact Voltage Detector No
Width 111mm
Length 296mm
Resistance Measurement Resolution 100mΩ
DC Current Measurement Range 0.25 to 3000 A DC
Dimensions 111 x 41 x 296mm
DC Voltage Measurement Resolution 10mV
Minimum Operating Temperature -20°C
Height 41mm
Safety Category Voltage CAT III 1500 V, CAT IV 1000V
Battery Type LR6
Safety Category CAT III 1500 V, CAT IV 1000V
Best Resistance Measurement Accuracy ±1 % + 5 digits
Display Type Backlit LCD
Maximum Operating Temperature +55°C
AC Voltage Measurement Resolution 10mV
AC Current Measurement Range 0.25 to 2000 A AC
AC Voltage Measurement Range 0.15 to 1200 V AC
Maximum Conductor Size 60mm
Battery Life >350 h
Weight 640g
Safety Category Level CAT III, CAT IV
  • Separate test probes
  • Separate extension leads
  • Batteries
  • Nylon case
  • Crocodile clip
