Chauvin Arnoux MTX204 TRMS Digital Multimeter

£237.00 / £284.40 incl VAT

Compact TRMS digital multimeter with 6,000-count backlit display
Measures AC/DC/AC+DC voltage and current up to 1,000 V and 10 A
VLowZ function eliminates ghost voltage readings during maintenance work
Measures resistance, continuity, capacitance, diodes, frequency and duty cycle
Built-in torch and magnetic sheath for hands-free operation in dark or confined spaces
Rugged IP54, CAT III 600 V design for professional electrical environments

Available on back-order

Free Mainland GB Delivery on orders over £150 Fast Dispatch from our UK Warehouse Price Match Available on Many Products Need Advice? Call 01945 738112

SKU: CHA-MTX204 Category: Multimeters Brand: Chauvin Arnoux

Description

Chauvin Arnoux MTX204 TRMS Digital Multimeter

Name: Chauvin Arnoux MTX204 TRMS Digital Multimeter
Brand: Chauvin Arnoux
SKU: CHA-MTX204
Availability: BackOrder

The MTX204 is a compact, rugged digital multimeter designed for electrical maintenance, field work and first-level PCB troubleshooting. Its handheld casing, magnetised sheath and patented Multifix mounting system make it easy to use hands-free in cabinets, on doors, belts or work surfaces.

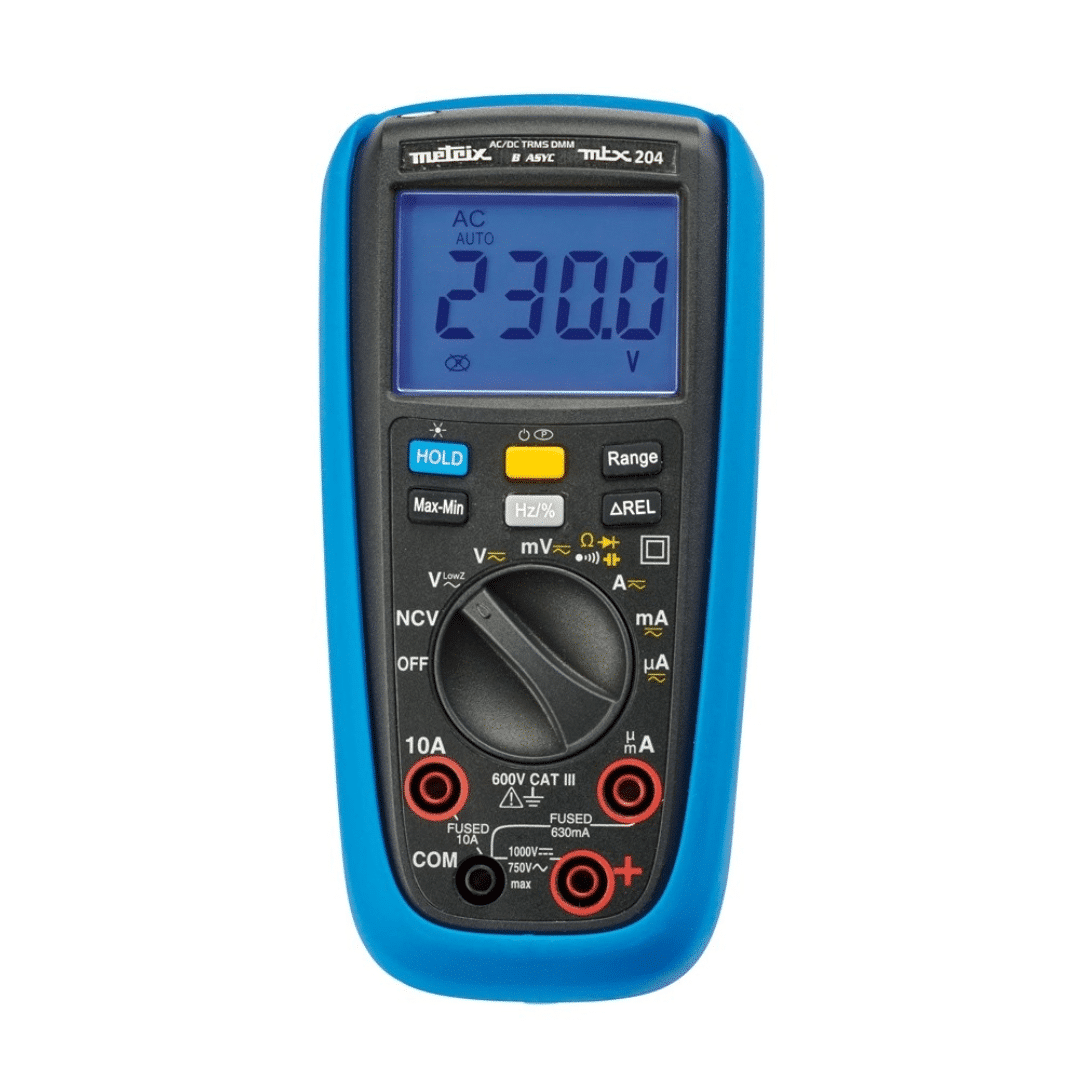

A clear 6,000-count backlit display, built-in torch and two-position stand ensure excellent readability in any working position, even in dark or confined areas. The simple rotary switch gives one function per position, while six front-panel keys provide quick access to range selection, Hold, relative mode, frequency/duty cycle and Max/Min functions.

The MTX204 measures AC, DC and AC+DC voltage and current, resistance, continuity, diodes, capacitance and frequency. Its VLowZ low-impedance voltage function helps eliminate ghost voltages, making electrical maintenance safer and more reliable.

Rated 600 V CAT III with IP54 protection, double-well input terminals and NCV non-contact voltage detection, the MTX204 is ideal for electricians, maintenance technicians and service engineers.

Key features:

6,000-count backlit display
AC/DC/AC+DC voltage and current measurement
VLowZ function for ghost voltage elimination
Resistance, continuity, diode and capacitance testing
Frequency and duty cycle measurement
NCV non-contact voltage detection
Built-in torch and magnetic sheath
Lightweight: 320 g
Safety rating: 600 V CAT III, IP54

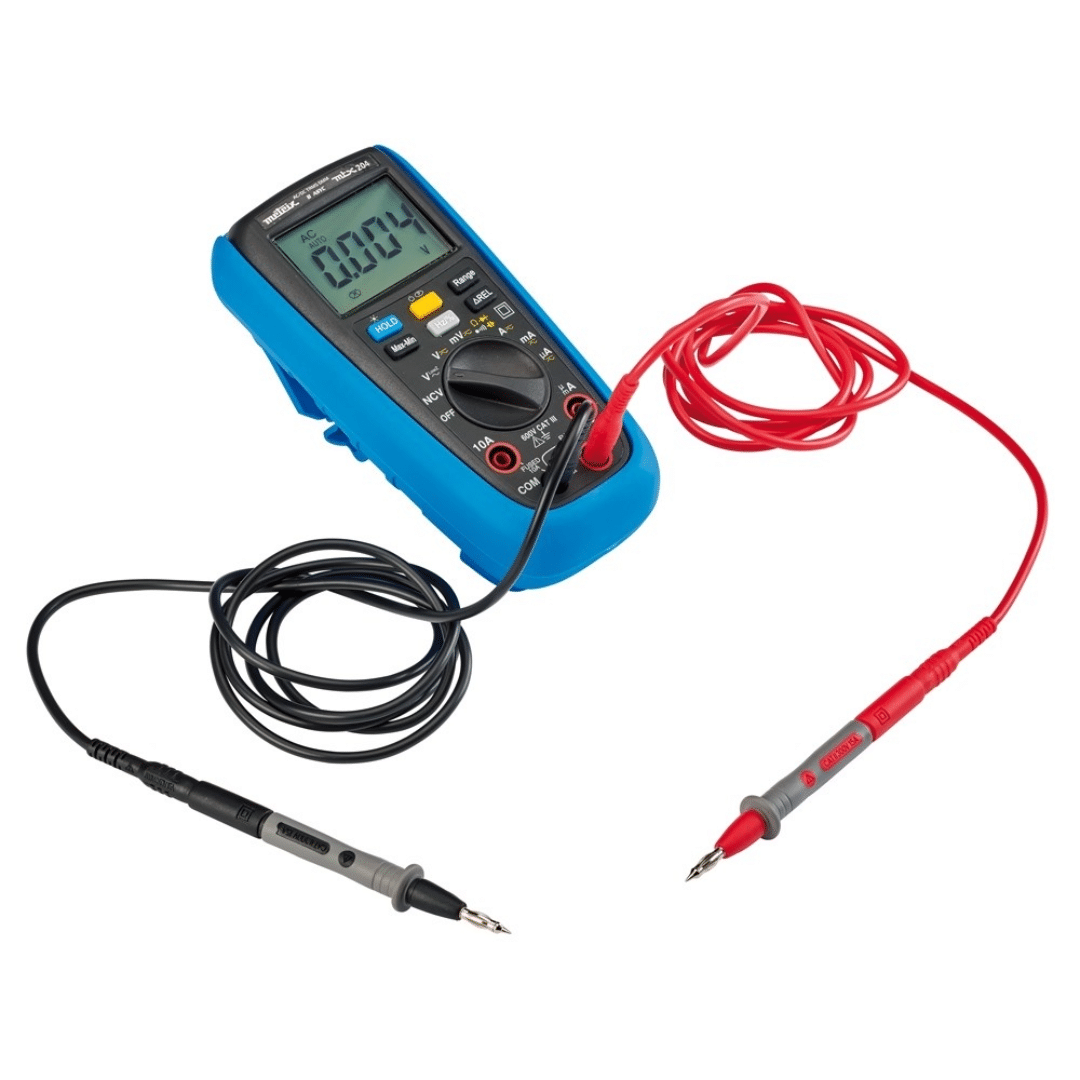

What’s Included:

MTX204 Digital Multimeter
Red 1.5 m test lead with elbowed probe tips
Black 1.5 m test lead with elbowed probe tips
2 x AA / LR6 batteries
User manual

Function	Range	Measurement Range	Resolution	AC Accuracy	DC Accuracy	AC+DC Accuracy
AC/DC Voltage (ADP)	60 mV	10.00 mV – 59.99 mV	0.01 mV	1% + 6D	1% + 6D	1% + 6D
	600 mV	60.0 mV – 599.9 mV	0.1 mV	1% + 6D	1% + 6D	1% + 6D
Voltage BP/BW 1 kHz Volts (10 MΩ)	6 V	0.600 V – 5.999 V	0.001 V	0.5% + 4D	0.2% + 2D	1.5% + 4D
VlowZ (400 kΩ – AC only)	60 V	6.00 V – 59.99 V	0.01 V	1% + 4D	–	–
	600 V	60.0 V – 599.9 V	0.1 V	1% + 4D	–	–
	750 V	600 V – 750 V	1 V	1% + 4D	–	–
	1000 V	600 V – 1000 V	1 V	–	0.2% + 2D	–
Current µA Input (100 Ω)	600 µA	10.0 µA – 599.9 µA	0.1 µA	1% + 5D	0.5% + 3D	1% + 5D
	6000 µA	600 µA – 5999 µA	1 µA	0.5% + 5D	0.5% + 5D	–
Current mA Input (1 Ω)	60 mA	6.00 mA – 59.99 mA	0.01 mA	0.5% + 5D	0.5% + 3D	0.5% + 5D
	600 mA	60.0 mA – 599.9 mA	0.1 mA	–	–	–
Current A Input (0.01 Ω)	6 A	0.002 A – 5.999 A	0.001 A	1% + 5D	1% + 5D	1% + 5D
	10 A	6.00 A – 10.00 A	0.01 A	0.5% + 5D	0.5% + 5D	0.5% + 5D
Frequency	10 Hz	2.000 Hz – 9.999 Hz	0.001 Hz	0.1% + 3D	–	–
	100 Hz	10.00 Hz – 99.99 Hz	0.01 Hz	–	–	–
	1 kHz	100.0 Hz – 999.9 Hz	0.1 Hz	–	–	–
Diode Test	3 V	3.000 V	0.001 V	–	10%	–
Resistance	600 Ω	1.0 Ω – 599.9 Ω	0.1 Ω	–	0.5% + 5D	–
	6 kΩ	0.600 kΩ – 5.999 kΩ	0.001 kΩ	–	0.5% + 5D	–
	60 kΩ	6.00 kΩ – 59.99 kΩ	0.01 kΩ	–	1% + 5D	–
	600 kΩ	60.0 kΩ – 599.9 kΩ	0.1 kΩ	–	1% + 5D	–
	6 MΩ	0.600 MΩ – 5.999 MΩ	0.001 MΩ	–	3% + 5D	–
	60 MΩ	6.00 MΩ – 59.99 MΩ	0.01 MΩ	–	3% + 5D	–
Capacitance	10 nF	1.000 nF – 9.999 nF	0.001 nF	–	10% + 10D	–
	100 nF	10.00 nF – 99.99 nF	0.01 nF	–	5% + 5D	–
	1000 nF	100.0 nF – 999.9 nF	0.1 nF	–	2% + 5D	–
	10 µF	1.000 µF – 9.999 µF	0.001 µF	–	2% + 5D	–
	100 µF	10.00 µF – 99.99 µF	0.01 µF	–	2% + 5D	–
	1000 µF	100.0 µF – 999.9 µF	0.1 µF	–	2% + 5D	–
	10 mF	1.000 mF – 9.999 mF	0.001 mF	–	5% + 5D	–
	100 mF	10.00 mF – 99.99 mF	0.01 mF	–	5% + 5D	–
Continuity	600 Ω	Beep < 50 Ω	–	–	–	–
NVC	Non-contact Voltage Detector	230 V – 50 Hz	–	–	–	–

MTX204 Digital Multimeter
Red 1.5 m test lead with elbowed probe tips
Black 1.5 m test lead with elbowed probe tips
2 x AA / LR6 batteries
User manual

Click Here – For MTX204 Specifications
