Crowcon Clip SGD Personal Single CO₂ Gas Detector – Carbon Monoxide (CO₂)

Anton by Crowcon

£112.00 / £134.40 incl VAT

⚡ A single gas detector available in three gas configurations and configurable to a number of region alarm settings
⚡ Can detect carbon monoxide (CO)
⚡ Updated version of the Crowcon Clip Personal Single Gas Detector
⚡ Two-year life
⚡ Event log with room for the 30 most recent events

In stock

Price Pledge

Description

Crowcon Clip SGD Personal Single CO₂ Gas Detector – Carbon Monoxide (CO)

Product Details:

The Crowcon Clip SGD Personal Single Gas Detector is an updated version of the Crowcon Clip Personal Single Gas Detector and as such features most of the functions present on this previous model. Like the previous model, the Crowcon Clip SGD has a life of two years, after which time it will become necessary to replace the instrument.

The Crowcon Clip SGD differs in its extended event log which has been increased to include storage room for up to thirty most recent events. Furthermore, rather than providing a full function self-test upon activation and subsequently every twenty hours, this updated model will perform a daily self-test of activation.

In addition to this, the Crowcon Clip SGD is both slightly larger and heavier and features an audible alarm (90db) five decibels quieter than the previous model.

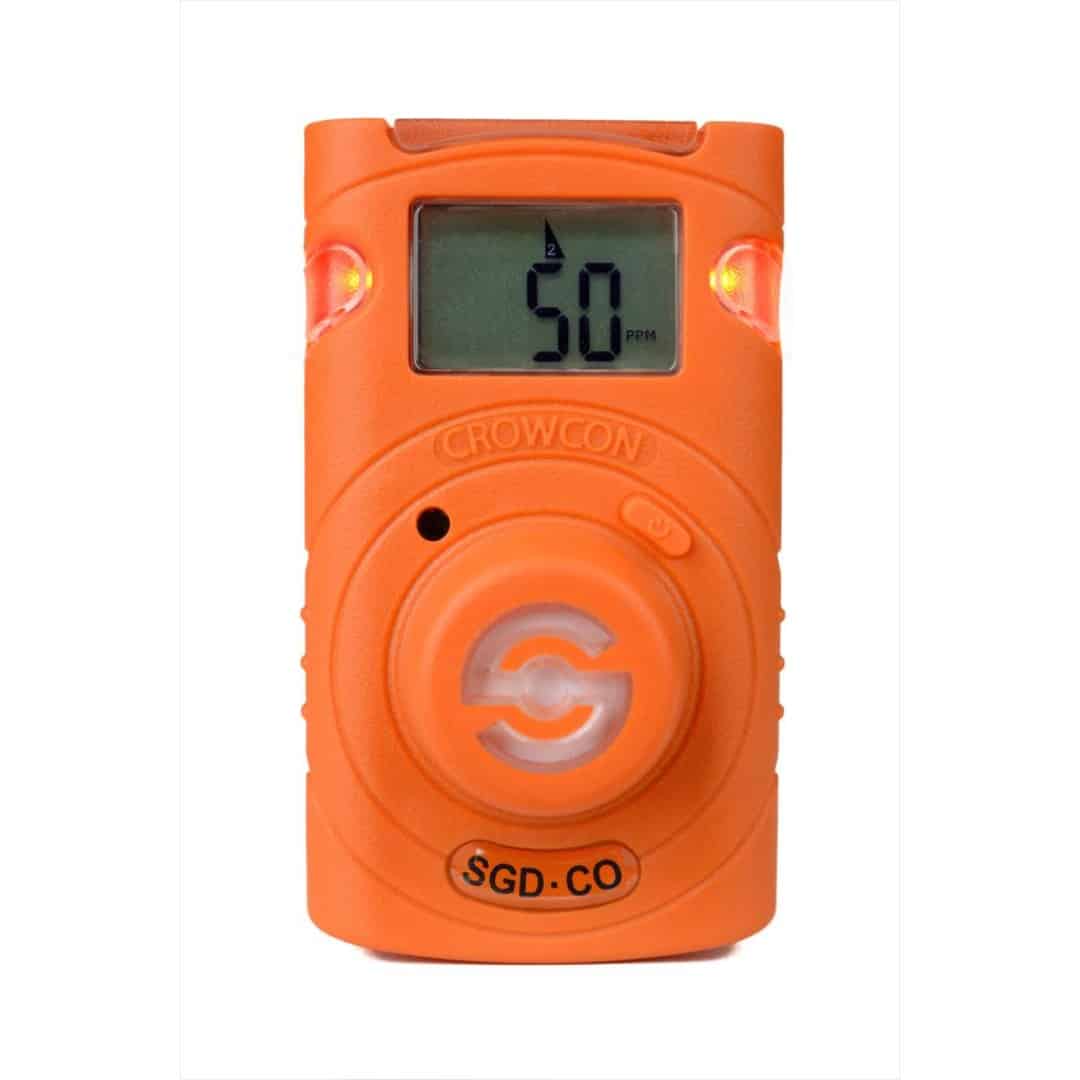

User safety is the sole purpose of these gas detecting instruments and to that end they have been optimised to be as accurate, effective and practical as possible. Like the Crowcon Clip Personal Single Gas Detector, the Crowcon Clip SGD alerts the user once hazardous gas levels have been detected through issuing an audible alarm, flashing LED lights on the top, front and side of the instrument, as well as vibrating.

Their changeable alarms ensure that these gas detectors do not become obsolete if regulations and/or company procedures are altered, whilst the Crowcon Clip SGD Docking Station (not included, but helps to maintain the accuracy and reliability of the Crowcon Clip SGD Personal Single Gas Detectors by performing bump tests (the Crowcon Clip SGD will also indicate to the user when a bump test is needed). The docking station (not included) can also be utilised to update configurations of up to four gas detectors simultaneously, as well as monitor their event records, test parameters and detector settings.

The Crowcon Clip SGD Personal Single Gas Detector is compact and lightweight as well as resistant to dust and water ingress (IP66 and IP67). This coupled with its clip-on design; wide operating temperature range and intrinsically safe (ATEX) certification ensure that this product is practical, convenient and rugged, suitable for an eclectic range of environments.

This simple-to-use product features a single button operation system ensuring that it can be utilised quickly and safely by users of all experiences. Therefore the Crowcon Clip SGD Personal Single Gas Detector is ideal for protecting users in almost all harsh industrial conditions.

Key Features:

  • A single gas detector available in three gas configurations and configurable to a number of region alarm settings
  • Can detect carbon monoxide (CO₂)
  • Updated version of the Crowcon Clip Personal Single Gas Detector
  • Two-year life
  • Event log with room for the 30 most recent events
  • Daily self-test of activation
  • Audible 90db alarm
  • Visual alarm via flashing LED lights on front, top and sides
  • Vibrating alarm
  • Changeable alarm settings
  • Bump Test Due indication
  • Crowcon Clip SGD Docking Station (not included) performs bump tests
  • Docking station can be used to update configurations of up to four gas detectors simultaneously
  • Docking station can also be utilised to monitor the event records, test p arameters and detector settings of the Crowcon Clip SGD Personal Single Gas Detectors
  • Compact
  • Lightweight
  • Resistant to dust and water: IP66 and IP67
  • Clip-on design
  • Wide operating temperature range
  • Single button operation
  • Ideal for use in harsh industrial conditions
  • Intrinsically safe, rated: UL-913 & CSA-C22.2 No.157; Class 1 Div 1 & 2, Groups A, B, C and D; ATEX II 1G Ex ia IIC T4 Ga; IECEx Ex ia IIC T4

What’s Included?

  • Crowcon Clip SGD Personal Single CO₂ Gas Detector – CO₂
  • Gas Test Cap
  • Safety Information in Twenty-Three Languages

Crowcon Clip SGD Personal Single Gas Detector Technical Specifications

Size 91 x 54 x 32mm (3.6 x 2.1 x 1.3ins)
Temperature H2S -40°C to + 50ºC (-40ºF to +122°F)
CO -40°C to + 50ºC (-40ºF to +122°F)
O2 -35°C to + 50ºC (-31ºF to +122°F)
Humidity 5% to 95% non-condensing RH
Event Logging Most recent 30 events
Ingress Protection IP66 and IP67
Tests Self test on activation and every 20hrs: continuous automatic battery integrity tests
Operational Life 2 years > 2900 alarm minutes*
Shelf Life 6-month shelf life prior to activation
Shown on box label
Compliance EMC Directive 2004/108/EC, FCC and IECES
Certification UL-913 & CSA-C22.2 No.157
Class 1 Div 1 & 2, Groups A, B, C and D
ATEX II 1G Ex ia IIC T4 Ga
IECEx Ex ia IIC T4
Warranty 2 years from activation* from Crowcon
Sensor Range H2S 0-100ppm
CO 0-300ppm
O2 0-30% vol.
Communication Accessory USB IR link for event download and configuration
* 4 alarm minutes per day



Clip Single Gas Detector (SDG) is an industrial gas detector designed for use in hazardous areas and offers reliable and durable fixed life span monitoring in a compact, lightweight and maintenance-free package. Clip SGD has a 2-year life and is available for hydrogen sulphide (H2S), carbon monoxide (CO) or oxygen (O2).

The Crowcon Clip SGD Personal Single Gas Detector – Carbon Monoxide (CO)

The Clip SDG personal gas detector is designed to withstand the harshest industrial working conditions and delivers industry leading alarm time, changeable alarm levels and event logging as well as user-friendly bump test and calibration solutions.

With respect to the selected gas, each model is then configured to region-specific alarm levels.

Gas Type Part Number Set Low Alarm Limit Set High Alarm Limit
Hydrogen Sulphide (H2S) CL-H-2 2ppm 5ppm
CL-H-5 5ppm 10ppm
CL-H-10 10ppm 15ppm

Carbon Monoxide (CO)

CL-C-25

25ppm

50ppm

CL-C-30

30ppm

100ppm

CL-C-35

35ppm

50ppm

Oxygen (O2) CL-O-19 19% vol. 23.5% vol.
CL-O-19.5 19.5% vol. 23.5% vol.
  • Crowcon Clip SGD Personal Single Gas Detector
  • Gas Test Cap
  • Safety Information in Twenty-Three Languages
