Fluke 117 Multimeter +323 Clamp Meter Electrician’s Combo Kit

Fluke

£325.00 / £390.00 incl VAT

Fluke117 Digital Multimeter. Designed by Electricians. Engineered by Fluke.
⚡ VoltAlert™ technology for non-contact voltage detection.
⚡ AutoVolt automatic ac/dc voltage selection.
⚡ Low input impedance: Helps prevent false readings due to ghost voltage.
Fluke 323 True-rms Clamp Meter.Rugged. Reliable. Precise.
⚡ 400 A ac current measurement.
⚡ 600 V ac and dc voltage measurement.
⚡ Resistance measurement up to 40k with continuity detection.
Price Pledge

Add Soft Carry Case?

Some Multimeters don’t come with a carry case that’s why we’ve added the perfect cases to go with you brand new multimeter, simply click to select.
(PLEASE CHECK THE PRODUCT YOU’RE BUYING IS NOT ALREADY SUPPLIED WITH A CASE)

None Leaderman LDM-C25 small Carry Case +£15.00 Leaderman LDM-C115 Large Carry Case +£22.00 Fluke C50 Meter Small Carry Case +£42.50 Fluke C25 Large Soft Carry Case +£47.50

Calibration Certificate

Add Calibration to your Multimeter.

SKU: FLUKE-117/323 EUR Categories: , Brand:

Description

Fluke 117 Multimeter +323 Clamp Meter Electrician’s Combo Kit

This great value testing bundle ships with two of Fluke’s most popular devices and is an ideal kit for use by all electricians.

The first device included as part of this package is the Fluke 117, a versatile digital multimeter. Fluke worked closely with a number of electricians to create this product and it includes all of the features a multimeter user could need including voltage detection technology, automatic AD/DC voltage selection, low impedance technology to fight against ghost voltages, true-RMS measurements, MIN/MAX/AVG modes and its all encased inside a handheld, portable unit that’s ideal for use in various different applications.

The Second device the Fluke 323 clamp meter is a true-RMS clamp testing solution and allows users to carry out current measurements up to a range of 400A AC, true RMS AC and DC voltage measurements up to 600V and resistance measurements up to 40kΩ. Like the Fluke 117 this device is also a portable, handheld unit and is ideal for clamping onto practically anything you need to test.

The Fluke 117/323/1AC II bundle also comes with additional accessories which are detailed below.

Fluke 117 Digital Multimeter Key Features:

  • VoltAlert technology alerts users when voltage is detected without the need for contact
  • AutoVolt automatic AC/DC voltage selection
  • Low input impedance mode filters out the problematic errors ghost voltages can cause
  • Large white LED backlight screen allows the Fluke 117 to be used in darkened conditions
  • True-RMS measurement procedures
  • Measures voltage and current
  • Resistance, continuity, frequency and capacitance testing
  • MIN/MAX/AVG functions
  • Compact, handheld design
  • CAT III 600V safety rated

Fluke 323 True-RMS Clamp Meter Key Features:

  • 400A AC Current measurements
  • 600V AC and DC voltage measurements
  • True-RMS measurements
  • Resistance measurements up to 40kΩ
  • Continuity detection
  • Slim ergonomic design
  • CAT IV 300V, CAT III 600V safety rating

 *Please note this item may not come in retail packaging but it will be a Genuine Guaranteed Fluke UK product.

Fluke 117 Digital Multimeter Technical Specifications

Specifications
Maximum voltage between any terminal and earth ground 600 V
Surge protection 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2
Fuse for A input 11 A, 1000 V FAST Fuse (Fluke PN 803293)
Display Digital: 6,000 counts, updates 4 per second
Bar graph 33 segments, updates 32 per second
Operating Temperature -10 °C to + 50 °C
Storage Temperature -40 °C to + 60 °C
Battery type 9 volt Alkaline, NEDA 1604A/ IEC 6LR61
Battery Life 400 hours typical, without backlight



Accuracy Specifications
DC millivolts Range 600.0 mV
Resolution 0.1 mV
Accuracy ± ([% of reading] + [counts]): 0.5% + 2
DC volts Range/Resolution 6.000 V / 0.001 V
Range/Resolution 60.00 V / 0.01 V
Range/Resolution 600.00 V / 0.1 V
Accuracy ± ([% of reading] + [counts]): 0.5% + 2
Auto volts Range 600.0 V
Resolution 0.1 V
Accuracy 2.0 % + 3 (dc, 45 Hz to 500 Hz)
4.0 % + 3 (500 Hz to 1 kHz)
AC millivolts1 true-rms Range 600.0 mV
Resolution 0.1 mV
Accuracy 1.0 % + 3 (dc, 45 Hz to 500 Hz)
2.0 % + 3 (500 Hz to 1 kHz)
AC volts1 true-rms Range/Resolution 6.000 V / 0.001 V
Range/Resolution 60.00 V / 0.01 V
Range/Resolution 600.0 V / 0.1 V
Accuracy 1.0 % + 3 (dc, 45 Hz to 500 Hz)
2.0 % + 3 (500 Hz to 1 kHz)
Continuity Range 600 Ω
Resolution 1 Ω
Accuracy Beeper on < 20 Ω, off > 250 Ω; detects opens or shorts of 500 μs or longer.
Ohms Range/Resolution 600.0 Ω / 0.1 Ω
Range/Resolution 6.000 kΩ / 0.001 kΩ
Range/Resolution 60.00 kΩ / 0.01 kΩ
Range/Resolution 600.0 kΩ / 0.1 kΩ
Range/Resolution 6.000 MΩ / 0.001 MΩ
Accuracy 0.9 % + 1
Range/Resolution 40.00 MΩ / 0.01 MΩ
Accuracy 5 % + 2
Diode Test Range/Resolution 2.000 V / 0.001 V
Accuracy 0.9% + 2
Capacitance Range/Resolution 1000 nF / 1 nF
Range/Resolution 10.00 μF / 0.01 μF
Range/Resolution 100.0 μF / 0.1 μF
Range/Resolution 9999 μF / 1 μF
Range/Resolution 100 μF to 1000 μF
Accuracy 1.9% + 2
Range/Resolution > 1000 μF
Accuracy 5% + 20%
LoZ capacitance Range 1 nF to 500 μF
Accuracy 10% + 2 typical
AC amps true-rms (45 Hz to 500 Hz) Range/Resolution 6.000 A / 0.001 A
Range/Resolution 10.00 A / 0.01 A
Accuracy 1.5% + 3
20 A continuous overload for 30 seconds max
DC amps Range/Resolution 6.000 A / 0.001 A
Range/Resolution 10.00 A / 0.01 A
Accuracy 1.0% + 3
20 A continuous overload for 30 seconds max
Hz (V or A input)2 Range/Resolution 99.99 Hz / 0.01 Hz
Range/Resolution 999.99 Hz / 0.1 Hz
Range/Resolution 9.999 Hz / 0.001 Hz
Range/Resolution 50.00 Hz / 0.01 Hz
Accuracy 0.1% + 2

Notes:
1) All ac voltage ranges except Auto-V/LoZ are specified from 1 % to 100 % of range. Auto-V/LoZ is specified from 0.0 V.
2) Temperature uncertainty (accuracy) does not include the error of the thermocouple probe.
3) Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage. Frequency is dc coupled, 45 Hz to 5 kHz for ac current.
4) Temperature Range/Resolution: -40 °F to 752 °F / 0.2 °F



Mechanical & General Specifications
Size 167 x 84 x 46 mm (6.57″ x 3.31″ x 1.82″)
Weight 550 g
Warranty 3 years

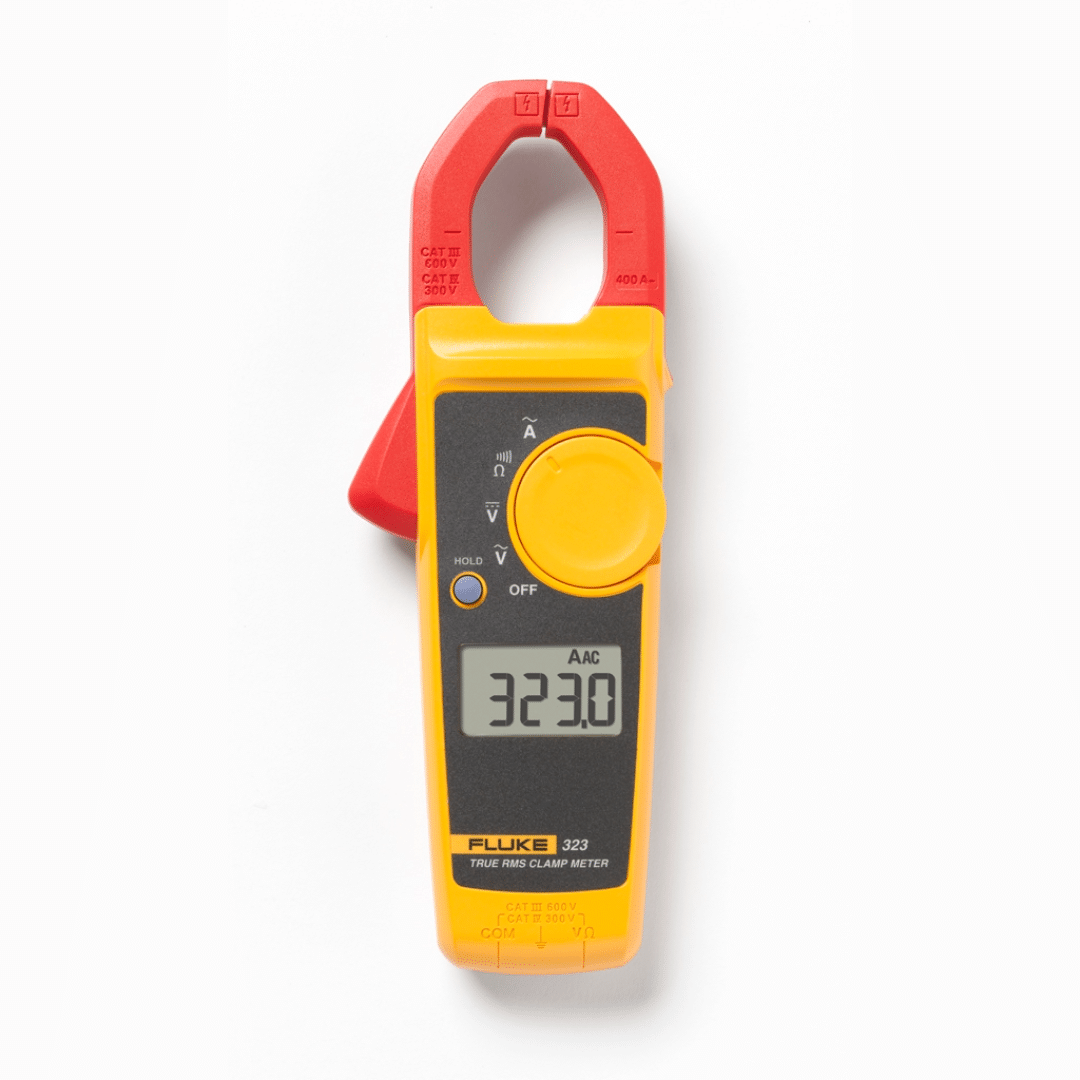

Fluke 323 True-rms Clamp Meter Technical Specifications

Specifications
AC current Range 400.0 A
Accuracy 2 % ± 5 digits
(45 Hz to 65 Hz)
2.5 % ± 5 digits
(65 Hz to 400 Hz)
AC voltage Range 600.0 V
Accuracy 1.5 % ± 5 digits
DC voltage Range 600.0 V
Accuracy 1.0 % ± 5 digits
Resistance Range 400.0 Ω/ 4000 Ω
Accuracy 1.0 % ± 5 digits
Continuity ≤ 70 Ω
AC response True-rms
Data hold Yes
Size H x W x D (mm) 207 x 75 x 34
Max wire diameter 30 mm (600 MCM)
Weight 265 g
Category rating CAT III 600 V
CAT IV 300 V
Warranty Two-year

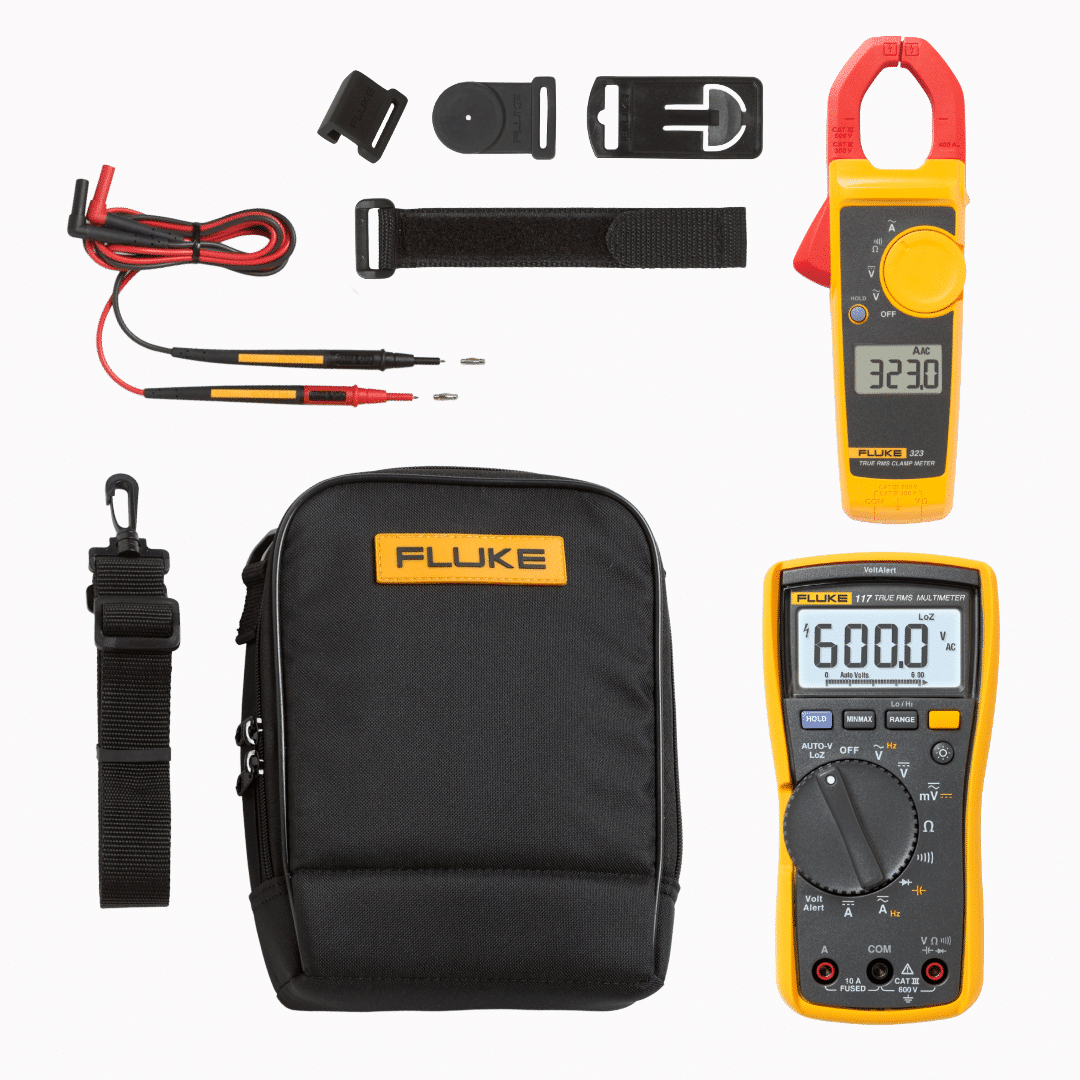

  • Fluke 117 Digital Multimeter
  • Fluke 323 True-RMS Clamp Meter
  • Test Lead Set
  • Magnetic Hanging Strap
  • Carry Case
