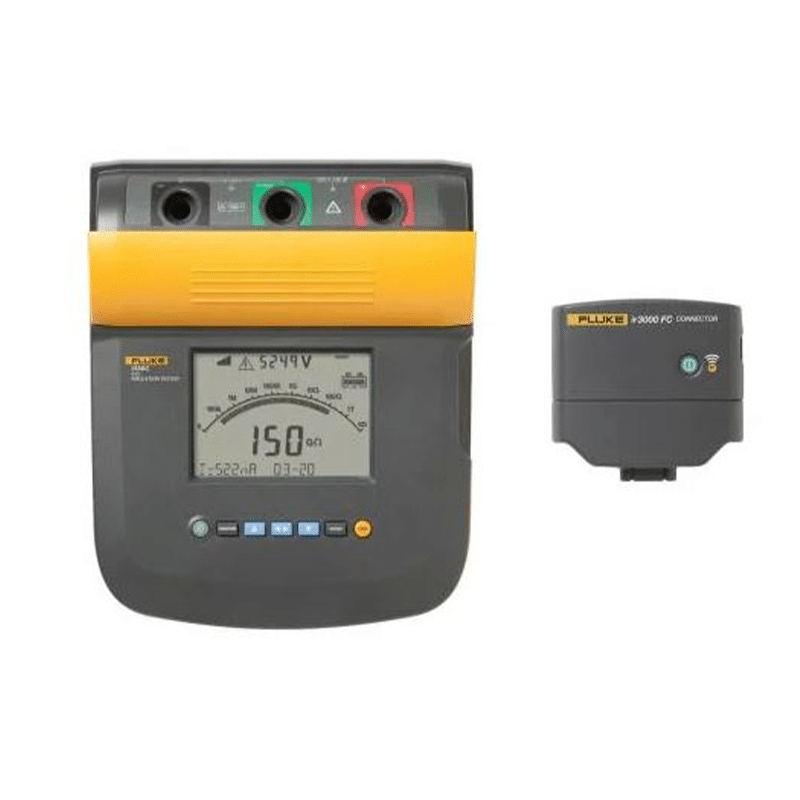

Fluke 1555 FC 10 kV Insulation Tester

Fluke

£3,725.00 / £4,470.00 incl VAT

⚡ 3-year Fluke Warranty
⚡ Test voltages up to 10kV and save time by trending on the spot
⚡ CAT III 1000V, CAT IV 600 V safety rating
⚡ Selectable test voltages in 50 V steps (250 V to 1000 V) and 100 V above 1000 V
⚡ Fluke Connect
⚡ Long battery life

Available on back-order

Price Pledge

Calibration Certificate

Add Calibration to your Insulation Tester.

Description

Fluke 1555 FC 10 kV Insulation Tester

Product Details:

The Fluke 1555 FC 10kV Insulation Tester kit empowers users to conduct digital insulation testing at voltages up to 10kV, enhancing safety and efficiency during the installation of high-voltage equipment like switchgear, motors, generators, and cables. Data can be seamlessly transferred to a smart device via the included IR3000FC Connector and downloadable FlukeConnect App. The kit also includes a rugged Fluke hard carry case (rated IP67) and high-voltage test leads. The Fluke 1555 offers selectable test voltages in 50V steps from 250V to 1000V and in 100V steps above 1000V. Its wireless start/stop capability enables users to work remotely, ensuring safety at all times.

With the Fluke 1555, users can measure various parameters, including capacitance (from 0.01μF to 15μF), leakage current (from 1nA to 2mA), and resistance (up to 2TΩ). The included guard systems filter out surface leakage current on high-resistance measurements, while automatic calculation of Electric Absorption (DAR) and Polarisation Index (PI) eliminates the need for additional setup.

Fluke Connect®

Through the Fluke Connect® App, the 1555 facilitates data storage, sharing, and analysis, enabling users to anticipate and prevent issues in maintenance programs, thus preempting potential equipment failures. Remote operation with stop/start capabilities allows for safe testing in hazardous environments. Reports, complete with company logos, can be generated using pre-designed templates. The IR3000FC Connector is upgradable via USB.

Fluke IR3000FC Connector

With the included Fluke IR3000FC Connector, users can wirelessly transfer data from the Fluke 1555 to a smart device. They can instantly graph, save, and share readings with team members via the Fluke Connect® App.

The Fluke 1555 boasts a long battery life, enabling up to 750 tests between charges, and an internal memory of 99 locations for storing recordings with user-defined labels, facilitating easy recall post-testing. Comprehensive results analysis is facilitated through the large LCD screen, offering both digital and analog displays. Safety features include a CAT III 1000V and CAT IV 600V rating, and it can conduct the entire range of test voltages specified in IEEE 43-2000. A warning function alerts users to the presence of line voltage and provides voltage readings up to 600V AC or DC, enhancing user safety.

Key Features

  • Test Voltage to 10kV
  • Automatic calculation of Dielectric Absorption (DAR) and Polarisation Index (PI) with no additional setup
  • Guard system eliminates the effect of surface leakage current on high-resistance measurements
  • Selectable test voltages in 50V steps from 250V to 1000V, and 100V steps above 1000V
  • Includes a Fluke IR3000FC Connector allowing wireless transfer data from Fluke 1555 to a smart device
  • Remotely stop/start testing using the Fluke Connect® App
  • CAT III 1000V, CAT IV 600V safety rating
  • Warning function alerts the user that line voltage is present and gives the voltage reading up to 600V AC or DC for increased user safety
  • Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
  • Long battery life gives the user over 750 tests between charges
  • Large digital/analog LCD for easy viewing of test data
  • Capacitance and leakage current measurement/li>
  • Ramp function for breakdown testing
  • Resistance measurements up to 2TΩ
  • Timer settings up to 99 minutes for timed tests
  • 3-year warranty

What’s In The Box?

  • Fluke 1555 FC 10kV Insulation Tester
  • Fluke IR3000FC Connector
  • Test cables with alligator clips (red, green and black)
  • Infrared adaptor with interface cable
  • AC power cord
  • Hard carry case (IP67 Rated)
  • Quick reference card
  • USB-IR cable installation guide
  • Fluke Connect IR to wireless connector
  • CD User manual
  • Registration card
  • FlukeView forms installation guide
  • Calibration Certificate
  • Ruggedised Alligator Clips
  • Quick reference guide

Specifications: Fluke 1555 FC 10 kV Insulation Tester Kit

Electrical Specifications
The tester’s accuracy is specified for one year after calibration at operating temperatures of 0°C to 35°C. For operating temperatures outside the range (-20°C to 0°C and 35°C to 50°C), add ±.25% per °C, except on the 20% bands add ±1% per °C.
Insulation Resistance Measurement
Test voltage (DC)
250 V Range < 250 kΩ, 250 kΩ to 5 GΩ 5 GΩ to 50 GΩ > 50 GΩ
Accuracy (± reading) Unspecified
5%
20%
Unspecified
500 V Range < 500 kΩ 500 kΩ to 10 GΩ 10 GΩ to 100 GΩ > 100 GΩ
Accuracy (± reading) Unspecified
5%
20%
Unspecified
1000 V Range < 1 MΩ 1 MΩ to 20 GΩ 20 GΩ to 200 GΩ > 200 GΩ
Accuracy (± reading) Unspecified
5%
20%
Unspecified
2500 V Range < 2.5 MΩ 2.5 MΩ to 50 GΩ 50 GΩ to 500 GΩ > 500 GΩ
Accuracy (± reading) Unspecified
5%
20%
Unspecified
5000 V Range < 5 MΩ 5 MΩ to 100 GΩ 100 GΩ to 1 TΩ > 1 TΩ
Accuracy (± reading) Unspecified
5%
20%
Unspecified
10000 V Range < 10 MΩ 10 MΩ to 200 GΩ 200 GΩ to 2 TΩ > 2 TΩ
Accuracy (± reading) Unspecified
5%
20%
Unspecified
Bar graph range 0 to 1 TΩ (1550C) – 0 to 2 TΩ (1555)
Insulation test voltage accuracy -0%, +10% at 1 mA load current
Induced AC mains current rejection 2 mA maximum
Charging rate for capacitive load 5 seconds per μF
Discharge rate for capacitive load 1.5 s/μF
Leakage current measurement Range 1 nA to 2 mA
Accuracy ±(5% + 2 nA)
Capacitance measurement Range 0.01 μF to 15.00 μF
Accuracy ±(15% rdg + 0.03 μF)
Timer Range 0 to 99 minutes
Resolution setting 1 minute
Resolution indication 1 second
Live circuit warning Warning range 30 V to 660 V AC/DC, 50/60 Hz
Voltage accuracy ±(15% + 2 V)
Software specifications FlukeView Forms™ basic software requires a PC running Windows XP, Windows Vista , Windows 7 or Windows 8.
General Specifications
Display 75 x 105 mm
Power 12 V lead-acid rechargeable battery, Yuasa NP2.8-12
Charger Input (AC) 85 V to 250 V AC 50/60 Hz 20 VA
This Class II (double insulated) instrument is supplied with a Class 1 (grounded) power cord. The protective earth terminal (ground pin) is not connected internally. The extra pin is for added plug retention only.
Dimensions 269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in)
Weight 3.7 kg (8.2 lb)
Temperature (operating) -20°C to 50°C (-4°F to 122°F)
Temperature (storage) -20°C to 65°C (-4°F to 149°F)
Humidity 80% to 31°C decreasing linearly to 50% at 50°C
Altitude 2000 m
Enclosure sealing IP40
Input overload protection 1000 V AC
Electromagnetic compatibility EN 61326
Safety compliance IEC 61010-1: Overvoltage category II, Pollution Degree 2.
IEC 61010-2-030: Measurement 600V CAT IV / 1000V CAT III
IEC 61557-1, IEC 61557-2
  • 1555 10kV Insulation Resistance Tester
  • Fluke Connect IR to Wireless Connector IR3000FC/1550
  • Test cables with alligator clips (red, black, green)
  • Infrared adapter with interface cable
  • AC power cord
  • IP67 Hard Case (Colour may vary from image shown)
  • Certificate of Calibration
  • English manual
  • User’s manual on CD-ROM
  • Quick reference card
  • Software license agreement
  • Registration card
  • USB-IR cable installation guide
  • Heavy duty alligator clip leads
