Fluke 1577 2-in-1 Insulation Multimeter with Case & Accessories

Fluke

£588.00 / £705.60 incl VAT

⚡ Three-year warranty by Fluke
⚡ Digital insulation tester
⚡ True RMS digital multimeter
⚡ Single, compact, handheld unit
⚡ Provides maximum versatility for both troubleshooting and preventative maintenance
Price Pledge

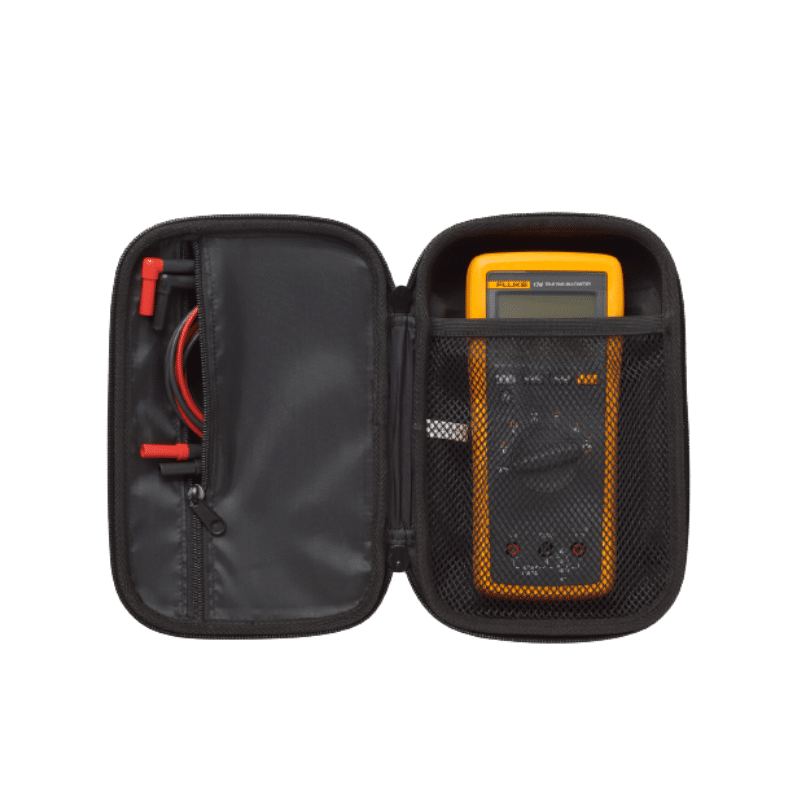

Add Soft Carry Case?

Some Multimeters don’t come with a carry case that’s why we’ve added the perfect cases to go with you brand new multimeter, simply click to select.
(PLEASE CHECK THE PRODUCT YOU’RE BUYING IS NOT ALREADY SUPPLIED WITH A CASE)

None Leaderman LDM-C25 small Carry Case +£15.00 Leaderman LDM-C115 Large Carry Case +£22.00 Fluke C50 Meter Small Carry Case +£42.50 Fluke C25 Large Soft Carry Case +£47.50

Calibration Certificate

Add Calibration to your Insulation Tester.

Calibration Certificate

Add Calibration to your Multimeter.

Description

Fluke 1577 2-in-1 Insulation Multimeter

Product Details:

Two powerful tools in one!

The Fluke 1577 Insulation Multimeter combines a digital insulation tester with a full-featured, true RMS digital multimeter in a single, compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance.

Whether you work on motors, generators, cables, or switch gear, the Fluke 1577 Insulation Multimeter is ideally suited to help you with your tasks and at a cost that is far less than buying the two products.

Key features:

  • DC millivolts
  • Resistance (0.1 Ω to 50 MΩ)
  • Continuity
  • Remote probe, test leads, alligator clips
  • Rugged, utility hard case
  • Auto power off to save battery power
  • True RMS
  • Large display with backlight
  • Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
  • CAT III 1000V, CAT IV 600V measurement category
  • Accepts optional Fluke TPAKTM magnetic hanging system to free your hands for other work
  • Auto Power Off to save batteries

Multimeter features:

  • True RMS Voltage and Current for accurate measurements
  • 6000 Count Digital Display
  • Autorange and Manual Range for easy testing

Insulation tester features:

  • 500V & 1000V test ranges
  • Special Remote Test Probe for easy and safe measurements
  • Auto-discharge of capacitive voltage for added user protection
  • Live Circuit Detection, prevents testing if voltage >30V is detected

What’s in the Box?

  • Remote probe
  • Test leads
  • Alligator clips
  • Hard case
  • Four AA alkaline batteries
  • Quick reference guide
  • CD rom with manual

Specifications: Fluke 1577 Insulation Multimeter

Specifications
Voltage DC Maximum voltage 1000 V
Accuracy ±(0.2%+2)
Maximum resolution 0.001 V
Voltage AC Maximum voltage 1000 V
Accuracy ±(2%+3)
Maximum resolution 0.1 mV
Current DC Maximum amps 400 mA
Amps accuracy ±(1.0%+2)
Maximum resolution 0.01 mA
Current AC Maximum amps 400 mA
Amps accuracy ±(2.0%+2)*
Maximum resolution 0.01 mA
Resistance Maximum resistance 50 MΩ
Accuracy ±(1.2%+2)
maximum resolution 0.1Ω
Insulation Test
Minimum test current @ 1kΩ/V 1 mA
Test voltages 500, 1000 V
Maximum resistance per test voltage 50 V
100 V
250 V
500 V
1000 V 600 MΩ
Maximum resolution per test voltage 50 V 0.01 MΩ
100 V 0.01 MΩ
250 V 0.1 MΩ
500 V 0.1 MΩ
1000 V 0.1 MΩ
Accuracy per test voltage 50 V ±(3% + 5)
100 V ±(3% + 5)
250 V ±(1.5% + 5)
500 V ±(2.0% + 5)
1000 V ±(2.0% + 5)
Environmental Specifications
Operating temperature –20°C to +55°C
Storage temperature -40°C to +60°C
Humidity (without condensation) 0% – 95% (10°C – 30°C)
0% – 75% (30°C – 40°C)
0% – 40% (40°C – 55°C)
Operating altitude 2000 m
Safety Specifications
General IEC 61010-1: Pollution Degree 2
Measurement IEC 61010-2-033: CAT IV 600V / CAT III 1000V
Mechanical and General Specifications
Size 203 x 100 x 50 mm (with holster)
Weight 624 g
Warranty 3 years
Battery life alkaline Meter use 1000 hours
Insulation test use Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.
IP rating IP40

What’s in the box:

  • 1577 Insulation Multimeter
  • Remote probe
  • Test leads
  • Alligator clips
  • Hard case
  • Four AA alkaline batteries
  • Quick reference guide
  • CD rom with manual
