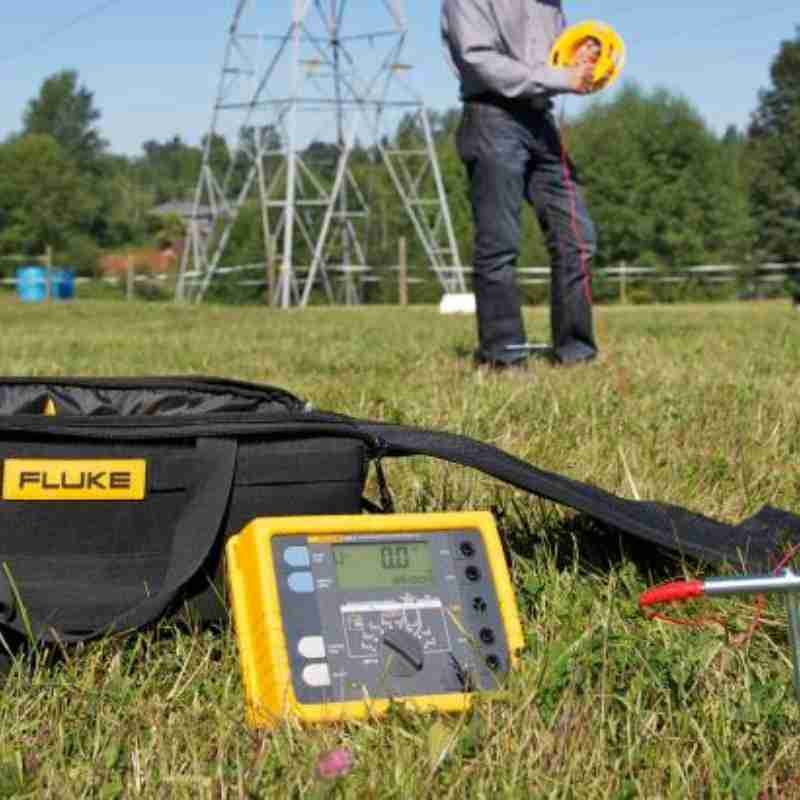

Fluke 1623-2 KIT Basic GEO Earth Ground Resistance Tester Kit
Original price was: £2,634.00.£1,994.00Current price is: £1,994.00. / £2,392.80 incl VAT
⚡3- and 4-pole Fall-of-Potential, earth resistance loop testing
⚡4-pole Soil Resistivity testing
⚡Selective earth ground rod testing using 1 clamp
⚡Stakeless earth ground rod testing using 2 clamps
⚡IP56 rated for outdoor use
⚡Rugged carrying case
⚡USB data storage and transfer
Only 1 left in stock
Description

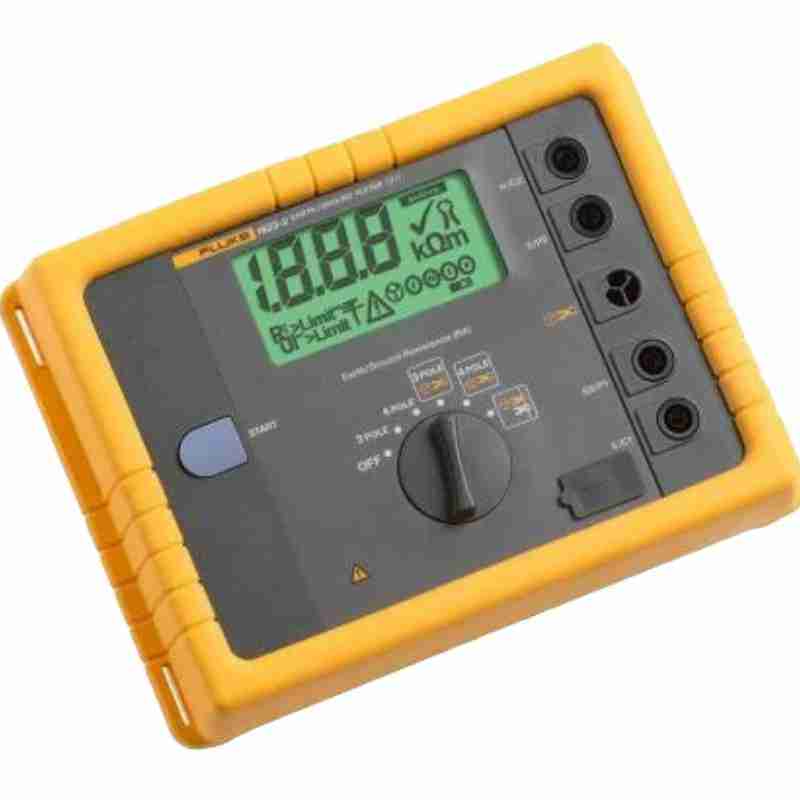

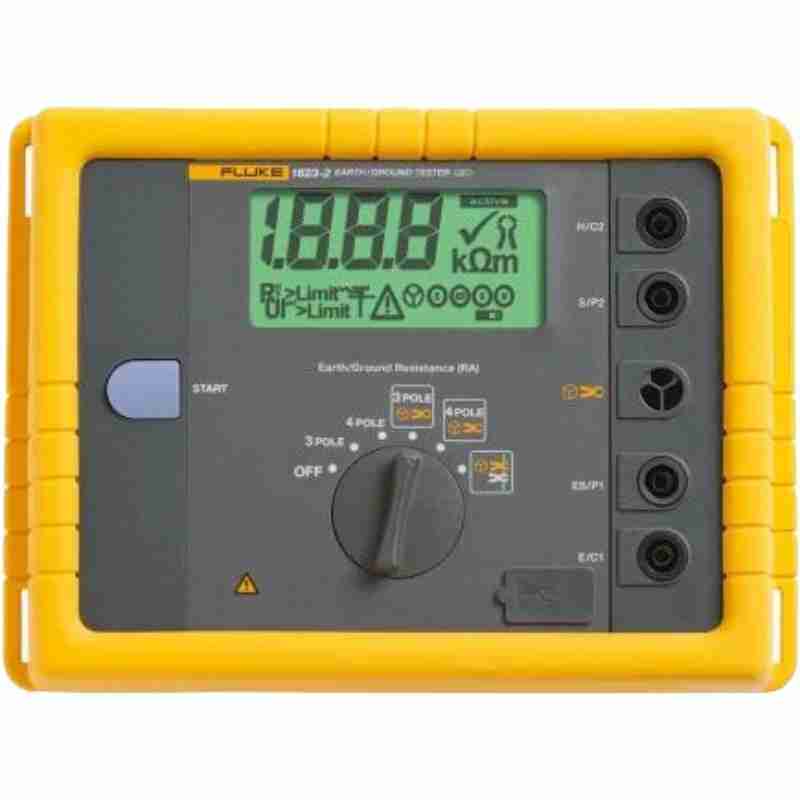

Fluke 1623-2 KIT Basic GEO Earth Ground Resistance Tester Kit
The Fluke 1623-2 GEO Earth Ground Tester is a cutting-edge solution for accurate, efficient, and versatile earth ground testing. Designed for professionals, it features robust data storage and transfer capabilities via a USB port, ensuring quick and easy access to your measurements. Equipped with world-class accessories, this tester simplifies complex procedures, significantly reducing testing time.
Built to withstand the toughest conditions, its rugged IP56-rated design ensures dependable performance even in challenging outdoor environments. Whether you’re performing traditional 3- and 4-pole testing or using the innovative stakeless testing method, the Fluke 1623-2 delivers exceptional precision and convenience, making it the ultimate choice for a wide range of applications.
Key Benefits
- Comprehensive Testing Options: Perform all four earth ground testing methods, including stakeless and selective testing.
- Seamless Data Management: USB port for efficient storage and transfer of test results.
- Innovative Stakeless Testing: Eliminates the need for stakes, streamlining testing in hard-to-access environments.
- Rugged Reliability: IP56-rated for durability in outdoor and demanding conditions.
- Enhanced Efficiency: Includes high-quality accessories to expedite testing.
Stakeless Testing Overview
The Fluke 1623-2 enables earth ground loop resistance measurements using only clamps, eliminating the need for stakes. By placing two clamps around the earth ground rod and connecting them to the tester, the device induces a fixed voltage via one clamp and measures the current with the other. The tester then automatically calculates the earth ground rod’s resistance.
This method is suitable for bonded earth ground systems, commonly found in most buildings or structures. However, it is unsuitable for systems with only one path to ground (e.g., many residential setups), where the Fall-of-Potential method should be used instead.
Key advantages of stakeless testing include:
- Maintaining the bonded earth ground system during testing, eliminating the need to disconnect rods.
- Significantly reducing setup time by avoiding the placement and connection of stakes.
- Allowing earth ground testing in previously inaccessible locations, such as inside buildings or on power pylons.
The Most Complete Tester
The Fluke 1623-2 is a versatile tool, capable of performing all four types of earth ground measurements:
- 3- and 4-Pole Fall-of-Potential Testing (using stakes).
- 4-Pole Soil Resistivity Testing (using stakes).
- Selective Testing (using one clamp and stakes).
- Stakeless Testing (using two clamps only).
Specifications: Fluke 1623-2 GEO Earth Ground Tester Kit
| General Specifications | |
| Display: 1999 digit LCD | Display with special symbols, digit height 25 mm, fluorescent backlight |
| User interface | Instant measurement through TURN and START one button concept. The only operating elements are rotary switch and START button |
| Robust, water and dust resistant | Instrument is designed for tough environmental conditions (rubber protective cover, IP56) |
| Memory | Internal memory storage up to 1500 records accessible via USB port |
| Temperature Range | |
| Operating temperature | -10°C to 50°C (14°F to 122°F) |
| Storage temperature | -30°C to 60°C (-22°F to 140°F) |
| Temperature coefficient | ±0.1% of reading/°C < 18°C > 28°C |
| Intrinsic error | Refers to the reference temperature range and is guaranteed for 1 year |
| Operating error | Refers to the operating temperature range and is guaranteed for 1 year |
| Climatic class | C1 (IEC 654-1), -5°C to +45°C (23° to +115° F), 5% to 95% RH |
| Protective type | IP56 for case, IP40 for battery door according to EN60529 |
| Safety | Protection by double and/or reinforced insulation. max. 50 V to earth. IEC61010-1: Pollution degree 2 |
| EMC (emission immunity) | IEC61326-1: Portable |
| Quality system | Developed, designed and manufactured according to DIN ISO 9001 |
| External voltage | V ext, max = 24 V (DC, AC < 400 Hz), measurement inhibited for higher values |
| V ext rejection | > 120 dB (162⁄3, 50, 60, 400 Hz) |
| Measuring time | Typical 6 seconds |
| Max. overload | 250 V rms (pertains to misuse) |
| Auxiliary power | 6 x 1.5 V Alkaline (type AA LR6) |
| Battery life span | Typical > 3,000 measurements |
| Dimensions (W x H x D) | 250 x 133 x 187 mm (9.75 x 5.25 x 7.35 in) |
| Weight | 1.1 kg (2.43 lb) including batteries 7.6 kg (16.8 lb) incl. accessories and batteries in carrying case |
| RA 3-Pole Ground Resistance Measurement (IEC 1557-5) | |
| Switch position | RA 3-pole |
| Resolution | 0.001 Ω to 10 Ω |
| Measuring range | 0.020 Ω to 19.99 kΩ |
| Accuracy | ±(2% rdg + 3 d) |
| Operating error | ±(5% rdg + 3 d) |
| Measuring Principle: Current/Voltage Measurement | |
| Measuring voltage | Vm = 48 V AC |
| Short-circuit current | > 50 mA |
| Measure frequency | 128 Hz |
| Probe resistance (RS) | Max 100 kΩ |
| Auxiliary earth electrode resistance (RH) | Max 100 kΩ |
| Additional error from RH and RS | RH[kΩ]•••RS[kΩ]/RA[Ω]•••0.2% |
| Monitoring of RS and RH with error indicator. Automatic range selection. Measurement is not performed if the current through the current clamp is too low. | |
| RA 4-Pole Ground Resistance Measurement (IEC 1557-5) | |
| Switch position | RA 4-pole |
| Resolution | 0.001 Ω to 10 Ω |
| Measuring range | 0.020 Ω to 19.99 kΩ |
| Accuracy | ±(2% rdg + 3 d) |
| Operating error | ±(5% rdg + 3 d) |
| Measuring Principle: Current/Voltage Measurement | |
| Measuring voltage | Vm = 48 V AC |
| Short-circuit current | > 50 mA |
| Measure frequency | 128 Hz |
| Probe resistance (RS + RES) | Max 100 kΩ |
| Auxiliary earth electrode resistance (RH) | Max 100 kΩ |
| Additional error from RH and RS | RH[kΩ]•••RS[kΩ]/RA[Ω]•••0.2% |
| Monitoring of RS and RH with error indicator. Automatic range selection. | |
| RA 3-Pole Selective Ground Resistance Measurement with Current Clamp (RA with Clamp ) | |
| Switch position | RA 3-pole with clamp |
| Resolution | 0.001 Ω to 10 Ω |
| Measuring range | 0.020 Ω to 19.99 kΩ |
| Accuracy | ±(7% rdg + 3 d) |
| Operating error | ±(10% rdg + 5 d) |
| Measuring Principle: Current/Voltage Measurement (with External Current Clamp) | |
| Measuring voltage | Vm = 48 V AC |
| Short-circuit current | > 50 mA |
| Measure frequency | 128 Hz |
| Probe resistance (RS) | Max 100 kΩ |
| Auxiliary earth electrode resistance (RH) | Max 100 kΩ |
| Monitoring of RS and RH with error indicator. Automatic range selection. Measurement is not performed if the current through the current clamp is too low. | |
| RA 4-Pole Selective Ground Resistance Measurement with Current Clamp (RA with Clamp ) | |
| Switch position | RA 4-pole with clamp |
| Resolution | 0.001 Ω to 10 Ω |
| Measuring range | 0.020 Ω to 19.99 kΩ |
| Accuracy | ±(7% rdg + 3 d) |
| Operating error | ±(10% rdg + 5 d) |
| Measuring Principle: Current/Voltage Measurement (with External Current Clamp) | |
| Measuring voltage | Vm = 48 V AC |
| Short-circuit current | > 50 mA |
| Measure frequency | 128 Hz |
| Probe resistance (RS) | Max 100 kΩ |
| Auxiliary earth electrode resistance (RH) | Max 100 kΩ |
| Monitoring of RS and RH with error indicator. Automatic range selection. Measurement is not performed if the current through the current clamp is too low. | |
| Stakeless Ground Loop Measurement (2 Clamps ) | |
| Switch position | RA 4-pole 2 clamps |
| Resolution | 0.001 Ω to 10 Ω |
| Measuring range | 0.020 Ω to 19.99 kΩ |
| Accuracy | ±(7% rdg + 3 d) |
| Operating error | ±(10% rdg + 5 d) |
| Measuring Principle: Stakeless Measurement of Resistance in Closed Loops Using Two Current Transformers | |
| Measuring voltage | Vm = 48 V AC |
| Measure frequency | 128 Hz |
| Noise current (IEXT) | Max. IEXT = 10 A (AC) (RA < 20 Ω) |
| Max. IEXT = 2 A (AC) (RA > 20 Ω) | |
| Automatic range selection. The information regarding stakeless ground loop measurements is only valid when used in conjunction with the recommended current clamps at the minimum distance specified. | |
Models: Fluke 1623-2 GEO Earth Ground Tester Kit
Includes:
- GEO Earth Ground Tester
- User’s Manual
- Batteries
- Quick Reference Guide
- USB Cable
- 2 Clamps
- C1620 Professional Carrying Case
- 4 Earth Ground Stakes
- 3 Cable Reels
