The Fluke 1673FC Multifunction Tester offers dependable installation testing, ensuring that electrical systems in residential, commercial, and industrial settings comply with industry standards like IEC/HD 60364-6. Featuring an ergonomic design and a user-friendly interface, the 1673FC simplifies the process of installation testing. With its wireless connectivity, it allows seamless data management aligned with industry requirements.

Perform All Tests Up to 30% Faster

With its Auto Test function, the Fluke 1673FC enables the execution of an entire installation test sequence with a single button press. The integrated help feature provides users with a visual guide for connections, while the automatic measurement validation compares results to predefined standards and gives instant pass/fail feedback. This eliminates manual testing and accelerates validation, boosting both accuracy and productivity. The 1673FC supports a wide range of tests including resistance, loop and line impedance, tripping speed, wiring polarity checks, detection of broken PE and N wires, as well as Prospective Earth Fault Current (PEFC/IK) and Prospective Short-Circuit Current (PSC/IK). Additionally, it performs continuity testing with a low test current (10mA), ideal for measuring motor windings.

The high current loop mode allows for faster measurements compared to non-trip loop tests for RCD-protected circuits. The 1673FC can measure trip time and current for RCD types AC, A, and F in a single test, and it also supports smooth DC-sensitive RCDs such as type B and B+. It can be paired with the Fluke FEV300 (sold separately) for testing EV charging stations, including 6mA DC RCD testing at charging points.

The tester also features Z-max memory, which helps analyze the highest loop test value. It enables simultaneous voltage measurements between L-N, L-PE, and N-PE using the main cords, eliminating the need to change measurement connections.

Fluke Connect™️ Compatibility

The 1673FC is compatible with the Fluke Connect app, enabling wireless synchronization between the tester and a smart device. This helps eliminate data entry errors by saving test results directly from the tester and linking them with work orders, reports, or asset records. Both historical and current measurements can be accessed for each asset, and data can be shared via ShareLive™ video calls or email. Visual inspection reports can be enhanced by attaching images and notes. Additional Fluke Connect-enabled tools can also be synchronized, giving a comprehensive overview of facility health. Furthermore, data can be uploaded to the Fluke Cloud, making it accessible to colleagues worldwide.

Enhanced Software and Reporting with Fluke TruTest™️

The 1673FC integrates seamlessly with Fluke TruTest Software (available as an optional extra) for simple electrical data management and reporting. TruTest facilitates data transfer between the software and the tester via USB-C or wireless connection, ensuring precise test results. The built-in report generator allows users to quickly format measurement data into printable certificates and reports, with the option to add company logos and signatures.

Simplified Interface and Test Setup

With a full-color touchscreen and rotary dial, the 1673FC offers easy navigation through its menus, even while wearing safety gloves. Its bidirectional user interface streamlines test setup and data preparation. The hierarchical tree topology allows for customizable organization of clients, sites, distribution boards, circuits, and test points, either directly on the device or through a smart device or PC. This customization helps ensure accurate data capture. The tester also features test tables, ensuring the right measurements are recorded at the correct time.

The 1673FC includes several safety features, such as color-coded input terminals rated at CAT III 600V and CAT IV 300V, providing overvoltage protection. The device can detect raised voltages above 50V, alerting users to potentially hazardous environments. It is powered by a rechargeable lithium-ion battery, providing a full day’s usage in the field. The USB-C port not only supports charging but also facilitates data transfer and firmware updates.

Included Accessories

The 1673FC Multifunction Tester comes with a padded neck strap for added comfort, allowing users to keep their hands free during testing. A hard case provides protection during storage and transportation.

Fluke part number: 5580865

Key Features:

• Full-color touchscreen with rotary dial
• High current loop mode for faster measurements
• Voltage drop measurement function
• Earth ground resistance testing
• RCD types B/B+ testing capabilities
• EV charging station testing with 6mA (RDC-DD)
• Z Max memory for loop testing
• Simultaneous voltage measurements between L-N, L-PE, and N-PE
• RCD trip current and time displayed together
• Ring testing without changing test leads
• Continuity test with low test current (10mA) for motor windings
• Earth Volt touchpad detecting voltages over 50V
• Fluke Connect and Fluke Cloud Storage compatible
• Prospective Earth Fault Current (PEFC/IK) and Prospective Short-Circuit Current (PSC/IK) testing
• Rechargeable battery with USB-C charging

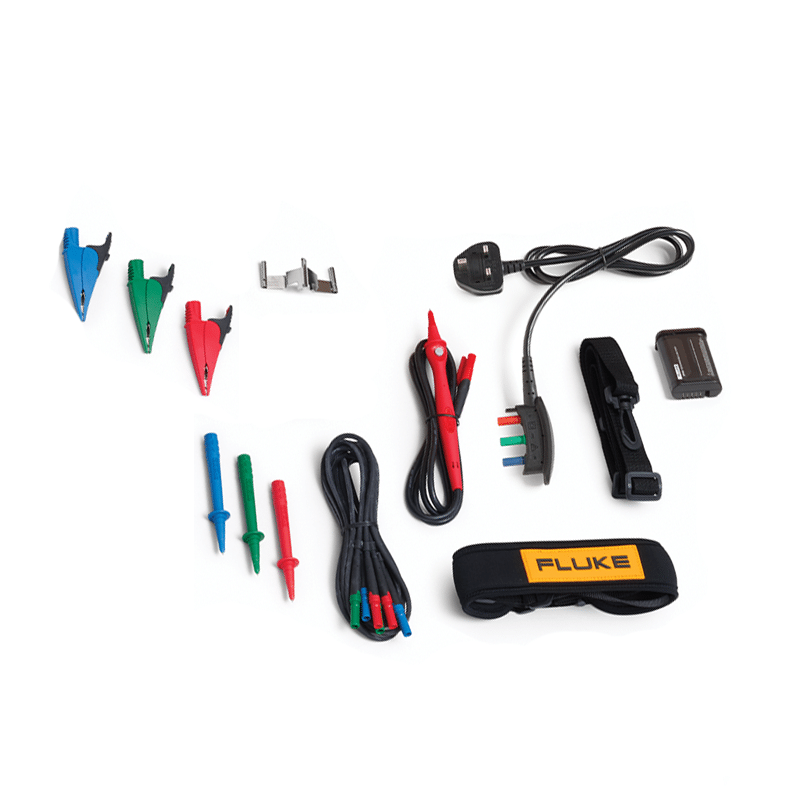

What’s in the Box?

• Fluke 1673FC Multifunction Tester
• Heavy-duty mains cord with single input connector

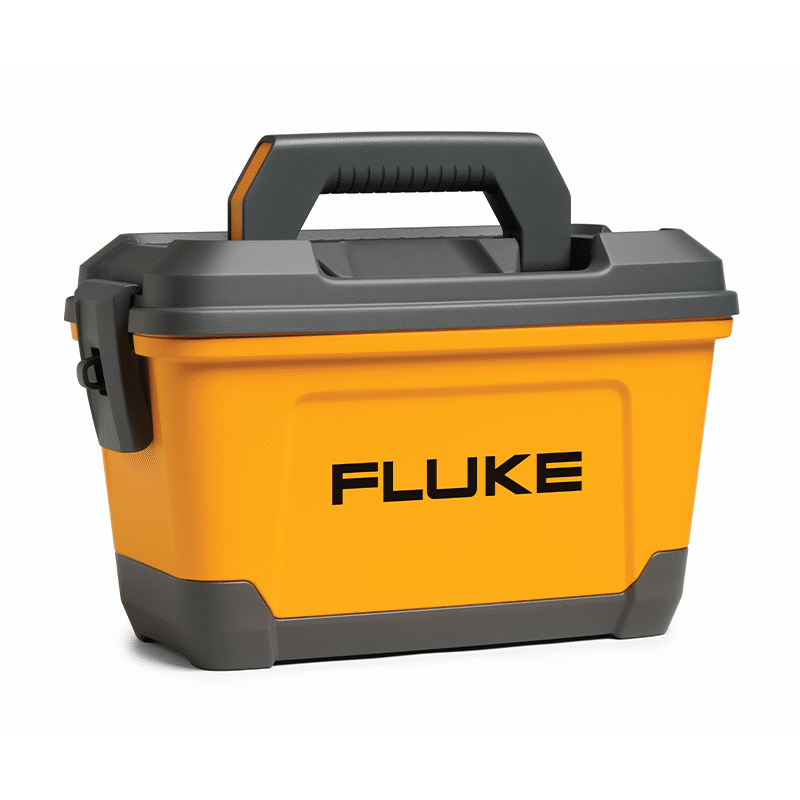

• Hard case
• USB-C power adapter for charging
• Remote control probe
• Hanging strap
• Zero adapter
• Test leads and probes
• Alligator clips
• Li-Ion battery
