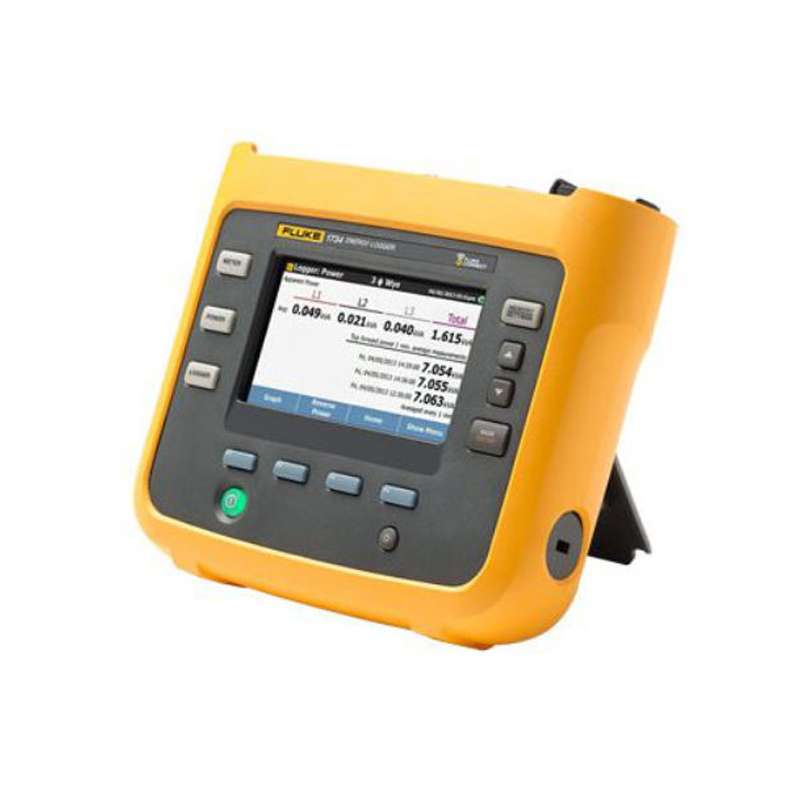

Fluke 1734/EUS Advanced Three-Phase Electrical Energy Logger

Fluke

£2,944.00 / £3,532.80 incl VAT

⚡ 3 phase power measurement
⚡ Comprehensive logging – storage for up to 20 separate logging sessions
⚡ Energy Analyse Plus software application enables detailed analysis and reporting
⚡ Full colour graphical display

Price Pledge

Description

Fluke 1734 Advanced Three-Phase Electrical Energy Logger

⚡ Please Contact us via email or telephone to find out the current lead time ⚡

Product Details:

Fluke 1734 Three-Phase Electrical Energy Logger

The Fluke 1734 Three-Phase Electrical Energy Logger enables you to identify and eliminate sources of electrical energy waste quickly and easily. Through its automatic capturing of voltage, current, power, power factor, energy and other key values, the 1734 allows you to produce detailed energy profiles of individual equipment pieces and entire facilities. Load studies, energy assessments and energy surveys are all possible using this instrument, providing key insights on your energy consumption. Producing informative reports is made possible through the inclusion of the Energy Analyse Plus software package, enabling you to share analysis and feedback with colleagues and customers.

The optimised user interface allows for quick setup, ensuring you’re capturing the correct data every time. The full colour display further enhances the user experience, making screen values easy to read during use. Complete ‘in-the-field’ setup means that there’s no requirement to return to a PC terminal or workshop to configure the 1734, improving operator workflow and efficiency. This model also possesses the highest safety rating in the industry at 600 V CAT IV/1000 V Cat III, rated for use at service entrances and downstream.

Power for this energy logger can be drawn directly from measured circuit, removing any need to locate power outlets or use extension cables when in operation. The thin conductor probes are designed with convenience in mind, with a minimal profile for fitting in tight conductor spacing. The intelligent ‘verify connection’ feature automatically checks instruments are connected correctly, reducing user uncertainty. As a Fluke Connect enabled device, users can collect and share data remotely in real-time. Data can be stored in the cloud, enabling team members and colleagues to access information immediately without the need for data to be exported from the instrument or uploaded via a PC terminal.

Below, you will find a comparison chart outlining the primary features and functionality of the Fluke 1734.

Fluke 1734/B Fluke 1734/EUS Fluke 1734/INTL Fluke 1734/WINTL
Model Energy logger with Fluke Connect Energy logger with Fluke Connect (EU and US) Energy logger with Fluke Connect (International) Energy logger with Fluke Connect (International wireless)
Fluke Connect Module Support
Recording
Trend
Communication
USB (mini B)
WiFi download of instrument data Optional
WiFi download via WiFi access point (requires registration) Optional Optional Optional Optional
Included Accessories
WiFi and BLE adapter Optional Optional
USB Flash Drive (4GB)
USB Cable
3PHVL-173 Flat Cable
1x red, 1x black 0.1m cable
1x red, 1x black 1.5m cable
Alligator clips 4 4 4 4
C173x Soft Case
Colour Coding Set
173x-Hanger Kit
MP1-Magnet Probe 4 4 4 4
i173x-Flex1500 12″ Optional 3 3 3
Line cord EU, UK, US, AU, BR EU, US, UK EU, UK, US, AU, BR EU, UK, US, AU, BR
Compatible Optional Accessories
173X-AUX analog adapter
i17XX-flex1500 12″ current probe
i17XX-flex3000 24″ current probe
i17XX-flex6000 36″ current probe
i40s-EL current clamp

Key Features:

  • 600 V Cat IV/1000 V Cat III safety rating
  • Fluke Connect functionality – connect collect, store and make viewable data across Fluke tools and sensors
  • Powered directly from measured circuit
  • Logs voltage, current, power, power factor, energy and associated values
  • Complete “in-the-field” setup
More Information
Specification
  • Voltage: range – 1000V, max res – 0.1V, ± (0.2 % + 0.01 %)
  • Frequency: range- 42.5Hz to 69Hz, max res – 0.01V, ± (0.1 %)
  • Aux input: range – ± 10V dc, max res – 0.1mV, ± (0.2 % + 0.02 %)
  • Voltage min/max: range – 1000V, max res – 0.1 V ± (1 % + 0.1 %)
  • THD on voltage: range – 1000%, max res – 0.1%, ± 0.5
  • THD on current: range – 1000%, max res – 0.1%, ± 0.5
  • Voltage range:100V to 500V using safety plug input when powering from the measurement circuit, 100V to 240V using standard power cord (IEC 60320 C7)
  • Battery: Li-ion 3.7 V, 9.25 Wh, customer-replaceable
  • On-battery runtime: Four hours in standard operating mode, up to 5.5 hours in power saving mode
  • Color LCD display: 4.3-inch active matrix TFT, 480 pixels x 272 pixels, resistive touch panel
  • Dimensions: Instrument – 19.8 cm x 16.7 cm x 5.5 cm (7.8 in x 6.6 in x 2.2 in), Power supply – 13.0 cm x 13.0 cm x 4.5 cm (5.1 in x 5.1 in x 1.8 in), Instrument with power supply attached – 19.8 cm x 16.7 cm x 9 cm (7.8 in x 6.6 in x 3.5 in)
  • Weight Instrument: 1.1 kg (2.5 lb) Power supply: 400 g (0.9 lb)
  • Fluke 1734 Three-Phase Electrical Energy Logger
  • Power supply
  • Voltage test leads
  • Alligator clips (4x)
  • 12 in 1,500A flexible current probe (3x)
  • Soft case
  • Energy Analyse Plus Software
  • Magnetic hanging strap
  • Magnetic voltage probes (4x)
  • WiFi/BLE adapter
  • Line cords
  • Colour coding set
  • Documentation on USB flash drive
