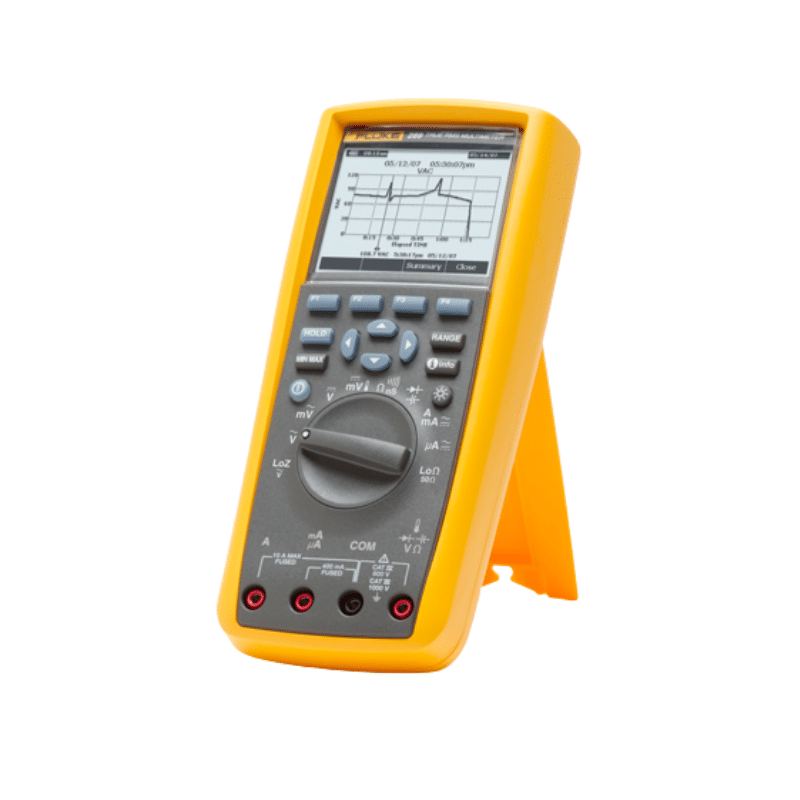

Fluke 289 True-RMS Industrial Logging Multimeter

Fluke

£699.00 / £838.80 incl VAT

Built-in logging capabilities: The Fluke 289 can log up to 15,000 individual testing records and view data back on the multimeter with no need to connect to a PC

⚡TrendCapture: The multimeter will graphically display logged data sessions, making it easier to pinpoint an issue. You can also zoom in up to 14 times on the trend for even more precision

⚡Selectable AC filter: The smoothing mode makes sure readings are steady when input signals are rapidly changing or electrically noisy.

⚡Adjustable recording and automatic hold thresholds: You can specify your own percentage change in readings to begin new recording events.

⚡Large-size, 50,000 count 1/4 VGA dot matrix display: The integrated white backlight makes it easy to read measurements in low-light conditions.

Price Pledge

Add Soft Carry Case?

Some Multimeters don’t come with a carry case that’s why we’ve added the perfect cases to go with you brand new multimeter, simply click to select.
(PLEASE CHECK THE PRODUCT YOU’RE BUYING IS NOT ALREADY SUPPLIED WITH A CASE)

None Leaderman LDM-C25 small Carry Case +£15.00 Leaderman LDM-C115 Large Carry Case +£22.00 Fluke C50 Meter Small Carry Case +£42.50 Fluke C25 Large Soft Carry Case +£47.50

Calibration Certificate

Add Calibration to your Multimeter.

Description

Find and solve complex problems in electronics, plant automation, power distribution and electro-mechanical equipment with Fluke’s powerful 289, a high precision digital multimeter with built-in logging capabilities!

With space for up to 15,000 individual testing records (and with the ability to recall values on screen as and when you need it), the Fluke 289 is excellent for tracking measurements over a period of time to isolate specific problems. As standard the 289 also includes Fluke’s TrendCapture; the multimeter will graphically display logged data sessions, making it easier to pinpoint an issue (you can also zoom in up to 14 times on the trend for even more precision).

Fluke’s 289 can measure both AC and DC voltage from 50.000mV to 1000.0V, AC/DC current from 500.00μA to 10.000A, temperature from -200 to 1350°C, resistance from 500Ω to 500.0MΩ, capacitance from 1.000nF to 100mF and frequency from 99.999Hz to 999.99kHz.

Key Features:

  • Selectable AC filter (smoothing mode) makes sure readings are steady when input signals are rapidly changing or electrically noisy
  • Adjustable recording and automatic hold thresholds – specify your own percentage change in readings to begin new recording events
  • Large-size, 50,000 count 1/4 VGA dot matrix display with integrated white backlight
  • Log up to 15,000 individual records and view data back on the multimeter with no need to connect to PC
  • Save multiple logging sessions before PC downloads are needed
  • AC/DC voltage ranges – 50.000mV, 500.00mV, 5.0000V, 50.000V, 500.00V, 1000.0V
  • AC/DC current ranges – 500.00μA, 5000.0μA, 50.000mA, 400.00mA, 5.0000A, 10.00A
  • Temperature range – -200.0°C to 1350.0°C (-328.0°F to 2462.0°F)
  • Resistance ranges – 500.00Ω, 5.0000kΩ, 50.000kΩ, 500.00kΩ, 5.0000MΩ, 50.00MΩ, 500.0MΩ
  • Capacitance ranges – 1.000nF, 10.00nF, 100.0nF, 1.000μF, 10.00μ, 100.0μF, 1000μF, 10.00mF, 100mF
  • Frequency ranges – 99.999Hz, 999.99Hz, 9.9999kHz, 99.999kHz, 999.99kHz
  • Two terminal 50Ω range with 1mΩ resolution, 10mA source current for measuring and comparing differences in motor winding resistance or contact resistance
  • Low pass filter for accurate voltage and frequency measurements at the same time on adjustable speed motor drives and electrically noisy equipment
  • LoZ volts function – low impedance voltage ensures ghost voltages are eliminated
  • On-board information help key – if you’re unsure about anything, hit the I key and the 289 will help you out!
  • Real-time clock ensures all saved readings are time stamped for easy referencing
  • Relative mode removes test lead resistance – ideal for low ohms or capacitance measurements
  • True-RMS – ensures accuracy is maintained when testing AC voltage and current
  • Measure up to 10A (20A for 30 seconds)
  • 100mF capacitance range
  • Peak capture to record transients as fast as 250μs
  • Limited lifetime warranty

Fluke Connect Enabled – Wirelessly Connect to Your Smartphone/Tablet

Please note that you will require an optional Fluke ir3000 FC Infrared Connector to use the Fluke Connect mode. Click Here for details.

Wirelessly connect your Fluke 289 to your Android (4.3 and up) or iOS (4s or later) smartphone or tablet with Fluke’s unique wireless technology, Fluke Connect.

With Fluke Connect, you can view and capture your results on your mobile, make graphs, make notes, create reports, send emails to colleagues with your findings, add voice annotations and much, much more.

Save time & money and make your Fluke 289 FC now

Fluke 289 Technical Specifications

DC Voltage Range/Resolution 50.00mV, 500.00mV, 5.000V, 50.000V, 500.00V, 1000.0V
Basic Accuracy 0.025%
AC Voltage Range/Resolution 50.00mV, 500.00mV, 5.000V, 50.000V, 500.00V, 1000.0V
Basic Accuracy 0.4% (true-RMS)
DC Current Range/Resolution 500.00μA, 5000.0μA, 50.000mA, 400.00mA, 5.0000A, 10.00A
Basic Accuracy 0.05%
AC Current Range/Resolution 500.00μA, 5000.0μA, 50.000mA, 400.00mA, 5.0000A, 10.00A
Basic Accuracy 0.6% (True RMS)
Temperature (Probe Sold Separately) Range/Resolution -200.0°C to 1350.0°C (-328.0°F to 2462.0°F)
Basic Accuracy 1.0%
Resistance Range/Resolution 500.00Ω, 5.0000kΩ, 50.000kΩ, 500.00kΩ, 5.0000MΩ, 50.00MΩ, 500.0MΩ
Basic Accuracy 0.05%
Capacitance Range/Resolution 1.000nF, 10.00nF, 100.0nF, 1.000μF, 10.00μ, 100.0μF, 1000μF, 10.00mF, 100mF
Basic Accuracy 1.0%
Frequency Range/Resolution 99.999Hz, 999.99Hz, 9.9999kHz, 99.999kHz, 999.99kHz
Basic Accuracy 0.005%
General Specifications
Maximum Voltage Between Any Terminal and Earth Ground 1000V
Battery Type 6 x AA alkaline batteries, NEDA 16A IECLR6
Battery Life 100 hours minimum, 200 hours in logging mode
Operating Temperature -20 to 55°C
Storage Temperature -40 to 60°C
Relative Humidity 0 to 90% (0 to 37°C)
0 to 65% (37 to 45°C)
0 to 45% (45 to 55°C)
Electromagnetic Capability EMC EN61326-1
Vibration Random vibration per MIL-PRF-28800F Class 2
Shock 1m drop per IEC/EN 61010-1 3rd Edition
Size (H x W x L) 22.2 x 10.2 x 6cm (8.75 x 4.03 x 2.38 inches)
Weight 870.9g (28oz)
  • Fluke 289 Digital Multimeter
  • 6 x AA Batteries (Installed)
  • TL71 Silicone Test Leads
  • 2 x AC72 Alligator Clips
