Fluke 325 400a 600v AC/DC Digital True RMS Clamp Meter

Fluke

£159.00 / £190.80 incl VAT

⚡ 400 A ac and dc current measurement
⚡ 600 V ac and dc voltage measurement
⚡ True-RMS ac voltage and current for accurate measurements on non-linear signals
⚡ Two Year Fluke Warranty
⚡ Backlit screen for use in poor lighting conditions, a data hold button that freezes a value on the screen
Price Pledge

Calibration Certificate

Add Calibration on your Clamp Meter.

Description

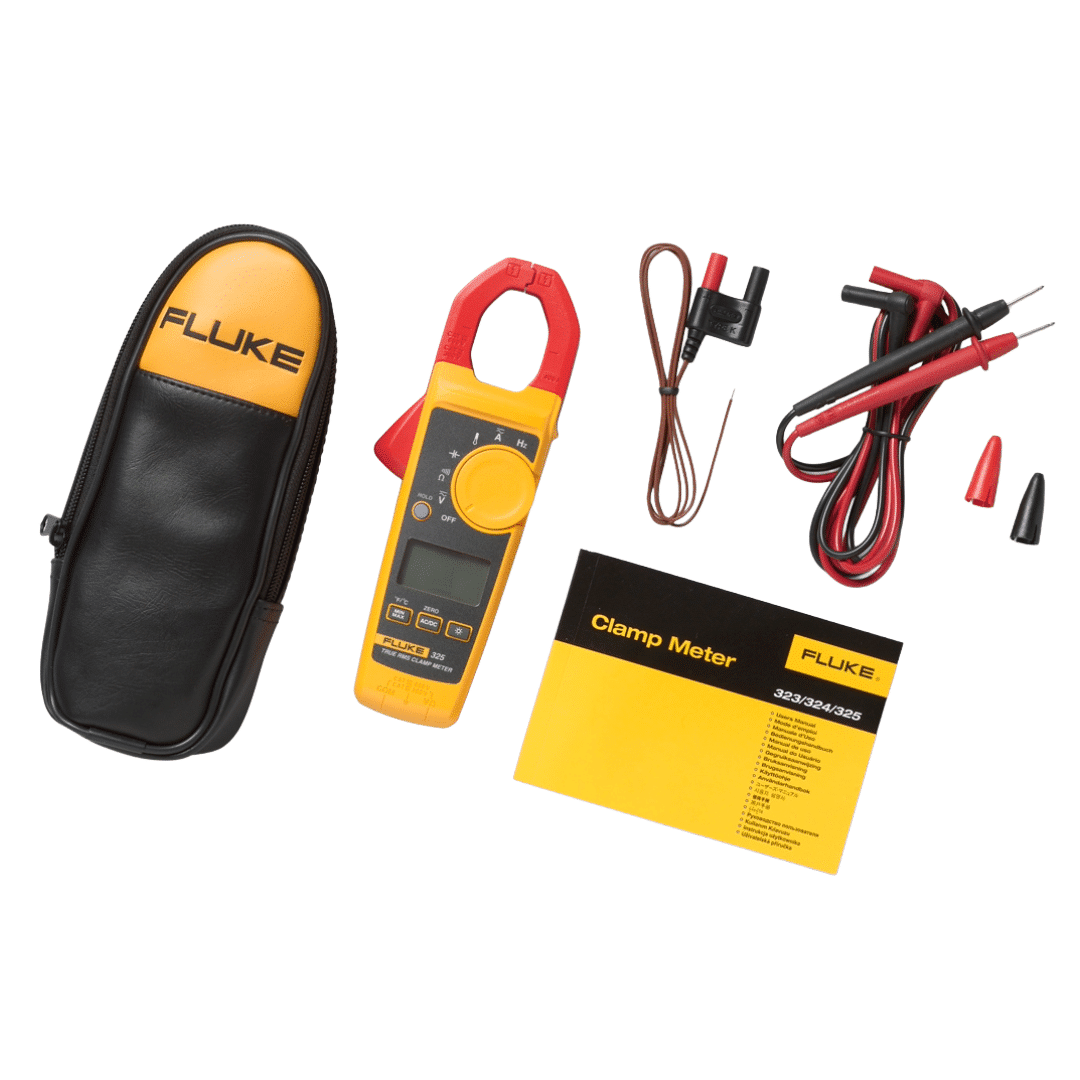

Fluke 325 400a 600v AC/DC Digital True RMS Clamp Meter

Product Description:

The best overall clamp in Fluke’s 320 series, the 325 builds upon the functionality and abilities of the Fluke 323 and Fluke 324 to offer a comprehensive measurement solution for electricians and engineers.

This clamp meter’s jaws are able to open to a maximum diameter of 30mm, catering for conductors up to 600MCM. Once clamped around a conductor, it can test AC and DC current up to 400A.

Fluke’s 325 clamp meter is also designed for use with other basic electrical measurements; it can test AC/DC voltage to 600V, resistance up to 40kΩ and also tests temperature, capacitance and frequency.

A true RMS clamp meter, the 325 ensures that accuracy is maintained even when testing AC voltage or current on irregular waveforms. Additional features of the instrument include a large size.

Troubleshoot problems safely and accurately

The Fluke 325 True-rms Clamp Meter is a reliable, versatile troubleshooting tool for commercial and residential electricians. Featuring a slim design for easy transport and use, and a large display for efficient troubleshooting. In addition to true-rms AC current and voltage on non-linear loads, the 325 measures:

  • DC current
  • DC voltage
  • Temperature
  • Frequency

You’ll carry fewer tools in your bag and get more work done.

Covers most problems you see day-in, day-out

The 325 gives you a strong combination of measurement functions, in a tool that is reliable, easy-to-use and affordable. This clamp meter offers True-rms AC voltage and current measurements on non-linear signals. Paired with the CAT III 600 V, CAT IV 300 V safety rating the clamp meter can also measure:

  • Measures AC/DC current up to 400 A through jaw
  • AC/DC voltage to 600 V using test leads
  • Measures frequency from 5 Hz to 500 Hz; resistance to 40 kΩ
  • Measures temperature from -10 °C to 400 °C with included K-type thermocouple
  • Min/Max function records important values

Comes with a two-year warranty

Fluke 325 Clamp Meter Key Features:

  • 400A AC/DC current measurement
  • 600V AC/DC voltage measurement
  • True-RMS AC voltage and current for accurate measurements on non-linear signals
  • Resistance measurement up to 40 kΩ with continuity detection
  • Temperature and capacitance measurement
  • Frequency measurement
  • Slim, ergonomic design
  • Large, easy to read backlight display
  • CAT IV 300V/CAT III 600 V safety rating
  • Hold button
Specifications
325
AC current Range 40.00 A/400.0 A
Accuracy 2 % ± 5 digits
(45 Hz to 65 Hz)
2.5 % ± 5 digits
(65 Hz to 400 Hz)
DC current Range 40.00 A/400.0 A
Accuracy 2 % ± 5 digits
AC voltage Range 600.0 V
Accuracy 1.5 % ± 5 digits
DC voltage Range 600.0 V
Accuracy 1.0 % ± 5 digits
Resistance Range 400.0 Ω/ 4000 Ω/ 40.00 kΩ
Accuracy 1.0 % ± 5 digits
Continuity ≤ 30 Ω
Capacitance 100.0 μF to 1000 μF
Frequency 5.0 Hz to 500.0 Hz
AC response True-rms
Backlight Yes
Data hold Yes
Contact temperature -10.0 °C to 400.0 °C
(14.0 °F to 752.0 °F)
Min/Max Yes
Size H x W x D (mm) 207 x 75 x 34
Max wire diameter 30 mm (600 MCM)
Weight 283 g
Category rating CAT III 600 V
CAT IV 300 V
Warranty Two-year
