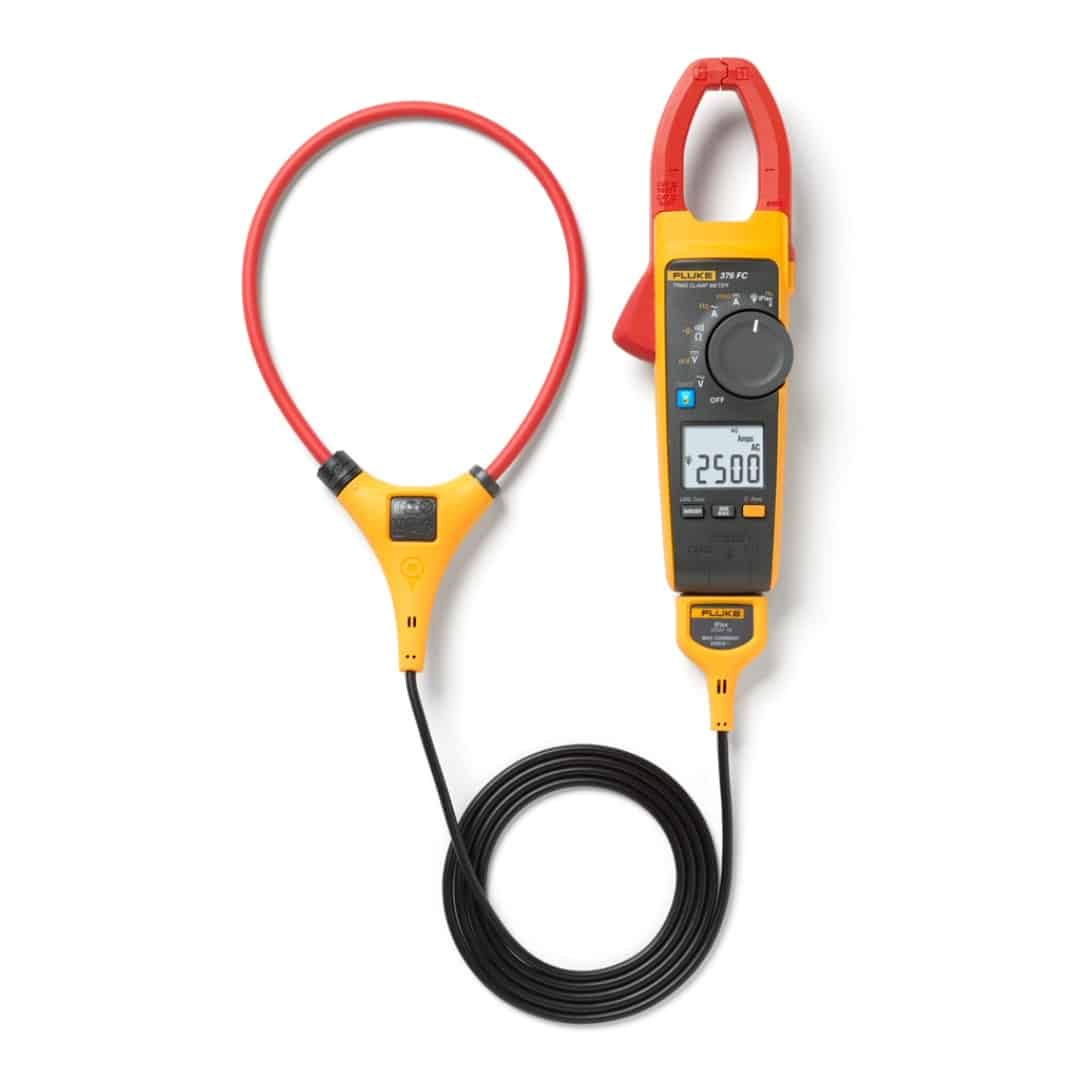

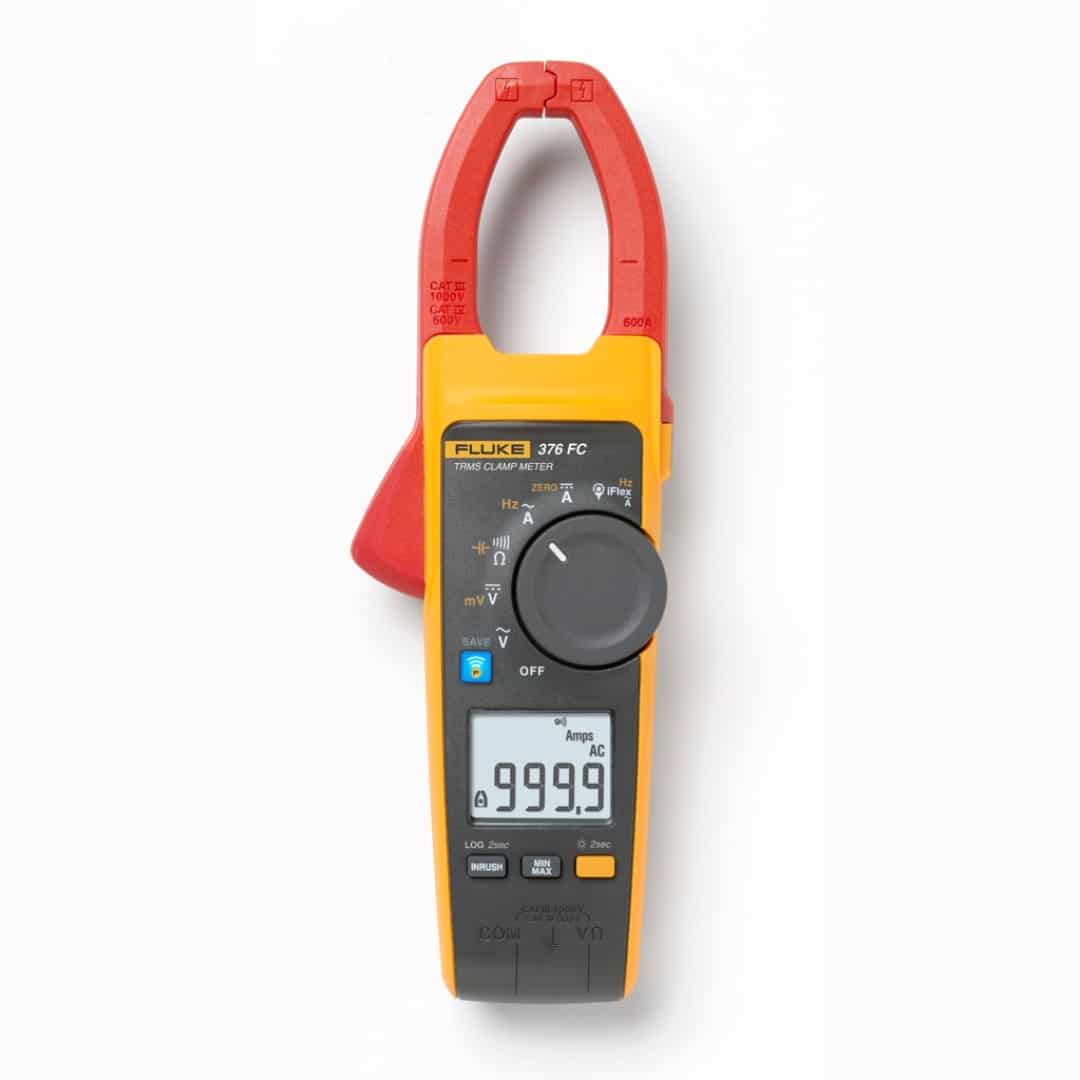

Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex and Fluke Connect

Description

Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex and Fluke Connect

2 Year Fluke Warranty

Fluke 376FC Product Details:

New:

• Log and trend measurements to pinpoint intermittent faults
• Transmit results wirelessly via Fluke Connect Measurements app
• Create and send reports right from the field
• Stay safely away from the arc flash zone through Bluetooth connectivity to Apple and Android device

Other

• Models 375FC and 376FC can also function as stand-alone recorders, logging up to 65,000 measurements. Use them to monitor load currents, identify peaks, troughs and usage.
• Used with the Fluke Connect APP you can seamlessly import measurements into your asset maintenance records and trend the values over time so that you can predict problems.

Features

• Connect your meter to your smartphone with Fluke Connect Measurements
• Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
• Record results directly to your phone and the Cloud
• Capture intermittent faults while performing other tasks using the logging capabilities of the Fluke 376 FC
• Create and share reports from the field via email, or converse in real-time with ShareLive™ video calls
• iFlex flexible current probe expands the measurement range to 2500 A ac; provides access to large conductors in tight spaces (included)
• TPAK magnetic hanging strap (included)
• Integrated VFD low pass filter for accurate motor drive measurements
• Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
• CAT IV 600 V, CAT III 1000 V safety rating
• Three-year warranty
• Soft carrying case

Measurement Capability

• 1000 A ac and dc current measurement
• 2500 A ac current measurement with iFlex flexible current probe
• 1000 V ac and dc voltage measurement
• True-rms voltage and current for accurate measurements on non-linear signals
• Frequency measurement to 500 Hz with body jaw and iFlex
• Resistance measurement to 60 kΩ with continuity detection
• Min, max, average, and inrush recording to capture variations automatically
• 500 mV dc measurement range to interface with other accessories
• 1000 μF capacitance measurement

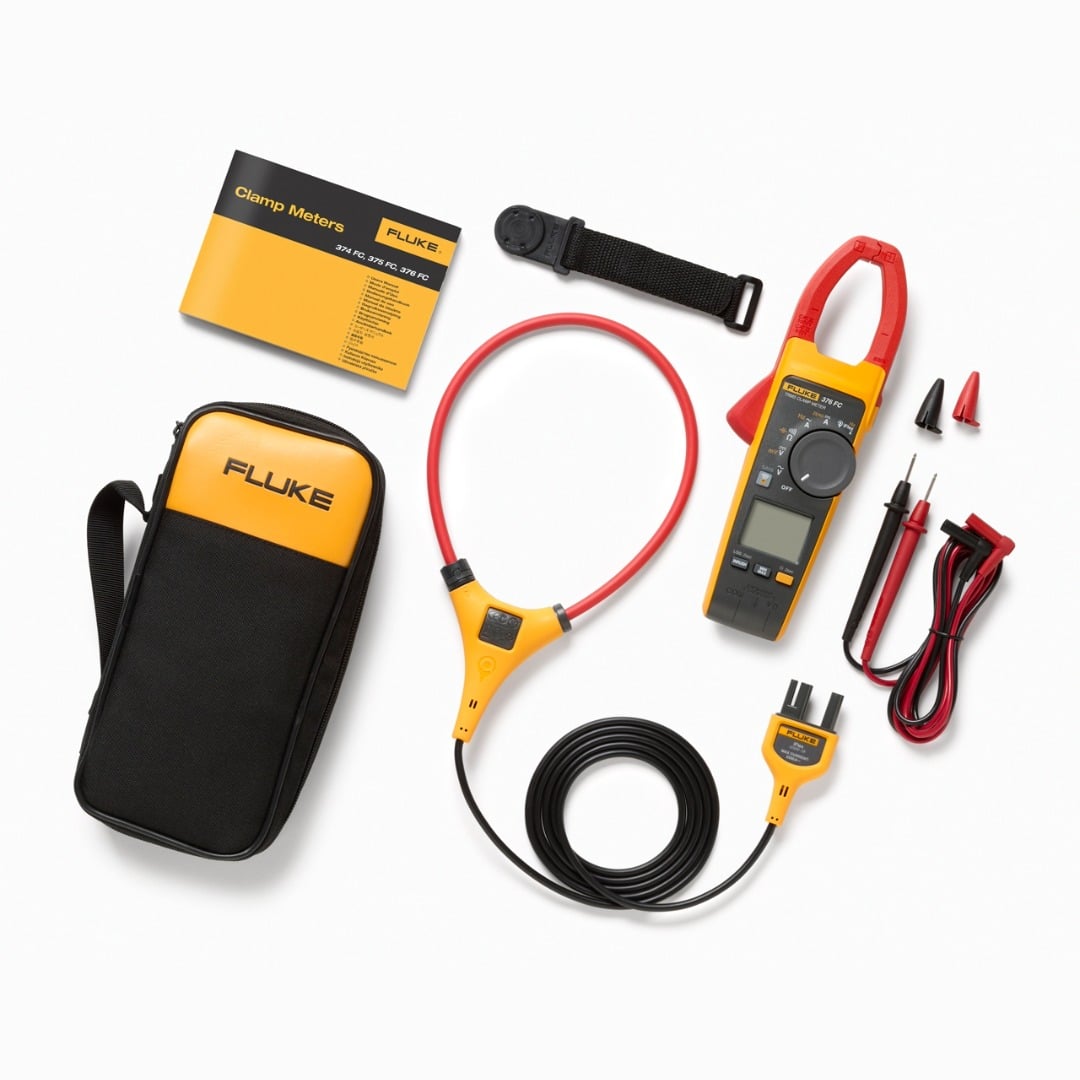

What’s Included?

• Fluke 376
• 18-inch iFlexT flexible current probe
• Coated instruction card
• Safety information sheet
• Soft carrying case
• TL75 test leads
• Instruction Manual
• TPak magnetic hanging strap

FLUKE 376FC DATASHEET
