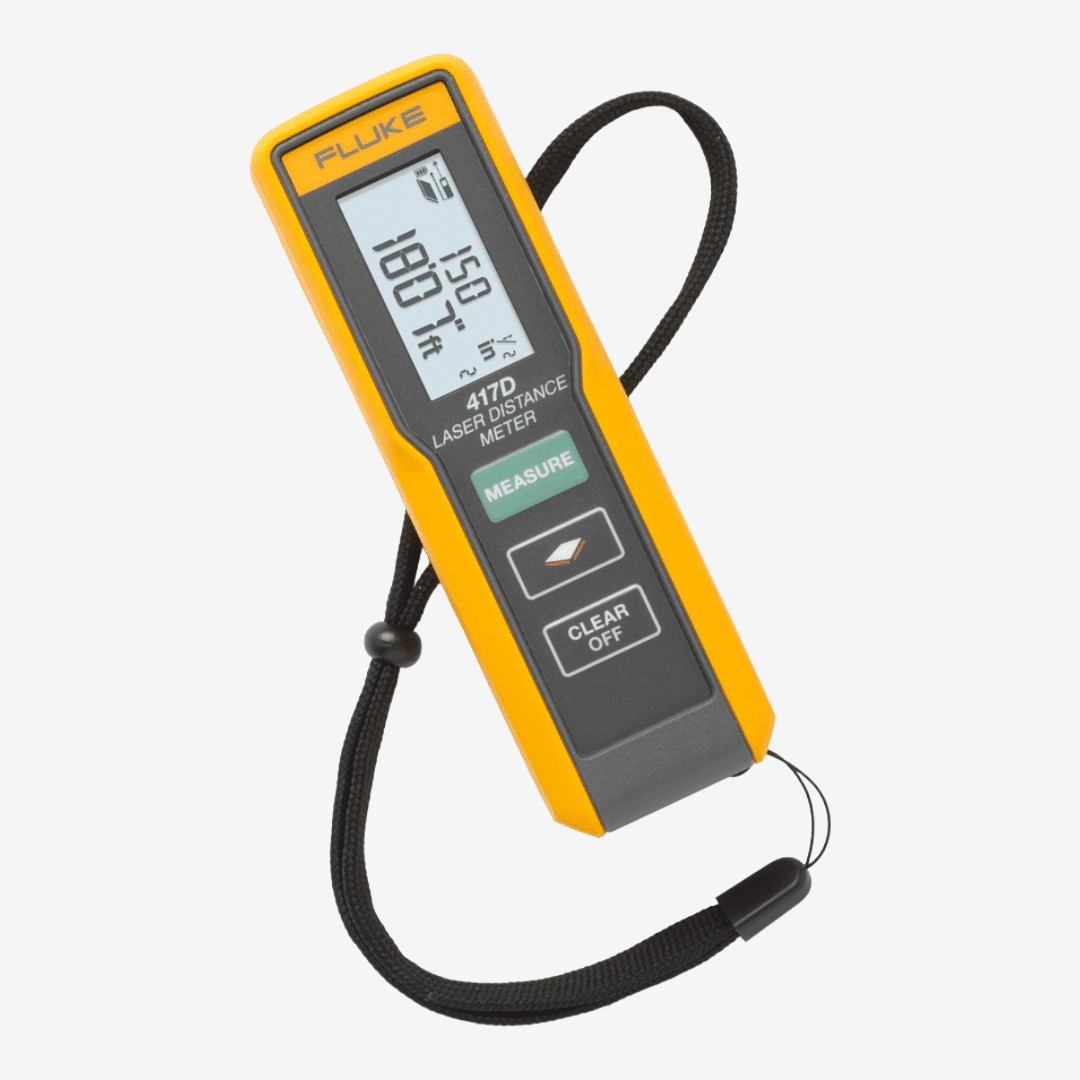

Fluke 417D Laser Distance Measurer (40m/ 131ft) + LDMC50 Protective Case
- Laser distance meter designed for indoor and outdoor applications
- Extra bright laser indicates the target area
- Measure distances up to 131ft/ 40m to an accuracy of 2mm/ 0.08”
£99.99 £79.99 exc VAT / £95.99 inc VAT
Description
The Fluke 417D Laser Distance Measurer is a laser distance meter designed for indoor and outdoor applications. It is able to conduct measurements across distances of up to 131 ft/ 40m to an accuracy of 0.08″/ 2mm.
This tool is equipped with an extra bright laser to ensure that the user is able to see the target point. This is particularly useful when measuring distances to objects located in difficult-to-access areas or at great distances from the Fluke 417D Laser Distance Measurer. This tool is capable of performing continuous measurements and may be used to calculate areas in square footage quickly.
Accessing the required measurement function is easy via the Fluke 417D Laser Distance Measurer’s simple, three-button operating system. As a result, the Fluke 417D Laser Distance Measurer can be operated using a single hand and will provide instant distance measurements at the touch of a button.
The Fluke 417D Laser Distance Measurer’s bright laser, measurement capabilities and easy-to-read, backlit, 2-line LCD display makes it ideal for both indoor and outdoor applications. Adding to the Fluke 417D Laser Distance Measurer’s suitability for outdoor applications is its rugged, IP54, dust- and water-resistant design. This portable laser distance meter has also been drop-tested from 1m.
Additionally, the Fluke 417D Laser Distance Measurer features a long battery life and is able to perform up to 3000 measurements before the battery requires attention. This laser distance meter is also equipped with an Auto Shut-Off function, which works to extend the Fluke 417D Laser Distance Measurer’s battery life.
The Fluke 417D Laser Distance Measurer is an easy-to-use, ergonomic and accurate point-and-shoot laser distance meter. It can be used to improve work efficiency and measurement reliability.
Fluke 417D Laser Distance Measurer Key Features
- Laser distance meter designed for indoor and outdoor applications
- Conduct measurements across distances of 131ft/ 40m
- Accuracy: 2mm/ 0.08”
- Extra bright laser highlights the target area
- Measure distances to objects located in difficult-to-reach areas or at great distances from the meter
- Perform continuous measurements
- Calculate areas in square footage quickly
- Simple, three-button operating system
- Operate using a single hand
- Provides instant measurements at the touch of a button
- Easy-to-read, backlit, 2-line LCD display
- Rugged, IP54, dust- and water-resistant design
- Drop-tested from 1m
- Long battery life
- Able to perform up to 3000 measurements before the battery requires attention
- Auto Shut-Off function
- An easy-to-use, ergonomic and accurate point-and-shoot laser distance meter
- Improves work efficiency and measurement reliability
What’s Included?
- Fluke 417D Laser Distance Measurer
- 2x AA Batteries
- User Manual
- Quick Reference Guide
- Lanyard
- Leaderman LDMC50 Protective Case
- Three-Year Warranty from Fluke
Fluke 417D Laser Distance Measurer Technical Specifications
| Typical range [1] | 0.2-40 m/0.6-131 ft |
| Typical measuring tolerance* [1] | 2.0 mm ± 1.5 mm/± 0.06 in *** |
| Maximum measuring tolerance [2] | ± 3.0 mm/0.12 in *** |
| Accuracy up to 10m (+/-) | ± 2 mm |
| Display | 2 line/1 mm/1/32 in |
| Display illumination | Yes |
| Laser point at distance | 6/30/60 mm (10/40/100 m) |
| Area | Yes |
| Units setting (smallest units displayed) | 0,000m, 0′ 00” 1/32, 0 in 1/32 |
| Auto laser switch off | 90 sec |
| Auto power switch off | 180 sec |
| Laser class | II |
| Laser type | 635 nm, <1 mW |
| Protection class | IP54 |
| Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03 | Up to 3,000 measurements |
| Size (Hx W x D) | 11.9 x 3.8 x 2.6 cm |
| Drop test | 1 meter |
| Weight (with batteries) | 95g (3.35 oz) |
| Temperature range: Storage | -25 °C to 70 °C (-13 °F to 158 °F) |
| Temperature range: Operation | -10 °C to 50 °C (14 °F to 122 °F) |
| Calibration cycle | Not applicable |
| Maximum relative humidity | 85 % @ 20°F to 120 °F (-7 °C to 50 °C) |
| Safety | CAN/CSA-C22.2 No. 61010-1-04, UL Std. No. 61010-1 (2nd Edition), ISA82.02.01, IEC Standard No. 61010-1:2001, EN60825-1:2007 (Class II) |
| EMC | 61326-1:2006 |
| Notes | [1] Applies for 100 % target reflectivity (white painted wall), low background illumination, 25 °C (13 °F). |
| [2] Applies for 10 % to 500 % target reflectivity, high background illumination, -10 °C to +50 °C (14 °F to +122 °F). | |
| [3] Tolerances apply from 0.05 m to 10 m (0.001 ft to 32.8 ft) with a confidence level of 95 %. The maximum tolerance may deteriorate to 0.1 mm/m (0.003 in/ft) between 10 m to 30 m (32.8 ft to 98.4 ft) and to 0.15 mm/m (0.005 in/ft) for distances above 30 m (98.4 ft). | |
| [4] Applies for 100 % target reflectivity, background illumination between 10,000 lux and 30,000 lux. | |
| [5] After user calibration. Additional angle related deviation of ± 0.01° per degree up to ± 45° in each quadrant. Applies at room temperature. For the whole operating temperature range the maximum deviation increases by ± 0.1°. |
