Fluke 707 Loop Calibrator

Fluke

£999.50 / £1,199.40 incl VAT

⚡ 3-year warranty from Fluke
⚡ One handed user interface with “Quick Click” detented knob, mA sourcing
⚡ Simulation and measurement, 0.025% accuracy and 0.001mA resolution
⚡ Simultaneous mA and % of span display
⚡ Selectable step or ramp outputs
⚡ 24 V Loop supply with mA measure including 250Ω HART resistor & 0-28 VDC measurement to check Loop Voltage

Only 1 left in stock

Price Pledge

Calibration Certificate

Add Calibration to your Loop Tester.

Description

Fluke 707 Loop Calibrator

Product Details:

Fluke 707 Loop Calibrator delivers fast, one-handed, push-button loop checks

The Fluke 707 loop calibrator is a high performance solution for calibration, repair, and maintenance of current loops. It combines the best features of a push-button and knob-base loop calibrator, for extremely fast and easy calibration. The large display and simple quick click rotary button lets you make quick selections and adjustments with one hand. Plus, features such as mA sourcing, simulation, and measurement; simultaneous display of mA and % of span, and selectable step or ramp outputs, helps you work more efficiently and accurately. And you can quickly change the 9V battery without breaking the calibration seal.

Other useful features:

  • Includes HART® compatible resistance connected in series with the loop supply for compatibility with HART communicators
  • Features push button 25% steps for fast, easy linearity checks
  • Includes 0-100% “span check” for fast confirmation of zero and span.
  • Provides selectable slow ramp, fast ramp, and step ramp to provide smooth outputs for valve slewing and loop functional tests
  • Includes a 24 volt internal loop supply, so you can power and read a transmitter at the same time without a DMM
  • Measures V DC to 28 V
  • Runs on a single 9 V battery that is easily changed without breaking the calibration seal
  • Offers 0 – 20 mA or 4 – 20 mA default start up modes
  • Features an innovative output adjustment dial.
  • Comes with a protective yellow holster with test lead storage and a three year warranty

Specifications: Fluke 707 Current Loop Calibrator with Quick Click Knob

Specifications
Current measurement Range 0 to 24 mA
Resolution 0.001 mA
Accuracy 0.015% Rdg + 2 LSD
Current sourcing Range 0 to 20 mA or 4 to 20 mA
Accuracy 0.015% Rdg + 2 LSD
Drive capability 1200 Ω 950 Ω at 20 mA in HART mode
Current simulation Range 0 to 20 mA or 4 to 20 mA
Accuracy 0.015% Rdg + 2 LSD
Ext. loop voltage requirement 12-30 V
Loop power While measuring mA, 24 V
Voltage measurement Range 0 to 28 V DC
Resolution 1 mV
Accuracy 0.015% Rdg + 2 LSD
Environmental Specifications
Operating temperature -10°C to 55°C
Storage temperature -30°C to 60°C
Humidity (without condensation) 0 to 90% (0°C to 35°C); 0 to 70% (35°C to 55°C)
Temperature coefficient -10°C to 18°C, 28°C to 55°C, ±.005% of range per °C
Safety Specifications
Safety CSA C22.2 No. 1010.1:1992
EMC EN50082-1:1992 and EN55022:1994 Class B
Maximum voltage 30 V
Mechanical and General Specifications
Size 152 x 70 x 41 mm
Weight 224 g (340 g including holster)
Batteries One 9 V battery Alkaline
Warranty Three years
Shock and vibration Per MIL-T-28800 for a Class 2 Instrument
Display current and % of span Yes
Auto step, auto ramp Yes
Span check Yes

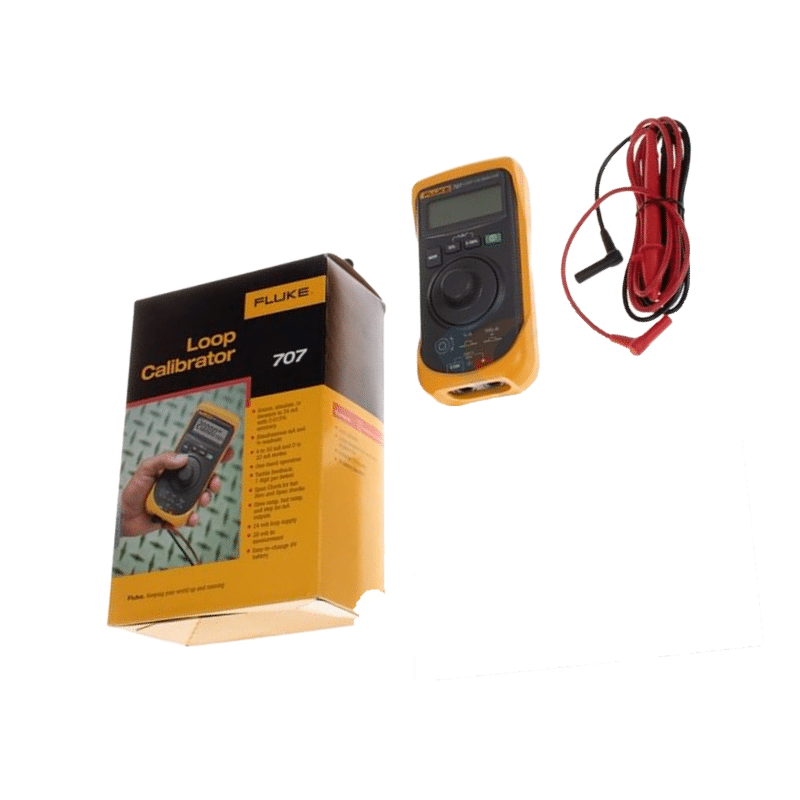

What’s in the box:

  • Fluke 707 Loop Calibrator with Quick Click Knob
  • C10 protective yellow holster with Flex-Stand™
  • (1 set) AC70A Alligator Clips
  • (1 pair) TL75 test lead set
  • NIST- traceable calibration report and data
  • Quick Reference Guide
  • 3-year warranty
