Description

Fluke 789FC Process Meter Kit

with Fluke a3004 FC Wireless 4-20 mA DC Clamp Meter & IR3000FC

A loop calibration multimeter, the Fluke 789 is an essential tool for any process technician.

An upgraded version of the Fluke 787, the 789 includes all of the functionality of the 787 and builds upon it with exclusive new features. With its built-in calibration tools and a full multimeter, this process tool ensures that all of your equipment can be extensively tested and calibrated without the need to use multiple tools.

Carrying out offline transmitter testing? The Fluke 789 includes a 24V loop supply to eliminate the need to use a separate power supply. It’s also got a built-in 250Ω Hart resistor, so there’s absolutely no need to take a separate resistor along to the measurement point.

Fluke 789/E ProcessMeter Key Features:

  • 24V loop power supply
  • Large dual display with adjustable backlight for use in different lighting conditions
  • 1200Ω drive capability on mA source
  • HART mode setting with loop power and built-in 250Ω resistor
  • 0 and 100% buttons to toggle between 4 and 20mA sourcing for a quick span check
  • External access to fuses for easy replacement
  • Infrared serial I/O port compatible with FlukeView Forms (V2.1) software
  • Full built-in digital multimeter compliant with EN61010-1 and CAT III standards
  • Measures voltage, current, resistance, frequency, diode and continuity
  • Precision 1000V, 440mA True RMS measurements
  • Frequency measurement to 20kHz
  • Simultaneous mA and % of scale readout
  • MIN/MAX/AVG/HOLD/Relative modes
  • Diode Test and continuity beeper
  • 20mA DC current source / loop calibrator / simulator
  • External access to the battery for easy changes

Fluke IR3000FC connector

Fluke Connect ir3000 FC Connector allows you to wirelessly transfer data from your existing Fluke Tools to your smart phone.

  • Fits over the IR port of your existing Fluke Tools
  • Upgradeable by USB
  • Immediately enables you to graph, save and share the tool’s reading with your team from your smart phone

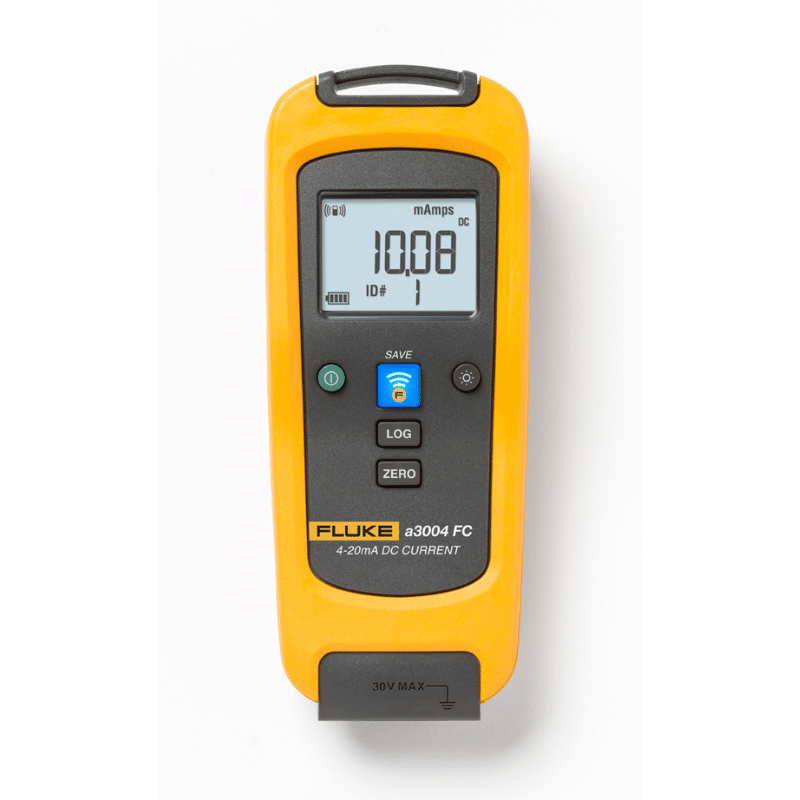

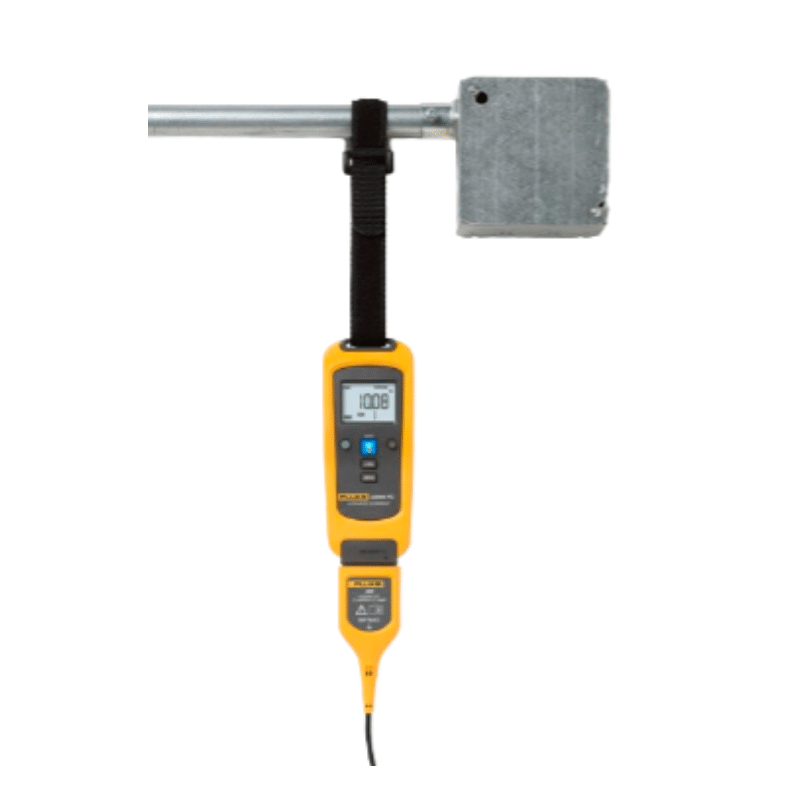

Fluke a3004 FC Wireless 4-20 mA DC Clamp Meter

See it. Save it. Share it.

All the facts, right in the field. The Fluke a3004 FC Wireless 4-20 mA Current Clamp Meter is one member of a family of wireless test tools that let you record and log data over time and share test data using the Fluke Connect® app with ShareLive™ video call.

Fluke Connect Wireless Test Tools put tools where measurement access or separation may be an issue. It’s simple. Connect the a3004 FC current meter, or any of the other Fluke Connect remote meters, and read the results on the Fluke Connect Wireless Multimeter or a PC from a safe distance.

Better still, the Fluke Connect test tools can send measurement data to your smartphone, so you can save and share measurements from the field with your team anytime, from anywhere.

Test or troubleshoot 4-20mA control loops used with drive systems, plc’s, or building energy management systems.

  • Save time by NOT breaking the loop on 4-20 mA signal measurements.
  • Are you spending time:
    • Taking mA measurements by removing a wire and breaking the loop
    • Calling the control room to isolate a loop
    • Testing analog input/output on a console
    • Troubleshooting devices with mA inputs and outputs
    • Repairing intermittent or erratic 4-20 mA loops
  • Now you can troubleshoot and repair 4-20 mA loops without breaking the loop or bringing down the system.
  • Send data to your laptop and go from logging to analysis and diagnosis.
  • Use the Fluke Connect wireless USB adapter to collect logged data from remote modules by walking past a working module and downloading logged data.
  • Perform for analysis with your PC and share the results using Fluke Cloud™ storage and ShareLive™ video call. View data or graphs to get input from team members.



What’s in the Box?

  • Fluke 789 ProcessMeter
  • Fluke IR300FC connector
  • Fluke a3004 FC Wireless 4-20 mA Current Clamp Meter
  • TL71 Premium Test Lead Set
  • AC175 Alligator Clips
  • 4 x AA 9V Alkaline Batteries (Installed)
  • User Manual
  • Quick Reference Guide
Specifications
Current Measurement
Range:  0-1 A AC or DC
Resolution:  1 mA
Accuracy:  0.2% 2 LSD (DC)
Range:  0-30 mA
Resolution:  0.001 mA
Accuracy:  0.05% 2 LSD
Current Sourcing
Range:  0-20 mA or 4-20 mA
Resolution:  0.05% of span
Drive Capability:  24 V Compliance or 1200 Ω @ 20 mA
Frequency
 to 19.999 kHz, 0.005% 1 LSD
Continuity
 Beeps for resistance < 100 Ω
Voltage measurement
Range:  0-1000 V AC (true-rms) or DC
Resolution:  0.1 mV to 1.0 V
Accuracy:  0.1% Rdg 1 LSD (VDC)
Resistance measurement
 to 40 MΩ, 0.2% 1 LSD
Diode test
 2.0 V shows diode voltage drop
Display current and % of span
 Yes
Auto step, auto ramp
 Yes



Environmental Specifications
Operating Temperature
 -20 ºC to 55 ºC
Storage Temperature
  -40 ºC to 60 ºC
Humidity (Without Condensation)
 95% up to 30 ºC
 75% up to 40 ºC
 45% up to 50 ºC
 35% up to 55 ºC
Temperature Coefficient
 0.05 x (specified accuracy) per ºC (for temperatures < 18 ºC or > 28 ºC)



Safety Specifications
Electrical Safety
 Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No. 1010.1-92
Overvoltage category
 IEC 1010-1 CAT III 1000 V
 IEC 1010-1 CAT IV 600 V
Maximum voltage
 1000 V rms



Mechanical & General Specifications
Size
 50 x 100 x 203 mm (1.25″ H x 3.41″W x 7.35″ L)
Weight
 610 g (1.6 lbs)
Batteries
 4 AA Alkaline batteries
Warranty
 3 years
Battery Life
 140 hours typical (measurement), 10 hours typical (sourcing 20 mA)
Shock & Vibration
 Random, 2 g, 5-500 Hz
 1 meter drop test



Specifications: Fluke a3004 FC Wireless 4-20 mA DC Clamp Meter

DC Current Function
Range 0.05 mA to 20.99 mA DC
21.0 mA to 99.9 mA DC
Resolution 0.01 mA
0.1 mA
Accuracy 0.2% ± 5 digits
1.0% ± 5 digits
Specifications
LCD w/backlight 3 ½ digits
Log rate/Interval 1 sec minimum/adjustable by PC or front pannel
Battery type 2 AA
NEDA 15 A
IEC LR6
Battery life 45 hours
Memory Record up to 65,000 readings
RF communications 2.4 GHz ISM Band
RF communication range Open air, unobstructed: Up to 20 m
Obstructed, sheetrock wall: Up to 6.5 m
Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m
Operating temperature -10°C to +50°C
Storage temperature -40°C to +60°C
Temperature coefficient Add 0.1 X (specified accuracy) /°C (< 18°C or > 28°C)
Operative humidity 90% at 35°C
75% at 40°C
45% at 50°C
Altitude Operating 2,000 m
Storage 12,000 m
EMC EN 61326-1:2013
Maximum voltage between terminal and earth ground (module) 30 V DC or AC rms
Certifications CSA C-US
CE
FCC: T68-FBLE
IC: 6627A-FBLE
Ingress Protection (IP) rating IP42
Jaw opening 4.5 mm
Size (HxWxD) 16.5 mm x 6.35 cm x 1.4 cm (6.5 in x 2.5 in x 1.4 in)
Weight 0.299 kg (0.8 lb)
Note: Not compatible with Fluke CNX test tools.
  • Fluke 789 ProcessMeter
  • Fluke IR300FC connector
  • Fluke a3004 FC Wireless 4-20 mA DC Clamp

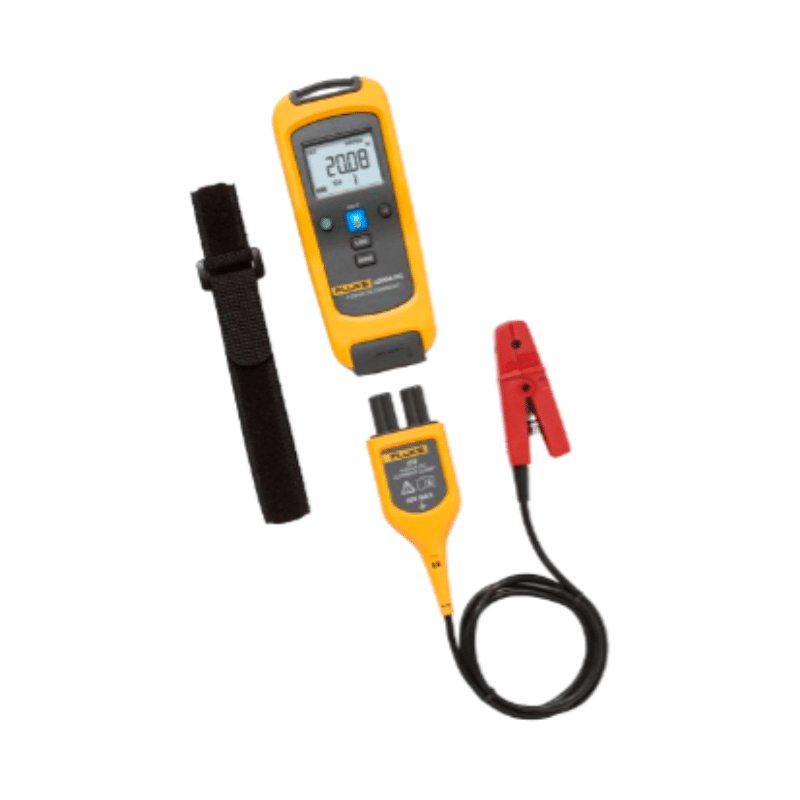

    Includes: a3004 meter module, Batteries, Hanging strap, Quick start guide
  • TL71 Premium Test Lead Set
  • AC175 Alligator Clips
  • 4 x AA 9V Alkaline Batteries (Installed)
  • User Manual
  • Quick Reference Guide
