Fluke 805FC Vibration Meter

Fluke

Original price was: £2,329.00.Current price is: £1,991.00. / £2,389.20 incl VAT

⚡ Uniquely designed Fluke contact sensor is designed to minimise the effects of tester angle and contact pressure on taken readings
⚡ Can be used to carry out high accuracy measurements at both low and high frequency ranges
⚡ FREE Next Working Day Delivery If Ordered before 2pm
⚡ We are a Fluke UK Authorised Distributor
⚡ We MATCH or BEAT our Competitors Quotations
⚡ One Year Fluke Warranty on This product

In stock

SKU: FLU-805 Category: Tags: , Brand:

Description

Fluke 805FC Vibration Meter

Product Details:

This is more than just a vibration pen – the Fluke 805 is a full vibration meter that is designed to give maintenance professionals detailed, high accuracy measurements of vibration to determine the status of things such as chillers, fans, cooling tower drives, centrifugal pumps, positive displacement pumps, air compressors, blowers, gearboxes, machine tools and many other types of machinery.

The 805 uses a direct connection sensor in order to calculate vibration results. This unique sensor has been designed to provide measurements that are as accurate as possible, filtering out the effects caused by device angle or contact pressure to provide detailed vibration measurement results. The sensor also allows the meter to carry out much more than just standard vibration measurements; it is also possible to use the 805 to measure specific variable like bearing condition and the overall contact temperature.

When measurements are taken using this vibration meter a four-level scale shows the user quickly how severe a problem might be. Built-in text alerts also show at a glance whether the machinery is operating at good, satisfactory, unsatisfactory or unacceptable levels of vibration and this tester’s wide range of frequencies (10 to 1000Hz and 4000 to 20000Hz) allowing it to be used with most different types of machinery.

Fluke 805 Vibration Meter Key Features:

There’s more to this tester than just measuring vibration. Here’s why you should be considering the Fluke 805 for your machinery efficiency measurements:

  • Uniquely designed Fluke contact sensor is designed to minimise the effects of tester angle and contact pressure on taken readings
  • Can be used to carry out high accuracy measurements at both low and high frequency ranges
  • Four-level severity scale alerts the user quickly to the status of vibration and overall bearing condition
  • USB connection allows export of data from the tester
  • Trending in Microsoft Excel using built-in templates
  • Vibration measurements evaluate acceleration, velocity and displacement
  • Crest factor + technology built in – allows bearing assessments from 4000Hz to 20000Hz
  • Takes the guesswork out of measurements – the Fluke 805 uses colour indication and on-screen comments to alert the user to necessary pressure needed to make a measurement
  • Temperature measurements via included spot IR sensor
  • Large size memory allows up to 3500 records to be stored directly on the tester
  • Audio output for listening to bearing tones directly
  • External accelerometer support
  • Built-in torch allows the meter to be used in darkened conditions
  • Large size screen with high resolution makes it easy to perform and view back all measurements

What’s Included?

  • Fluke 805 Vibration Meter
  • USB Cable

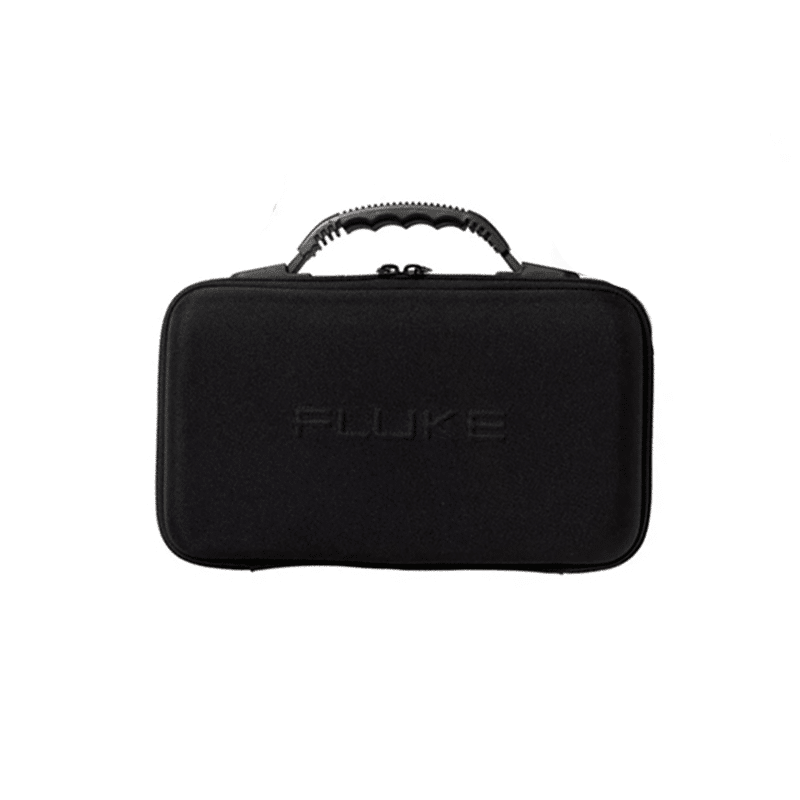

  • Storage Case
  • Belt Holster
  • Quick Reference Guide
  • CD-ROM (Includes MS Excel Template and Documentation)
  • 2 x AA Batteries

Specifications: Fluke 805 FC Vibration Meter

Specifications
Low frequency range (overall measurement)10 Hz to 1,000 Hz
High frequency range (CF+ measurement)4,000 Hz to 20,000 Hz
Severity levelsGood, satisfactory, unsatisfactory, unacceptable
Vibration limit50 g peak (100 g peak-peak)
A/D converter16-bit
Signal to noise ratio80 dB
Sampling rateLow frequency: 20,000 Hz
High frequency: 80,000 Hz
Real time clock backupCoin battery
Sensor
Sensitivity100 mV g ± 10%
Measurement range0.01 g to 50 g
Low frequency range (overall measurement)10 Hz to 1,000 Hz
High frequency range4,000 Hz to 20,000 Hz
Resolution0.01 g
AccuracyAt 100 Hz ± 5% of measured value
Amplitude Units
Accelerationg, m/sec²
Velocityin/sec, mm/sec
Displacementmils, mm
Infrared Thermometer (Temperature Measurement)
Range-20 °C to 200 °C (-4 °F to 392 °F)
Accuracy±2 °C (4 °F)
Focal lengthFixed, at ~3.8 cm (1.5″)
External Sensor
Note: Fluke supports but does not provide external sensors
Frequency range10 Hz to 1,000 Hz
Bias voltage (to supply power)20 V dc to 22 V dc
Bias current (to supply power)Maximum 5 mA
Firmware
External interfacesUSB 2.0 (full speed) communication
Data capacityDatabase on internal flash memory
UpgradeThrough USB
MemoryUp to 3,500 measurements
Radiated Emission
Electrostatic discharge: burstStandard EN 61000-4-2
Electromagnetic interferenceStandard EN 61000-4-3
REStandard CISPR 11, Class A
Environmental
Operating temperature-20 °C to 50 °C (-4 °F to 122 °F)
Storage temperature-30 °C to 80 °C (-22 °F to 176 °F)
Operating humidity10% to 95% RH (non-condensing)
Operating/storage altitudeSea level to 3,048 meters (10,000 feet)
IP ratingIP54
Vibration limit500g peak
Drop test1 meter
General Specifications
Battery typeAA (2) Lithium Iron Disulfide
Battery life250 measurements
Size (L x W x H)24.1 cm x 7.1 cm x 5.8 cm
(9.5 in x 2.8 in x 2.3 in)
Weight0.40 kg (0.89 lb)
ConnectorsUSB mini-B 7-pin, external sensor jack (SMB connector)
  • Fluke 805 FC Vibration Meter
  • USB cable
  • Storage case
  • Belt holster
  • Quick reference guide
  • Two (2) AA batteries
