Fluke A3001 FC Clamp Meter Wi-Fi, Max Current 2.5kA ac CAT III 1000 V, CAT IV 600 V

Fluke

£239.00 / £286.80 incl VAT

⚡ 3 year warranty from Fluke
⚡ iFlex True-rms AC Current Clamp Meter
⚡ Measure and record up to 65,000 readings wirelessly
⚡ Easier wire access around large conductors in tight spaces
⚡ Inrush function
⚡ Magnetic hanging strap
⚡ Part of the Fluke Connect® team of wireless test tools

Only 1 left in stock (can be backordered)

Price Pledge

Calibration Certificate

Add Calibration on your Clamp Meter.

SKU: FLU-A3001FC Categories: , , Brand:

Description

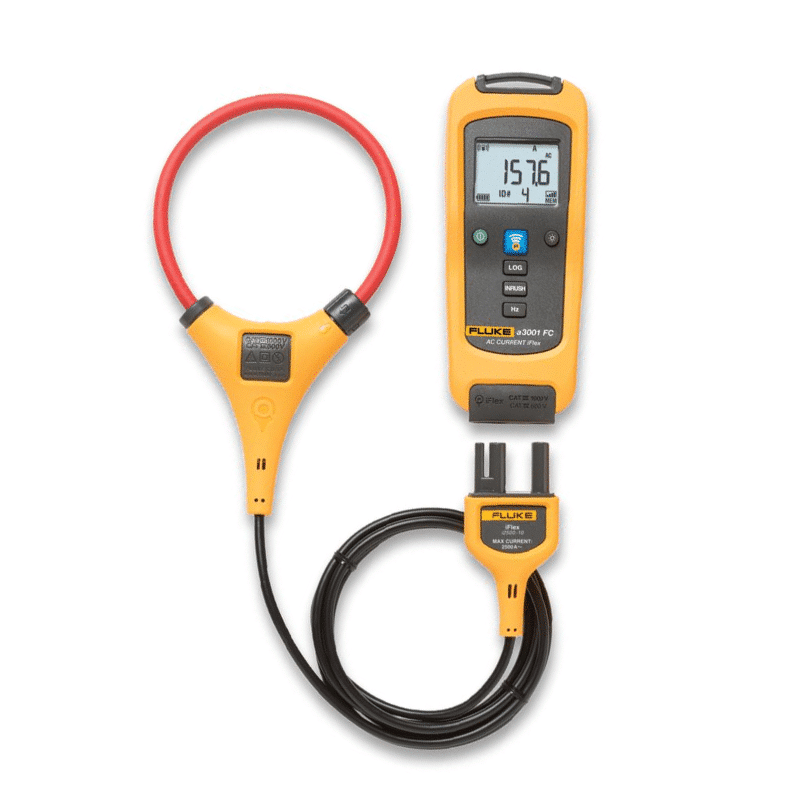

Fluke A3001 FC Wireless iFlex® AC Current Module

The Fluke a3001 FC Wireless iFlex AC Current Module is a fully functional true-rms current meter that wirelessly relays measurements to the Fluke Connect® mobile app.

The A3001 puts the tool, not your body, near live electrical panels. Connect the a3001 FC current module and read the results on your smartphone from a safe distance. You can save and share measurements from the field with your team anytime, from anywhere.

Isolating intermittent electrical faults easily

Leave your A3001 connected to log measurements and walk away to address other issues. Download the data for further analysis on our phone. Record over time to monitor circuit load changes for an hour, a shift or a week. Use the Fluke Connect wireless USB adapter to collect logged data from remote modules by walking past a working module and downloading logged data.

Faster and cheaper 3-phase testing

When your cabinet is de-energised, attach a Fluke a3001 FC Wireless iFlex AC Current Module to each phase. Close, re-energise and start taking readings in 1/3 of the time. What used to take hours and use costly equipment can be done in minutes with an affordable Fluke Connect wireless system.

Log, analyse, and diagnose easily You can solve problems faster by seeing live measurements from multiple test points on a single screen. Send data from the panel to your laptop and go from logging to analysis and diagnosis with the a3001 connected. Once you’ve gathered the measurements, you can perform for analysis with your PC and share the results using Fluke Cloud™ storage and ShareLive™ video call. Share and view data or graphs to get input from team members.

Start building tomorrow’s test tool system today with the Fluke 3001 FC Digital Multimeter.

Key Features:

  • The iFlex™ Wireless Current Meter allows you to measure around awkward sized conductors or get into tight spaces and makes wire access easier
  • Measure up to 2500 A ac
  • Use as a standalone meter or as part of the system
  • Logging function for recording and saving up to 65,000 readings
  • Inrush function
  • Magnetic hanging strap
  • A true-rms current clamp meter that wirelessly relays measurements to other Fluke Connect™ enabled master units, listed below;
    • Fluke 3000 FC DMM
    • Fluke TiX560/520 Infrared Camera
    • Fluke Ti200/300/400 Infrared Camera
    • PC via optional pc3000 FC Adapter
    • Fluke Connect Mobile app

Specifications: Fluke a3001 FC Wireless iFlex® AC Current Module

Specifications
Range 0.5 A to 2500 A AC
Resolution 0.1 A
Accuracy 3% ± 5 digits (5 Hz to 500 Hz)
Crest factor (50 Hz/60 Hz) 3.0 at 1100 A
2.5 at 1400 A
1.42 at 2500 A
Add 2% for C.F. > 2
LCD w/backlight 3½ digits
Log rate/interval 1 sec minimum/adjustable by PC or front panel
Battery type 2 AA, NEDA 15 A, IEC LR6
Battery life 400 hours
Memory Record up to 65,000 readings
RF communications 2.4 GHZ ISM Band
RF communication range Open air, unobstructed Up to 20 m
Obstructed, sheetrock wall Up to 6.5 m
Obstructed, concrete wall or steel electrical enclosure Up to 3.5 m
Operating temperature -10°C to +50°C
Storage temperature -40°C to +60°C
Temperature coefficient Add 0.1 X (specified accuracy) / °C (< 18°C or > 28°C)
Operating humidity 90% at 35°C
75% at 40°C
45% at 50°C
Altitude Operating 2,000 m
Storage 12,000 m
EMC EN 61326-1:2006
Safety compliance IEC 61010-1, 600 V CAT IV/1000 V CAT III, 3rd edition
Safety rating CAT IV 600 V, CAT III 1000 V
Certifications CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
Ingress Protection (IP) rating IP42
Pollution Degree 2
Jaw opening 25.4 cm (10 in) coil
Size (HxWxD) 16.5 cm x 6.35 cm x 1.4 cm (6.5 in x 2.5 in x 1.4 in)
Weight .22 kg (8 oz)
Warranty Three years
Note: Not compatible with Fluke CNX test tools

Models: Fluke a3001 FC Wireless iFlex® AC Current Module

Fluke a3001 FC Wireless iFlex® AC Current Module Includes:
  • True-RMS flexible current meter
  • iFlex i2500-10 Flexible Current Probe
