Fluke A3004FC (Fluke Connect) Wireless DC Clamp Meter 4.20 milliamp

Fluke

£687.00 / £824.40 incl VAT

⚡ Fully functional, wireless, current clamp meter
⚡ DC current: 4mA to 20mA
⚡ Take DC current measurements without “breaking the loop”
⚡ Log up to 65 000 readings to the internal memory
⚡ Detachable clamp with extension cable for measurements in tight locations

Only 1 left in stock

SKU: FLU-A3004FC Category: Tag: Brand:

Description

Fluke A3004FC Wireless DC Clamp Meter 4.20 milliamp

Fluke a3004 FC Wireless 4-20 mA DC Clamp Meter

The Fluke a3004 FC Wireless 4-20 mA DC Clamp Meter is a member of Fluke’s wireless test instrument range, allowing you to connect with other wireless Fluke Connect units/platforms including the 3000 FC Digital Multimeter, Ti200/300/400 Infrared Camera, Fluke Connect mobile app and TiX560/TiX520.

The a3004 FC features measurement capabilities for signals 4 to 20mA. The clamp is detachable with an extension cable for measuring in tight locations. Simply connect the meter and log up to 65,000 measurements from a safe distance via the Fluke Connect mobile app, with the additional ability to send data to PC for further analysis or share via a ShareLive video call.

The meter sports a large LCD screen with powerful backlight and a battery life of up to 45 hours, which when combined with the IP42 ingress protection rating makes it a convenient and highly usable choice for those looking for a wireless solution.

Fluke Connect App

The free Fluke Connect App is available on both Android and iOS smartphones and tablets and allows the user to instantly upload results from Fluke smart devices to the FlukeCloud database. This database can be accessed via the app from anywhere in the world so it not only provides a handy, smart database, it also allows colleagues to check and analyse data even when they are not on site.

Key Features:

  • Measure 4 to 20mA signals
  • Detachable clamp
  • Fluke Connect enables connection with other Fluke devices
  • Save up to 65,000 records
  • Send data to your PC for further analysis
  • Send data to Fluke Cloud for storage or ShareLive video call

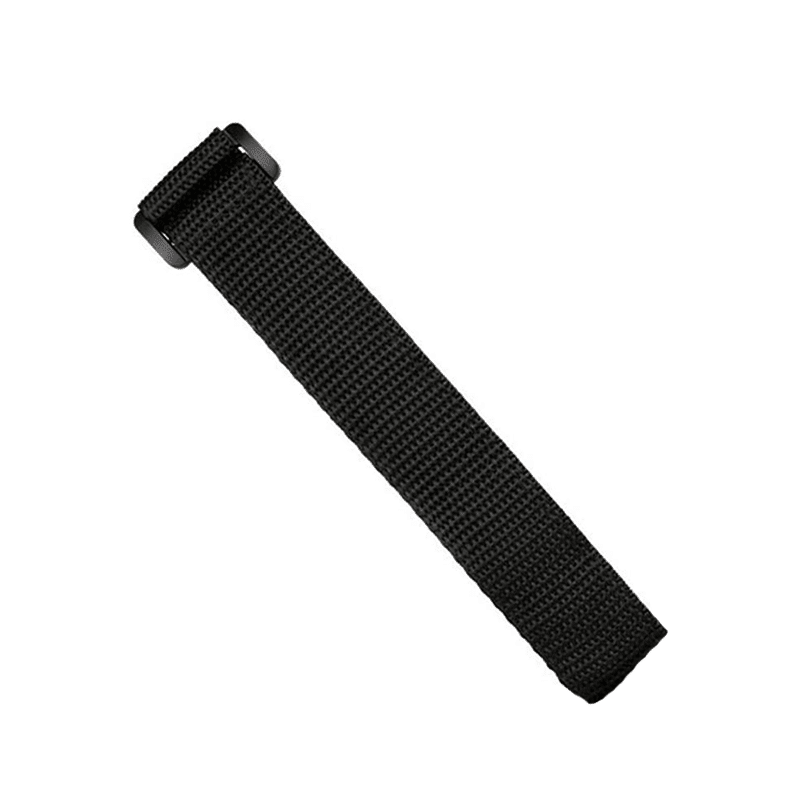

  • Included hanging strap
  • Tests without breaking loop

What’s In The Box?

  • Fluke a3004 FC Wireless 4-20 mA DC Clamp Meter
  • Batteries
  • Hanging strap
  • Quick reference guide

Fluke a3004 FC Wireless 4-20mA DC Clamp Meter Technical Specifications

Range0.05 mA to 20.99 mA dc, 21.0 mA to 99.9 mA dc
Resolution0.01 mA, 0.1 A
Accuracy0.2 % ± 5 digits, 1.0 % ± 5 digits
LCD w/backlight3½ digits
Log rate/interval1 sec minimum/adjustable by PC or front panel
Battery type2 AA, NEDA 15 A, IEC LR6
Battery life45 hours
MemoryRecord up to 65,000 readings
RF communications2.4 GHZ ISM Band
RF communication rangeOpen air, unobstructed (up to 20 m)
Operating temperatureObstructed, sheetrock wall (up to 6.5 m)
Obstructed, concrete wall or steel electrical enclosure (up to 3.5 m)
-10 °C to +50 °C
Storage temperature-40 °C to +60 °C
Temperature coefficientAdd 0.1 X (specified accuracy)/°C (<18 °C or >28 °C)
Operating humidity90 % at 35 °C
75 % at 40 °C
45 % at 50 °C
AltitudeOperating: 2,000 m
Storage: 12,000 m
EMCEN 61326-1:2013
CertificationscCSAus, CE, FCC: T68-FBLE IC: 6627A-FBLE
Ingress Protection (IP) ratingIP42
Jaw opening4.5 mm
Size (HxWxD)16.5 cm x 6.35 cm x 1.4 cm (6.5 in x 2.5 in x 1.4 in)
Weight.299 kg (0.8 lb)
  • Fluke a3004 FC Wireless 4-20 mA DC Clamp Meter
  • Batteries
  • Hanging strap
  • Quick reference guide
