Fluke FEV350 EV Charging Station Analyser – Choice of Models/Kits

Fluke

£1,799.00£3,332.00

⚡Test the safety and functionality of AC electrical vehicle charging stations with the all-in-one solution
⚡ Pass/fail test results
⚡Auto control pilot (CP) with waveform analysis
⚡Compatible with TruTest™ Data Management Software
⚡ Compatible with fluke 1664fc and other EV insulation testers
⚡Choice of kits/models available
Price Pledge

Description

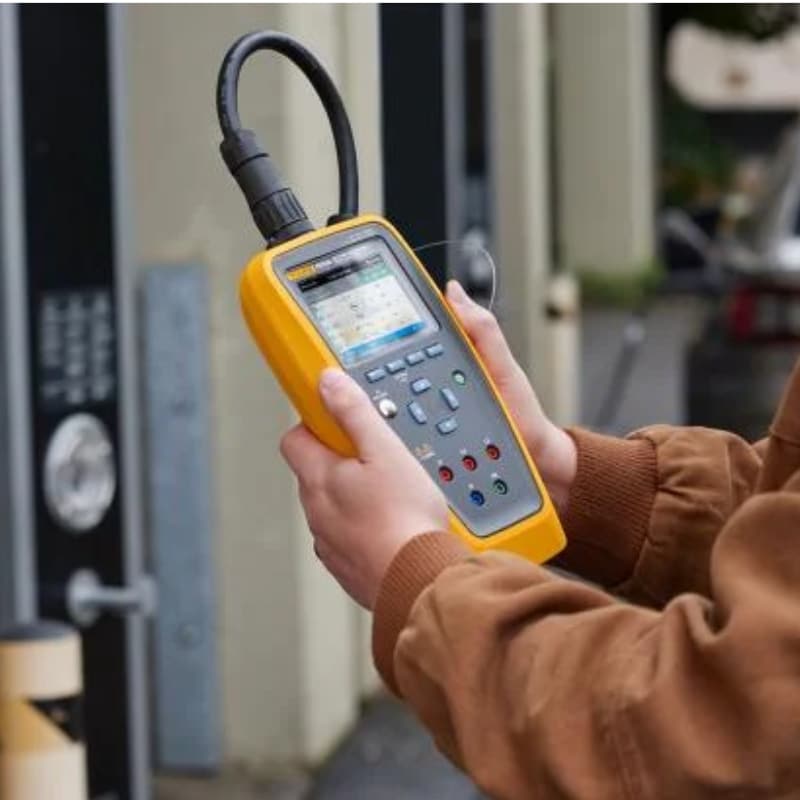

Fluke FEV350 EV Charging Station Analyser

Test the safety and functionality of AC electrical vehicle charging stations with the all-in-one tool that is safe, portable, and easy to use.

The FEV350 is a complete solution for safety and performance testing of AC EV charging stations with Type 2 or Type 1 connectors. Designed for technicians required to perform and document multiple tests quickly and efficiently without carrying multiple tools.

The solution includes TruTest™ EV Charging software module for documentation and reporting. The solution performs these measurements: PE (protective) earth pre-test, visual inspection, 30 mA RCD + 6 mA RDC-DD trip test, nominal voltage + phase sequence, auto control pilot (CP) with waveform analysis, proximity pilot, and error testing. The supporting measurements are: earth bond, insulation, and loop/line impedance, available with Fluke’s compatible multifunction installation testers for installation certification/inspections via wireless Bluetooth connection, wiring configuration diagrams, and info screens for seamless integration with TruTest software for report generation. The Fluke FEV350 provides predetermined test plans and pass/fail indications on measurement results to simplify analysis and time spent testing. The FEV350 EV Charging Station Analyzer is designed in accordance with IEC/EN 61851-1 and IEC/HD 60364-7-722.

Key Benefits:

  • Easily manage measurement data from EVSE inspections
  • Quickly create inspections and reports
  • Control Pilot waveform analysis with easy pass/fail visuals
  • Compare site data to previous site data to see changes over time
  • Quickly access the latest firmware to update your FEV350
  • Download a free 60-day demo version of TruTest. Purchase a software key to unlock the Lite or Advanced version.

Available measurements:

  • PE (protective) earth pre-test to ensure no dangerous voltage is present
  • Visual Inspection
  • 30 Ma Rcd + 6 Ma Rdc-Dd Trip Test
  • Nominal Voltage + Phase Sequence
  • Auto Control Pilot (Cp) with Waveform Analysis
  • Proximity Pilot
  • Error Testing

Supported measurements with compatible Fluke multi-function testers:

  • Earth Bond
  • Insulation
  • Loop/Line Impedance

Choice of models/kits available:

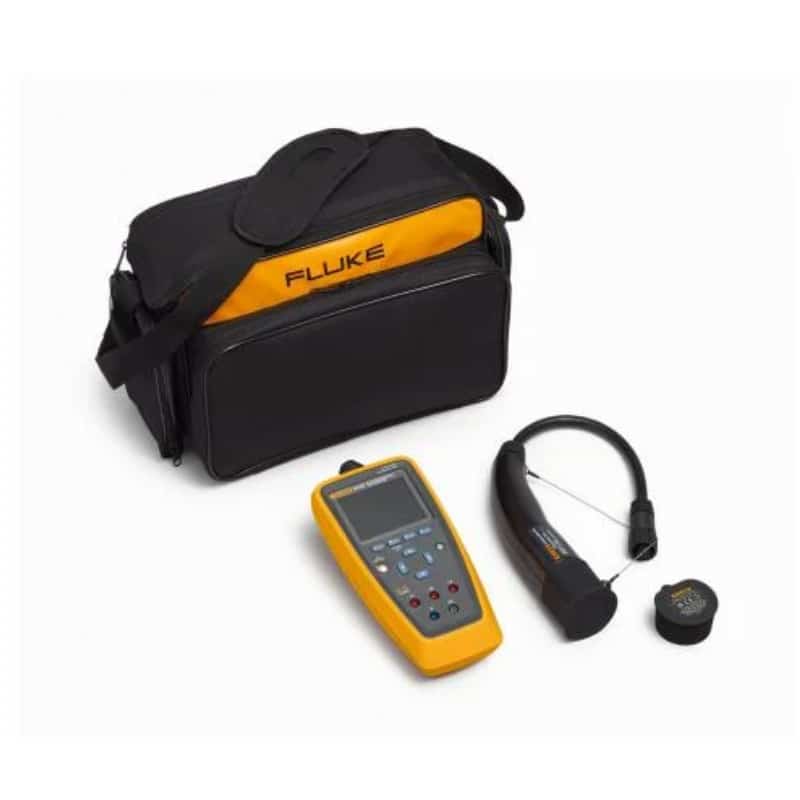

FEV350/TY2 – FEV350 EV Charging Station Analyser kit for Type 2 connector. FEV350/TY2 includes:
  • FEV350/BASIC Test Analyzer
  • FEV300-CON-TY2
  • Zero Adapter/TY2
  • TPAK Magnetic Hanger
  • Soft Carrying Bag
FEV350/TY2 PRO – FEV350 EV Charging Station Analyser kit for Type 2 connector with TruTest software license. FEV350/TY2 PRO includes:
  • FEV350/BASIC Test Analyzer
  • FEV300-CON-TY2
  • Zero Adapter/TY2
  • TPAK Magnetic Hanger
  • Soft Carrying Bag
  • TruTest Software License



FEV350/TY2/TY1 – FEV350 EV Charging Station Analyser kit for Type 1 and 2 connectors. FEV350/TY2/TY1 includes:

  • FEV350/BASIC Test Analyzer
  • FEV300-CON-TY1
  • FEV300-CON-TY2
  • Zero Adapter/TY1
  • Zero Adapter/TY2
  • TPAK Magnetic Hanger
  • Soft Carrying Bag



FEV350/TY2/TY1 PROFEV350 EV Charging Station Analyser kit for Type 1 and 2 connectors with TruTest software license. FEV350/TY2/TY1 PRO includes:

  • FEV350/BASIC Test Analyzer
  • FEV300-CON-TY1
  • FEV300-CON-TY2
  • Zero Adapter/TY1
  • Zero Adapter/TY2
  • TPAK Magnetic Hanger
  • Soft Carrying Bag
  • TruTest Software License



FEV350/KITFEV350 EV Charging Station Analyser kit for Type 1 and 2 connectors with 1664 FC Multifunction Tester. FEV350/KIT includes:



Fluke 1664 FC is the only multifunction installation tester that protects connected appliances from damage during insulation tests and allows you to share your test results wirelessly by smartphone with coworkers or customers. Fluke’s patented Insulation PreTest stops you from performing tests with appliances that are connected to the system during the test. This helps eliminate accidental damage and keeps your customers happy.

In addition, the Fluke 1664 FC offers you the power of Fluke Connect. Now you can send test results straight from your Fluke 1664 FC to your smartphone, and transmit those results to other members of your team. You can get feedback, suggestions and even have work orders sent to your job site. You can also save your test results to Fluke Cloud™ storage.



Input electrical ratings 1 Φ: 250 V max

3 Φ: 230/400V max,

50/60 Hz, max 1 A

Internal power consumption 3 W max
Size (H x W x D) (263 mm x 123 mm x 63 mm)

(10.35 in x 4.84 in x 2.48 in), without the TY1 or TY2 plug

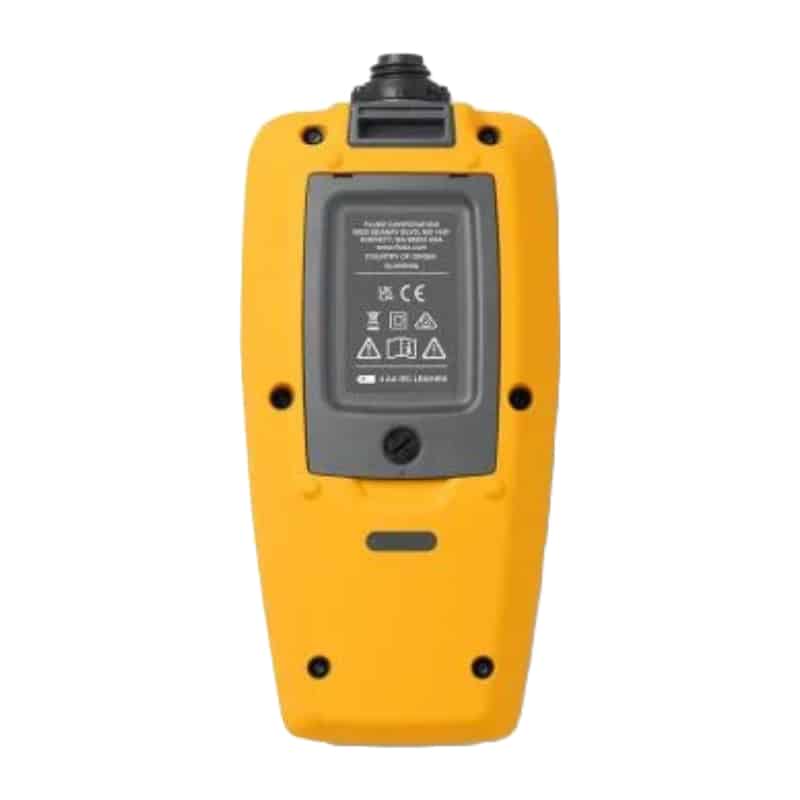

Battery 4 x AA/IEC LR6 alkaline or IEC HR6 NiMH
Temperature
Operating -10 °C to 40 °C (14 °F to 104 °F)
Storage -20 °C to 50 °C (-4 °F to 122 °F)
Relative humidity
Operating 10 % to 85 %, 0 °C to 40 °C

(32 °F to 104 °F), non-condensing

Storage up to 95 %
Wireless radio, Bluetooth 5.0
Frequency range 2412 MHz to 2462 MHz
Output power <100 mW
Altitude 3000 m
Safety IEC 61010-1: Pollution Degree 2, IEC 61010-2-030, CAT II 300 V, Protection

Class II

Performance IEC 61557-1, IEC 61557-6, IEC 61557-7, IEC 61557-10
Ingress protection IEC 60529: IP40
