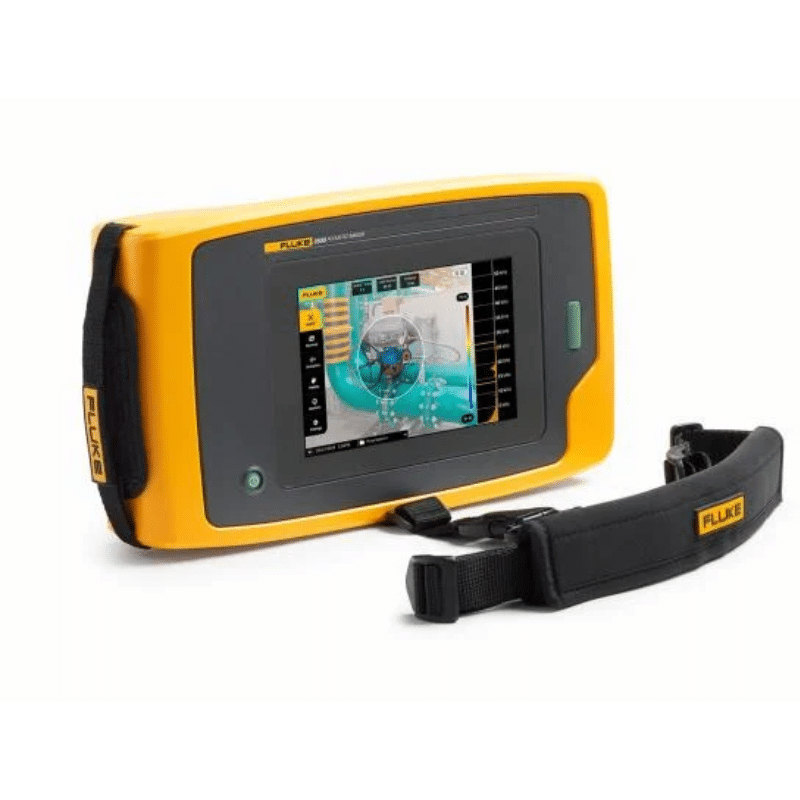

Fluke ii500 Acoustic Imager
£8,287.00 / £9,944.40 incl VAT
Unbeatable Price and Value: We guarantee the best price on the Fluke ii500 Industrial Acoustic Imager, and we’ll match or beat any competitor’s price while offering exceptional value and service. Take advantage of our direct access to Fluke’s expertise. For a real-life demo or an online demo link, call our friendly team at 01945 738112 and speak to Rob, Nathan, or Steve.
⚡Easy, fast, and safe visual detection of compressed gas leaks.
⚡The 7″ LCD touchscreen displays a SoundMap™ over visual images, making it easier to locate leaks quickly.
⚡Intuitive interface requires no training for maintenance teams.
Available on back-order
Description
Fluke ii500 Acoustic Imager with LeakQ™: Detect, Locate, and Capture Gas Leaks
The Fluke ii500 Acoustic Imager, equipped with LeakQ™ technology, empowers maintenance teams to detect and locate gas leaks efficiently. Designed for ease of use, it requires no specialized training. Even during peak production periods, teams can effectively identify gas and vacuum leaks. The ii500’s advanced acoustic leak detection technology isolates leak sound frequencies, making leaks visible even in noisy environments.
Key Features:
- Ready-to-Use: The Fluke ii500 is ready out of the box. Its rugged, ergonomic design ensures easy handling, while the large 7″ LCD display allows for clear leak visualization.
- Quick Detection: Even users with minimal experience can start detecting leaks within minutes. The tool estimates relative leak size and cost, incorporating a new distance-estimation feature and the 1-10 LeakQ™ severity index.
- SoundMap™ Overlay: The 7″ LCD touchscreen overlays a SoundMap™ on visual images, facilitating rapid leak location identification.
- Intuitive Interface: Easily isolate leak sound frequencies and filter out background noise.
- Tagging and Organization: Use image and video tagging, annotation, and folders for efficient organization.
- Leak Sizing: Prioritize repairs based on relative leak size.
- Collaboration: The reporting tool allows sharing of visuals, tagging, and notes with team members and repair personnel.
Visualizing Sound
The Fluke ii500 Acoustic Imager visualizes sounds from small leaks in compressed air, gas, and vacuum systems. Its array of microphones provides an expanded field of view. Designed explicitly for noisy production facilities, the Fluke ii500 Industrial Acoustic Imager (Sonic Industrial Imager) features SoundSight™ technology, which is simple to learn and implement.
What’s the Best Acoustic Imager for my needs?
The following table highlights the main differences between the Fluke acoustic cameras. Please see the datasheet for a complete comparison of specifications.
| Fluke ii500 Acoustic Imager | Fluke ii905 Acoustic Imager | Fluke ii915 Acoustic Imager | |
|---|---|---|---|
| LeakQ™ | Scale (1-10) | Leak size scale, leak rate, and leak cost estimation | Leak size scale, leak rate, and leak cost estimation |
| PDQ™ | • | ||
| MecQ™ | • | ||
| Features | |||
| WiFi / Bluetooth | • | • | |
| Frequency | 2 to 52 kHz | 2 to 65 kHz | 2 to 100 kHz |
| Detection range | Up to 50 m (164 ft)* | Up to 70 m (230 ft)* | Up to 120 meters (393 ft)* |
| Resolution | 0.3 MP | 5.0 MP | 5.0 MP |
| Battery life | 6 hours | 6 hours | 6 hours |
| Memory | 20 GB (> 5000 pictures / > 999 videos) | 32 GB (> 8000 pictures / > 1600 videos) | 32 GB (> 8000 pictures / > 1600 videos) |
| Tripod connector | • | • |
Specifications: Fluke ii500 Acoustic Imager
| Specifications | |
| Key Features | ii500 |
| Sensors | |
| Frequency band | 2 kHz to 52 kHz |
| Detection range1 | 0.5 to > 50 meters (1.6 to > 164 feet) |
| Field of view (FOV) | 63°± 5° |
| Nominal frame rate | 25 FPS |
| Built-in digital camera (visible light) | |
| Field of view (FOV) | 63°± 5° |
| Focus | Fixed lens |
| Zoom | No zoom |
| Resolution | 0.3 MP |
| Display | |
| Size | 7″ LCD with backlight, sunlight readable |
| Resolution | 1280 x 800 (1,024,000 pixels) |
| Touchscreen | Capacitive |
| Acoustic image | SoundMapTM image |
| Image storage | |
| Storage capacity | 20 GB (> 5,000 pictures / > 999 videos) |
| Image format | Blended visual and SoundMapTM .JPG or .PNG |
| Video format | Blended visual and SoundMapTM .MP4 |
| Video length | Up to 5 minutes |
| Digital export | USB-C for data transfer |
| Acoustic measurements | |
| Measurement range (typical) | 15.4 to 115.2 dB SPL (± 1 dB SPL 2 kHz) 5.6 to 102.5 dB SPL (± 2 dB SPL 19 kHz) 28.4 to 131.1 dB SPL (± 1 dB SPL 35 kHz) 41.8 to 133.1 dB SPL (± 3 dB SPL 52 kHz) |
| Classification and quantification | |
| LeakQTM | Leak size scale (1-10) |
| PDQ ModeTM | – |
| MecQTM | – |
| Auto max/min dB gain | Auto |
| Frequency band selection | User selectable through user-made presets or manual entry |
| Battery | |
| Battery | Rechargeable and field replaceable Li-ion battery |
| Battery life | 6 hours |
| Battery charging time | 3 hours |
| Battery charging system | External (Bay charger) |
| Software | |
| Ease of use | Intuitive user interface |
| Acoustics: Show dB scale | On/Off |
| Acoustics: Min/Max dB | Manual/Auto |
| Acoustics: Profiles | – |
| Acoustics: High frequency | – |
| Acoustics: Multiple sources | Single source |
| Palette: Colors | 3: Grayscale, Ironbow, and Blue-Red |
| Palette: Overly transparency | Yes: 1-100 % |
| Grayscale mode | Yes |
| Centerpoint markers | On/Off |
| Trend graphs | Frequency and dB scale |
| Spotmarkers | dB level reading at center point of image |
| Leak values | LeakQTM scale (1-10) |
| Master admin menu | – |
| Annotation | Asset name; Asset ID; Asset type; Leak type; Gas type; Pressure |
| Photo notes | Up to 4 photos notes for reference |
| Asset inspection status | – |
| Asset ID | Text input and automatic QR code based asset ID identification |
| Actions annotation | – |
| Other | – |
| General specifications | |
| Tripod holder / connector | – |
| USB | 1 x USB-C |
| Wireless | – |
| Operating Temperature | -10 to 45 °C (14 to 113 °F) |
| Storage Temperature | -20 to 70 °C (-4 to 158 °F) without batteries installed |
| Relative humidity | 10 to 95 % non-condensing |
| Size (H x W x L) | 186 mm x 322 mm x 68 mm (7.3 inches x 12.7 inches x 2.7 inches) |
| Weight (battery included) | 2.1 kg (4.6 pounds) |
| Ingress Protection (IP) | IP40 |
| Warranty | 2 year |
| Fluke Premium Care | Premium Care Standard2 |
| Self-diagnostic notification | Array-health test to identify when microphone array needs attention |
| Supported languages | Dutch, English, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| RoHS compliant | Yes |
| Safety | |
| General safety | IEC 61010-1: Pollution degree 2 |
| Electromagnetic Compatibility (EMC) International | IEC 61326-1: Portable Electromagnetic Environment, CISPR 11: Group 1, Class A |
| Korea (KCC) | Class A Equipment (Industrial Broadcasting and Communication) |
| USA (FCC) | 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103 |
| ¹ Depending on ambient conditions ² Subject to regional availability (www.fluke.com/premiumcare) | |
What’s in the box:
- Fluke ii500 Acoustic Imager
- AC power supply and battery pack charger (including universal AC adapters)
- Rugged lithium-ion smart battery pack
- USB cable
- Rugged, hard carrying case
- Adjustable hand strap and neck strap
- Sensor array protection cover
