Fluke SmartTrace™ AF2082 A-Frame Accessory for Underground Utilities Locator


£1,939.00 / £2,326.80 incl VAT
- Quickly pinpoint underground cable faults
- Works with Fluke underground utility locator systems
- Rugged design for demanding field environments
- Easy-to-use A-Frame for accurate fault locating
- Speeds troubleshooting and reduces excavation time
Available on back-order
Description

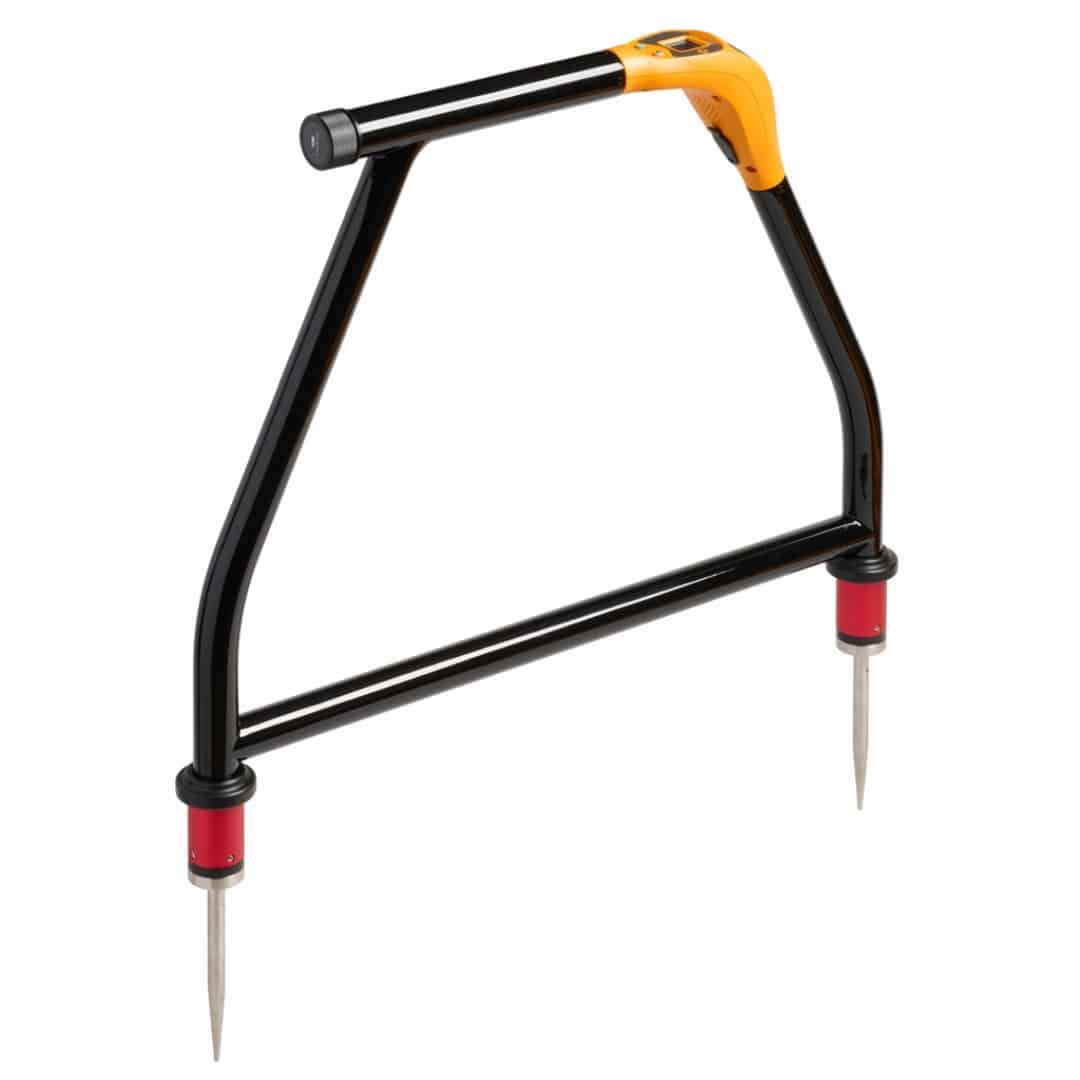

Fluke SmartTrace™ AF2082 A-Frame Accessory for Underground Utilities Locator
The Fluke SmartTrace™ AF2082 A-Frame Accessory is designed to help technicians quickly and accurately locate faults in underground cables when used with compatible Fluke underground utility locator systems. By measuring voltage gradients in the ground, the AF2082 guides operators directly to the point of cable damage or insulation breakdown.
Underground cable faults can lead to costly downtime, service interruptions, and unnecessary excavation when the fault location is unclear. The AF2082 simplifies fault-finding by allowing technicians to insert the A-Frame probes into the ground and follow the signal gradient to pinpoint the exact location of the fault. This reduces guesswork, speeds up repairs, and minimises disruption to the surrounding area.
Built for demanding field environments, the AF2082 features a rugged and ergonomic design suited to utility technicians, contractors, and maintenance teams working across power distribution networks, telecommunications infrastructure, industrial sites, and municipal utilities.
When used alongside Fluke underground utility locating systems, the AF2082 becomes an essential part of the workflow for tracing, locating, and diagnosing buried utilities, helping teams identify ground faults quickly and restore service with minimal excavation.
Key Features
- Designed for accurate underground cable fault location
- Measures voltage gradients in the ground to pinpoint cable damage
- Works with compatible Fluke underground utility locator systems
- Helps reduce excavation time and repair costs
- Rugged construction for demanding field conditions
- Ideal for power utilities, telecoms, contractors, and maintenance teams
What’s Included
- Fluke SmartTrace™ AF2082 A-Frame

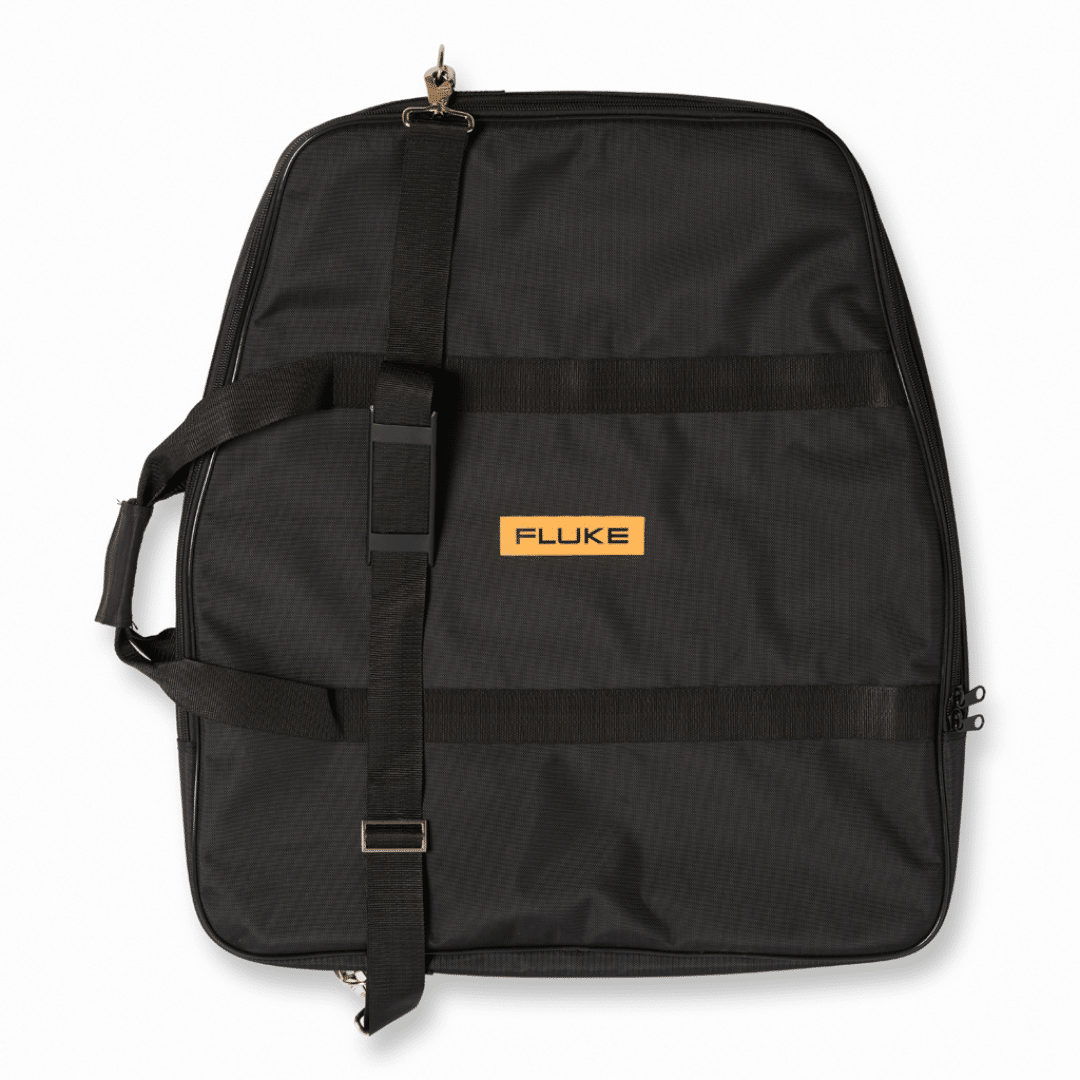

- Carrying case
- 6 × AA (LR6) batteries
Click Here for full data sheet
Specifications: Fluke SmartTrace™ AF2082 A-Frame Accessory for Underground Utilities Locator
| Specifications | |
| Tracing mode (de-energized) | 8 kHz (8,192 Hz) |
| Locating mode | Ground fault locating |
| Sensitivity (typical) | Cable locate mode at 1 meter depth: 10 uA Fault locate mode: up to 2 MΩ fault |
| Display backlight | Automatic |
| Audio indication | Speaker indicates left/right by pulsed/continuous tone |
| Compatible transmitter | 2082T Transmitter |
| Display | 1.28 in (33 mm) 128 x 128 BW outdoor LCD display with auto backlight |
| Update rate | Instantaneous |
| Power supply | Six (6) 1.5 V AA IEC LR6 |
| Auto power off | 15 minutes idle |
| Battery life (Typical) | Up to 60 hours at 21 °C (70 °F) |
| Low battery indication | Blinking |
- Fluke SmartTrace™ AF2082 A-Frame
- Carrying case
- 6 × AA (LR6) batteries
