Fluke TI480 PRO Thermal Imaging Camera – Choice of Frame Rate 9Hz or 60Hz
£11,902.00
⚡Increased sensitivity to visualize temperature differences
⚡ Easier to visualize and diagnose issues with sharper onscreen images, multiple rectangle markers and 9 color palettes
⚡ More intuitive visual interface, improved, user-tested, touch screen interface
⚡ More flexibility to visualize target, tiny-to-large with interchangeable smart lenses – no calibration required, 2x and 4x telephoto, wide angle and macro lens compatibility
Description

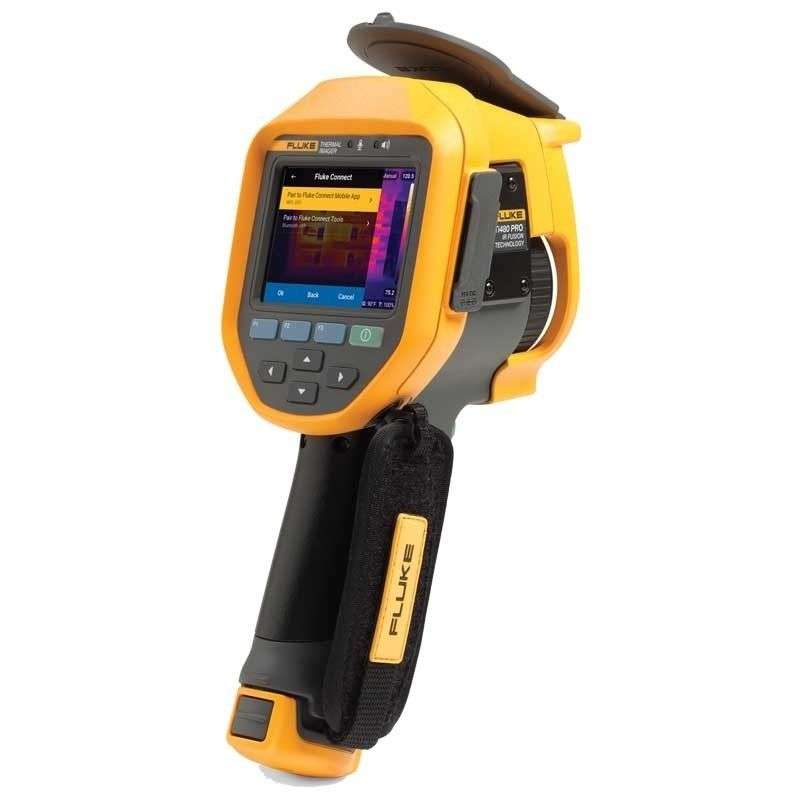

Fluke TI480 PRO Thermal Imaging Camera
Product Description:
The Fluke Ti480 is a powerful, professional thermal camera with a high specification, including a 640 x 480 infra-red resolution. The Ti480’s resolution can also be increased fourfold to create a 1290 x 960 image, using the Super resolution feature which comes as part of the Fluke Connect Desktop software.
Professional inspections
The Fluke Ti480 PRO has been designed for professional in-house, service, and contract thermographers as well as maintenance personnel who need quality images and advanced features and specifications for use in multiple applications.
The TI480 PRO can be used for…
- Industrial maintenance
- Heavy commercial facility maintenance
- Oil and gas maintenance
- Veterinary
- Reliability inspections (PdM)
- Electrical, water, gas utilities
- Chemical processing
- Machinery, instrumentation and appliances
- Automotive maintenance
Accurate, high quality images
The Fluke Ti480 PRO is designed for those who demand a thermal camera is easy to use, rugged, accurate and takes high quality thermal images. This camera will also measure objects up to a temperature of 1000°C. There are also 9 different colour palettes to choose from, so you can get the best contrast for the application.
A key ingredient to the Ti480 PRO’s great image quality is LaserSharp auto focus technology. This camera uses a built in laser distance meter to produce images that are consistently in focus. Simply point the Ti480 PRO at your target and watch it snap into focus.
Furthermore, the Fluke Ti480 PRO also benefits from Fluke’s MultiSharp technology, which makes sure objects are in focus throughout the field of view, near and far.
Video recording and live streaming
Take standard and radiometric videos with the Fluke Ti480 PRO. The camera can also be linked to a PC or TV monitor for a live stream of the camera’s display. Live streaming provides a great basis for allowing team members or customers to see the work you are doing.
Fluke Connect
Download, organise, edit and analyse your thermal images and videos. Plus use Fluke Connect Desktop software to increase the resolution of the Ti480 PRO’s thermal images from 640 x 480 to 1290 x 960 with SuperResolution, that’s over 1 million pixels. Create details, professional reports that can be emailed to your colleagues or customer. Wireless send measurements from Fluke Connect tools to the app, secure store images, create reports or share with your team. Fluke connect allows realtime video and measurement recording.
With the Fluke connect app, you can connect the Fluke Ti480 PRO to a smartphone or tablet. Here you can view and record live measurements, make video calls to colleagues, plus edit and analyse images. Images can also be quickly shared via email.
Simplicity by design
The ergonomic pistol grip design makes one handed operation easy. The camera can be secured in the hand with the adjustable strap, plus it is IP54 rated against dust and moisture ingress, making it suitable for use indoors and out.
Images are displayed on the recessed 3.5 inch touch screen and power is supplied by two lithium ion batteries, providing up to three hours of battery life each. A 4GB micro SD card is also supplied for image storage.
The Fluke Ti480 PRO is also compatible with a range of option thermal lenses.
Fluke lenses (OPTIONAL)
Wide angle – 46 ° H x 34 ° V FOV, 15cm focus distance
4x telephoto – 6.0° H x 4.5° V FOV, 1.5 m focus distance
2x telephoto – 12 ° H x 9 ° V FOV, 45cm focus distance
25 micron macro – 7.8 mm x 5.8 mm object size, 10.4 mm focus distance
Fluke Ti480 PRO key features
- 640 x 490 infra-red resolution (307,200 pixels)
- Up to 1290 x 960 resolution with SuperResolution
- 34° H x 24° V field of view
- 50mK thermal sensitivity
- -20°C to +1,000°C measurement range
- MultiSharp focus for objects near and far
- LaserSharp focus for consistently in focus images
- Manual focus wheel
- Laser distance meter (distance shown on screen)
- Compatible with Fluke Connect app and desktop software
- IR Fusion: 5 modes including autoblend and picture in picture
- 5 inch touch screen
- Test annotation
- Video recording and live streaming
- Remote operation via Fluke Connect App
- High / low and range temperature alarms
- 9 colour palettes
- Two year warranty included
- Suitable for professional thermographers
- Ideal for industrial and commercial environments
Specifications
Key Fearures | |
IFOV with standard lens (spatial resolution) | 0.93 mRad, D:S 1065:1 |
Detector resolution | 640 x 480 |
SuperResolution | Captures and combines 4x the data to create a 1280 x 960 (614,400 pixels) image |
Infrared resolution | 307,200 pixels |
MultiSharp™ Focus | Yes, focused near and far, throughout the field of view |
LaserSharp® Auto Focus | Yes, for consistently in-focus images |
Laser distance meter | Yes, calculates distance to the target for precisely focused images and displays distance on screen |
| Advanced manual focus | Yes |
| Ruggedized touchscreen display | 3.5 inch (landscape) 640 x 480 LCD |
Rugged, ergonomic design for one-handed use | Yes |
Digital zoom | 2x and 4x |
Temperature measurement | |
Temperature measurement range | ≤-10 °C to 1000 °C (14 °F to 1832 °F) |
Accuracy | ±2 °C or 2% (at 25 °C nominal, whichever is greater) |
Thermal sensitivity (NETD)* | ≤0.05 °C at 30 °C target temp (50 mK) |
On-screen emissivity correction | Yes (both value and table) |
On-screen reflected background temperature compensation | Yes |
On-screen transmission correction | Yes |
| Wireless connectivity | To PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available) |
| Fluke Connect® app compatible | Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing |
| Fluke Connect® Assets optional software | Yes*, assign images to assets and create work orders. Easily compare measurement types in one location |
| Fluke Connect® Instant Upload | Yes*, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC |
Fluke Connect® tool compatible | Yes*, connects wirelessly to select Fluke Connect enabled tools and displays measurements on camera screen |
IR-Fusion® technology | Adds the context of the visible details to your infrared image |
AutoBlend™ mode | Min, Mid, Max IR plus full visible on camera; continously variable in software |
Picture-In-Picture (PIP) | Yes |
Built-in digital camera (visible light) | 5 MP |
Level and span | Smooth auto and manual scaling |
Fast auto toggle between manual and auto modes | Yes |
Fast auto-rescale in manual mode | Yes |
Minimum span (in manual mode) | 2.0 °C (3.6 °F) |
Minimum span (in auto mode) | 3.0 °C (5.4 °F) |
Data storage and image capture | |
Extensive memory options | Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload for permanent storage |
Image capture, review, save mechanism | One-handed image capture,review, and save capability |
Image file formats | Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files |
Memory review | Thumbnail and fullscreen review |
Software | SmartView® full analysis and reporting software with access to the Fluke Connect system |
Export file formats with SmartView®software | Bitmap (.bmp), GIF, JPEG, PNG, TIFF |
Voice annotation | 60 seconds maximum recording time per image; reviewable playback on camera, optional bluetooth headset available but not required |
IR-PhotoNotes™ | Yes (5 images) |
Text annotation | Yes |
Video recording | Standard and radiometric |
File formats video | Non-radiometric (MPEG – encoded .AVI) and fully-radiometric (.IS3) |
| Streaming video (remote display) | Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to SmartView® software on a PC; via WiFi hotspot to the Fluke Connect® app on a smartphone; or via HDMI to a TV monitor |
| Remote control operation | Yes, through SmartView® software or Fluke Connect® mobile app |
| Auto capture (temperature and interval) | Yes |
| Battery | |
| Batteries (field-replaceable, rechargeable) | Two lithium ion smart battery packs with five-segment LED display to show charge level |
| Battery life | 2-3 hours per battery (*Actual life varies depending on settings and usage) |
| Battery charge time | 2.5 hours to full charge |
| Battery charging system | Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter |
| AC operation | AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) |
| Power saving | User selectable sleep and power off modes |
| Color palettes | |
| Standard palettes | 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| Ultra Contrast™ palettes | 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| General specifications | |
| Frame rate | 60 Hz or 9 Hz versions |
| Laser pointer | Yes |
| LED light (torch) | Yes, improved output torch |
| Color alarms (temperature alarms) | High temperature, low temperature, and isotherms (within range) |
| Center-point temperature measurement | Yes |
| Spot temperature | Hot and cold spot markers |
| User-definable spot markers | 3 user-definable spot markers |
| Center box | Expandable-contractible measurement box with MIN-MAX-AVG temp display |
| Infrared spectral band | 7.5 μm to 14 μm (long wave) |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature | -20 °C to +50 °C (-4 °F to 122 °F) without batteries |
| Relative humidity | 10% to 95% non-condensing |
| Safety | IEC 61010-1: Overvoltage category II, Pollution Degree 2 |
| Electromagnetic compatibility | IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A |
| Australian RCM | IEC 61326-1 |
| US FCC | CFR 47, Part 15 Subpart C Sections 15.207, 15.209, 15.249 |
| Vibration | 0.03 g2/Hz (3.8 g), 2.5 g IEC 68-2-6 |
| Shock | 25 g, IEC 68-2-29 |
| Drop | Engineered to withstand 2 meter (6.5 feet) drop with standard lens |
| Size (H x W x L) | 27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5 in) |
| Weight (battery included) | 1.04 kg (2.3 lb) |
| Enclosure rating | IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
| Warranty | Two-years (standard), extended warranties are available |
| Recommended calibration cycle | Two-years (assumes normal operation and normal aging) |
- Fluke Ti480 PRO Handheld Thermal Imaging Camera
- AC Power Supply and Battery Pack Charger
- Two, Lithium-ion Smart Battery Packs
- USB Cable
- HDMI Video Cable
- 4 GB microSD Card
- Rugged, Hard Carrying Case
- Soft Transport Bag
- Adjustable Hand Strap
🚚 Testersmans Shipping Policy
Free Mainland GB Delivery Over £150
We offer free delivery on most mainland Great Britain orders over £150 (ex VAT).
This applies across England, Wales, and most of Scotland, excluding certain remote or offshore postcodes.
If your order total falls just short of £150, or you’re a returning customer, feel free to contact us — we may be able to offer a discount code or delivery workaround.
📞 01945 738112 | ✉️ [email protected]
📦 UK Delivery Options
We work with both Royal Mail and DHL to offer reliable and flexible delivery across the UK:
- Royal Mail – Best suited for lighter parcels and for customers in remote regions, including the Highlands, Islands, and Northern Ireland.
- DHL – Ideal for most mainland UK orders, providing fast, tracked delivery and excellent reliability for time-sensitive shipments.
Our checkout system automatically displays the available delivery services for your postcode and order weight, ensuring you always see the most suitable options.
Note: Heavy, bulky, or freight-only orders will be charged separately.
Our website is designed for quick, transactional purchases rather than bulk or palletised orders.
Please contact us in advance for a tailored freight quotation if your order falls into this category.
⏱ Dispatch & Delivery Timing
We aim to dispatch all in-stock orders promptly, but delivery depends on both when you order and which service you select.
- UK orders: placed by 2:00 PM Monday–Friday are usually dispatched the same day.
- International orders: placed by 2:00 PM Monday–Thursday are usually dispatched the same day.
Orders placed after these times are processed the next working day. This means delivery may occur the following day or later, depending on the courier and service selected.
Once dispatched, your chosen delivery service determines how quickly your parcel arrives:
- Standard services We use Royal Mail Tracked 24 or DHL Parcel as our ‘Standard’ services. They are not guaranteed to arrive next working day.
- Premium services (e.g. Royal Mail Special Delivery or DHL by Noon) offer guaranteed delivery windows.
If your order is time-sensitive, we strongly recommend choosing a guaranteed service or contacting us before ordering to confirm availability.
Please note: For logistical reasons, we may occasionally adjust the delivery method selected at checkout. For example, smaller items may be better suited to letterbox-friendly packaging or may be at greater risk of delay or loss via certain services. We actively monitor courier and postal service disruptions—including strikes and delays—and may modify shipping arrangements to help ensure timely and secure delivery.
📅 Busy Periods & Delays
We always aim to dispatch promptly, but delivery times may be affected by:
- Seasonal demand (e.g. Christmas, bank holidays, or industry shutdowns)
- Courier network delays outside our control
- Supplier lead times or calibration requirements for certain equipment
If your delivery is time-critical, please contact us before ordering so we can confirm stock and courier availability.
🌍 International Shipping
We ship worldwide using UPS Express Saver® and other trusted global courier partners. All international shipments are tracked and generally dispatched Monday to Thursday to ensure smooth customs clearance and transit.
Estimated delivery times:
- Europe: 1–2 working days
- North America: 2–3 working days
- Asia-Pacific & Rest of World: 3–5 working days
Delivery times vary depending on location, customs clearance, and local courier performance.
💰 Taxes, Customs & Import Duties
International customers are responsible for any applicable taxes, customs charges, or import duties.
These are not included in our product or shipping prices.
Your courier will typically provide a secure payment link for any import charges once your parcel reaches customs.
If import fees are refused and the parcel is returned, we will issue a refund minus all incurred shipping and return costs.
📍 Using Your Own Courier
If you would prefer to arrange collection via your own courier (UK or international), please contact us before placing your order to coordinate collection from our Wisbech warehouse.
📝 Important Notes
- Please ensure your delivery address and contact number are correct at checkout.
- Undelivered parcels may be returned to us after a short holding period.
- Redelivery or return fees may apply, even if your order originally qualified for free delivery.
- By placing an order, you confirm your understanding and acceptance of this policy.
Additional information
| Weight | 500 g |
|---|---|
| SELECT MODEL | FLUKE TI480 PRO 9Hz Thermal Imager, FLUKE TI480 PRO 60Hz Thermal Imager |
