Fluke TiS20+ MAX Thermal Imaging Camera 9Hz


Original price was: £1,612.00.£1,290.00Current price is: £1,290.00. / £1,548.00 incl VAT
⚡ Temperature measurement range of -20°C to 400°C (-4°F to 752°F)
⚡ Touchscreen LCD screen with built-in IR-Fusion technology and Infrared resolution of 120 x 90 (10,800 pixels)
⚡ Wireless connection to Fluke Connect® Software and Asset Tagging
⚡ Fluke part number: 5206249
⚡ Features Fluke IR-Fusion technology
⚡ TWO YEAR FLUKE WARRANTY
Only 1 left in stock
Description

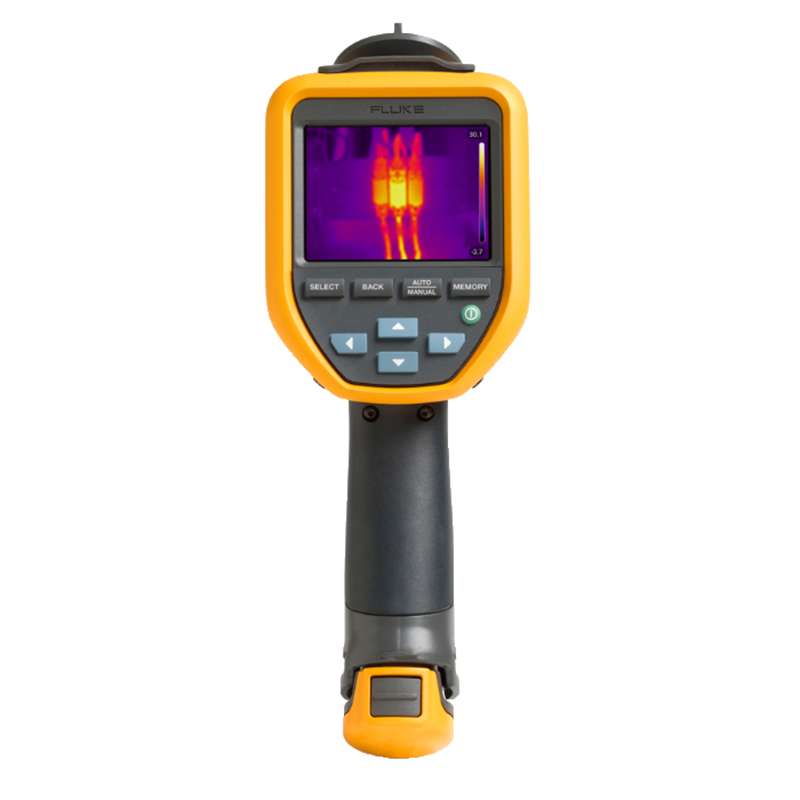

Fluke TiS20+ MAX Thermal Imaging Camera
Product Description:
The Fluke TiS20+ MAX Thermal Imaging Camera is designed to make thermal imaging quick and easy provides temperature measurement range of -20ºC to 400ºC (-4ºF to 752ºF). The inbuilt wireless connectivity, the TiS20+ MAX is ideal for commercial electricians, HVAC/R technicians and maintenance technicians.
The Fluke TiS20+ MAX boasts a number of tools to quickly detect issues thanks to the 120 x 90 (10,800 pixels) infrared resolution, 50º x 38º Field of View (FOV), minimum focus distance of 50cm (20 inches) and an IFOV (spatial resolution) of 7.6 mRAD.
Fluke IR-Fusion™
Thanks to Fluke IR-Fusion™, technicians are able to combine infrared images with visual light, overlaying one picture over another to ensure the precise location of an issue is spotted easily. In addition, on-screen emissivity correction and on-screen reflected background temperature compensation are included as hot, cold and centre spot markers.
The Fluke TiS20+ MAX features a 3.5″ LCD colour screen with a display resolution of 320 x 240 (76,000 pixels) and a thermal sensitivity of 60 mK (NETD). The internal 4GB memory can store and export non-radiometric (JPEG) and fully radiometric (.is2) images. The memory of the SiS20+ MAX can be expanded by a further 32GB thanks to the inbuilt slot for a micro SD card.
Fluke Connect®
The Fluke TiS20+ MAX is compatible with Fluke Connect® and when used alongside Asset Tagging, users are able to organise thermal images quickly and easily. By simply scanning a QR code of an asset, capturing a thermal image the camera automatically sorts and organises images by asset. Using the software the user is able to eliminate the need to drag and drop images and reduces the time spent time renaming files and searching for individual images one at a time.
Using the Fluke Connect® software, technicians are able to incorporate thermal images into professional reports, edit and analyse images.
Fluke TiS camera Comparison table
| Fluke TTIS20+ | Fluke TIS20+MAX | Fluke TiS55+ | Fluke TIS60+ | Fluke TiS75+ | |
|---|---|---|---|---|---|
| Infrared Resolution | 120 x 90 (10,800 pixels) | 120 x 90 (10,800 pixels) | 256 x 192 (49,152 pixels) | 320 x 240 (76,800 pixels) | 384 x 288 (110,592 pixels) |
| IFOV | 7.6 mRad | 7.6 mRad | 1.91 mRad | 1.86 mRad | 1.91 mRad |
| Field of View | 50° x 38° | 50° x 38° | 28° x 20° | 34.1° x 25.6° | 42° x 30° |
| Minimum Focus Distance | 0.5m | 0.5m | 0.5m | 0.46m | 0.15m when using manual focus & 0.5m when using the focus marker |
| Thermal Sensitivity | 60mK | 60mK | 40mK | 45mK | 40mK |
| Temperature Range | -20 °C to 150 °C | -20 °C to 400 °C | -20 °C to 550 °C | -20 °C to 400 °C | -20 °C to 550 °C |
| Fluke Connect Software | ✔ | ✔ | ✔ | ✔ | ✔ |
| Export file formats with Fluke Connect software | is2, BMP, DIB, JPEG, TIF, TIFF | is2, BMP, DIB, JPEG, TIF, TIFF | is2, BMP, GIF, JPEG, PNG, TIFF | is2, BMP, GIF, JPEG, PNG, TIFF | is3, is2, BMP, GIF, JPEG, PNG, TIFF |
| Asset Tagging | ✔ | ✔ | |||
| Voice Annotation | ✔ | ✔ | ✔ | ||
| VIR-PhotoNotes | Yes. Up to 1 extra user-selectable visible light image capture to be included in IS2 file | Yes. Up to 3 extra user-selectable visible light image capture to be included in IS2 file | Yes. Up to 3 extra user-selectable visible light image capture to be included in IS2 file | ||
| Dew Point Calculation | Yes, on camera | ||||
| Video recording and formats | Standard and radiometric video. Up to 5 minutes recording length. avi and is3 | ||||
| Remote control operations | ✔ | ||||
| User-definable spot markers | Hot and cold spot markers | Hot and cold spot markers | Yes, 3 user-adjustable spot markers for a single pixel each | Yes, 3 user-adjustable spot markers for a single pixel each | Yes, 5 user-adjustable spot markers for a single pixel each |
| User defined measurement boxes | Yes, 3 user-adjustable rectangles | User defined measurement boxes, Expandable-contractible measurement box | Yes, 5 user-adjustable rectangles |
Key Features:
- 120 x 90 infrared resolution
- 50° x 38° Field of View (FOV)
- Minimum focus distance of 50cm (20 inches)
- IFOV (spatial resolution) of 7.6 mRad
- TiS20+ MAX includes temperature range of -20 °C to 400°C
- Wireless connection built-in
- Compatible with Fluke Connect Desktop Software
- Create professional reports
- Edit & analyse captured thermal images
- Access cloud stored results
- Utilises Fluke Connect Asset Tagging
- Scan asset QR codes to automatically sort pictures
- On-screen emissivity correction function
- On-screen reflected background temperature compensation included
- Features hot, cold & centre spot markers
- Fixed focus mode
- Bright 3.5″ LCD colour touchscreen
- Visual resolution of 320 x 240 (76,800 pixels)
- Thermal sensitivity (NETD) of 60 mK
- 4GB internal memory
- Save, store & export JPEG & .is2 files
- Port for 32GB micro SD card
- 18 language options
- 16 hour battery life
- Drop tested to 2m
- IP54 rated against water & dust
- 2 Year warranty
What’s In The Box?
- Fluke TiS20+ MAX Thermal Imaging Camera
- AC power supply
- Rugged lithium ion smart battery
- USB cable
- Soft transport bag
- TWO YEAR FLUKE WARRANTY
| Specification | General
Image Quality
Data storage and Image Capture
Battery
Temperature Measurement
|
|---|
- Fluke TiS20+ MAX Thermal Imaging Camera
- AC power supply
- Rugged lithium ion smart battery
- USB cable
- Soft transport bag
Additional information
| Weight | 650 g |
|---|
