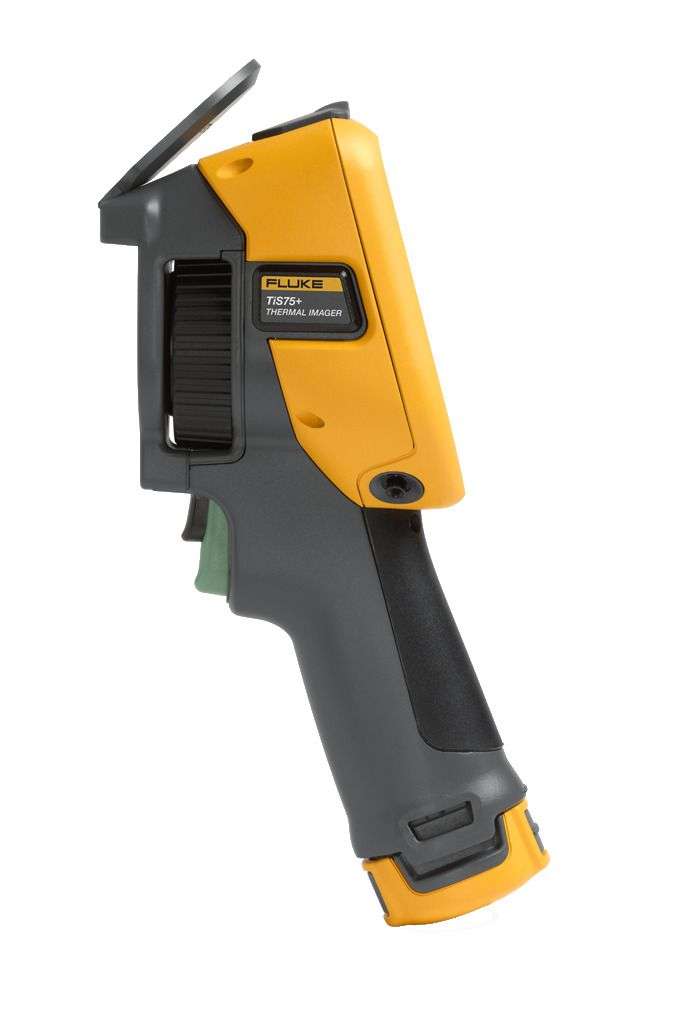

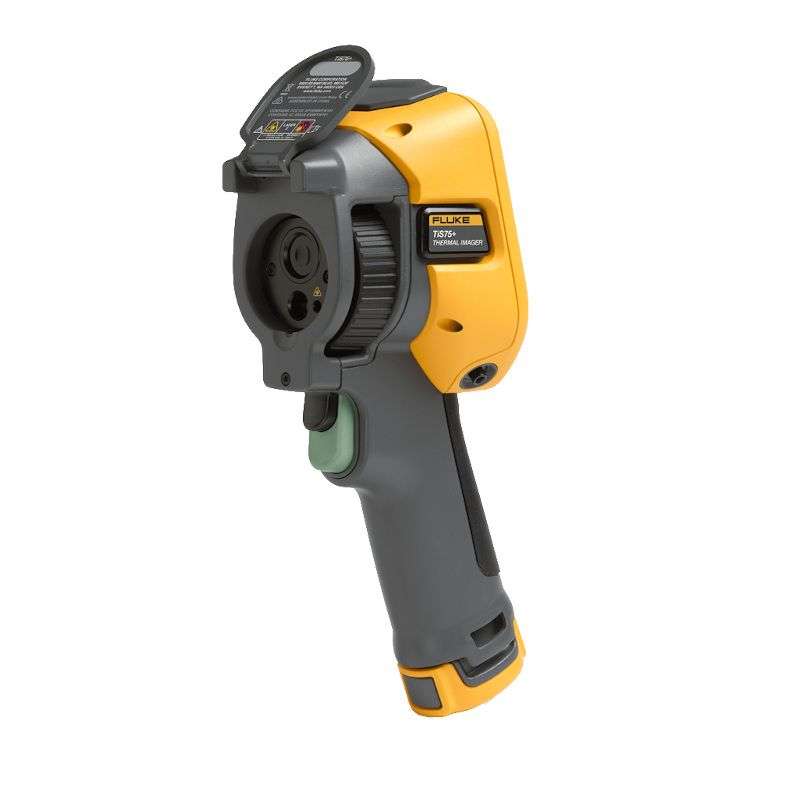

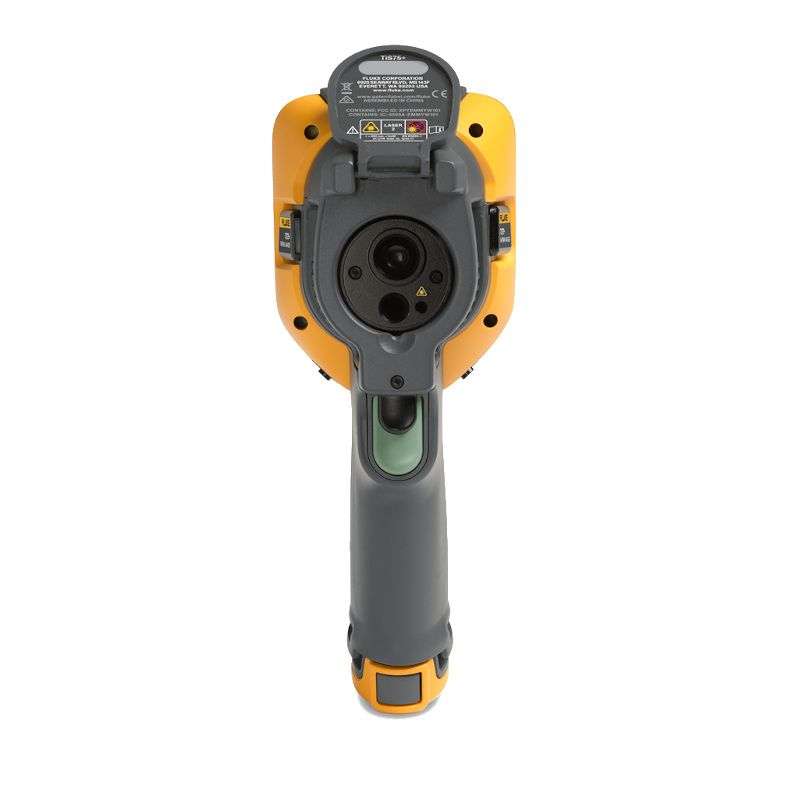

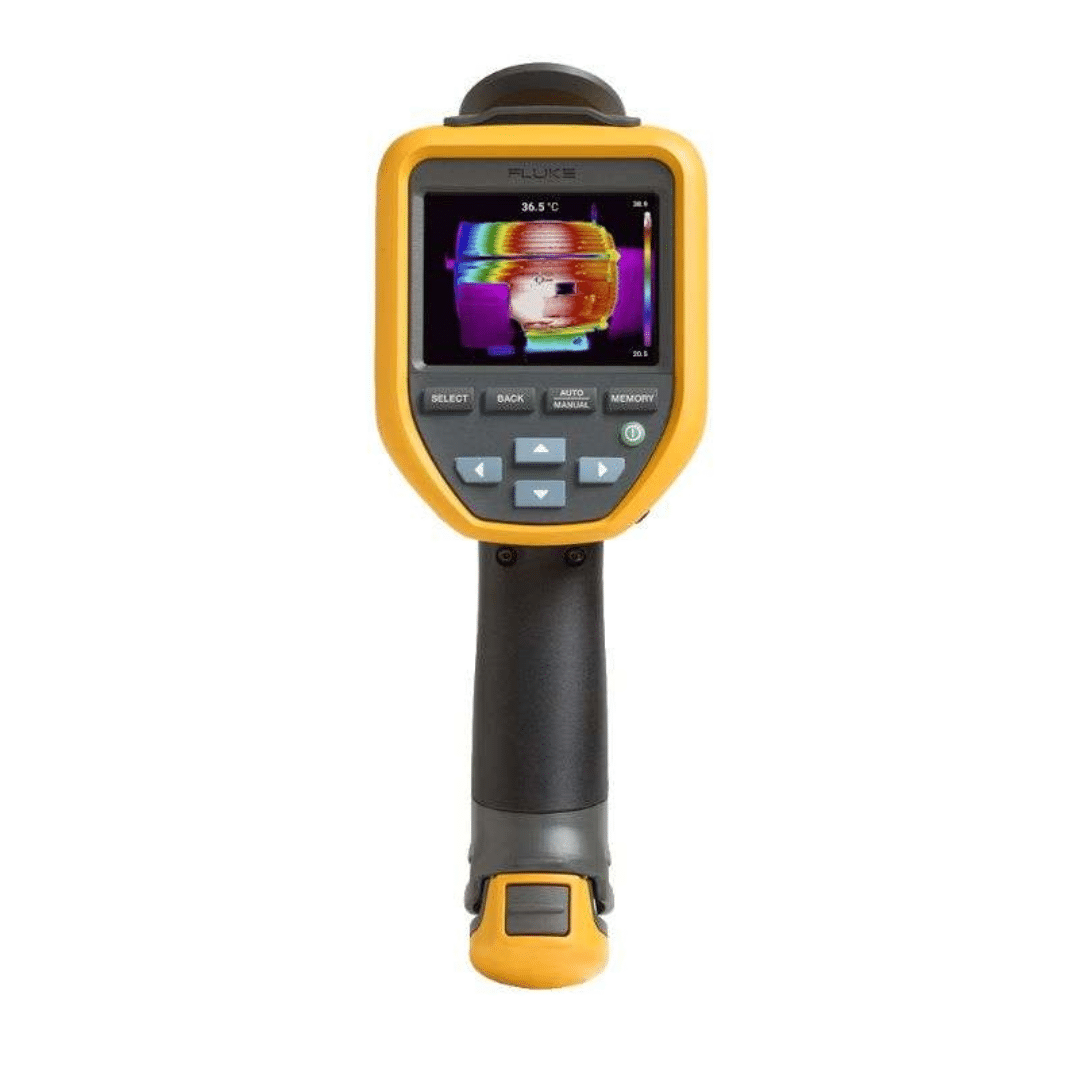

Fluke TiS75+ Infrared Thermal Imaging Camera – Choice of Frame Rate 9Hz or 27Hz

Fluke

£3,815.10

⚡ Thermal resolution 384 x 288 (110,592 pixels)
⚡ -20 °C to 550 °C temperature measurement range
⚡ Manual focus for added control and clear images
⚡ Video recording in standard and radiometric formats
⚡ Includes two lithium-ion rechargeable batteries

Price Pledge
SKU: FLU-TIS75+ Categories: , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:

Description

Fluke TiS75+ Infrared Thermal Imaging Camera – Choice of Frame Rate 9Hz or 27Hz

Product Details:

The Fluke TiS75+ thermal imaging camera is the highest specification camera in the Fluke TiS range. Its features a large 384 x 288 infra-red resolution, with a thermal sensitivity of 40mK. It also features a wide 42 °H x 30 °V field of view, capturing even more detail in every image.

Capture object temperates between -50°C to +550°C temperature range with a ±2°C/2% accuracy.

Powerful thermal imaging

The Fluke TiS75+ is designed for technicians and contractors who need quality images and feature rich affordability for quick scans and/or intermittent inspections. The TiS75+ provides the clearest images and most accurate feedback in the TiS range and is suitable for…

  • Electrical inspections
  • HVAC/R inspections
  • Mechanical
  • Domestic / Residential inspections
  • Light commercial maintenance
  • Building diagnostics

Focus on more

The TiS75+ has both manual and fixed focus modes, with a minimum focus distance of 0.5m. With its higher resolution, it can provide more accurate measurement for objects further away (compared to the Fluke TiS60+).

The wide field of view means more is captured in every image, making measurements of larger objects easier and with less movement of the camera required.

Fluke TiS75+ video

Fast troubleshooting

User defined colour alarms can be set to quickly locate temperatures that are too hot, too cold or outside a set temperature range. This makes for fast trouble shooting, as only temperatures outside the norm are shown to the user.

Furthermore, the TiS75+ supports text and voice annotations, so more details can be recorded when out in the field. Text annotation can be added using the onscreen keyboard, whilst voice annotation up to 60 seconds require the use of an optional headset (sold separately).

Fluke Connect

The Fluke TiS75+ can be linked to a smart phone or tablet and be used as a second screen to view, measure and log results. Fluke connect adds an additional safety element, allowing results to be seen whilst away from the actually measurement. This potentially reduces or removes the need for PPE. Alternatively, Fluke Connect allows others to see what the camera operate sees in real time.

Fluke Connect desktop software provides a suite of features to help edit and interpret thermal images take on the Fluke TiS70+. Quickly create professional reports to showcase results, showing potential problem areas, as well as evidencing the previously ‘invisible’ impact of work carried out.

Fusing thermal and digital

With Fluke’s IR Fusion technology, both the digital and thermal images can be blended together to give greater context to every image. With a simple swipe of the screen, you can blend between 0% to 100% until the required level of blending is required.

Key Features:

  • 320 x 240 infra-red resolution
  • -20°C to 400°C temperature range
  • 45mK thermal sensitivity
  • Fixed and manual focus modes
  • 5 inch touch screen
  • Fluke Connect app compatible
  • IR-Fusion – 0%, 25%, 50%, 75% and 100%
  • Image text annotation
  • Voice annotation (headset required)
  • Up to 3.5 hours battery life
  • Wireless connectivity
  • View, edit and report with Fluke Connect desktop software
  • 2 year Fluke warranty included

Calibration of you Fluke TiS75+ thermal camera is recommend every two years. Test4less are an approved Fluke distributor and can also calibrate your Fluke TiS75+ when required, including at time of purchase.

What’s In The Box:

  • Fluke TiS75+ thermal camera
  • Rechargeable lithium ion battery
  • Power supply for charging batteries
  • 4GB micro SD card
  • USB cable
  • Hard carry case
  • Soft transport bag

Fluke TiS55+ & TiS75+ Thermal Imaging Cameras Technical Specifications

Model TiS75+ TiS55+
Infrared resolution 384 x 288 (110,592 pixels) 256 x 192 (49,152 pixels)
IFOV 1.91 mRad 1.91 mRad
Field of view 42° x 30° 28° x 20°
Minimum focus distance 0.5 m 0.5 m
Focus system Manual focus and 1 meter focus marker Manual focus and 1 meter focus marker
Wireless connectivity Yes, to PC, iPhone® and iPad® (iOS 4s and later),
Android™ 4.3 and up, and WiFi and LAN (where available)
Yes, to PC, iPhone® and iPad® (iOS 4s and later),
Android™ 4.3 and up, and WiFi and LAN (where available)
Fluke Connect app compatible Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
Fluke Connect Assets optional software Yes*, assign images to assets and create work orders. Easily compare measurement types —whether mechanical, electrical or infrared
images—in one location
Yes*, assign images to assets and create work orders. Easily compare measurement types —whether mechanical, electrical or infrared
images—in one location
Asset Tagging Scan a QR code to automatically organize and file thermal images with Fluke Connect™ Scan a QR code to automatically organize and file thermal images with Fluke Connect™
IR-Fusion technology AutoBlend continuous 0 % to 100 %. Adds the context of the visible details to your infrared image AutoBlend continuous 0 % to 100 %. Adds the context of the visible details to your infrared image
Picture-In-Picture (PIP) Yes Yes
Display 3.5″ (8.9 cm landscape)
touchscreen 640 x 480 LCD
3.5″ (8.9 cm landscape)
touchscreen 640 x 480 LCD
Ergonomic design Designed for one-handed use Designed for one-handed use
Thermal sensitivity 40 mk 40 mk
Level and span Smooth auto and manual scaling Smooth auto and manual scaling
Fast auto-rescale in manual mode Yes Yes
Minimum span (in manual mode) 3° °C (4.5 °F) 3° °C (4.5 °F)
Minimum span (in auto mode) 5°C (9.0 °F) 5°C (9.0 °F)
Built-in digital camera (visible light) Up to 5mp Up to 5mp
Frame rate 9 Hz or 27 Hz models 9 Hz or 27 Hz models
Dew point calculation Yes, on camera No
Data Storage and Image Capture
Internal memory ~500 images ~500 images
External memory ≥4 GB SD card (>1000 images) ≥4 GB SD card (>1000 images)
Image capture, review, save
mechanism
One-handed image capture, review, and save capability One-handed image capture, review, and save capability
Image file formats Non-radiometric BMP or JPEG or
fully-radiometric is2
Non-radiometric BMP or JPEG or
fully-radiometric is2
Memory review Yes Yes
Software Fluke Connect software—full analysis and reporting software with access to the Fluke Connect Fluke Connect software—full analysis and reporting software with access to the Fluke Connect
Analyze and store radiometric data on a PC Yes Yes
Export file formats with Fluke Connect Software is3, is2, BMP, GIF, JPEG, PNG, TIFF is2, BMP, GIF, JPEG, PNG, TIFF
Voice annotation Yes, 60 second maximum audio recording via Bluetooth Audio Headset Profile (HSP) connection to external device. Yes, 60 second maximum audio recording via Bluetooth Audio Headset Profile (HSP) connection to external device.
IR-PhotoNotes Yes. Up to 3 extra user-selectable visible light image capture to be included in IS2 file. Yes. Up to 1 extra user-selectable visible light image capture to be included in IS2 file.
Text annotations After IS2 capture, user can type in a note using on-screen keyboard. After IS2 capture, user can type in a note using on-screen keyboard.
Video recording and formats Standard and radiometric video. Up to 5 minutes recording length. avi and is3 No
Remote control operations Yes No
Auto capture (temperature and interval) Yes. User-selectable time interval for capturing IS2 or Jpeg files. Yes. User-selectable time interval for capturing IS2 or Jpeg files.
Battery
Batteries
(field-replaceable, rechargeable)
Lithium-ion rechargeable battery Lithium-ion rechargeable battery
Battery life ≥ 3.5 hours continuous without WiFi
(Actual life depends on settings and usage)
≥ 3.5 hours continuous without WiFi
(Actual life depends on settings and usage)
Battery charging time ≤2.5 hours to full charge ≤2.5 hours to full charge
Battery charging system Ti SBC3B Two-Bay Battery Charger or
in-Imager charging.
Ti SBC3B Two-Bay Battery Charger or
in-Imager charging. (does not come with two-bay battery charger)
AC operation AC operation with included power supply, universal adapters included
Output: 15 VDC, 2 A
AC operation with included power supply, universal adapters included
Output: 15 VDC, 2 A
Power saving User-selectable sleep and power off User-selectable sleep and power off
Temperature Measurement
Temperature range
(not calibrated below -10 °C)
-20 °C to 550 °C (not calibrated below -10 °C) -20 °C to 550 °C (not calibrated below -10 °C)
Accuracy ±2 °C or 2 % (whichever is greater) at 25 °C ambient temperature ±2 °C or 2 % (whichever is greater) at 25 °C ambient temperature
On-screen emissivity correction Yes, “top ten” material list plus
numerical adjustment between 0.01 and 1.00
Yes, “top ten” material list plus
numerical adjustment between 0.01 and 1.00
On-screen reflected background
temperature compensation
Yes Yes
On-screen transmission correction Yes Yes
Colour Palettes
Standard palettes 6 6
General Specifications
Colour alarms Yes. User-selectable hot and cold point and internal/external range color alarms. Modifies palettization of IR image by limiting which pixels are drawn using palette colors based on
the pixel temperature.
Yes. User-selectable hot and cold point and internal/external range color alarms. Modifies palettization of IR image by limiting which pixels are drawn using palette colors based on the pixel temperature.
Infrared spectral band ~8-14μm ~8-14μm
Operating temperature -10 °C to 50 °C (14 °F to 122 °F) -10 °C to 50 °C (14 °F to 122 °F)
Storage temperature -20 °C to 50 °C (-4 °F to 122 °F)
without batteries
-20 °C to 50 °C (-4 °F to 122 °F)
without batteries
Relative humidity 10 % to 95 % non-condensing 10 % to 95 % non-condensing
Spot temperature Center spot (unmovable) Center spot (unmovable)
User-definable spot markers Yes, 5 user-adjustable spot markers for a single pixel each. Position is adjustable. Temperature value for marker shown on screen. User can
choose to switch display on/off for each marker.
Yes, 3 user-adjustable spot markers for a single pixel each. Position is adjustable. Temperature value for marker shown on screen. User can
choose to switch display on/off for each marker.
User-defined measurement boxes Yes, 5 user-adjustable rectangles. Size and position are adjustable. Rectangle statistics shown on screen: Min, Max, Average temperature. User can choose to switch display on/off
for each marker.
Yes, 3 user-adjustable rectangles. Size and position are adjustable. Rectangle statistics shown on screen: Min, Max, Average temperature. User can choose to switch display on/off
for each marker.
Hard case Rugged hard carrying case with soft transport bag, including adjustable strap Rugged hard carrying case with soft transport bag, including adjustable strap
Safety standards IEC 61010-1: Pollution Degree 2 IEC 61010-1: Pollution Degree 2
Electromagnetic compatibility IEC 61326-1: Portable Electromagnetic Environment; IEC 61326-2-2
CISPR 11: Group 1, Class A
IEC 61326-1: Portable Electromagnetic Environment; IEC 61326-2-2
CISPR 11: Group 1, Class A
Australian RCM RCM IEC 61326-1 RCM IEC 61326-1
US FCC 47 CFR 15 Subpart C Sections 15.207, 15.209,
15.249
47 CFR 15 Subpart C Sections 15.207, 15.209,
15.249
Vibration 10 Hz to 150 Hz, 0.15 mm, IEC 60068-2-6 10 Hz to 150 Hz, 0.15 mm, IEC 60068-2-6
Shock 30 g, 11 ms, IEC 60068-2-27 30 g, 11 ms, IEC 60068-2-27
Drop Engineered to withstand 2 m drop Engineered to withstand 2 m drop
Sized (H x W x L) ~ (26.7 cm x 10.1 cm x 14.5 cm)
~ (10.5 in x 4.0 in x 5.7 in)
~ (26.7 cm x 10.1 cm x 14.5 cm)
~ (10.5 in x 4.0 in x 5.7 in)
Weight (battery included) ≤2.27 kg (5 lb) ≤2.27 kg (5 lb)
Enclosure rating IP54 IP54
Warranty Two-years (standard) Two-years (standard)
Recommended calibration cycle Two-years (assumes normal operation and
normal aging)
Two-years (assumes normal operation and
normal aging)
Supported languages Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
RoHS compliant Yes Yes

Fluke TiS75+ thermal camera
Rechargeable lithium ion battery
Power supply for charging batteries
4GB micro SD card
USB cable
Hard carry case
Soft transport bag
