Hikmicro Eco Handheld Thermal Camera
£179.00 / £214.80 incl VAT
96 × 96 thermal resolution with SuperIR 240 × 240 enhancement
50° × 50° wide field of view for clear thermal imaging
Built-in 4GB memory stores up to 30,000 images
Up to 8 hours of continuous battery life
3-year warranty
Available on back-order
Description

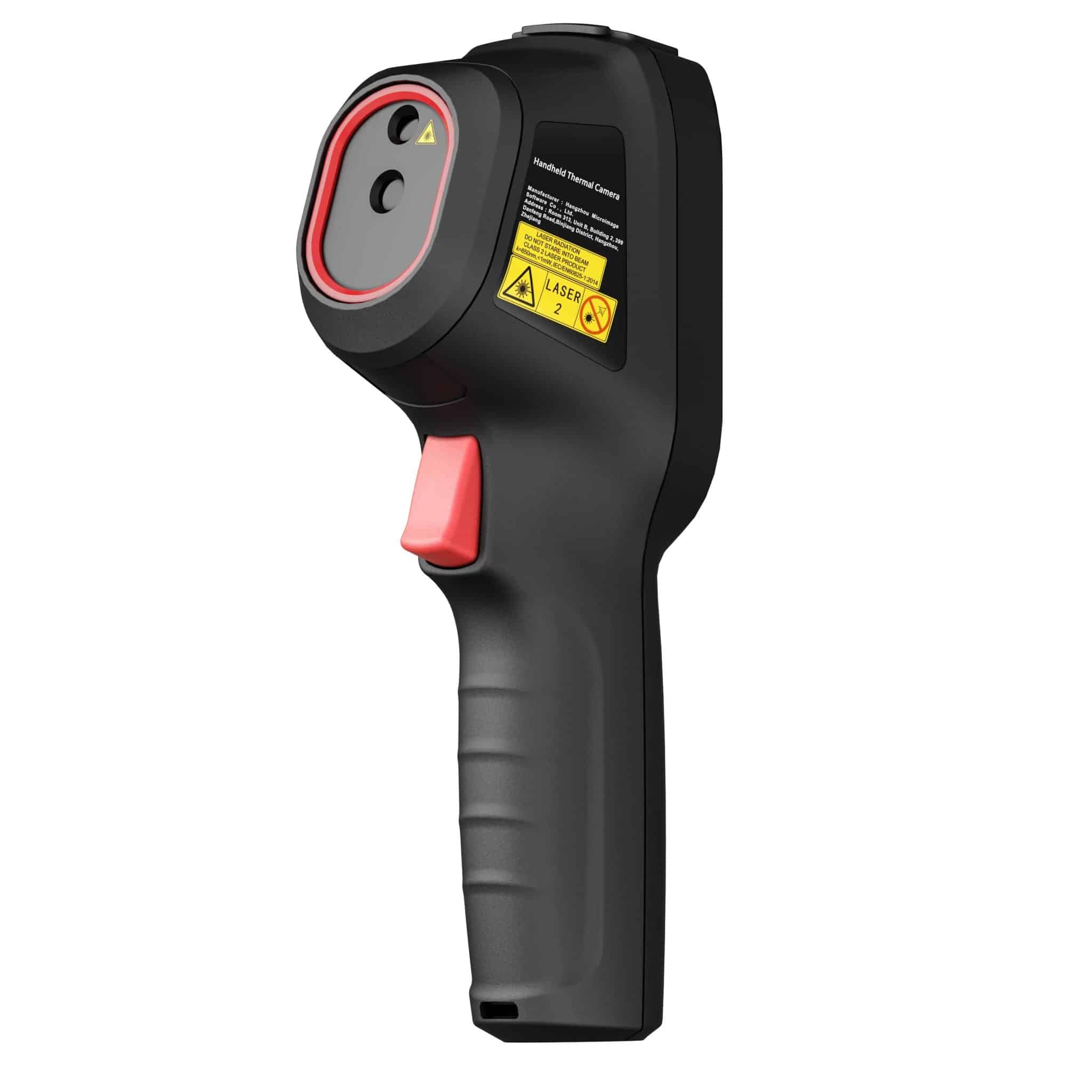

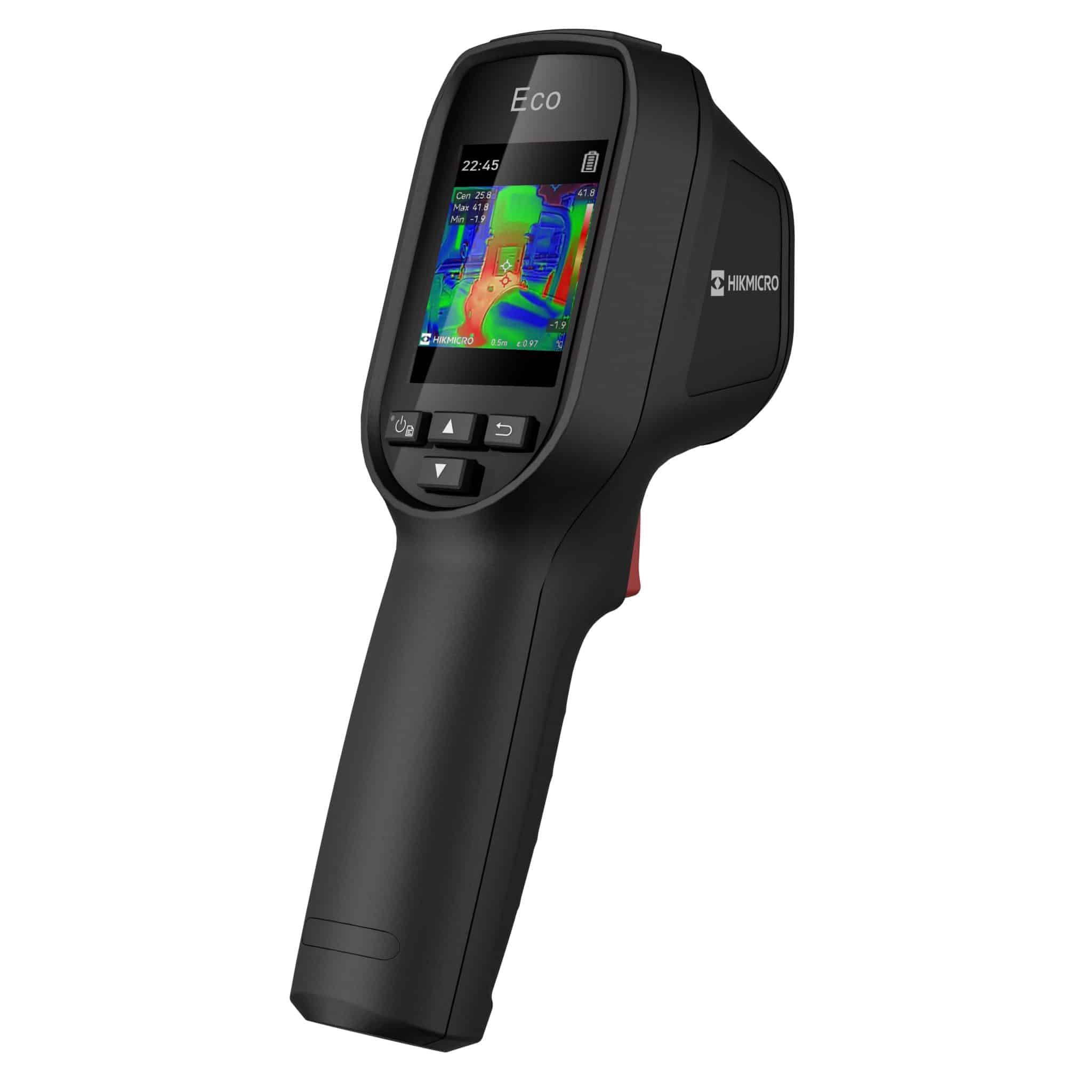

Hikmicro Eco Handheld Thermal Camera
The HIKMICRO Eco Handheld Thermal Camera is a compact and reliable thermal imaging tool designed for fast temperature measurement and fault detection. Built for professional use, it supports inspections and troubleshooting across electrical, mechanical, and building maintenance applications.
Featuring advanced thermal sensing technology, the Eco series delivers clear thermal detail across a wide measurement range, making it suitable for on-site diagnostics and preventative maintenance work.
Key Features
• Thermal resolution: 96 × 96 (up to 240 × 240 with SuperIR enhancement)
• High thermal sensitivity: <50 mK for detailed temperature detection
• Temperature measurement range: -20°C to 550°C (-4°F to 1022°F)
• Built-in laser pointer for accurate targeting
• 25 Hz image frequency for smooth thermal viewing
• Internal memory storage of 4 GB (up to 30,000 images)
• Long battery life – up to 8 hours continuous operation
• Durable IP54-rated protection with 2 m drop resistance
What’s Included
• HIKMICRO Eco Series Thermal Camera
• 2-in-1 USB-A to USB-C Charging Cable
• Wrist Strap
• User Manual
• 3-Year Warranty
| Category | Details |
|---|---|
| Infrared Image | |
| IR Resolution | 96 × 96 (9,216 pixels) |
| SuperIR | 240 × 240 (57,600 pixels) |
| Distance-to-Spot Ratio (D:S) | 112:1 |
| NETD | <50 mK (@ 25°C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 1.35 mm |
| F-number | F1.0 |
| Field of View (FOV) | 50° × 50° |
| Spatial Resolution (IFOV) | 8.89 mrad |
| Minimum Focus Distance | 0.1 m (0.33 ft) |
| Focus Mode | Focus Free |
| Image Display | |
| Display | 2.4” LCD, 240 × 320 resolution |
| Image Modes | Thermal |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion |
| Color Alarm | Above alarm |
| Measurement and Analysis | |
| Temperature Range | -20°C to 150°C (-4°F to 302°F) / 100°C to 550°C (212°F to 1022°F) |
| Accuracy | Max (±2°C/3.6°F, ±2%) at 25°C (77°F) and object temp above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot |
| Level and Span Mode | Auto/Manual |
| Data Storage and Communication | |
| Storage Media | Built-in 4 GB flash memory |
| Image Storage Capacity | Approx. 30,000 images |
| General | |
| USB Interface | USB Type-C |
| Laser | Yes, Class II |
| Battery Type | Rechargeable Li-ion battery |
| Battery Operating Time | Approx. 8 hours |
| Battery Charging Time | Approx. 3 hours (5V 2A adapter) |
| Protection Level | IP54 |
| Drop Test Height | 2 m (6.56 ft) |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | <95% non-condensing |
| Weight | Approx. 290 g (0.64 lb) |
| Dimensions | 196 × 117 × 59 mm (7.7 × 4.6 × 2.3 in) |
| Tripod Mounting | UNC 1⁄4”-20 |
HIKMICRO Eco Series Thermal Camera
2 in 1 USB-A to a USB-C charging cable
Wrist Strap
User manual
3-year warranty
