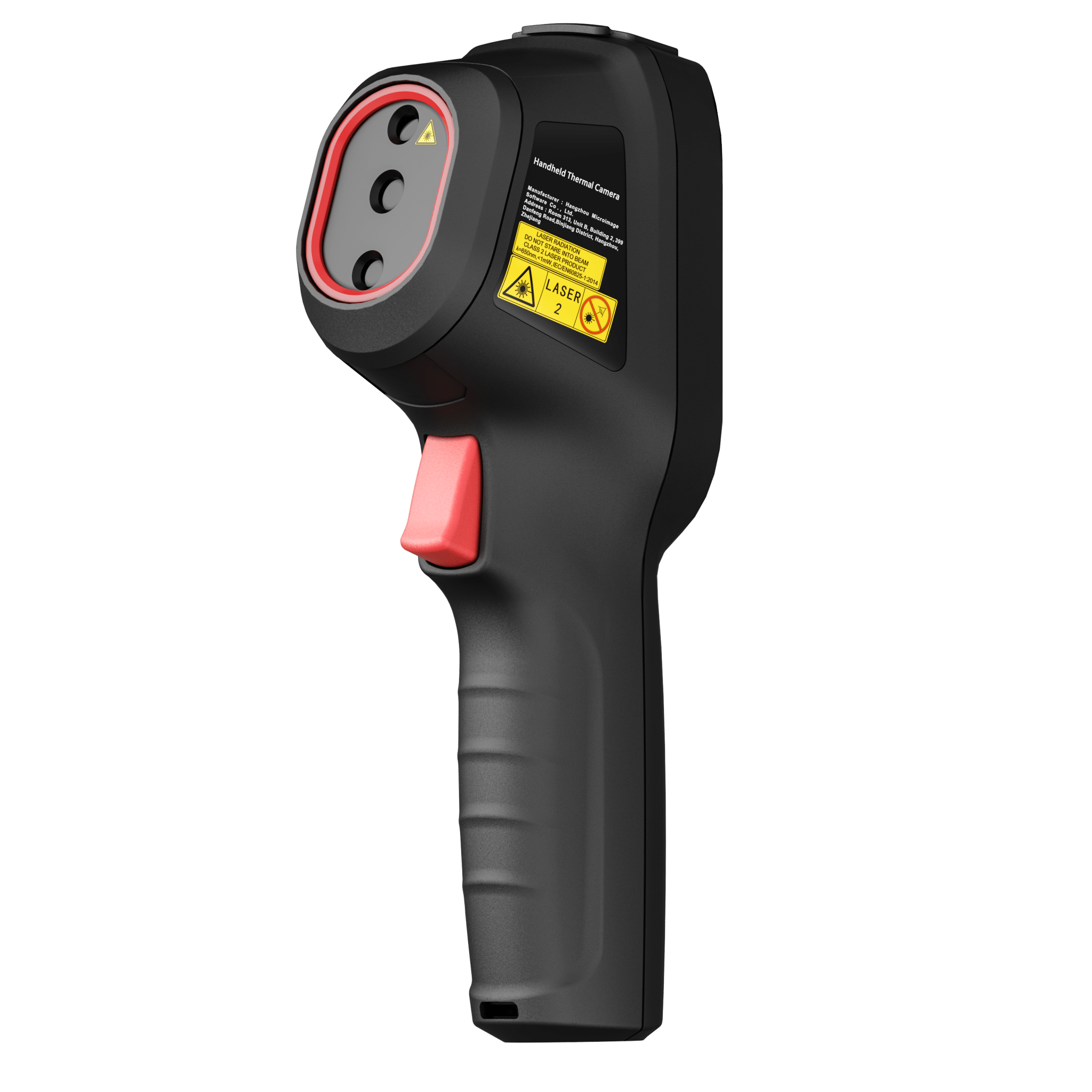

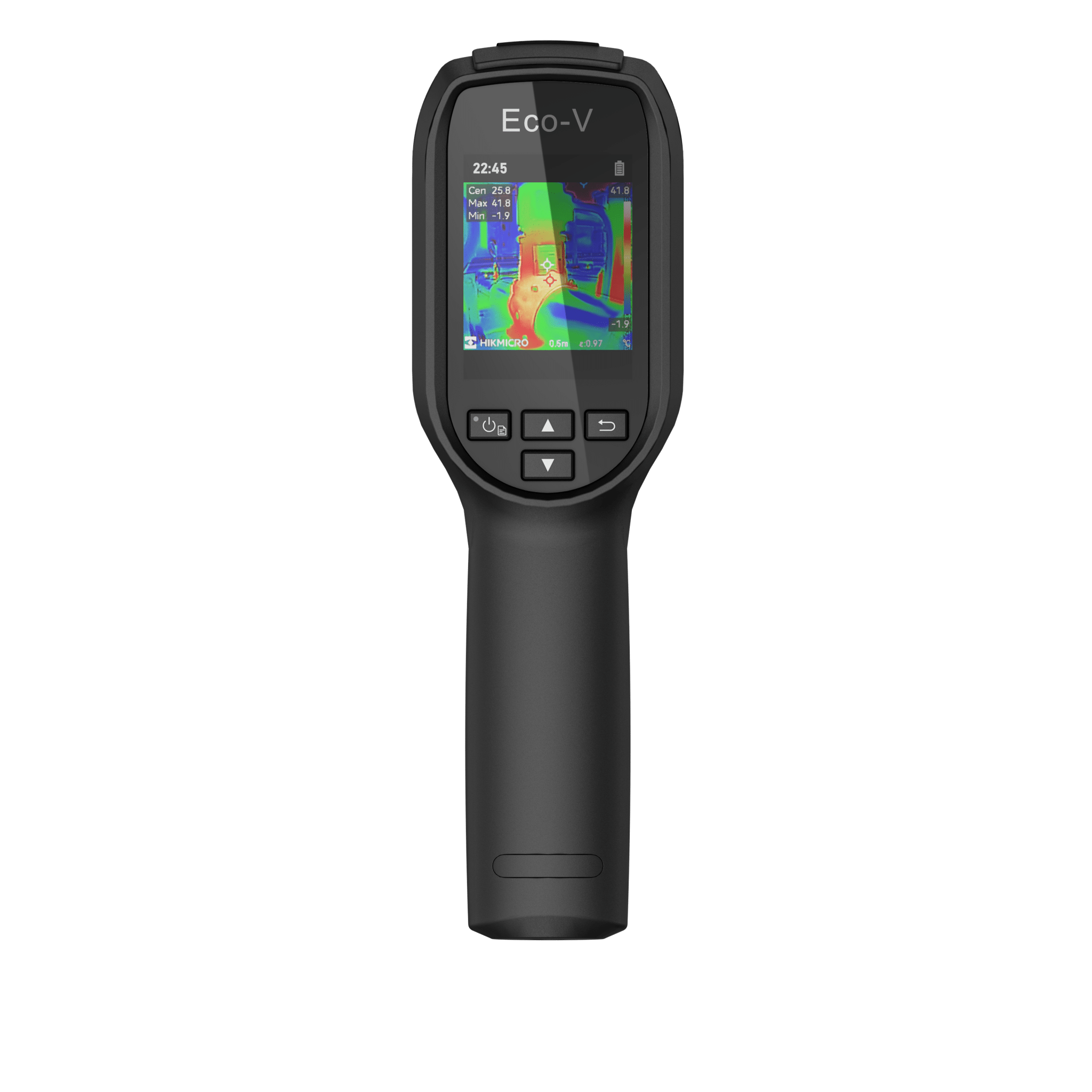

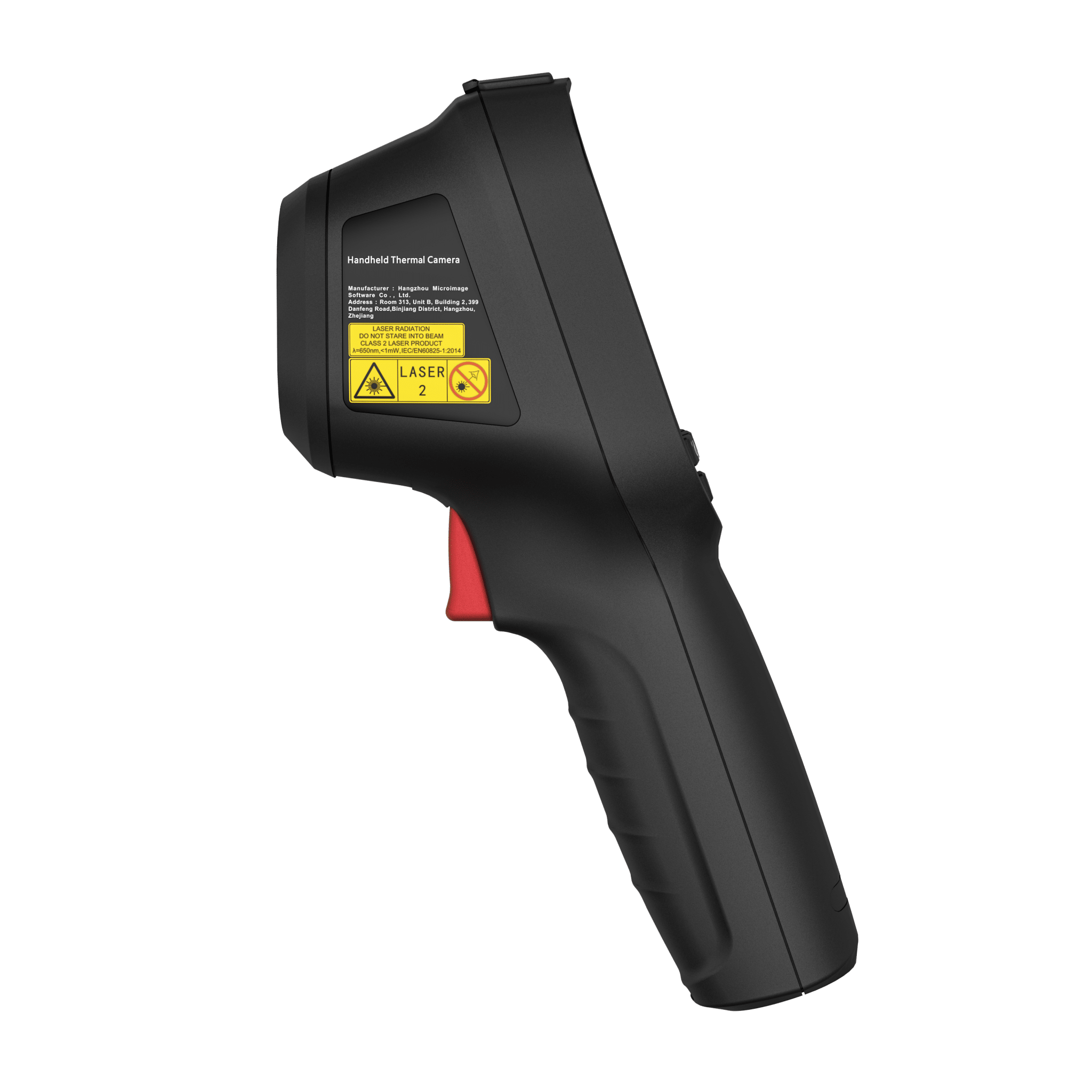

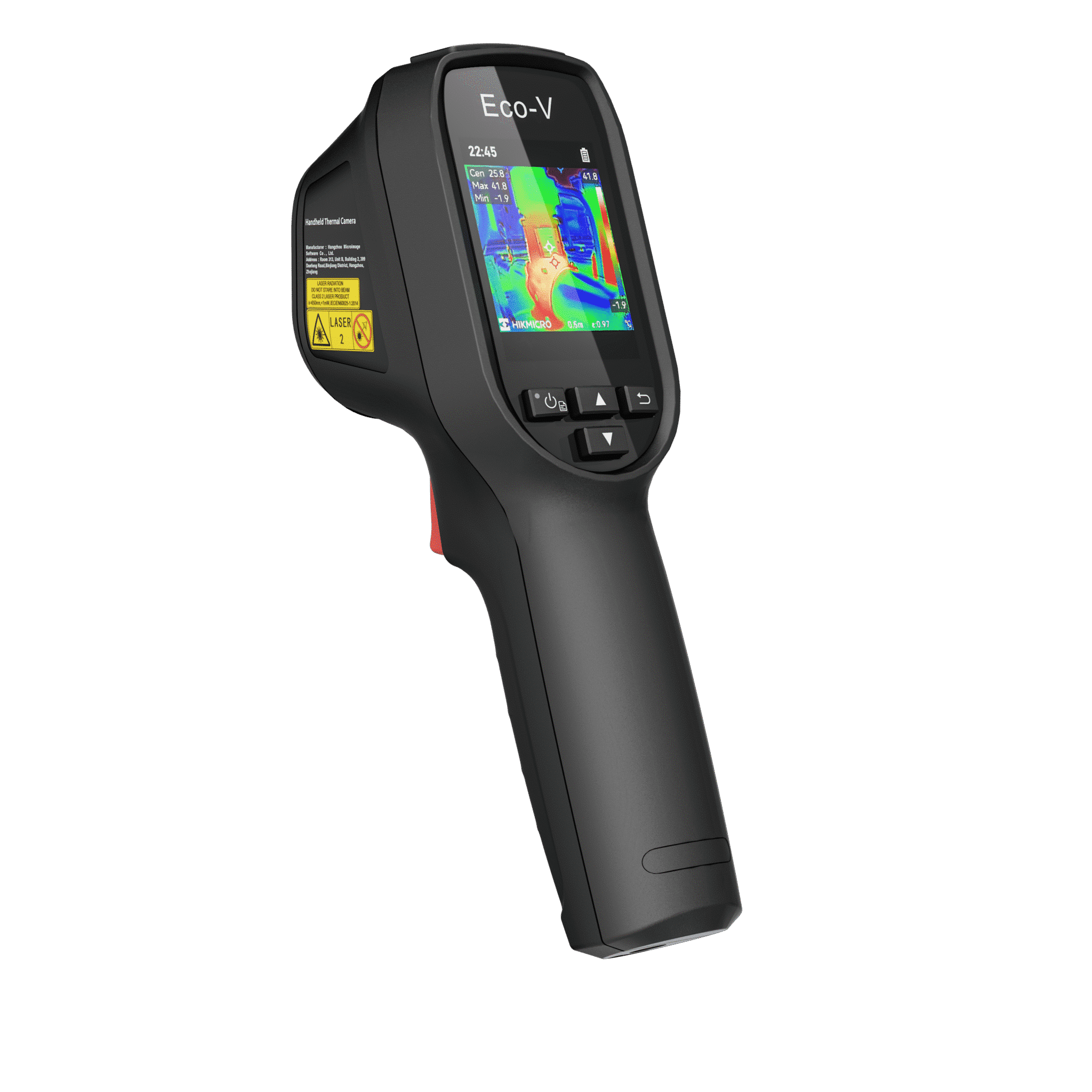

Hikmicro Eco-V Handheld Thermal Camera
£209.00 / £250.80 incl VAT
SuperIR enhanced 96 × 96 thermal resolution
Measures temperatures from -20°C to 550°C
Dual imaging modes: Thermal, Visual & Fusion
Up to 8 hours of battery life
3-year warranty
Available on back-order
Description
Hikmicro Eco-V Handheld Thermal Camera

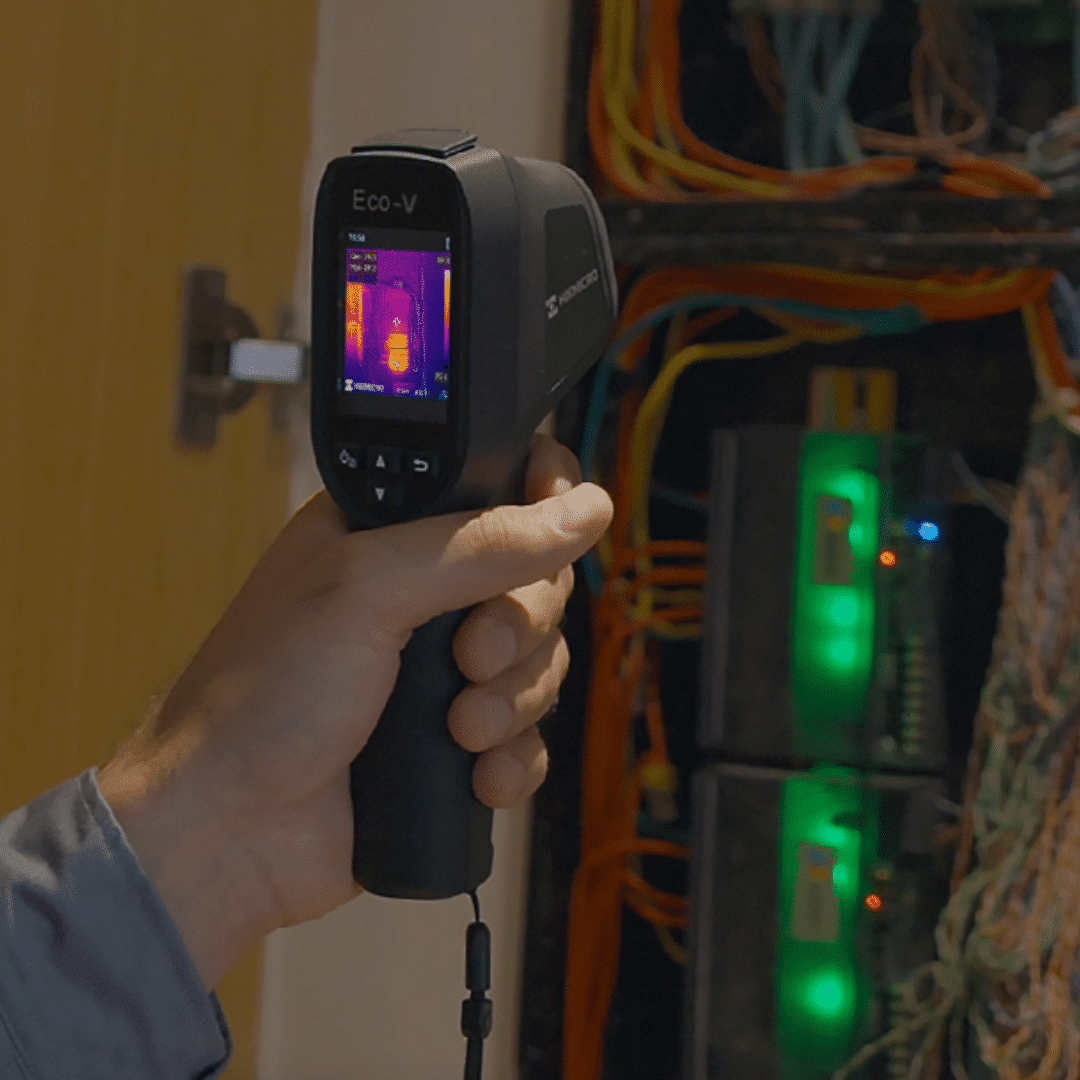

The HIKMICRO Eco-V is a compact and reliable handheld thermal camera designed for quick on-site temperature measurement and fault detection. Whether for electrical inspections, HVAC maintenance, or general troubleshooting, the Eco-V provides precise thermal and visual imaging in one easy-to-use device. Perfect for Electricians, maintenance engineers, HVAC technicians, and building inspectors who need a reliable and portable thermal imaging solution for identifying hot spots, insulation issues, and system inefficiencies.
Key Features:
96 × 96 thermal resolution with SuperIR enhancement (240 × 240)
Measures temperatures from -20°C to 550°C (-4°F to 1022°F)
112:1 distance-to-spot ratio for accurate targeting
Dual imaging modes: Thermal, Visual, and Fusion
Built-in 4GB memory stores up to 30,000 images
Rechargeable Li-ion battery with up to 8 hours of operation
IP54 protection and 2-metre drop test durability
What’s Included:
wrist strap for easy carrying
2-in-1 USB-A to USB-C cable for charging and data transfer
Thermal imager
3-year warranty included
| Category | Specification |
|---|---|
| Infrared Image | |
| IR Resolution | 96 × 96 (9,216 pixels) |
| SuperIR | 240 × 240 (57,600 pixels) |
| Distance to Spot Ratio (D:S) | 112:1 |
| Image Frequency | 25 Hz |
| NETD | < 50 mK (@ 25°C, F# = 1.0) |
| Detector Pitch | 12 μm |
| Focal Length | 1.35 mm |
| Spectral Range | 7.5 to 14 μm |
| F-number | F1.0 |
| Field of View (FOV) | 50° × 50° |
| Spatial Resolution (IFOV) | 8.89 mrad |
| Min. Focus Distance | 0.1 m (0.33 ft) |
| Focus Mode | Focus Free |
| Image Display | |
| Display | 240 × 320 resolution, 2.4” LCD screen |
| Image Modes | Thermal / Visual / Fusion |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot |
| Color Alarm | Above alarm |
| Visual Camera | 640 × 480 |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 550°C (-4°F to 1022°F) |
| Accuracy | Max (±2°C/3.6°F, ±2%) for ambient 15°C–35°C (59°F–95°F) and object temp above 0°C (32°F) |
| Measurement Tools |
wrist strap for easy carrying
2-in-1 USB-A to USB-C cable for charging and data transfer
Thermal imager
3-year warranty included
