Kewtech EZYPAT Battery Operated PAT Tester with Business Kit PBK101 – KIT4Z


£499.00 / £598.80 incl VAT
- Portable Kewtech EZYPAT PAT testing kit ideal for electricians and contractors
- Performs Class I, Class II & extension lead testing
- 200mA earth continuity and 250V / 500V insulation testing
- Automatic test sequence with clear PASS / FAIL indication
- Complete PAT testing bundle with tools, adaptors, labels and accessories
Only 1 left in stock (can be backordered)
Description

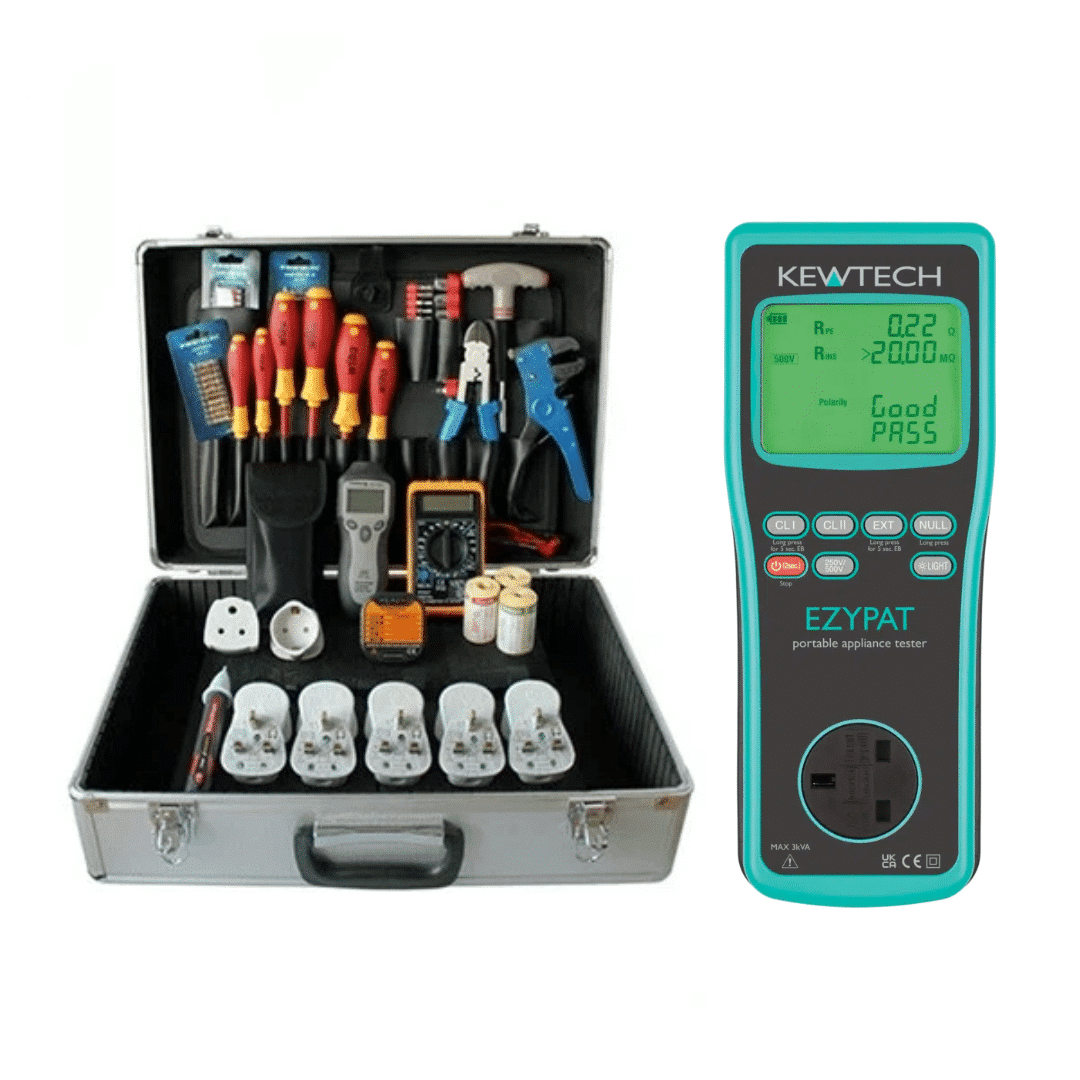

Kewtech EZYPAT Battery Operated PAT Tester with Business Kit PBK101
The Kewtech EZYPAT PAT Tester Business Kit is an ideal solution for electricians, technicians, and PAT testing professionals looking for a reliable and portable testing setup. This battery-operated PAT tester performs essential safety tests on Class I and Class II appliances as well as extension leads, making it perfect for routine appliance testing in workplaces, offices, and rental properties.
Designed for simplicity and efficiency, the EZYPAT features automatic test sequences and clear PASS/FAIL indicators, with the LCD screen turning green for PASS and red for FAIL. With the ability to complete up to approximately 1400 tests on a single set of batteries, it provides dependable performance when working on-site.
The included PAT Tester Business Kit PBK101 contains a wide range of accessories needed to carry out inspections and basic electrical checks. All items are stored in a durable multi-compartment carry case, making it easy to transport equipment between jobs.
Key Features
- Performs tests in accordance with the IET Code of Practice
- 200mA earth continuity test (IT safe)
- 250V and 500V insulation resistance testing
- Automatic test sequences
- Clear PASS / FAIL indication (Green / Red screen)
- Appliance status pre-check (detects if appliance is on/off)
- Quick continuity test (1 second)
- 5-second continuity test
- Substitute leakage test with selectable limits
- Extension lead testing
- Test lead nulling
- Backlit LCD display
- Battery operated with long life (approx. 1400 tests)
Tests Performed
The Kewtech EZYPAT can perform the following tests:
- Appliance status pre-check
- Quick continuity test
- 5-second earth continuity test
- Insulation resistance testing (250V or 500V DC selectable)
- Substitute leakage testing
- Extension lead testing
- 200mA earth bond testing
Included with the PAT Tester
- Extension lead adaptor (EZYLEAD)
- Earth continuity lead with probe and crocodile clip (EZYEARTH)
- Carry bag with strap
- Quick start guide
- 6 × AA batteries

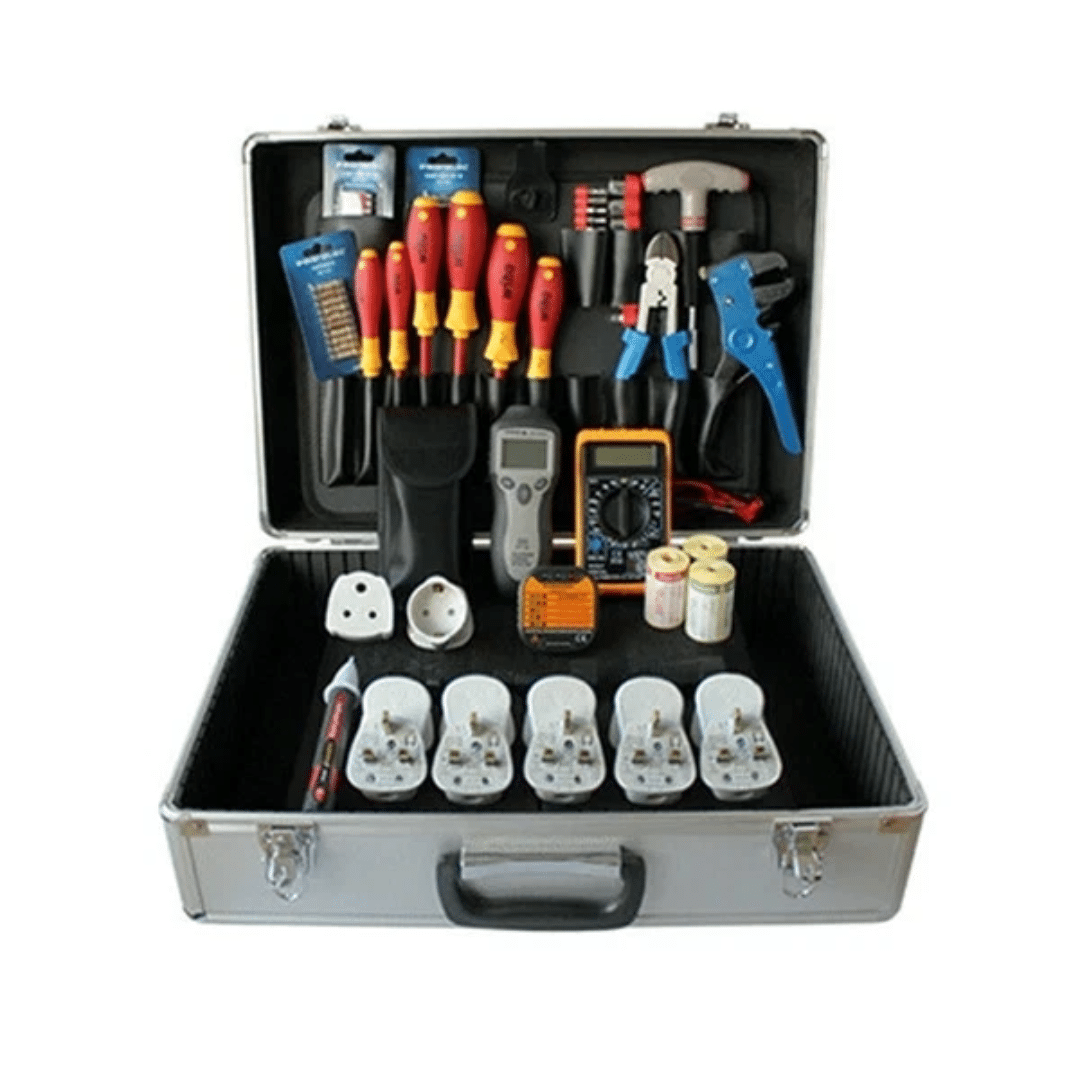

Business Kit Contents
- ABS metal carry case
- Wiha 25477 6-piece screwdriver set
- 10 × 3A fuses
- 10 × 5A fuses
- 10 × 13A fuses
- 10 × 13A mains plugs
- 1000 PASS labels
- 200 FAIL labels
- Clover lead test adaptor
- Figure-8 lead test adaptor
- HandyMAN TEK362 heavy duty auto-ranging digital multimeter
- MLD100 microwave leakage tester (LCD) with case
- LED socket tester
- LDM1AC non-contact voltage detector (includes 2 × AAA batteries)
- Wire cutter
- Automatic wire stripper
- 5A plug test adaptor
- Schuko (European) test adaptor
Click Here to view full data sheet
Specifications
| Protective Conductor Resistance Test | |
|---|---|
| Measuring Range | 0.00 – 20.00 Ω (NULL value inc) |
| Over-range Indication | > 20.00 Ω |
| Resolution | 0.01 Ω |
| Open Circuit Voltage | 5V ±0.4V DC |
| Measuring Current | 200 mA DC (nominal value) |
| Accuracy | ±3%rdg ±5dgt |
| Insulation | ||
|---|---|---|
| Rated Voltage | 250V | 500V |
| Measuring Range | 0.00 – 200.0 MΩ | |
| Over-range Indication | > 200.0 MΩ | |
| Resolution | 0.01 MΩ | |
| No-load Voltage | 250V DC +20%, -0% | 500V DC +20%, -0% |
| Short-circuit Current | 1.5 mA DC or less | |
| Rated Current | 1 – 1.2 mA with load of 0.25 MΩ | 1 – 1.2 mA with load of 0.5 MΩ |
| Accuracy | ±2%rdg ±3dgt | |
| Substitute Leakage | |
|---|---|
| Measuring Range | 0.10 – 12.00 mA rms |
| Over-range Indication | > 12.00 mA |
| Resolution | 0.01 mA |
| Open-circuit Voltage / Frequency | 30V ±5V rms / 50Hz ±5% |
| Measuring Current | 1.2 mA AC ±0.5 mA (when measuring 12.00 mA) |
| Accuracy | ±3%rdg ±5dgt |
| Insulation Test Between L-N | |
|---|---|
| Open Circuit Voltage | 4.5V ±0.5V DC |
| Criteria of Judgement | 100kΩ ±20kΩ or less. LCD shows “<0.10 MΩ” and measurement halts. |
| Applicable Standards | |
|---|---|
| Safety | IEC/EN61010-2-030 IEC/EN61010-031 CAT III 600V |
| EMC | EN61326-1, 2-2 |
| Battery Measurement Count | Approx. 1400 times (CLI Rpe: 0Ω, Rins: 1.1MΩ) |
Included with the PAT Tester
- Extension lead adaptor (EZYLEAD)
- Earth continuity lead with probe and crocodile clip (EZYEARTH)
- Carry bag with strap
- Quick start guide
- 6 × AA batteries
Business Kit Contents
- ABS metal carry case
- Wiha 25477 6-piece screwdriver set
- 10 × 3A fuses
- 10 × 5A fuses
- 10 × 13A fuses
- 10 × 13A mains plugs
- 1000 PASS labels
- 200 FAIL labels
- Clover lead test adaptor
- Figure-8 lead test adaptor
- HandyMAN TEK362 heavy duty auto-ranging digital multimeter
- MLD100 microwave leakage tester (LCD) with case
- LED socket tester
- LDM1AC non-contact voltage detector (includes 2 × AAA batteries)
- Wire cutter
- Automatic wire stripper
- 5A plug test adaptor
- Schuko (European) test adaptor
