Kewtech KEW2003A Digital AC/DC clamp 2000A/1000 V/DC 55mm Jaw
Original price was: £252.00.£179.00Current price is: £179.00. / £214.80 incl VAT
- Measures current up to 2000A AC/DC
- Measures voltage up to 750V AC & 1000V DC
- Output voltage
- Max hold memory function
- 2 Years Kewtech Warranty
Only 1 left in stock
Description

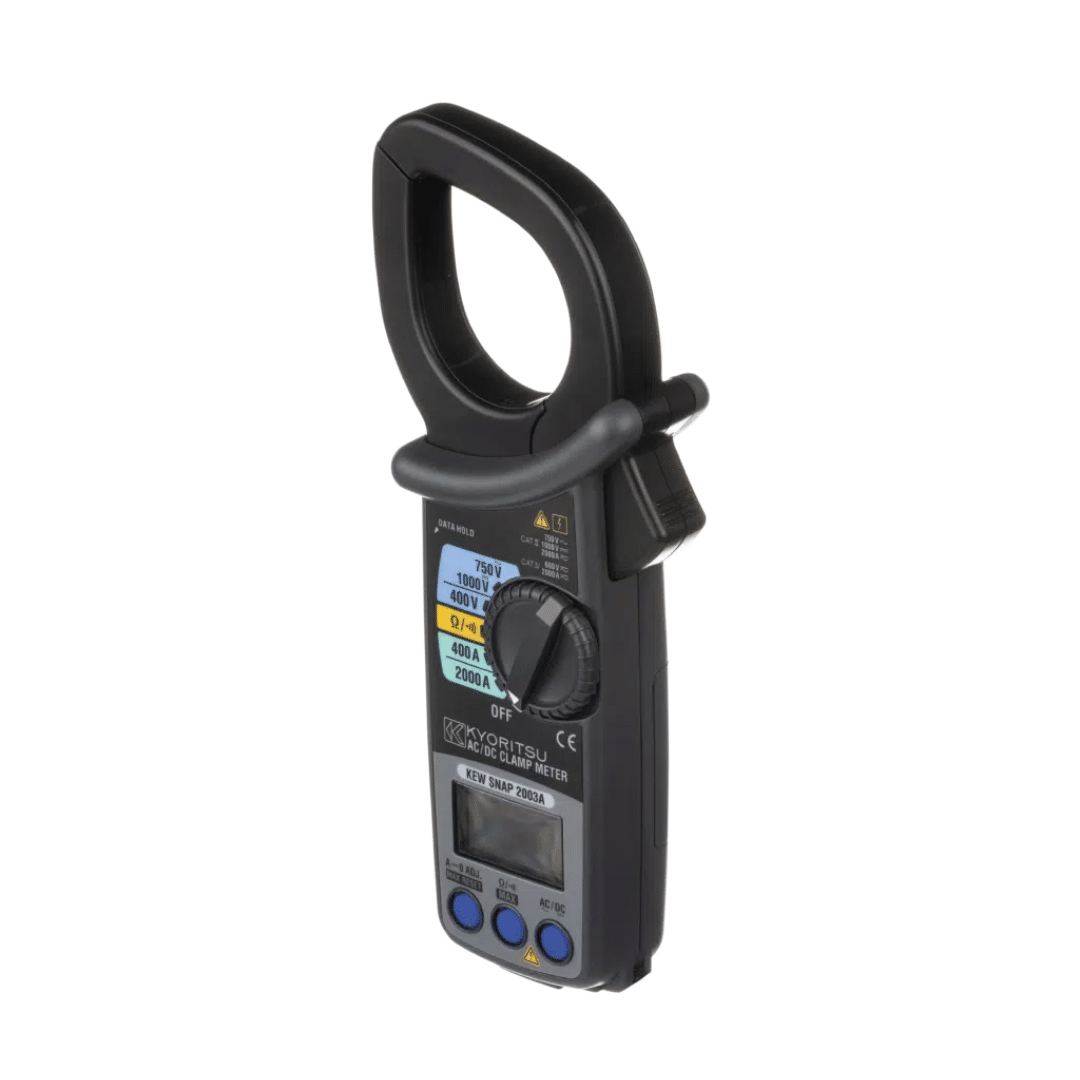

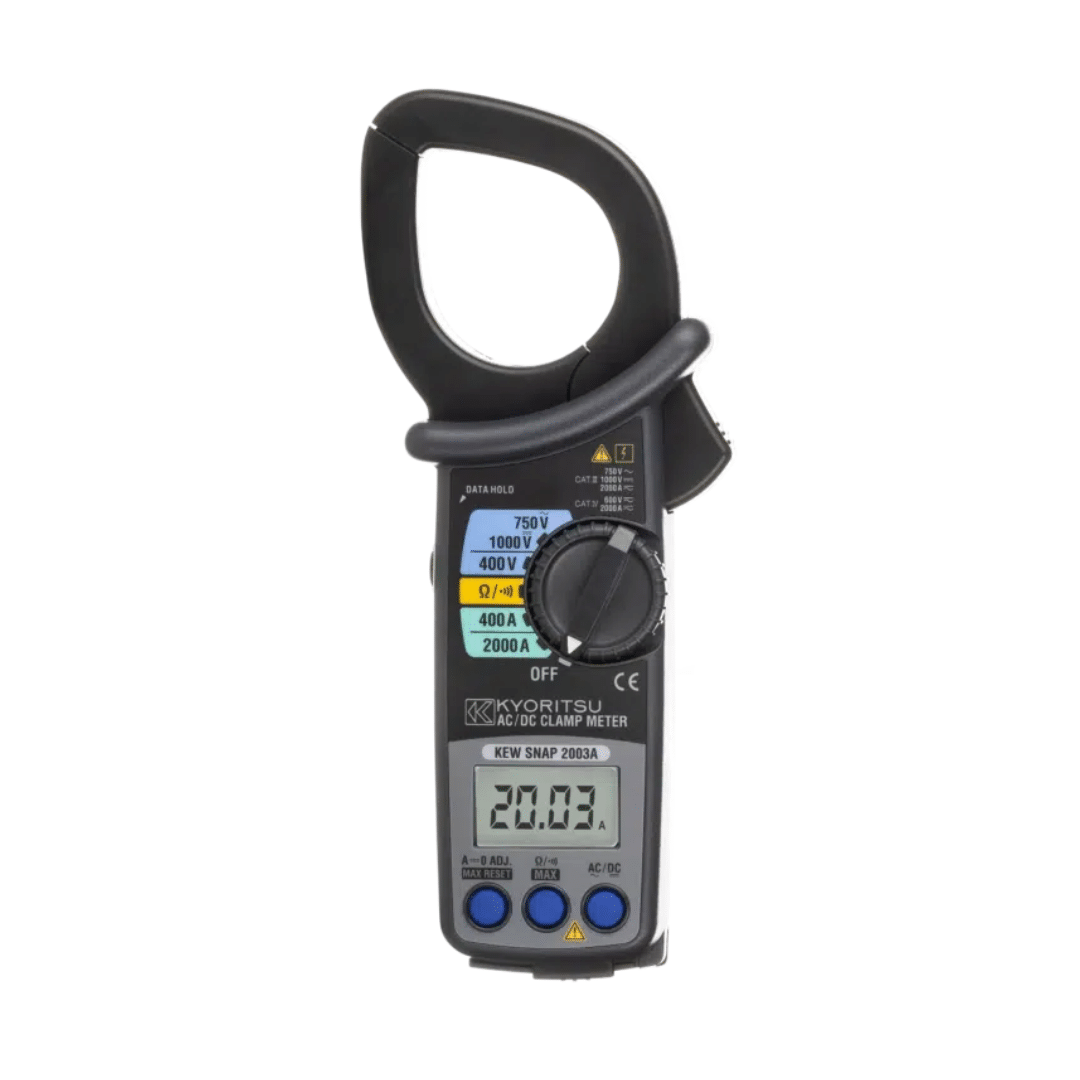

Kewtech KEW2003A Digital High Current AC/DC Clamp Meter
The Kewtech KEW2003A is a powerful, high-current clamp meter designed for engineers working across modern electrical systems, including solar PV installations. With the capability to measure up to 2000A AC/DC, this meter is ideal for testing solar inverter outputs, PV array feed cables, battery storage systems, and DC strings found in today’s solar setups.
Solar PV systems often involve high-current, large-diameter cables. The KEW2003A solves this with its extra-large 55mm teardrop jaw, allowing you to clamp around thick PV conductors with ease. This makes it perfect for checking DC busbars, AC inverter feeds, combiner boxes, and battery system outputs — all without disconnecting or disturbing the circuit.
Alongside high-current measurement, it also delivers solar-friendly voltage testing up to 1000V DC — ideal for modern high-voltage string inverters — and up to 750V AC for grid-tied systems. Resistance measurement and continuity testing add further versatility for diagnostics and commissioning.
A clear LCD, data hold, and max hold functions make it simple to capture the readings you need on busy rooftops, plant rooms, or inverter stations.
Key Features:
- Perfect for Solar PV, battery storage & renewable installations
- Measures 2000A AC/DC – ideal for high-current inverter and battery testing
- Voltage measurement up to 750V AC & 1000V DC – suitable for modern solar arrays
- Large 55mm jaw for solar DC cables, inverter feeds & busbars
- Resistance measurement up to 400Ω
- Continuity buzzer
- Max Hold & Data Hold memory functions
- Safe, non-intrusive current measurement
- IEC61010-1 CAT III 600V, CAT II 1000V & CAT IV 600V compliant
What’s Included:
- Kewtech KEW2003A Digital High Current AC/DC Clamp Meter
- Test leads
- Output plug
- Batteries
- Carry case
- Instruction manual
- Certificate of conformity
| AC A | 400A/2000A (0 ~ 1000A ) ±1.5%rdg 2dgt (50/60Hz) ±3%rdg 4dgt (40Hz ~ 500Hz) ±5%rdg 4dgt (500Hz ~ 1kHz) 2000A (1001 ~ 2000A) ±3%rdg 2dgt ((50/60Hz) |
| AC V | 400/750V ±1.5%rdg 2dgt (50/60Hz) ±1.5%rdg 4dgt) (40Hz ~ 1kHz) |
| DC A | 400/2000A ±1.5%rdg ±2dgt |
| DC V | 400/4000V ±1%rdg ±2dgt |
| Resistance | 400/400Ω ±1.5%rdg ±2dgt |
| Continuity Buzzer | Buzzer sounds below 50 ± 35 Ω |
| Output Voltage | 400/2000A DC 400mV/200mV |
| Conductor Size | ∅55mm max |
| Safety Standard | IEC61010-1 CAT III 600V 1000V IEC61010-2-031 IEC61010-2-032 |
| Frequency Response | 40Hz ~ 1kHz |
| Withstand Voltage | 5550V AC for 1 minute |
| Reading Type | Average |
| Dimensions | 250(L) x 105(W) x 49(D)mm |
| Weight | 530g approx |
| Optional | 8004/8008 Multi-Tran (AC only), 7014 Output Cord |
- Kewtech KEW2003A Digital High Current AC/DC Clamp Meter
- Test leads
- Output plug
- Batteries
- Carry case
- Instruction manual
- Certificate of conformity
