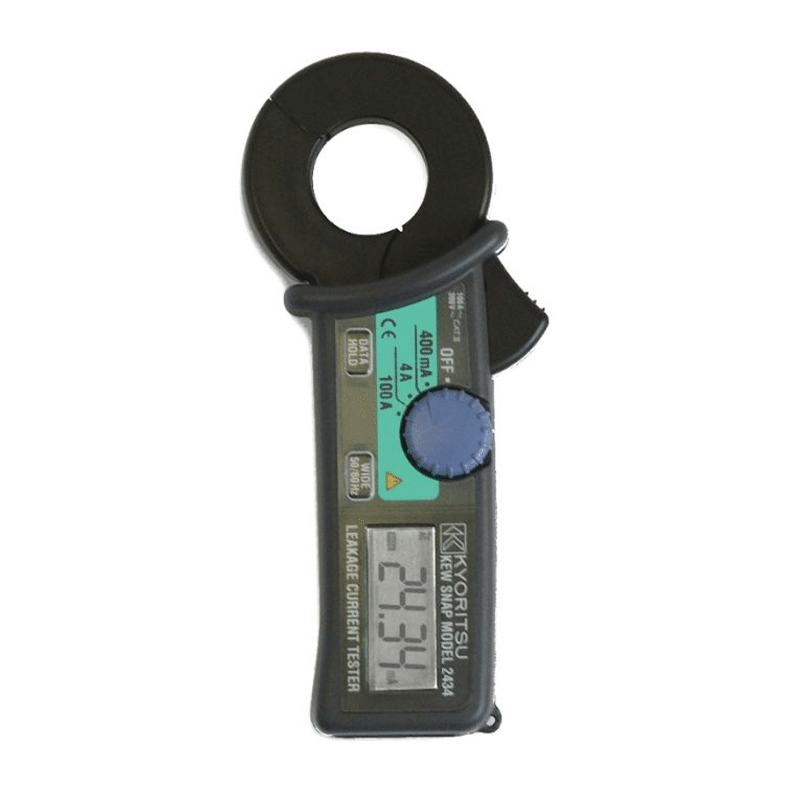

Kewtech KEW2434 Digital 100A AC Earth Leakage Clamp Meter 0.1ma 28mm Jaw

Kewtech Kyoritsu

£223.74 / £268.49 incl VAT

⚡ Least affected by external stray magnetic field.
⚡ 20mA AC max. in proximity to a 15mm-dia conductor carrying 100A AC
⚡ Frequency Selector Switch to eliminate the effect of harmonics.
⚡ Resolution 0.1mA.

Only 2 left in stock

Price Pledge

Calibration Certificate

Add Calibration on your Clamp Meter.

Description

Kewtech KEW2434 Digital 100A AC Earth Leakage Clamp Meter 0.1ma 28mm Jaw

Product Details:

A comprehensive leakage clamp meter, the KEW2434 includes integrated technology designed to fault find on installations with tripping and leakage faults.

To make sure measurements are as accurate as possible the KEW2434 also includes the ability to select a frequency to eliminate the effects of harmonics. Once attached to an application this clamp performs measurement of current at 400mA, 4A and 100A AC with resolution of 0.1ma.

The jaws of this clamp meter are 28mm in diameter, making it best suited for smaller and medium-sized conductors. It also includes a sleep function which will conserve the battery life when the tester is left idle.

This clamp meter is IEC 61010-1 and CAT III 300V safety rated.

Kewtech KEW2434 Earth Leakage Clamp Meter Key Features

  • Measures 400mA / 4A / 100A AC current
  • Resolution to 0.1mA
  • Identify nuisance tripping and leakage faults
  • Frequency selector switch to eliminate harmonics
  • 28mm jaw diameter
  • Sleep function to save on battery power
  • Data hold memory function
  • Complies to IEC61010-1 CAT. III 300V

What’s in the Box:

  • Kewtech KEW2434 Earth Leakage Clamp Meter
  • Batteries
  • Carrying Case
  • Instruction Manual
  • Certificate of Conformity

Kewtech KEW2434 Technical Specifications

AC A (50/60Hz) 400mA / 4 / 100A ±2% rdg ± 4dgt
AC V (Wide) 400mA / 4 / 100A ±2% rdg ± 4dgt [50/60Hz]
±3% rdg ± 5dgt [40~400Hz]
Conductor Size Ø28mm max.
Safety Standards IEC61010-1 CAT.III 300V
IEC61010-2-032
Effect of External
Stray Magnetic Field
15mm 100A
20mA AC max
Frequency Response 40~400Hz
Withstand Voltage 3700V AC for 1 minute
Effect of External Stray
Magnetic Field
2mA AC approx in proximity to a 15mm-dia conductor
carrying 100A AC
Withstand Voltage 3700V AC for 1 minute
Power Source R03(AAA) (1.5V) x 2
Weight 220g approx.
  • Kewtech KEW2434 Earth Leakage Clamp Meter
  • Batteries
  • Carrying Case
  • Instruction Manual
  • Certificate of Conformity
