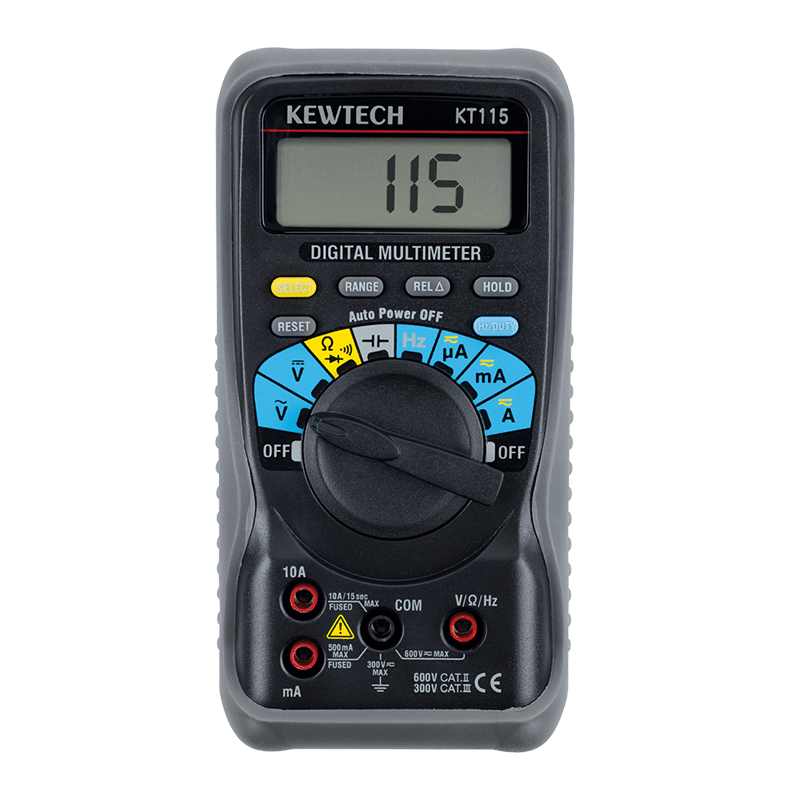

Kewtech KT115 AC/DC Digital Multimeter

Kewtech

£37.80 / £45.36 incl VAT

⚡ 2 Year Kewtech warranty

⚡ Measures AC/DC current up to 10A

⚡ Measures AC/DC voltage up to 600V

⚡ Diode test feature

⚡ Capacitance test feature

Only 1 left in stock

Price Pledge

Add Soft Carry Case?

Some Multimeters don’t come with a carry case that’s why we’ve added the perfect cases to go with you brand new multimeter, simply click to select.
(PLEASE CHECK THE PRODUCT YOU’RE BUYING IS NOT ALREADY SUPPLIED WITH A CASE)

None Leaderman LDM-C25 small Carry Case +£15.00 Leaderman LDM-C115 Large Carry Case +£22.00 Fluke C50 Meter Small Carry Case +£42.50 Fluke C25 Large Soft Carry Case +£47.50

Calibration Certificate

Add Calibration to your Multimeter.

Description

Need a reliable, low cost digital multimeter you can trust? Kewtech’s KT115 is up to the task.

This easy-to-use, rotary dial digital multimeter measures all basic electrical parameters with high accuracy, giving you reliable, useful results with every test. The KT115 can be used to measure AC/DC current, AC/DC voltage, diode, capacitance, resistance and continuity (see below for full ranges).

Kewtech’s KT115 is both an auto and a manual ranging digital multimeter; it can either select the appropriate range for a test itself, or you can override this value and select the range yourself. A number of  additional features are also included such as a MIN/MAX mode for continuous testing, a data hold function which will temporarily freeze the current value on the screen and a sleep function to help save battery life.

This digital multimeter is IEC 61010-1, CAT III 300V and CAT II 600V safety rated.

Kewtech KT115 Digital Multimeter Key Features

  • Easy to use, low-cost digital multimeter ideal for all basic electrical measurements
  • Measure AC/DC current up to 10A
  • Measure AC/DC voltage up to 600V
  • Diode testing function
  • Capacitance testing up to 100μF
  • Resistance measurements up to 40MΩ
  • Continuity test with integrated buzzer
  • Diode testing function
  • Data hold function temporarily stores current value shown on the screen
  • Auto and manual ranging
  • 4000 count digital display
  • Sleep function helps to save battery life
  • MIN/MAX function calculates the maximum and minimum values taken over a period of time
  • IEC 61010-1, CAT III 300V and CAT II 600V safety rated

What’s Included?

  • Kewtech KT115 Digital Multimeter
  • Test Leads
  • Batteries
  • Instruction Manual
  • Certificate of Conformity

Kewtech KT115 Technical Specifications

Range Measurement Range Accuracy
DC Voltage 400mV 0-600V (5 autoranging)
Input impedance approx 10MΩ
±0.6% rdg ± 4 dgt
40V
400V
600V ± 1.0% rdg ± 4dgt
AC Voltage 400mV 20 – 399.9mV
Input impedance approx 10MΩ
±1.6% rdg ±4dgt (50/60Hz)
±2.0% rdg ±4dgt (-400Hz)
4V 0-600V (4 autoranging)
Input impedance approx 10MΩ
±1.3% rdg + 4dgt (50/60Hz)
±1.7% rdg ±4dgt (-400Hz)
40V
400V ±1.6% rdg ±4dgt (50/60Hz)
600V ±2.0% rdg ±4dgt (-400Hz)
DC Current 400μA 0-4000μA (2 autoranging) ±2.0% rdg ±4dgt±1.0% rdg ±4dgt
4000μA
40mA 0-400mA (2 autoranging)
400mA
4A 0-10A (2 autoranging) ±1.6% rdg ±4dgt
10A Allowable measurement time: 10A (15 seconds max)
AC Current 400μA 0-40000μA (2 autoranging) ±2.6% ±4dgt (50/60Hz)
±3.0% rdg ±4dgt (-400Hz)
4000μA
40mA 0-400mA (2 autoranging) ±2.0% rdg ±4dgt (50/60Hz
±2.4% rdg ±4dgt (-400Hz)
400mA
4A 0-10A (2 autoranging) ±1.6% rdg ±4dgt
10A Allowable measurement time: 10A (15 seconds max)
Resistance 400Ω 0-40MΩ (6 autoranging) ±1.0% rdg ±4dgt
4kΩ
40kΩ
400kΩ
4MΩ
40M ±2.0% rdg ±4dgt
Diode Check Test current approx 0.4MΩ Unspecified
Continuity Check 0-400Ω Buzzer beeps below about 70Ω
Capacity 40nF -100μF (5 autoranging) ±3.5% rdg ±10 dgt
400nF ±3.0% rdg ±5dgt
4μF
40μF ±3.5% rdg ±5dgt
100μF
Frequency 5.12Hz -10MHz (8 autoranging)
Input sensitivity: -1MHz/more than 1.5V (RMS) over 1MHz/more than 2V (RMS)
±0.1% rdg ±5dgt
51.2Hz
512Hz
51.2kHz
512kHz
10mHz
Duty 0.1 – 99.9% (Pulse width/pulse period) ±2.5% rdg ± 5dgt
Reading Type Averaging
  • Kewtech KT115 Digital Multimeter
  • Test Leads
  • Batteries
  • Instruction Manual
  • Certificate of Conformity
