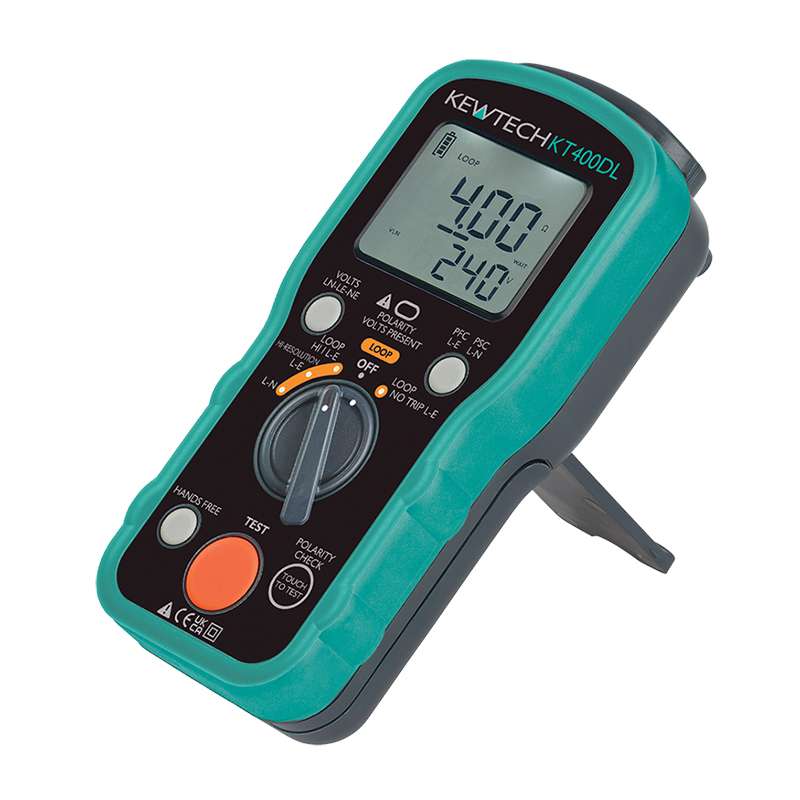

Kewtech KT400DL Loop impedance & PSC / PFC tester

Kewtech

£283.46 / £340.15 incl VAT

⚡ Hands free function

⚡ Magnet hanger for clipping onto metal consumer units

⚡ Polarity and voltage present warning LED

⚡ Supplied with mains lead and carry case

Available on back-order

Price Pledge

Calibration Certificate

Add Calibration to your Loop Tester.

Description

Description:

The KT400DL is a handheld advanced specification loop impedance tester with both low current and high current high-resolution options at 0.001 ohms.

It has a High resolution 0.001 & 0.01 ohm high current as well as accurate low current no trip tests, it also features a magnetic hanger for clipping to metal distribution boards.

This small, lightweight and compact tester makes for easy use when testing.

Key Features:

  • Low current no trip L – E loop test
  • High current L – E Loop test
  • High current, high resolution (0.001 ohm res)
  • PSC / PFC measurements
  • AC Voltage VLN, VLE, VNE
  • Distribution network polarity
  • Weight (g) Approximately 450g
  • VOLTAGE
  • NO TRIP L-E LOOP TEST (No trip L-E mode, 3 wire testing,
  • Phase – Neutral – Earth all connected)
  • Range Accuracy
  • 0 to 260 V ± (3% + 3 digits)
  • ACC063 Distribution board test lead set
  • Range Accuracy
  • 0.00 to 99.99 Ω ± (5% + 5 digits)
  • 100.0 to 499.9 Ω ± (3% + 3 digits)
  • HI-RESOLUTION, HI I L-E / L-N LOOP TEST (HI I L-E/L-N
  • mode, 3 wire testing, Phase – Neutral – Earth all connected)
  • Range Accuracy
  • 0.000 to 9.999 Ω + (3% + 30 mΩ)
  • 10.00 to 99.99 Ω + (3% + 3 digits)
  • 100.0 to 500.0 Ω + (3% + 3 digits)
  • Supply Voltage 195 – 260V (50 – 60 Hz)
  • Overprotection 440V
  • Power supply 4 x AA LR6 Batteries
  • Battery life 50 hours
  • Overvoltage category
  • CAT III 500V
  • CAT IV 300V
  • Operating temperature: 0 – 40ºC
  • Storage temperature -10 to 60ºC
  • Operating humidity 80% @ 31ºC to 50% @ 40ºC
  • Safety compliance BSEN 61010-2-030:2010
  • EMC compliance BSEN 61326-2-2:2013
  • Performance standard
  • BSEN 61557-1:2007
  • BSEN 61557-3:2007
  • Probes GS38 compliant
  • Dimension (mm) 180mm x 85mm x 50mm
