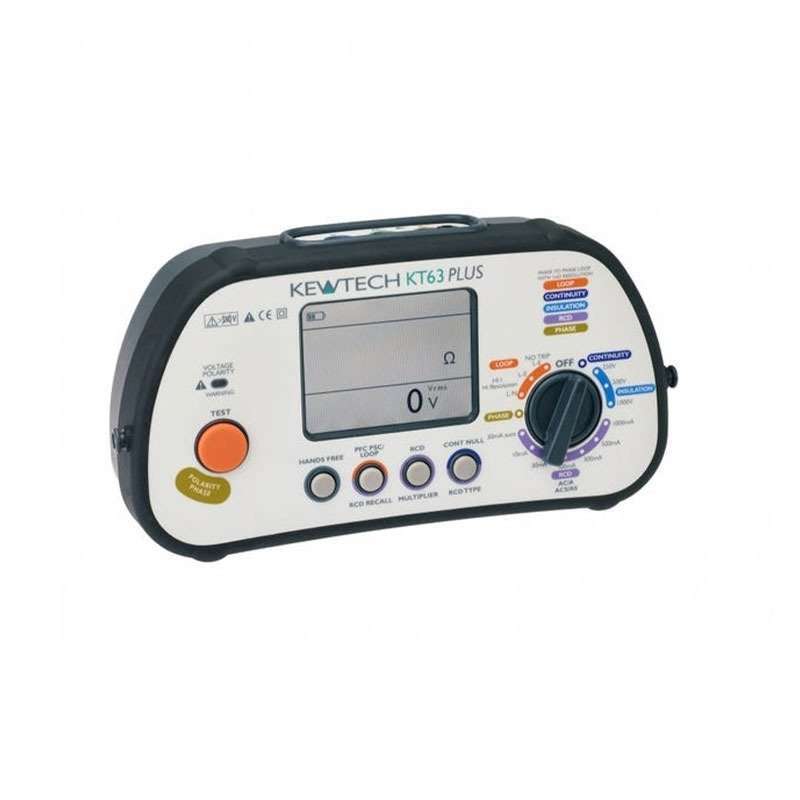

Kewtech KT63Plus 6-in-1 Multifunction Tester
£774.00 / £645.00 excl VAT
Easy to use – single rotary dial with four secondary function keys
Anti-trip technology loop test – for full no trip loop testing with RCDs of 30mA and above for all types (electronic & electro-mechanical) with very low susceptibility of RCD uplift and noise interference
Continuous live monitoring means no blown fuses or PCBs
UK specific RCD test, all six results are presented on one screen – no scrolling
Three ways to start a test – single press of the test button, handsfree use of the test button (continuous testing) or by the test button in the test probe
Description
Product Details
The Kewtech KT63 Plus Multifunction Tester can conduct PFC and PSC measurements without the user needing to alter the test probes. Its continuous live monitoring also prevents blown fuses and PCBs, moreover, the Kewtech KT63 Plus Multifunction Tester includes anti-trip technology enabling it to conduct full no-trip loop testing (with a low likelihood of RCD uplift and noise interference) on all electronic and electromechanical RCD types above 30mA. The Kewtech KT63 Plus Multifunction Tester is able to conduct RCD tests on RCDs rated 10, 30, 100, 300, 500, and 1000mA.
Key Features
- Anti-Trip Technology for full no trip LOOP testing on all RCD types
- Test button in the probe as well as lockdown test button for ‘hands-free’ testing
- Easy PFC & PSC measurement without the need to alter test probes
- 250, 500 & 1000V insulation tests with auto discharge
- Memory for test lead resistance compensation
- Backlit display
- RCD tests AC / A & ACS / AS
- Auto-test memory for RCD testing with all results shown on one screen, so no scrolling
- RCD ratings 10, 30, 100, 300, 500, 1000mA
- Phase Rotation
- Three ways to start a test – single press of the test button, handsfree use of the test button (continuous testing), or by the test button in the additional test probe
- Special DNO polarity test
- IP54
- End of line calibration certificate included
- Complies with BS7671
Specification:
| Loop Impedance | ||||
| Range | Measurement Range |
Accuracy | System Voltage range |
|
| High Current – Hi res, 2Wire | 0.000Ω to 9.999Ω |
/-(3% 30mΩ) | 100-440V AC | |
| Loop/PFC-PSC High Current 2 W 7A nom @ 230V |
0.00 to 500.0Ω |
/-(5% 3digits) | 100-440V AC | |
| Loop No Trip 3 W 13mA nom @ 230V | 0.00 to 500.0Ω |
/-(5% 3digits) | 195V – 253V AC | |
| Note | System voltage 50-60 Hz | |||
| RCD | ||||
| System Voltage Range |
Sytem frequency |
Nominal currrents (mA) |
Touch / fault votage |
Trip Time accuracy |
| 195 – 253V AC | 50-60 Hz | 30, 100, 300, 500 | 50V | /-(1% 1ms) |
| Test Current | 1/2 | 1 | x5 (30mA only) | Ramp |
| Accuracy | 0-10% | 10%-0% | 10%-0% | /-5% of rated I∆N |
| Ramp Characteristics | 20% to 110% of rated I∆N in 10% steps (300ms dwell time) | |||
| Continuity | ||||
| Measurement Range |
Accuracy | Open Circuit voltage |
Short circuit current at 2Ω |
Max Lead resistance null |
| 0.00Ω to 19.99kΩ | /-(3% 32 digits) | >4V – <10V | >200mA | 4Ω |
| Insulation | ||||
| Test Voltage | Measurement Range | Accuracy | Short Circuit current into 2kΩ |
|
| 250V | 0.001 to 200.0MΩ | /-(3% 2digits 10%/GΩ) | <2mA | |
| 200V | 0.001 to 500.0MΩ | /-(3% 2digits 5%/GΩ) | <2mA | |
| 1000V | 0.001 to 1000MΩ | /-(3% 2digits 2.5%/GΩ) | <2mA | |
| Output Voltage | Load | Accuracy | Output current | |
| 250V | 250Ω | -0% 20% | 1mA | |
| 500V | 500Ω | -0% 20% | 1mA | |
| 1000V | 1000Ω | -0% 20% | 1mA | |
| General Specifications | ||||
| Weight (With Batteries) | 965g | |||
| Battery Type | 6 x AA / LR6 Alkaline | |||
| Category Rating | 300V CAT IV 600V CAT III | |||
| Ingress Protection Rating | IP54 | |||
| Operating / Storage Temperature | 0°C to 40°C / -10°C to 60°C | |||
| Operating Humidity / Altitude | 80% @ 31°C to 50% @ 40 °C / 0 to 2000m | |||

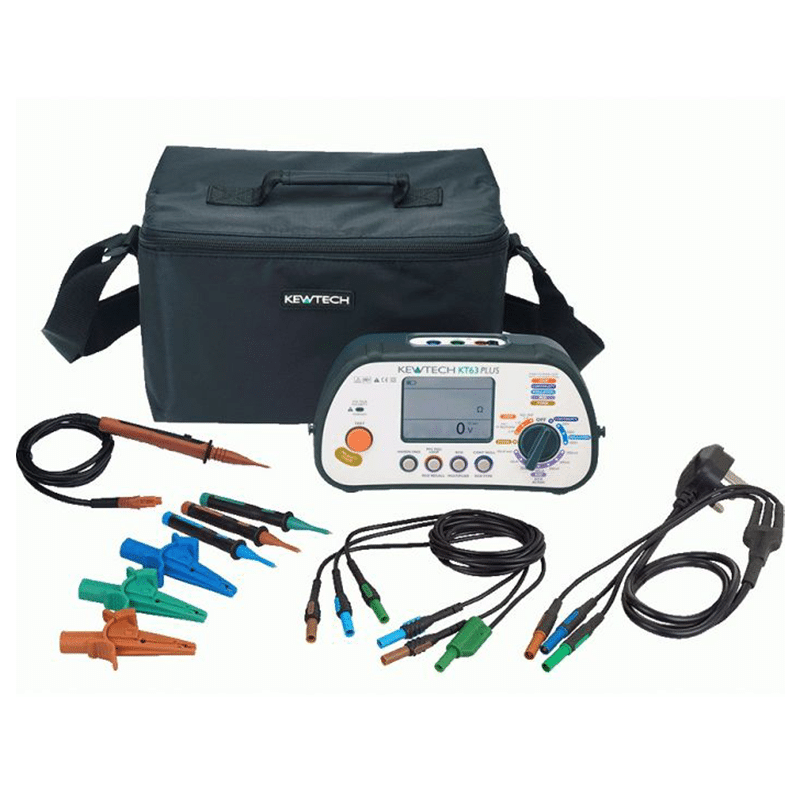

- Test lead with remote test button
- ACC063 G7 Test lead set
- KAMP12 mains lead
- Batteries
- Instruction Manual
