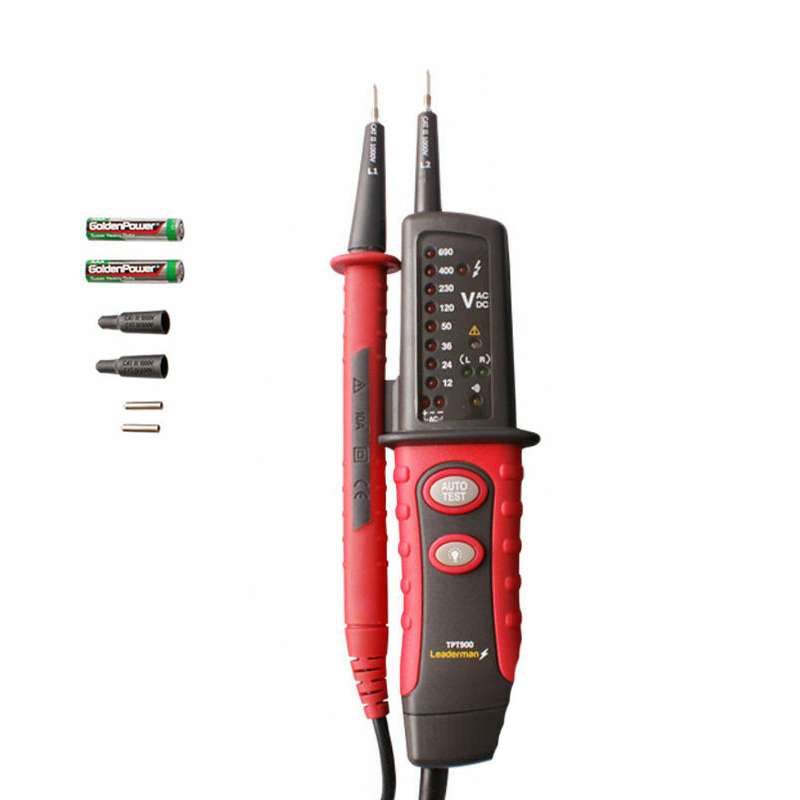

Leaderman LDM-TPT900 LED Two Pole Voltage and Continuity Tester


£42.00 / £50.40 incl VAT

The Leaderman TPT900 provides electricians with an easy to use, versatile voltage and continuity tester.
⚡ Made of high-quality rubber over-moulded construction and uses clear LED indication making it the professionals’ choice.
⚡ Indicates both AC and DC voltage from 12V to 690V with polarity indication.
⚡Built in flash light, continuity tester, self test button and single-pole phase indication.
Price Pledge


Leaderman LDM-TPT900 LED 2 Pole Voltage and Continuity Tester 6v to 690v AC/DC with Case

Product Details:

The Leaderman LDM-TPT900 LED 2 Pole Voltage and Continuity Tester, designed to meet the demanding needs of professional electricians. With its comprehensive range of features and user-friendly design, this tester is the perfect tool for accurately assessing voltage and continuity in both AC and DC circuits.

  • Quick and Easy Operation: The Leaderman TPT900 Voltage and Continuity Tester offer quick and easy operation, ideal for professional electricians seeking efficiency in their work.
  • Versatile Testing: This tester indicates both AC and DC voltage and sensitivity to polarity levels, offering a range of user-friendly tests including continuity and single-pole phase testing.
  • Robust Construction: Constructed from rubber for extra insulation, the TPT900 is designed to withstand the rigors of professional use. It boasts a safety rating of IP64 and complies with HSE GS38 regulations for added peace of mind.
  • Wide Voltage Range: With a voltage indication range from 6V to 690V AC/DC, the TPT900 is suitable for a variety of testing applications.
  • Protective Case Included: The tester comes with a protective case, ensuring safe storage and transportation between jobs.

Product Specifications:

  • Voltage Range: 6V to 690V AC/DC
  • Polarity Detection
  • Single-Pole Phase Test
  • Continuity Test
  • HSE GS38 Compliant Tip Caps
  • IP64 Rated
  • Overvoltage Class: CAT III 1000V / CAT IV 600V

What’s In The Box?

  • Leaderman TPT900 Voltage and Continuity Tester

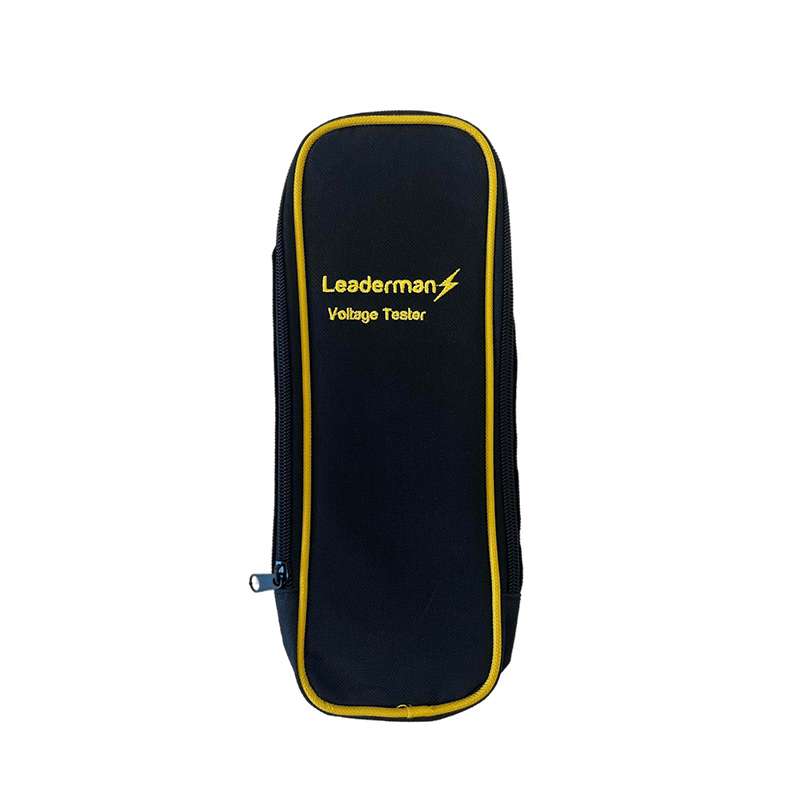

  • Protective Case

Upgrade your toolkit with the Leaderman LDM-TPT900 LED 2 Pole Voltage and Continuity Tester and experience efficiency, accuracy, and reliability in your electrical testing tasks.

  • Power supply: 2x 1.5V AAA Batteries
  • Temperature range: -10°C up to 55°C
  • Humidity: Max.85% relative humidity
  • Overvoltage class: CATIII -1000V
  • Voltage range: 12, 24, 36, 50, 120, 230, 400, 690V AC/DC
  • Tolerances: -30% to 0% of reading
  • Voltage detection: Automatic
  • Polarity detection: Full range
  • Range detection: Automatic
  • Response time: < 0.1s LED
  • ACV Frequency range: 50/60Hz
  • Automatic load (RCD): Yes
  • Internal basic load: approx. 3.1W at 600V
  • Peak current: 1s <0.2A / Is (5s) <3.5mA
  • Operation time: ED =30s
  • Recovery time: 10min
  • LED on: About 8V AC/D
  • Leaderman TPT-900
  • Leaderman Case
