Martindale Drummond MTL20PD-S Test Lamp and Proving Device

Martindale

£195.00 / £234.00 incl VAT

⚡ MTL20 robust design with finger shield
⚡ Includes 440V proving unit
⚡ Includes combination carry case
⚡ CAT IV 600V safety rating
⚡ 2 year Martindale warranty

Available on back-order

SKU: MAR-MTL20PD-S Category: Brand:

Description

Drummond MTL20PD-S Test Lamp and Proving Device

MPN: DRUMTL20PD-S

600V twin button test lamp with proving device

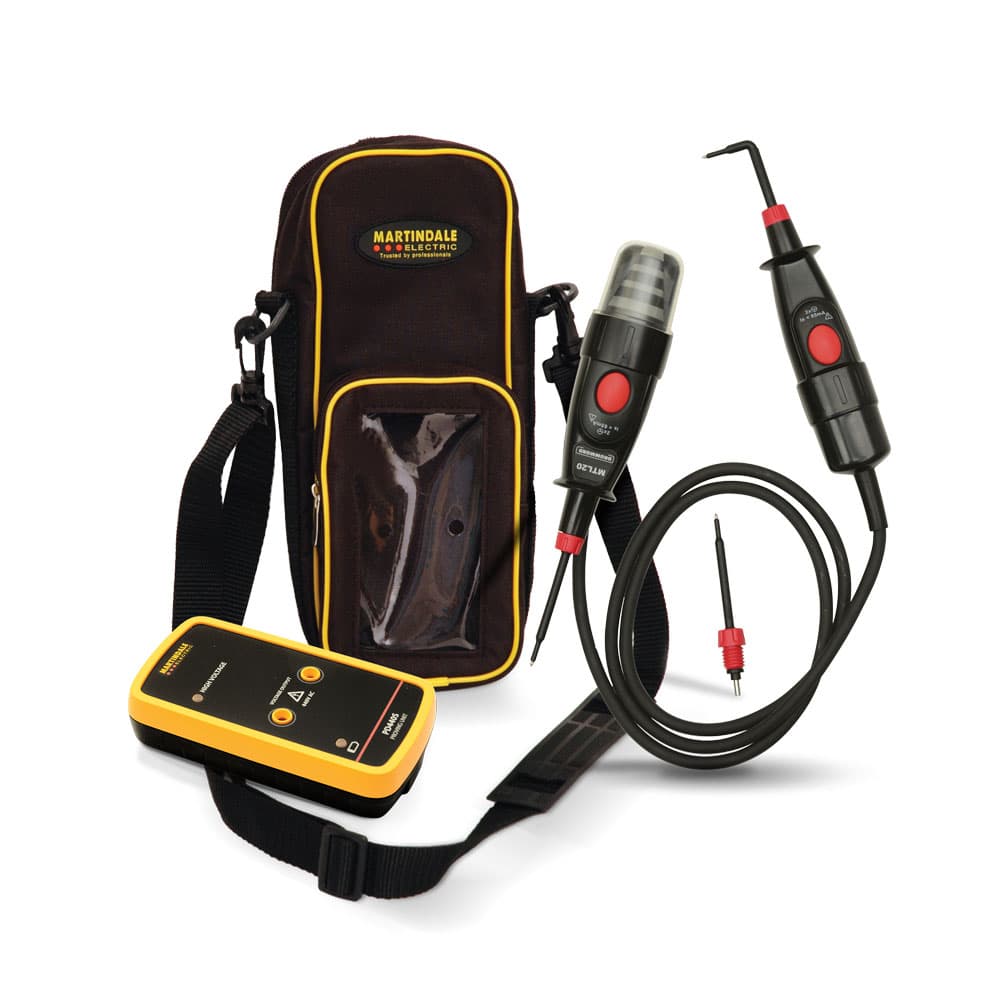

Martindale’s MTL20PD-S contains the Drummond MTL20 test lamp and PD440S proving device supplied with a tailor-made carry case made from heavy denier nylon. It has a clear window for access to test points on the proving unit without the need to remove it from the case.

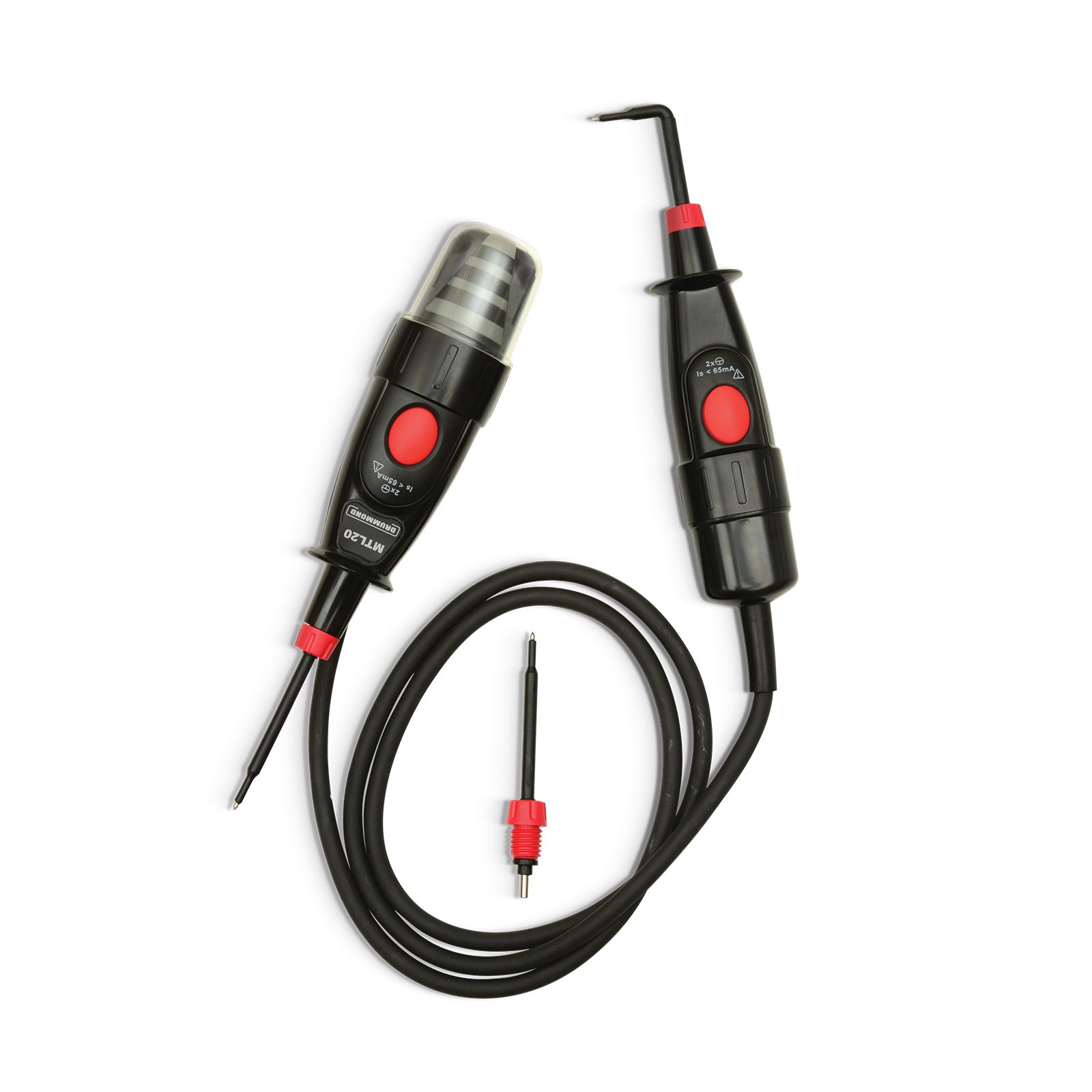

The MTL20 test lamp has a safe voltage indication from 50V – 500V AC / DC. Simultaneous depression of two buttons on the probe and instrument enables the unit to draw a high current to help identify phantom voltages.

The PD440S AC proving device proves the operation of voltage indicators, multimeters and test lamps at 440V

The kit fully meets the requirements of GS38 and proving dead procedures and includes: MTL20PDS 400V test lamp: 2 straight prods, 1 L-shaped prod and instruction manual, proving unit & combination carry case.

Voltage range: 500VAC, 750DC

LED Indication: ± 50, 100, 230, 400V AC/DC

Range detection: Automatic

Response time: <0.1s

Frequency range: DC, 40 – 65Hz

Test current: <3.5mA, with switch depressed 28mA @ 240 VAC, 60mA @ 500V AC

Temprange: -10°C..+55°C/at max. 85% RH

Proving Unit: 440V – PD440S

Complies with: BS EN 61243-3 GS38 CAT IV 600 V Class II double insulation

Warranty 2 Years

For full spec click: specDRUMMTL10PDS_MTL20PDS

MTL20PDS 400V test lamp: 2 straight prods, 1 L-shaped prod and instruction manual, proving unit & combination carry case
