Martindale FD550 Digital Circuit Breaker and Fuse Finder Kit

Martindale

£62.00 / £74.40 incl VAT

⚡ Microprocessor-controlled multi-level sensitivity for accurate fuse and breaker identification.
⚡ 6-segment bar graph displays progressive signal strength for faster identification.
⚡ Non-contact voltage indicator for added safety during use.
⚡ Two operational modes: Automatic mode for fool-proof identification and Manual mode for rapid fuse finding.
⚡ Two Year Martindale Warranty

In stock

SKU: MAR-FD550 Category: Brand:

Description

Martindale FD550 Digital Circuit Breaker and Fuse Finder Kit

Product Details:

The Martindale FD550 Digital Circuit Breaker and Fuse Finder Kit is a high-quality, microprocessor-controlled tool designed for precise fuse and breaker identification. Featuring advanced multi-level sensitivity, it allows for efficient and accurate detection of fuses and circuit breakers in a wide range of applications. The digital display, along with a 6-segment bar graph, offers a clear and progressive indication of signal strength, making it easier to identify circuit elements quickly. In addition to its main fuse-finding capabilities, the FD550 includes a non-contact voltage indicator, adding an extra layer of convenience and safety. The FD550 operates in two distinct modes—automatic and manual—giving users flexibility and ease in the identification process.

Key Features:

  • Microprocessor-controlled multi-level sensitivity for precise identification.
  • 6-segment bar graph displays progressive signal strength for faster identification.
  • Non-contact voltage indicator for added safety.
  • Two operational modes: Automatic mode for fool-proof identification and Manual mode for rapid fuse finding.
  • Automatic sensitivity adjustment in automatic mode for hassle-free use.
  • Digital stepping for sensitivity setting in manual mode.
  • Tracing depth for fuse assignment up to approximately 10 cm, depending on local conditions.
  • Compact and lightweight design for portability and ease of use.
  • Complies with EMC standards for reliable performance.
  • CAT III 300V rated transmitter and CAT IV 600V rated receiver ensure safety during use.

What’s Included:

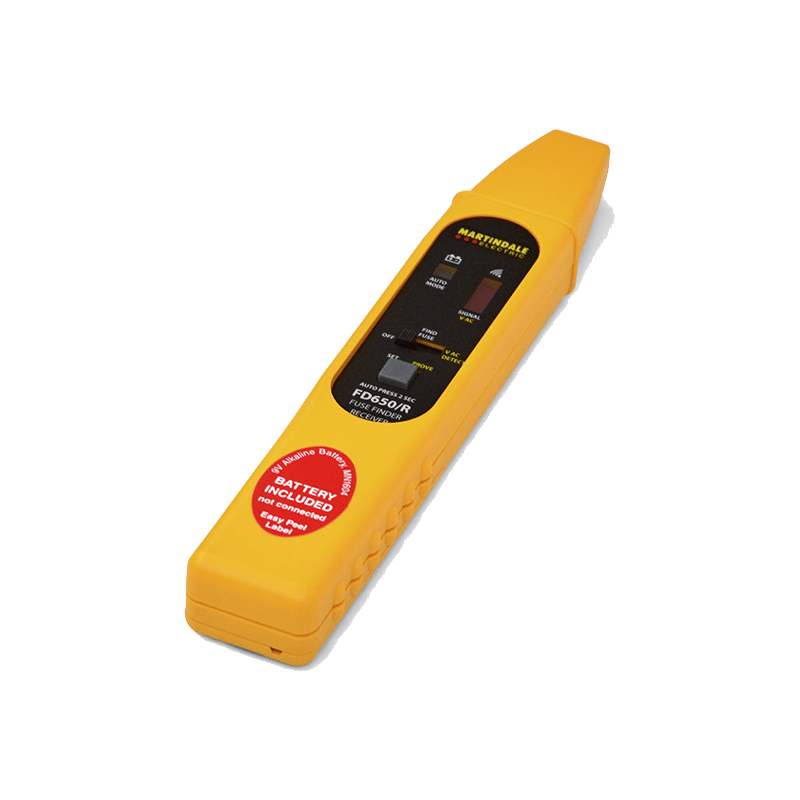

  • FD650/R receiver
  • FD500/T transmitter
  • 9V battery (MN1604/PP3, IEC 6LA61, alkaline only)
  • Instruction manual

Specifications

FD500 Transmitter
Voltage rating230V
Frequency range30-70Hz
Switching frequency5Hz approx.
Transmission pulse width1.7µS approx.
Transmission pulse20A max
Earth leakageNil
Power consumption1W approx.
IP ratingIP20
Supplyfrom mains
Dimensions65 x 65 x 50mm
Weight65g approx.
FD650 Receiver
Tracing depth for fuse assignment0-10cm approx. depending on local conditions
Sensitivity settingvia digital stepping
IP ratingIP20
Supply9V battery, MN1604/PP3, IEC 6LA61 (alkaline only)
Weight135g approx. (incl battery)
Dimensions202 x 32 x 22mm
Complies withEMC standardsTransmitter: CAT III 300V

Receiver: CAT IV 600V

FD550 includesFD650/R receiverFD500/T transmitter

Battery



Comparisons

Fuse findingFD500FD550FD650
From wall sockets
From light fittings & distribution boards
Live or dead fuse finding & cable tracing
Analogue detection
Digital detection
Automode
Multiple transmitter capability
Kit includesFD500/R
FD500/T
FD650/R
FD500/T
FD650/R
FD600/T
Leads
