Martindale PC15250 Phase Rotation & Continuity Indicator

Martindale

£150.00 / £125.00 excl VAT

⚡ Neon indication of phase rotation

⚡ Proves continuity

⚡ Indicates direction of phase rotation

⚡ Identify faulty lines

⚡ 2 Year warranty

Description

Martindale’s PC15250 is a simple and effective instrument for quickly checking the that machinery and 3-phase outlets are wired correctly and won’t experience problems or pose a danger to others when used.

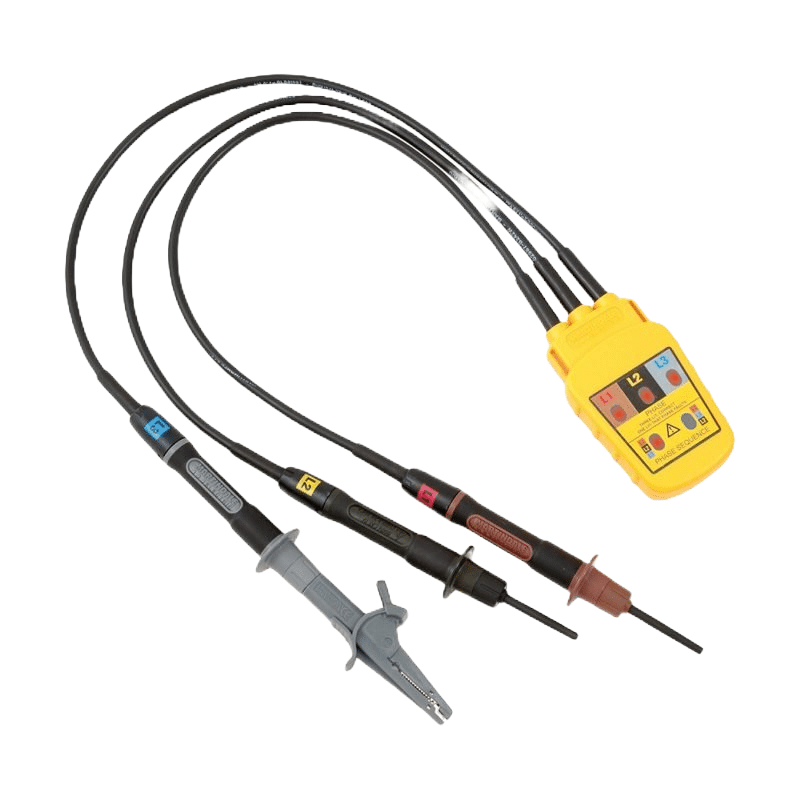

The PC1520 consists of a indicator attached via a flexible cable to three probes. These probes feature retractable GS38 tips, allowing users to increase or decrease the overall length of the probe depending upon the application it is being used in.

Each probe is designed for use with a different part of a three-phase system and depending upon what is detected the main testing body of this unit will light up LED indicators to showcase that phases are correct/incorrect.

Martindale PC15250 Phase Rotation and Continuity Indicator Key Features

  • For use on systems from 100V to 600V
  • Test machinery and three phase systems
  • CAT III 600V
  • GS38 and BS EN61010 compliant
Electrical
Input Voltage Range 50V to 600V AC (Phase to Phase)
Input Frequency 40 to 60Hz
Input Current < 3mA
Environmental
Temperature (Operating and Storage) -10°C to 55°C
Humidity (Operating and Storage) 85% R.H
Altitude Up to 2000m
Pollution Degree 2
General
Power From circuit under test
Fuses 600V 0.5A 50kA HRC rated fuses (6x32mm) x 3, one in each probe
Dimensions 116(L) x 69(W) x 25(D) mm
Weight Packed 361g approx
Includes Instructions
Safety
Conforms GS38 & BS EN61557-7, CAT IV 600V
Class II, Double Insulation
EMC BS EN61326-2-2
  • Martindale PC15250 Phase Rotation and Continuity Indicator
  • Fused Crocodile Clip
  • Two Fused Probes with Retractable Shrouds
