Martindale VIPD VI13800 Fuseless Voltage Indicator

  • Industry standard voltage indicator
  • Same as VI13700 but with no fuse
  • Fully GS38 compliant
  • Two Year Fluke Warranty

£43.99 exc VAT / £52.79 inc VAT

90 in stock

Add Personalised Certificate of Conformity

Add Personalised Conformity Certificate

Product price
Additional options total:
Order total:

Description

Martindale VI13800 Fuseless Voltage Indicator

2 Years Martindale Warranty


Product Details

The new VI13800 is identical to the industry standard VI13700 except that it doesn’t have a fuse.

This is so that it will comply with BS EN61243-3 2010 which came into force in May 2013. This standard bans the use of fuses in 2 pole voltage indicators.

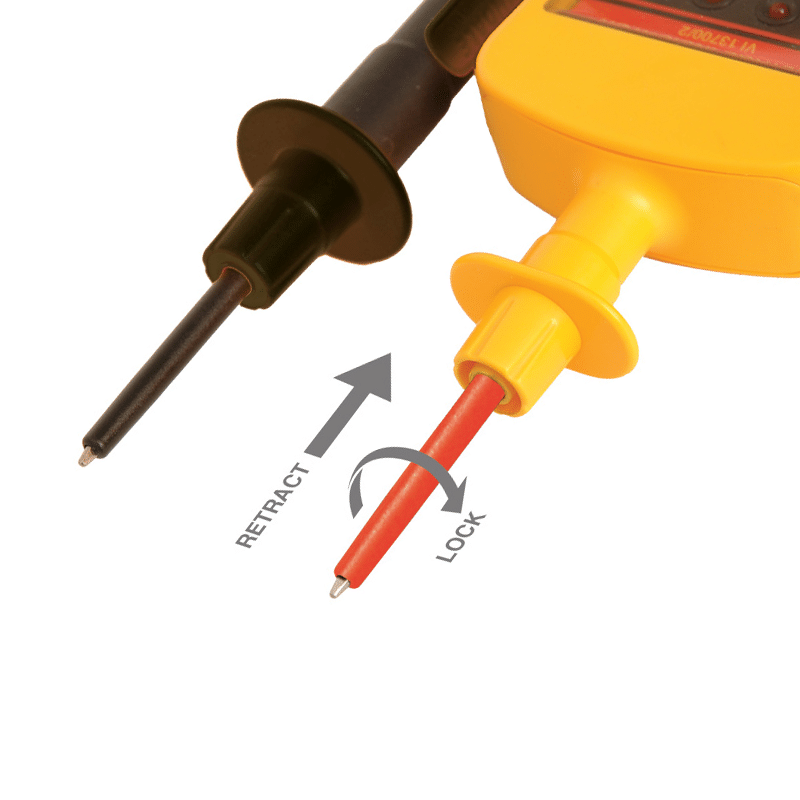

The VI13800 shows all the key safety characteristics of the older VI-13700/2. It has retractable prods, cable with an inner cover of a different colour to quickly identify damage cables and impedances at both ends to limit current flow if a lead should be broken, eg. by being sheared in a steel cabinet.

Features

  • Industry standard voltage indicator
  • Same as VI13700 but with no fuse
  • Fully GS38 compliant
  • Heavy duty double insulated leads
  • Bright LEDs
  • Polarity Indication

Specification

Nominal voltage range:
50 – 600V AC/DC rms

Nominal voltage threshold indications:
50, 100, 200, 400 V AC/DC rms

Nominal Voltage threshold tolerance:
< 85% of marked threshold indication

Polarity indication:
from approx 12V AC/DC rms

AC/DC voltage detection:
automatic

Range detection:
automatic

Response time:
< 0.1s

Frequency range:
DC, 1 – 400 Hz

Test current:
< 3.5mA at 600V DC/AC rms

Duty ratio:
30s ON (operated) / 240s OFF (recovery)

Temperature:
-10°C to 55°C

Humidity:
85% R.H.

Altitude:
up to 2000m

Environmental Protection:
IP54

General:
Power: from circuit under test

Safety:
Conforms to BS EN 61243-3:2010 CAT IV 600 V, CAT III 1000V
Class II, Double Insulation
Pollution Degree: 2

EMC:
Conforms to BS EN 61326-1

Weight:
130g approx.

Dimensions:
205(L) x 67(W) x 27(D) mm
